Discussion in 'Installing Linux' started by ChristopherValenti12, Jul 27, 2018.

Page 8 of 12
  1. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    That's great. Have sound too?
    Kaitain, Jul 22, 2019
    #141
  2. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:
    I thought this was happening before but wasn't sure The 430 cut sound online and in my music player, system wide I guess. On the bright side I get much higher rez choices now with the 430 than I did with the 340 Screenshot from 2019-07-22 11-05-11.png
    Daniel~, Jul 22, 2019
    #142
  3. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    Would've been nice to know that a couple of days ago; ) Ok, next: while still connected directly to your tv...

    Reinstall the edid app:

    sudo apt-get install read-edid
    sudo get-edid -q|parse-edid

    Paste output
    Kaitain, Jul 22, 2019
    #143
  4. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:
    I can only test the TV sound as my receiver isn't in the HDMI loop right new.
    BUT! Yes we have TV sound,
    Daniel~, Jul 22, 2019
    #144
  5. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    Ah splendid, so the problem is just convincing your AVR that it exists. Bear with me
    Kaitain, Jul 22, 2019
    #145
  6. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:
    Sorry It was just an after though, we had already moved on and I didn't register to check on it till now.
    What do you want from me I'm only a man! LOL


    daniel@daniel-System-Product-Name:~$ sudo apt-get install read-edid
    [sudo] password for daniel:
    Reading package lists... Done
    Building dependency tree
    Reading state information... Done
    The following packages were automatically installed and are no longer required:
    linux-headers-4.15.0-43 linux-headers-4.15.0-43-generic
    linux-headers-4.15.0-45 linux-headers-4.15.0-45-generic
    linux-headers-4.15.0-46 linux-headers-4.15.0-46-generic
    linux-headers-4.15.0-47 linux-headers-4.15.0-47-generic
    linux-headers-4.15.0-48 linux-headers-4.15.0-48-generic
    linux-headers-4.15.0-50 linux-headers-4.15.0-50-generic
    linux-headers-4.15.0-51 linux-headers-4.15.0-51-generic
    linux-image-4.15.0-43-generic linux-image-4.15.0-45-generic
    linux-image-4.15.0-46-generic linux-image-4.15.0-47-generic
    linux-image-4.15.0-48-generic linux-image-4.15.0-50-generic
    linux-image-4.15.0-51-generic linux-modules-4.15.0-43-generic
    linux-modules-4.15.0-45-generic linux-modules-4.15.0-46-generic
    linux-modules-4.15.0-47-generic linux-modules-4.15.0-48-generic
    linux-modules-4.15.0-50-generic linux-modules-4.15.0-51-generic
    Use 'sudo apt autoremove' to remove them.
    The following additional packages will be installed:
    libx86-1
    The following NEW packages will be installed:
    libx86-1 read-edid
    0 upgraded, 2 newly installed, 0 to remove and 0 not upgraded.
    Need to get 94.1 kB of archives.
    After this operation, 336 kB of additional disk space will be used.
    Do you want to continue? [Y/n] y
    Get:1 http://la-mirrors.evowise.com/ubuntu bionic/universe amd64 libx86-1 amd64 1.1+ds1-10.2 [75.2 kB]
    Get:2 http://la-mirrors.evowise.com/ubuntu bionic/universe amd64 read-edid amd64 3.0.2-1build1 [18.9 kB]
    Fetched 94.1 kB in 0s (193 kB/s)
    Selecting previously unselected package libx86-1:amd64.
    (Reading database ... 540535 files and directories currently installed.)
    Preparing to unpack .../libx86-1_1.1+ds1-10.2_amd64.deb ...
    Unpacking libx86-1:amd64 (1.1+ds1-10.2) ...
    Selecting previously unselected package read-edid.
    Preparing to unpack .../read-edid_3.0.2-1build1_amd64.deb ...
    Unpacking read-edid (3.0.2-1build1) ...
    Setting up libx86-1:amd64 (1.1+ds1-10.2) ...
    Processing triggers for libc-bin (2.27-3ubuntu1) ...
    Processing triggers for man-db (2.8.3-2ubuntu0.1) ...
    Setting up read-edid (3.0.2-1build1) ...
    daniel@daniel-System-Product-Name:~$ sudo get-edid -q|parse-edid
    Checksum Correct

    Section "Monitor"
    Identifier "HISENSE"
    ModelName "HISENSE"
    VendorName "HEC"
    # Monitor Manufactured week 12 of 2016
    # EDID version 1.3
    # Digital Display
    DisplaySize 1150 650
    Gamma 2.20
    Option "DPMS" "false"
    Horizsync 15-136
    VertRefresh 24-75
    # Maximum pixel clock is 600MHz
    #Not giving standard mode: 1280x720, 60Hz
    #Not giving standard mode: 1280x960, 60Hz
    #Not giving standard mode: 1280x1024, 60Hz

    #Extension block found. Parsing...
    #WARNING: I may have missed a mode (CEA mode 97)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 94)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 95)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 96)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 93)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 106)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 107)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 101)
    #WARNING: I may have missed a mode (CEA mode 102)
    #WARNING: I may have missed a mode (CEA mode 98)
    #WARNING: I may have missed a mode (CEA mode 99)
    #WARNING: I may have missed a mode (CEA mode 100)
    Segmentation fault (core dumped)
    daniel@daniel-System-Product-Name:~$
    Last edited: Jul 22, 2019
    Daniel~, Jul 22, 2019
    #146
  7. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    Ok we can remove the edid app again - served its purpose

    sudo apt-get remove read-edid
    Kaitain, Jul 22, 2019
    #147
  8. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:
    daniel@daniel-System-Product-Name:~$ sudo get-edid -q|parse-edid
    Checksum Correct

    Section "Monitor"
    Identifier "HISENSE"
    ModelName "HISENSE"
    VendorName "HEC"
    # Monitor Manufactured week 12 of 2016
    # EDID version 1.3
    # Digital Display
    DisplaySize 1150 650
    Gamma 2.20
    Option "DPMS" "false"
    Horizsync 15-136
    VertRefresh 24-75
    # Maximum pixel clock is 600MHz
    #Not giving standard mode: 1280x720, 60Hz
    #Not giving standard mode: 1280x960, 60Hz
    #Not giving standard mode: 1280x1024, 60Hz

    #Extension block found. Parsing...
    #WARNING: I may have missed a mode (CEA mode 97)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 94)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 95)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 96)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 93)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 106)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 107)
    #DOUBLE WARNING: It's your first mode, too, so this may actually be important.
    #WARNING: I may have missed a mode (CEA mode 101)
    #WARNING: I may have missed a mode (CEA mode 102)
    #WARNING: I may have missed a mode (CEA mode 98)
    #WARNING: I may have missed a mode (CEA mode 99)
    #WARNING: I may have missed a mode (CEA mode 100)
    Segmentation fault (core dumped)
    daniel@daniel-System-Product-Name:~$
    Daniel~, Jul 22, 2019
    #148
  9. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:
    daniel@daniel-System-Product-Name:~$ sudo apt-get remove read-edid
    Reading package lists... Done
    Building dependency tree
    Reading state information... Done
    The following packages were automatically installed and are no longer required:
    libx86-1 linux-headers-4.15.0-43 linux-headers-4.15.0-43-generic
    linux-headers-4.15.0-45 linux-headers-4.15.0-45-generic
    linux-headers-4.15.0-46 linux-headers-4.15.0-46-generic
    linux-headers-4.15.0-47 linux-headers-4.15.0-47-generic
    linux-headers-4.15.0-48 linux-headers-4.15.0-48-generic
    linux-headers-4.15.0-50 linux-headers-4.15.0-50-generic
    linux-headers-4.15.0-51 linux-headers-4.15.0-51-generic
    linux-image-4.15.0-43-generic linux-image-4.15.0-45-generic
    linux-image-4.15.0-46-generic linux-image-4.15.0-47-generic
    linux-image-4.15.0-48-generic linux-image-4.15.0-50-generic
    linux-image-4.15.0-51-generic linux-modules-4.15.0-43-generic
    linux-modules-4.15.0-45-generic linux-modules-4.15.0-46-generic
    linux-modules-4.15.0-47-generic linux-modules-4.15.0-48-generic
    linux-modules-4.15.0-50-generic linux-modules-4.15.0-51-generic
    Use 'sudo apt autoremove' to remove them.
    The following packages will be REMOVED:
    read-edid
    0 upgraded, 0 newly installed, 1 to remove and 0 not upgraded.
    After this operation, 69.6 kB disk space will be freed.
    Do you want to continue? [Y/n] y
    (Reading database ... 540548 files and directories currently installed.)
    Removing read-edid (3.0.2-1build1) ...
    Processing triggers for man-db (2.8.3-2ubuntu0.1) ...
    daniel@daniel-System-Product-Name:~$
    Daniel~, Jul 22, 2019
    #149
  10. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    Excellent. I noticed in the screenshots before that you'd set the screen to only 30Hz in nVidia Settings. The whole point of this exercise is to get you 4K@60Hz, and thus get rid of that awful flickering... so leave it set to either "Auto" or 60Hz in future.

    Anyway, xrandr showed it was a 4K@60Hz desktop, so we now have that capability. Watch this space > <
    Kaitain, Jul 22, 2019
    #150
  11. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:

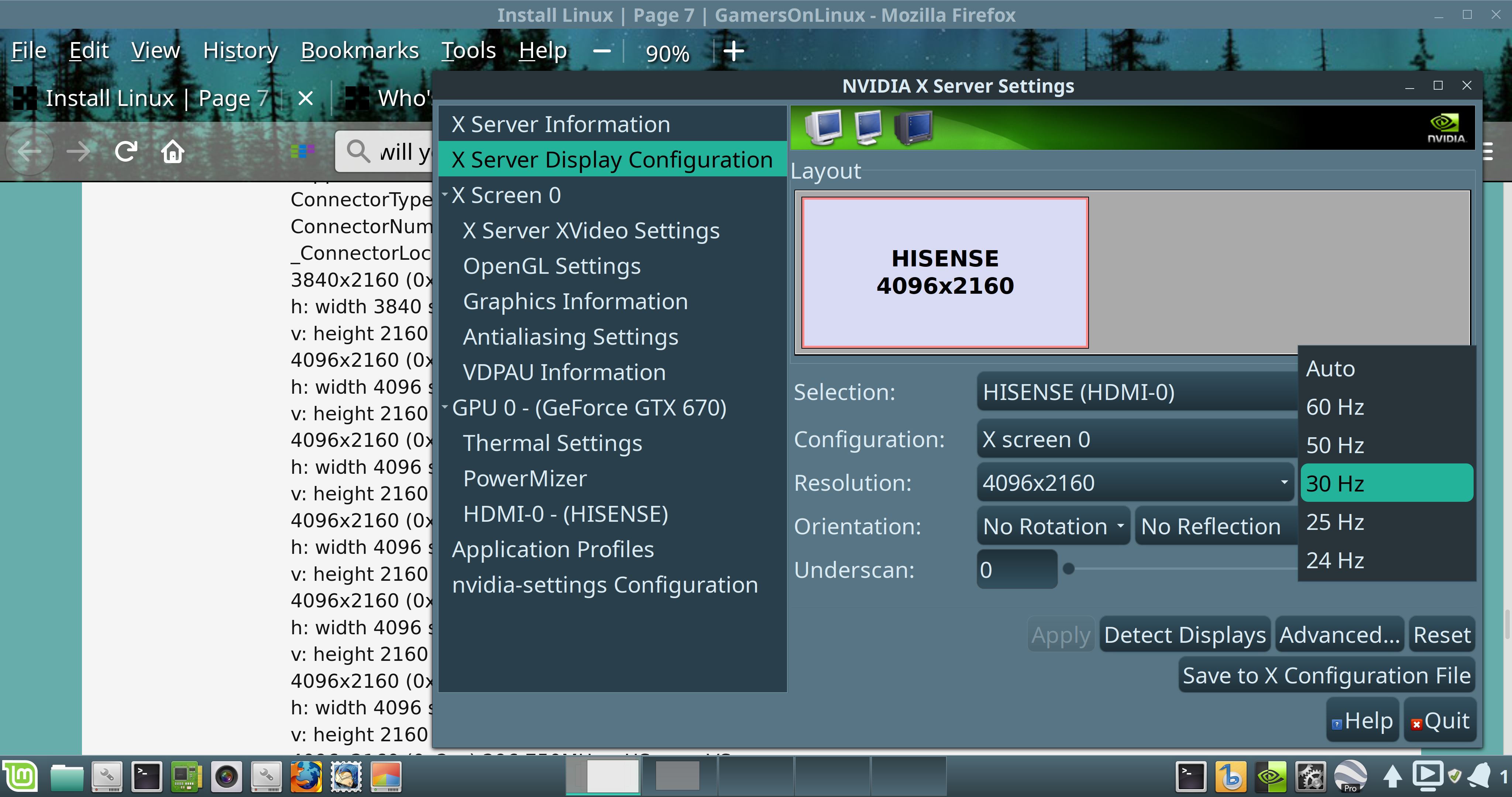

    Now at 60hz and happy to be there":O}

    Previous it would only go to 30hz max when at 4096. I just checked it on a whim.
    And...
    your the one who has to know what we are doing so keep a closer eye on me! LOL
    Last edited: Jul 22, 2019
    Daniel~, Jul 22, 2019
    #151
  12. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    OK, so here's what we do next, because having proven that there's nothing wrong with either your computer, or your TV, we now just have to convince your AVR to play nicely. Leave everything connected to the TV just for the moment.

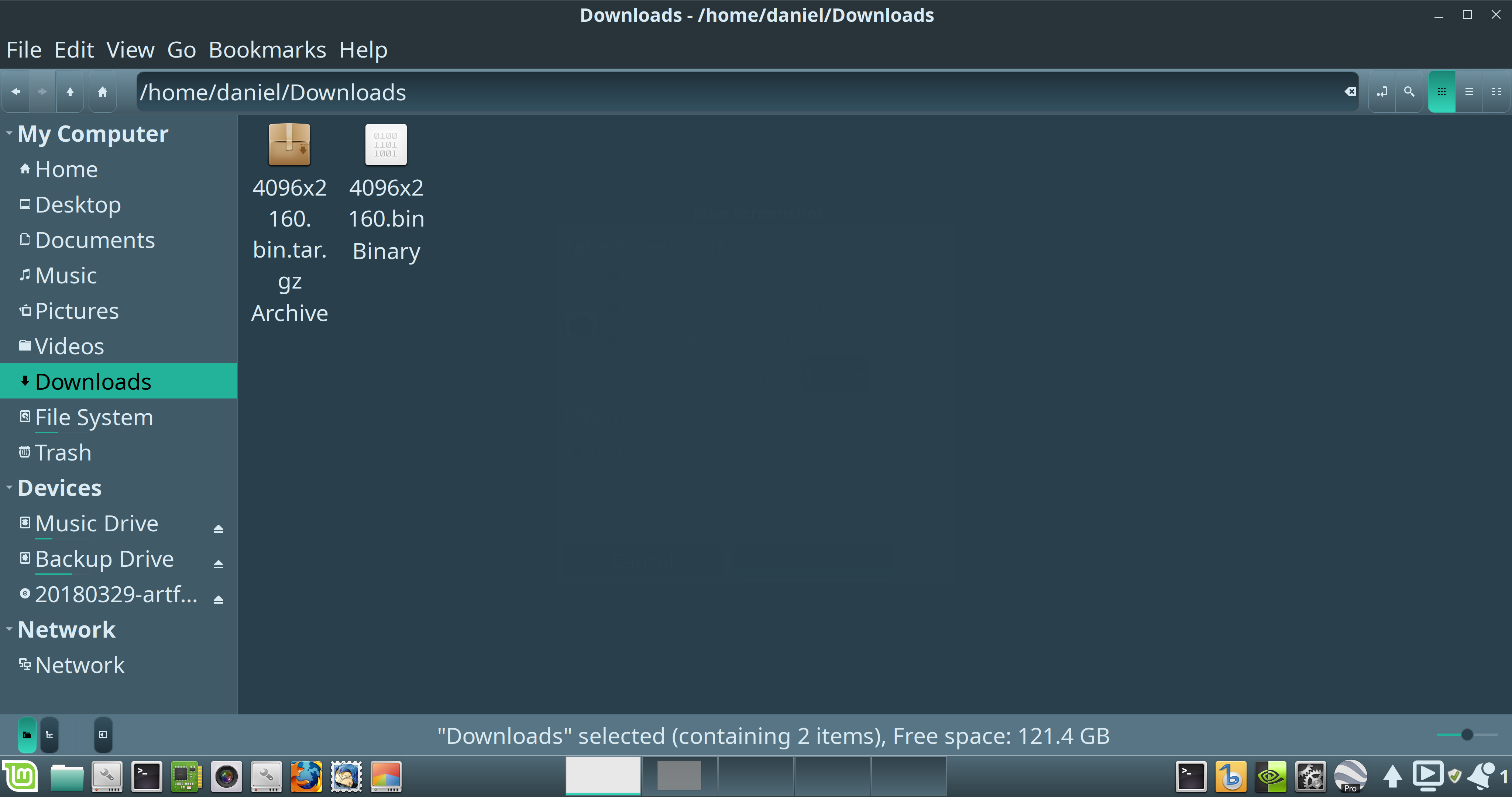

    Download the attached file. I assume it downloads again to /home/daniel/Downloads

    Then
    cd /home/daniel/Downloads
    tar -xzf 4096x2160.bin.tar.gz
    sudo cp 4096x2160.bin /etc/X11/.

    Then do this:

    sudo nvidia-xconfig -s --no-composite --force-generate --output-xconfig=/etc/X11/xorg.conf.d/20-nvidia.conf.test

    Then

    cat /etc/X11/xorg.conf.d/20-nvidia.conf.test

    and paste the output

    Attached Files:

    Kaitain, Jul 22, 2019
    #152
  13. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:
    daniel@daniel-System-Product-Name:~$ cd /home/daniel/Downloads
    daniel@daniel-System-Product-Name:~/Downloads$ tar -xzf 4096x2160.bin.tar.gz
    tar (child): 4096x2160.bin.tar.gz: Cannot open: No such file or directory
    tar (child): Error is not recoverable: exiting now
    tar: Child returned status 2
    tar: Error is not recoverable: exiting now
    daniel@daniel-System-Product-Name:~/Downloads$ sudo cp 4096x2160.bin /etc/X11/.
    [sudo] password for daniel:
    Sorry, try again.
    [sudo] password for daniel:
    cp: cannot stat '4096x2160.bin': No such file or directory
    daniel@daniel-System-Product-Name:~/Downloads$ sudo cp 4096x2160.bin /etc/X11/.
    cp: cannot stat '4096x2160.bin': No such file or directory
    daniel@daniel-System-Product-Name:~/Downloads$ sudo nvidia-xconfig -s --no-composite --force-generate --output-xconfig=/etc/X11/xorg.conf.d/20-nvidia.conf.test
    Package xorg-server was not found in the pkg-config search path.
    Perhaps you should add the directory containing `xorg-server.pc'
    to the PKG_CONFIG_PATH environment variable
    No package 'xorg-server' found

    ERROR: Unable to write to directory '/etc/X11/xorg.conf.d'.

    daniel@daniel-System-Product-Name:~/Downloads$ cat /etc/X11/xorg.conf.d/20-nvidia.conf.test
    cat: /etc/X11/xorg.conf.d/20-nvidia.conf.test: No such file or directory
    daniel@daniel-System-Product-Name:~/Downloads$ i

    Attached Files:

    Daniel~, Jul 22, 2019
    #153
  14. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    OK, you needed to download the file I'd attached to my last message before attempting to run the instructions - rookie mistake, but still, one that rather stopped the rest from working.
    Kaitain, Jul 22, 2019
    #154
  15. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    Oh... and I guess you're on Wayland?
    Kaitain, Jul 22, 2019
    #155
  16. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:
    Actually I did it first. Happy to run this again, after all it's me we are dealing with me here..

    daniel@daniel-System-Product-Name:~$ cd /home/daniel/Downloads
    daniel@daniel-System-Product-Name:~/Downloads$ tar -xzf 4096x2160.bin.tar.gz
    tar (child): 4096x2160.bin.tar.gz: Cannot open: No such file or directory
    tar (child): Error is not recoverable: exiting now
    tar: Child returned status 2
    tar: Error is not recoverable: exiting now
    daniel@daniel-System-Product-Name:~/Downloads$

    Still doesn't see it?
    Last edited: Jul 22, 2019
    Daniel~, Jul 22, 2019
    #156
  17. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:
    No savy Wayland?
    Daniel~, Jul 22, 2019
    #157
  18. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    Not the grub.txt file from earlier today, the 4096x2160.bin.tar.gz file I attached in message 152.
    Kaitain, Jul 22, 2019
    #158
  19. Daniel~

    Daniel~ Chief BBS Administrator Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    11,354
    Likes Received:
    170
    Trophy Points:
    63
    Location:
    Greenwater WA
    Home page:
    Screenshot from 2019-07-22 12-56-28.png Ok I dumped the existing file and re downloaded from 152 and followed from there

    daniel@daniel-System-Product-Name:~$ cd /home/daniel/Downloads
    daniel@daniel-System-Product-Name:~/Downloads$ tar -xzf 4096x2160.bin.tar.gz
    daniel@daniel-System-Product-Name:~/Downloads$ sudo cp 4096x2160.bin /etc/X11/.
    [sudo] password for daniel:
    daniel@daniel-System-Product-Name:~/Downloads$ sudo nvidia-xconfig -s --no-composite --force-generate --output-xconfig=/etc/X11/xorg.conf.d/20-nvidia.conf.test
    Package xorg-server was not found in the pkg-config search path.
    Perhaps you should add the directory containing `xorg-server.pc'
    to the PKG_CONFIG_PATH environment variable
    No package 'xorg-server' found

    ERROR: Unable to write to directory '/etc/X11/xorg.conf.d'.

    daniel@daniel-System-Product-Name:~/Downloads$ cat /etc/X11/xorg.conf.d/20-nvidia.conf.test
    cat: /etc/X11/xorg.conf.d/20-nvidia.conf.test: No such file or directory
    daniel@daniel-System-Product-Name:~/Downloads$
    Daniel~, Jul 22, 2019
    #159
  20. Kaitain

    Kaitain Active Member

    Joined:
    Jul 24, 2016
    Messages:
    373
    Likes Received:
    34
    Trophy Points:
    28
    OK, it's 11pm and I'm up at 5am, so need to sleep now. We'll get this working tomorrow - I'm pretty sure we're just a couple of button-clicks away.

    EDIT could you also:
    Open nvidia-settings
    In the menu-bar on the left click where it says "HDMI-0 HISENSE" then on its page click "acquire EDID"

    Select the type as Binary, then save it in /home/daniel as something like hisense.bin
    Kaitain, Jul 22, 2019
    #160
Page 8 of 12

Share This Page
