Spellforce Platinum Guide

Discussion in 'Guides' started by Daerandin, Jan 27, 2015.

  • by Daerandin, Jan 27, 2015 at 7:14 PM
  • Daerandin

    Daerandin Well-Known Member

    Joined:
    Oct 18, 2013
    Messages:
    1,148
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Northern Norway
    Home page:

    Spellforce is a blend of rpg and rts, and this game manages this blend masterfully. Most of the game is very heavy on real time strategy elements, but through the entire game you have your main character that will keep gaining experience, skills and equipment. The game is divided into maps, and almost every map have a lot of territory to explore and many side quests for those who enjoy such diversions. Some maps play more like traditional rpg games where you only have your main character and a party of heroes. On such maps, you either explore the wilderness or a huge city in traditional rpg style.


    The guide will explain how to setup Steam in PlayOnLinux so that you can install and play the game in steam.

    Tips & Specs

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux explained

    Arch Linux 64-bit
    PlayOnLinux 4.2.5
    Wine 1.7.35

    Setup PlayOnLinux

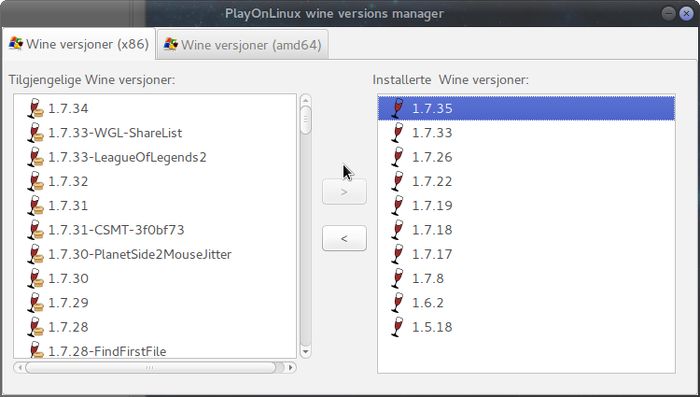

    Launch PlayOnLinux and select 'Tools' and 'Manage Wine versions'

    In the new window that appears, scroll through the 'Available Wine versions' box to find '1.7.35' and click on the right pointing arrow to install it, afterwards it will appear on the right side under 'Installed Wine versions'
    If you have a 64-bits system, make sure you have selected the 'Wine versions (x86)' tab above, although it works well on 64-bit as well to my experience, I just will not cover it in this guide


    Just close the window. Back at the main PlayOnLinux window, select 'Install'

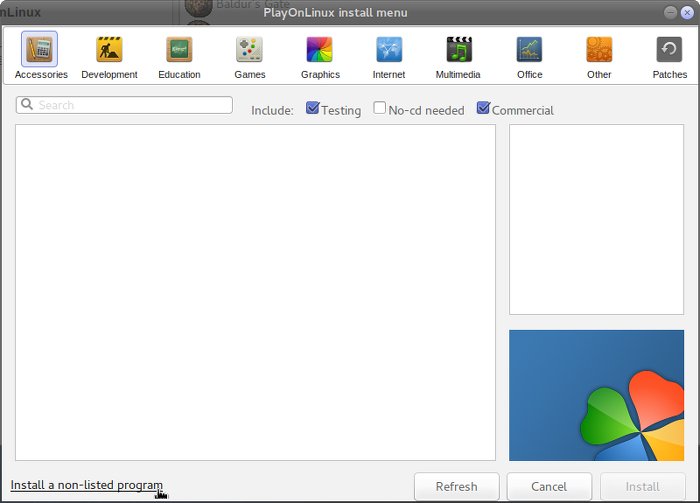

    Click on 'Install a non-listed program'

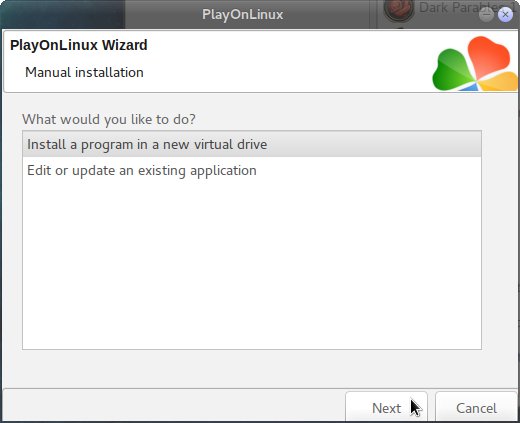

    Select 'Install a program in a new virtual drive'

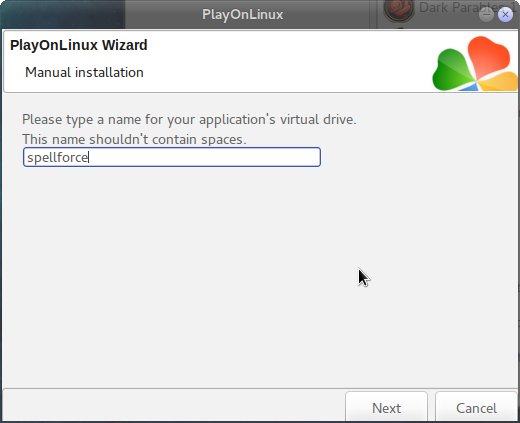

    Name the virtual drive "spellforce"


    On the next window, select 'Use another version of Wine', 'Configure wine' and 'Install some libraries'

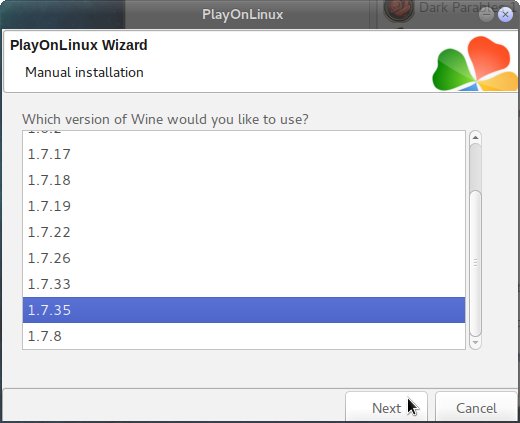

    On the wine selection window, select the 1.7.35 version and click 'Next'. Make sure you select '32-bits window installation' if you are on a 64-bit system, although as mentioned earlier, it should also work using a 64-bit virtual drive if so desired.


    When the wine configuration window appear, select the 'Graphics' tab, and click the checkbox for all four options. Make sure that you set the resolution to your desktop resolution. My desktop is at 1920 x 1080, so I set that for the wine virtual desktop resolution.


    Note: Even though the language is Norwegian in my screenshot, the layout will look the same for you

    Next we will do a workaround for an issue with the Steam overlay. For some people it appears to be fixed, but there are still people reporting it as an issue on WineHQ, so it is best to disable the Steam overlay.

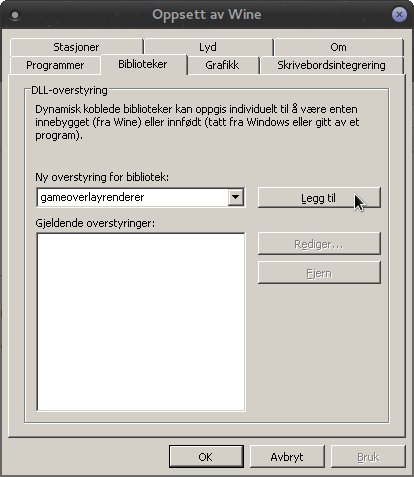

    Now select the 'Libraries' tab, and under 'New override for library:' type in "gameoverlayrenderer" and click 'Add'

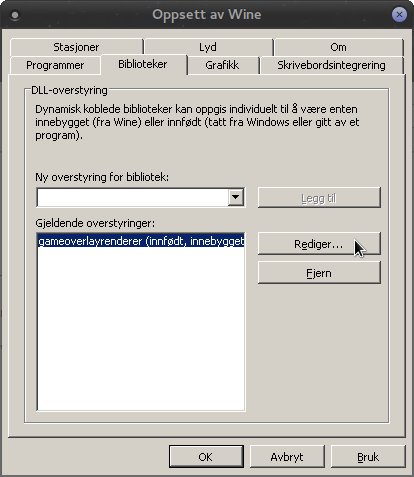

    Now find and select it on the list below, then click on 'Edit'


    In the new window that appears, select 'Disable', then simply click OK to close the wine config window.

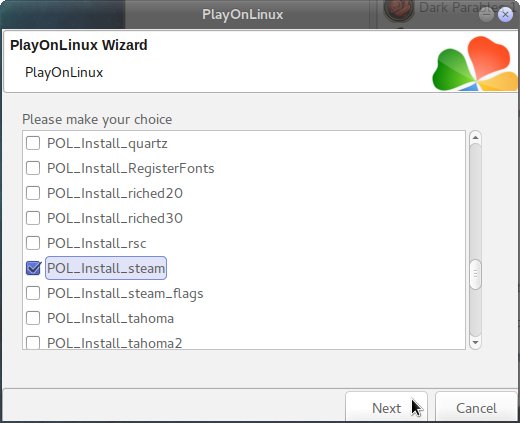

    When you come to the selection of libraries, select POL_Install_steam


    Then click Next

    You have to go through the Steam install process manually. I always prefer to install Steam by using this library in PlayOnLinux since it takes care of the missing font issue in Steam, while also installing the corefonts library so it looks better than just a manual Steam install.

    Just click Next


    This install process is pretty straightforward. Click to agree to the EULA, then just click Next through the next few screen, until you can click Install.

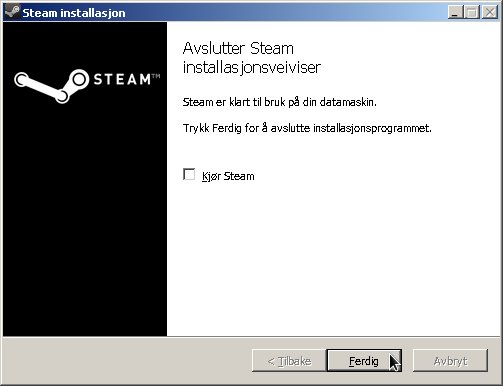

    When the Steam installation is finished, make sure you uncheck the box for starting Steam, we do not want to start Steam at this point.

    After you have unchecked the box for starting Steam, you can click on Finished

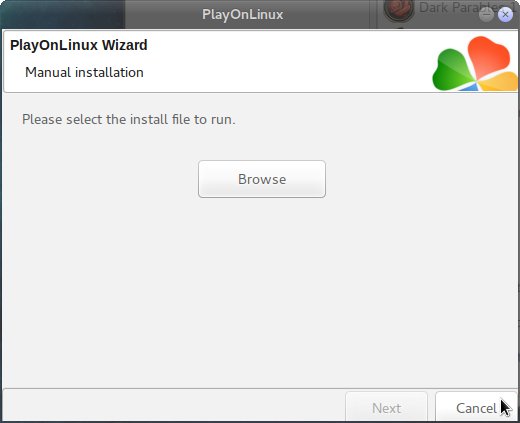

    When it asks you for the install file to run, click on 'Cancel'

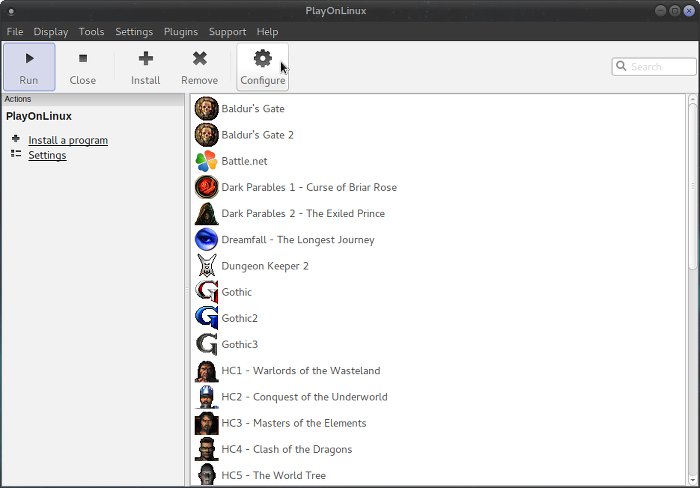

    The virtual drive has already been set up by this point and there is no need to run any install file. Now back at the main PlayOnLinux window, click on 'Configure', it does not matter what game shortcut is selected when you click 'Configure' so don't worry about that.

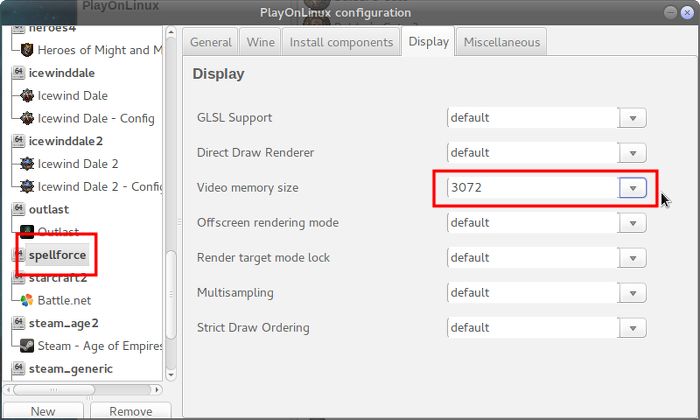

    On the left side, find the virtual drive you just set up, it will be listed with the same name you typed in during set-up. Look for 'spellforce', when you find it make sure to select it. Now click on the 'Display' tab on the top. Change 'Video memory size' to reflect your GPU memory.


    Check the screenshot above for reference. It is very important that you select the virtual drive you just set up before making further changes.

    Now click on the 'General' tab, then click 'Make a new shortcut from this virtual drive'

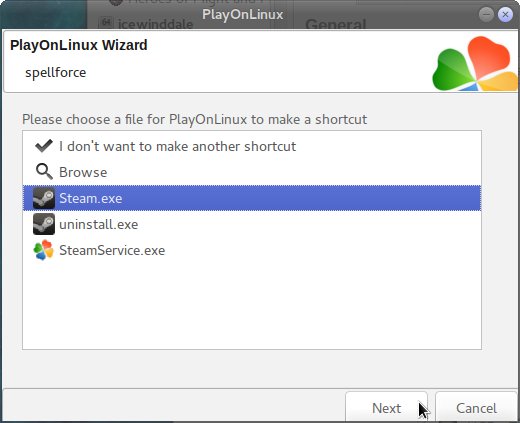

    Select Steam.exe and click next. You can name the shortcut "Steam - Spellforce" then click 'I don't want to make another shortcut' and click next.


    At this point you can close the PlayOnLinix configuration window and start Steam from the Shortcut in the main PlayOnLinux window. First Steam will update


    Once this update is finished, you may encounter this error message


    This can be safely ignored, just click Next and then continue by logging in to Steam

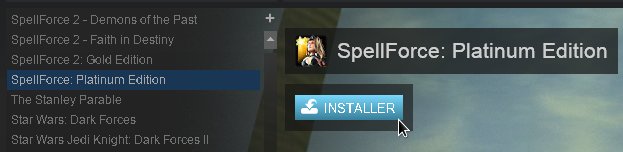

    Now just find the game in your game library, and click Install


    The game is now ready to play. The first time you launch the game, it is going to install Gamespy arcade. This has a tendency to hang on the first time install. If you are unable to close the install window for gamespy, you can simply Alt-TAB to switch to the PlayOnLinux window. From here click on Tools from the top menu, then click on Close all PlayOnLinux Software. You can then start it again from the main PlayOnLinux window, and this time the game should run.

    Note on Resolution

    This game only support a select few screen resolutions. If you are happy with those available from the video options in the game, then I suggest sticking with it as it is the easiest way to play this game.

    Keep in mind that the following is all optional, you need only read through this if you want to set a custom resolution.

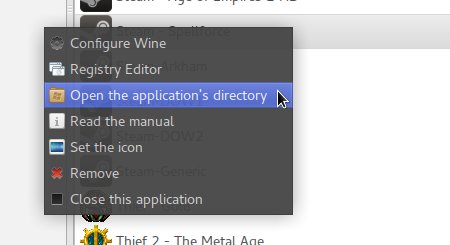

    However, should you for example want a different resolution, then it is possible achieve that, but there are still limitations to this workaround. Right click on the game shortcut in PlayOnLinux and then click on "Open the application's directory"


    From here, navigate to:

    steamapps --> common --> Spellforce Platinum Edition

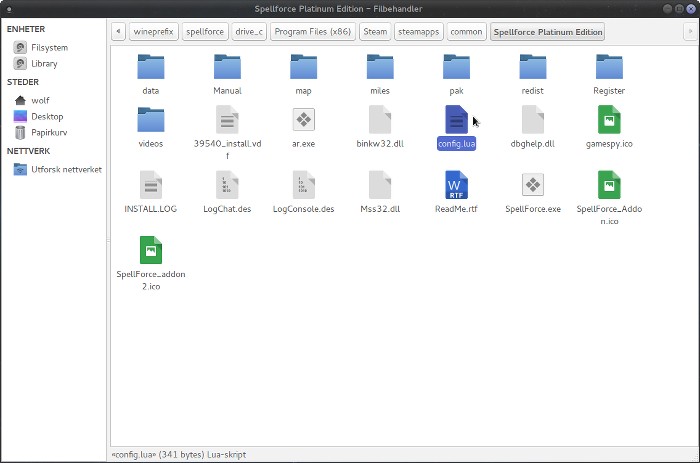

    Here you should find a file named "config.lua" Open this file with a text editor. There are several variables listed here, all with an array of settings. Within the one labeled Graphics, you should add two options at the end: WindowWidth and WindowHeight

    Here is the section from my file:

    Code:
    Graphic =
    {
        ShowHitInfo = 3,
        ScreenResolution = 7,
        AvoidExcessiveFrameBuffering = 0,
        VSync = 1,
        FlatShades = 1,
        EffectLightmap = 1,
        EnvironmentMapping = 1,
        AdornMode = 3,
        ObjectFadeDistance = 100,
        ShadowType = 1,
        TextureQuality = 4,
        Filtering = 4,
        WindowWidth = 1600,
        WindowHeight = 1050,
    }

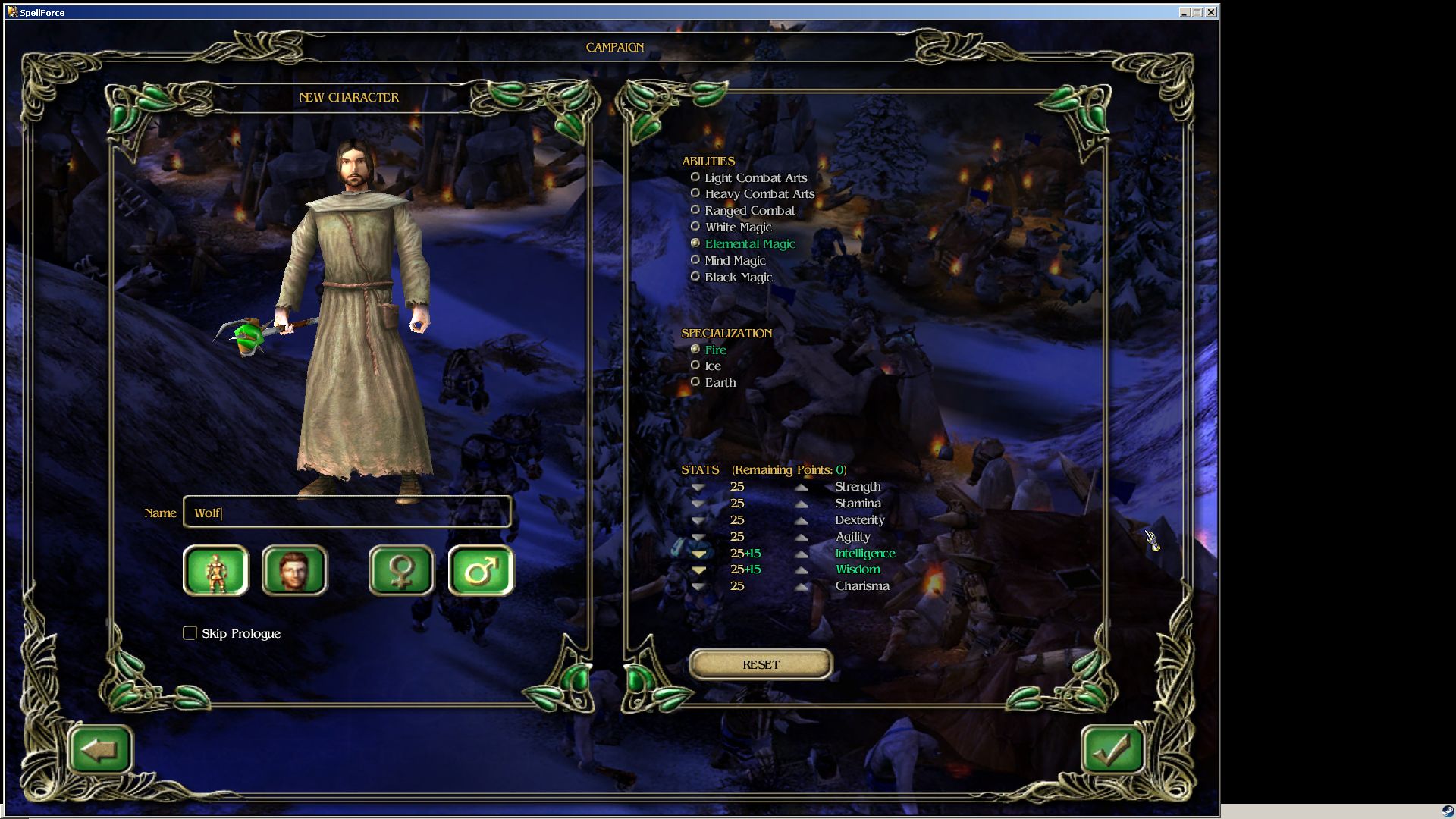

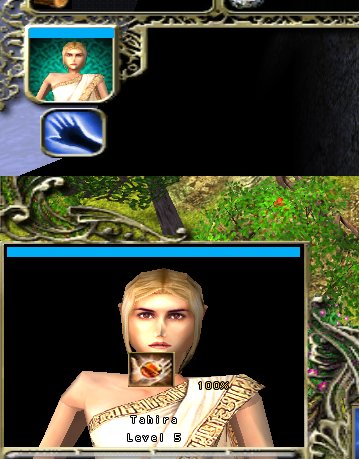

    Note that the only change I made, was to add those two last entries. Here you can simply test several different numbers to fit your screen. The problem here is that the game will actually display incorrectly with certain numbers. Below is an example of incorrect display


    As can be seen, the in-game font is incorrect, and character portraits only display your mana, not your health. So you don't know how much health you have left by looking at your portrait, which will make the game extremely difficult. The incorrect font is also very difficult to read.

    In my experience, WindowWidth must be set to 1600 or lower. I do not know if WindowHeight have any limitations.

    Lastly, in order to make use of your custom defined resolution, you need to launch the game in window mode. In order to do this, you need to set launch options for the game within Steam. So run start Steam for this game from PlayOnLinux.
    1. Right-click on the game title under the Library in Steam and select Properties.
    2. Under the General tab click the Set launch options... button.
    3. Enter -window into the box for launch properties.
    4. Close the game's Properties window and launch the game.
    The game will not launch fullscreen, but will be a window within the wine virtual desktop. You change this virtual drive to run without a virtual desktop if you would prefer. Personally I prefer to keep the virtual desktop, but instead change the background color to black. The screenshot below display how I play the game

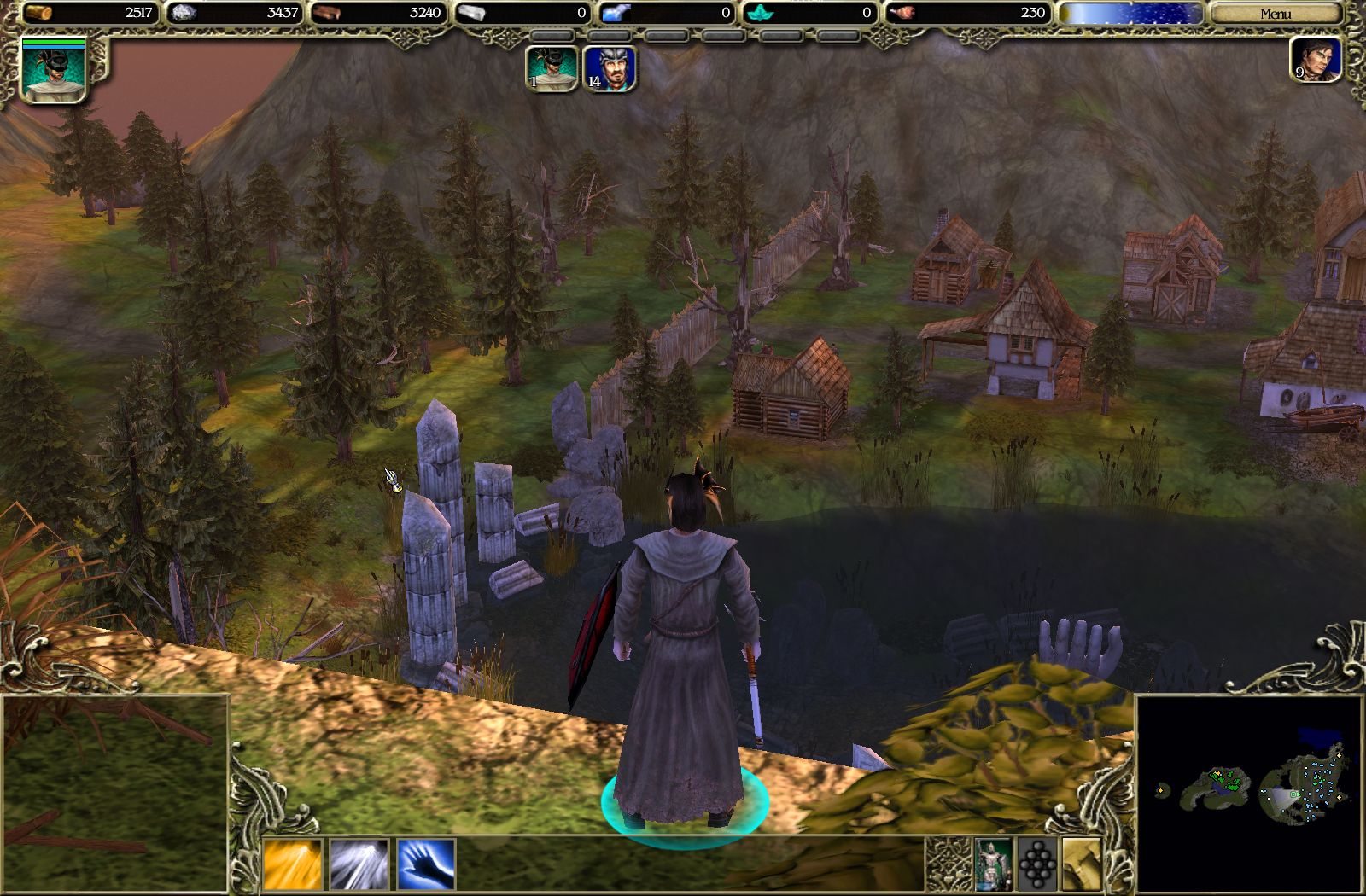

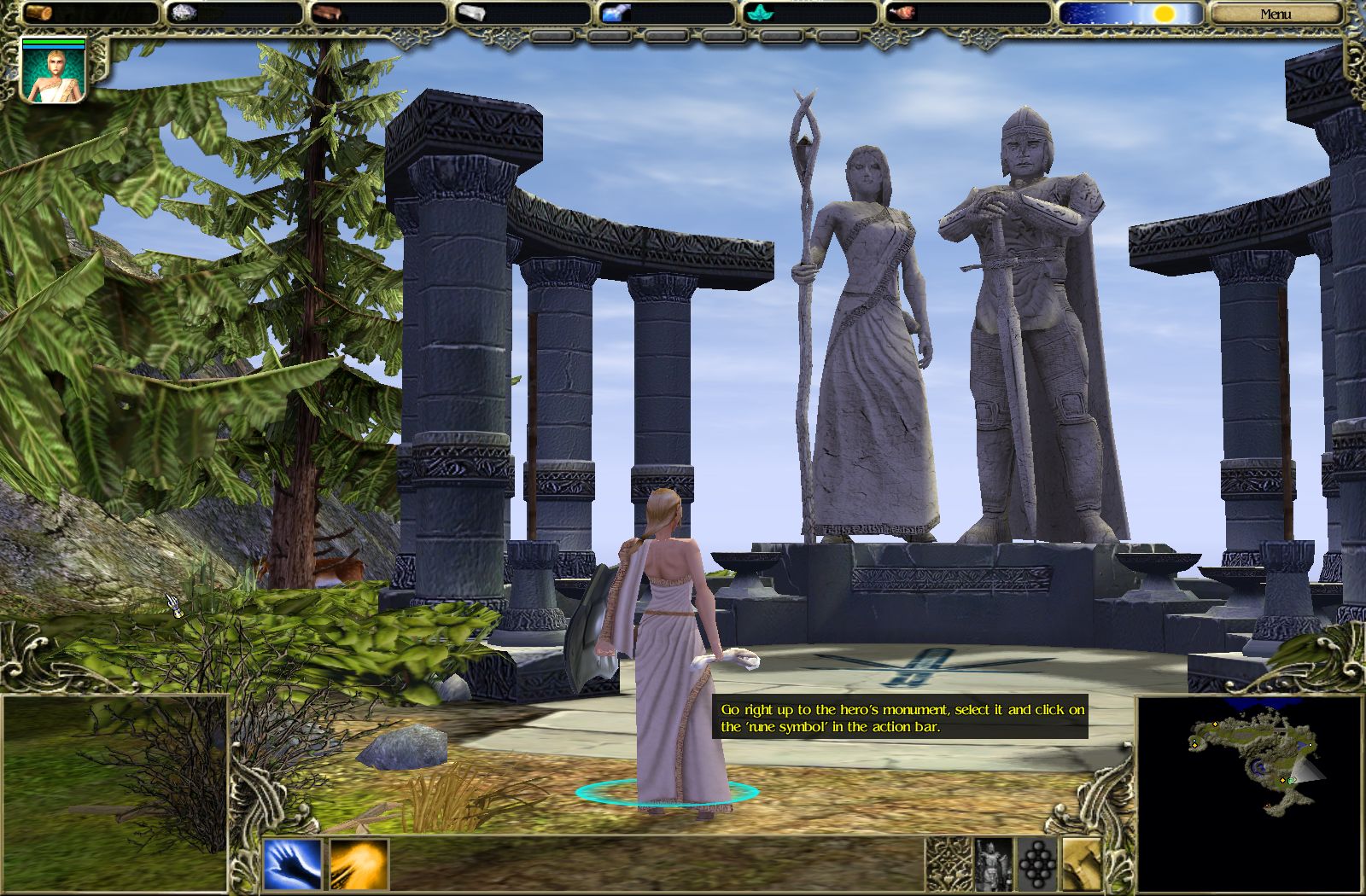

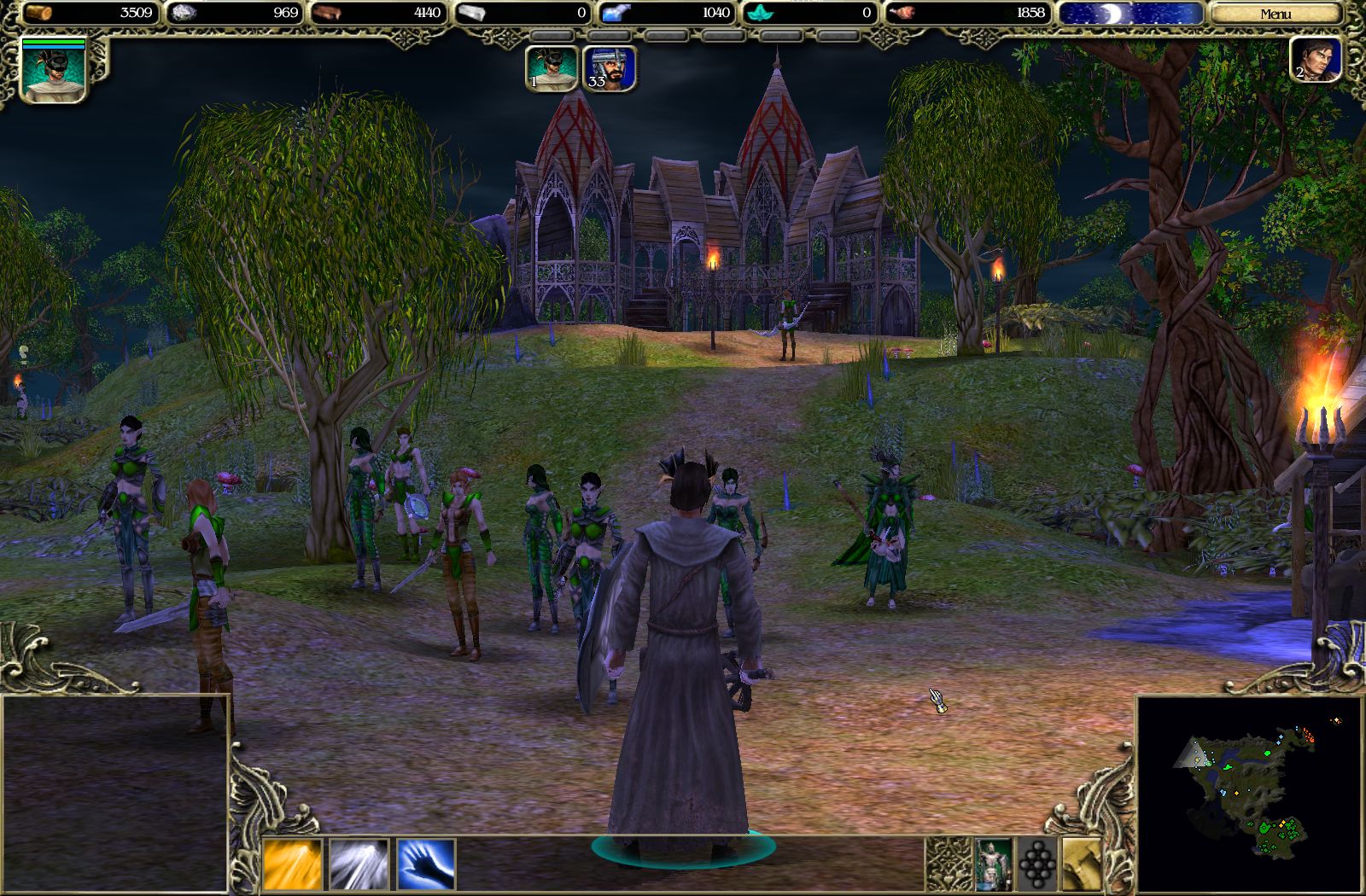

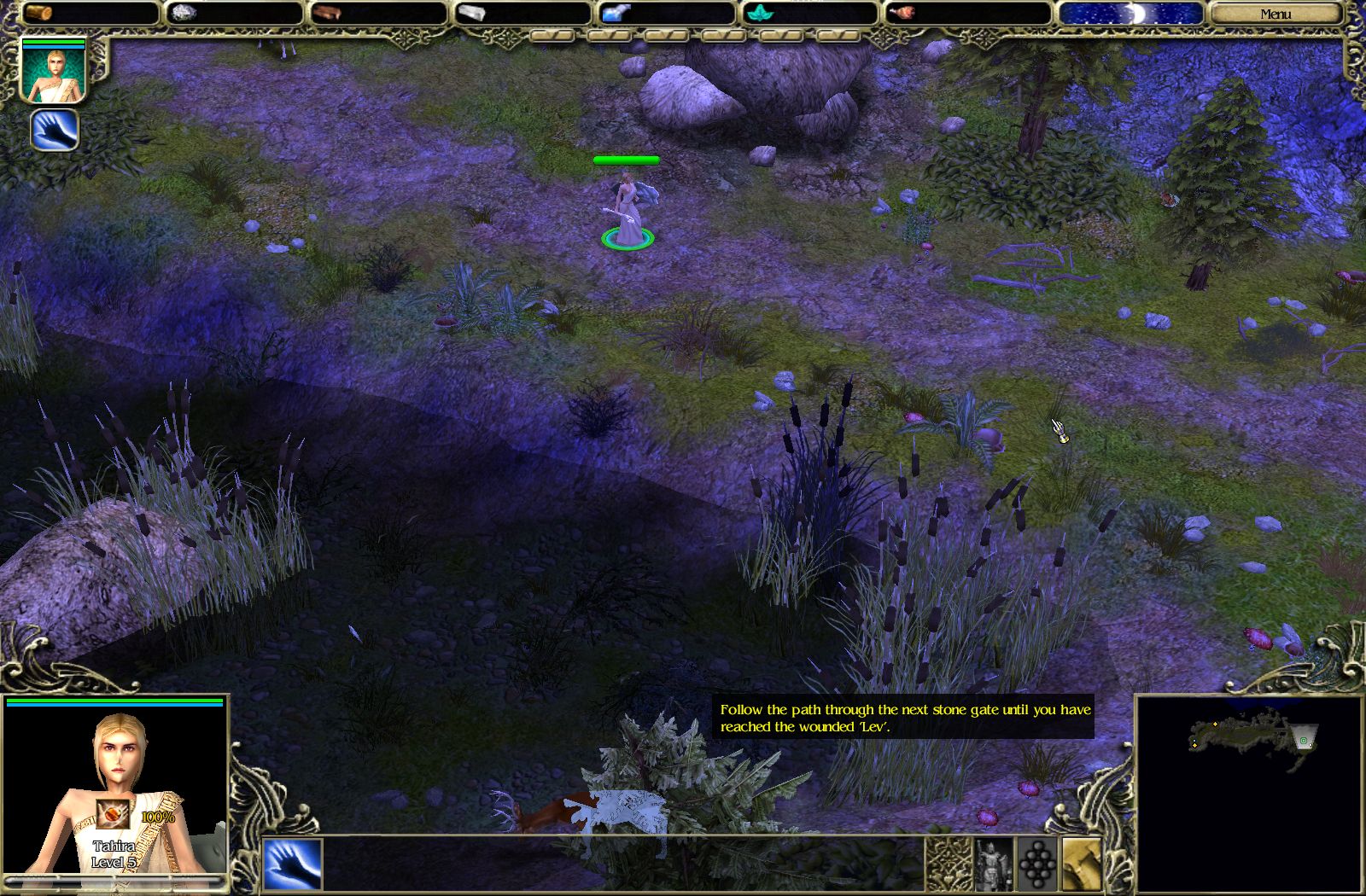

    Screenshots

    sf_sc01.jpg sf_sc02.jpg
    sf_sc03.jpg sf_sc04.jpg
    sf_sc05.jpg sf_sc06.jpg
