    Explore and survive the Metro stations in Post-apocalyptic Moscow 2034. Plays as Artyom and save Russia from Civil War by crafting your own weapons and slaying the mutated monsters below.


    Follow my step-by-step guide on installing, configuring and optimizing Metro Last Light in Linux with PlayOnLinux.

    Note: This guide applies to the GOG version of Metro Last Light. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 19 64-bit
    PlayOnLinux: 4.3.4
    Wine: 3.21
    DXVK: 0.93

    Wine Installation

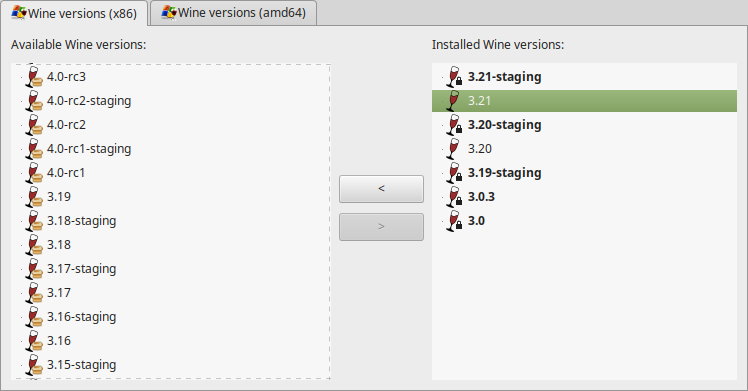

    Click Tools
    Select "Manage Wine Versions"


    Look for the Wine Version: 3.21
    Select it
    Click the arrow pointing to the right


    Click Next

    Downloading Wine


    Extracting

    Installed

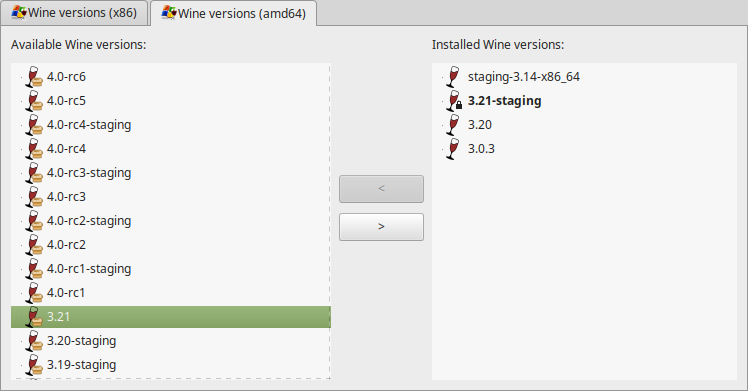

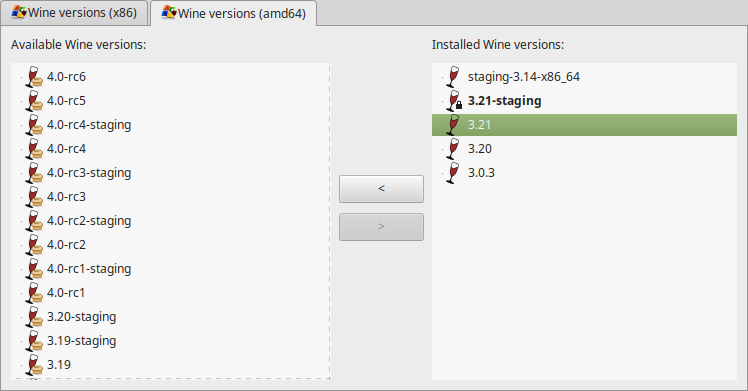

    Click (amd64) Tab
    Select "3.21"
    Click the arrow pointing to the right

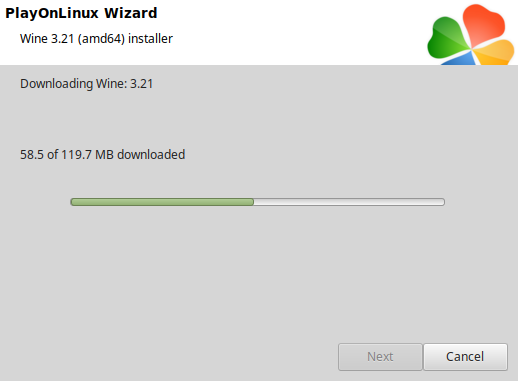

    Downloading Wine 64-bit


    Installed


    Wine 3.21 32-bit and 64-bit is installed, you can close this window

    PlayOnLinux Setup

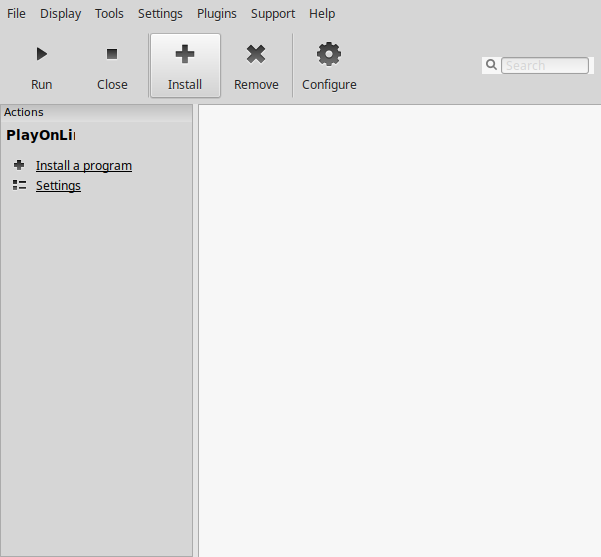

    Launch PlayOnLinux
    Click Install

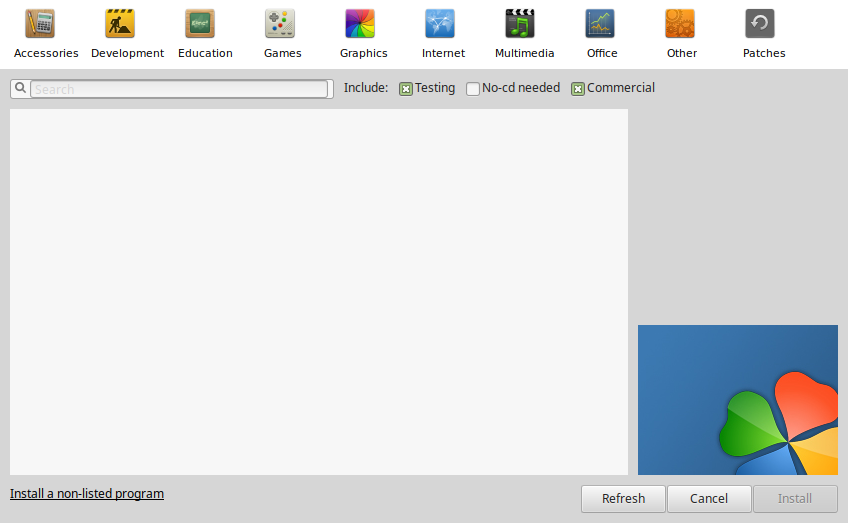

    Click "Install a non-listed program"

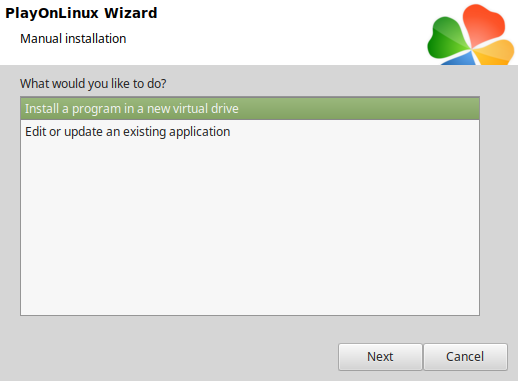

    Select "Install a program in a new virtual drive"
    Click Next

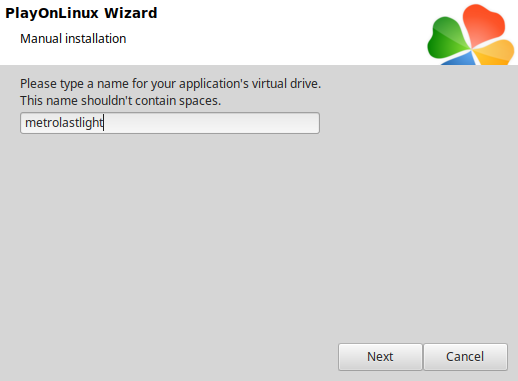

    Name the virtual drive: metrolastlight
    Click Next

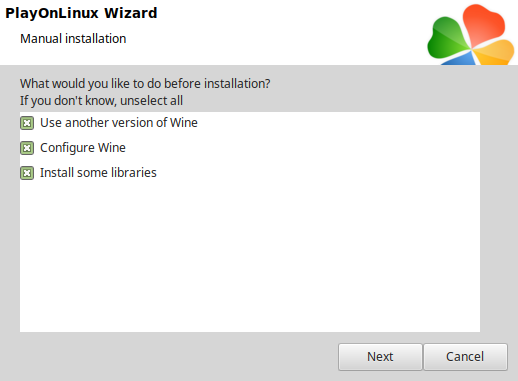

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

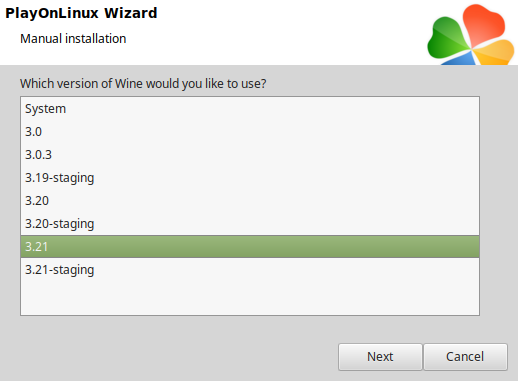

    Select Wine 3.21
    Click Next


    Select "64 bits windows installation"
    Click Next


    Wine Configuration

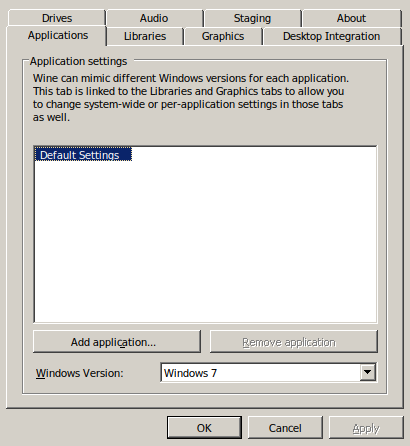

    Applications Tab
    Windows version: Windows 7

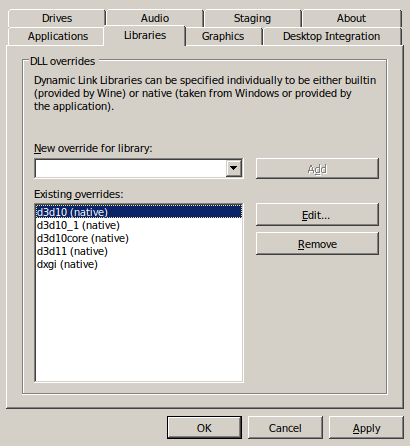

    Libraries Tab
    Enter the following libraries:
    • d3d10
    • d3d10_1
    • d3d10core
    • d3d11
    • dxgi
    • xaudio2_7
    Select one at a time
    Click Edit
    Select "Windows (Native)
    Click Apply

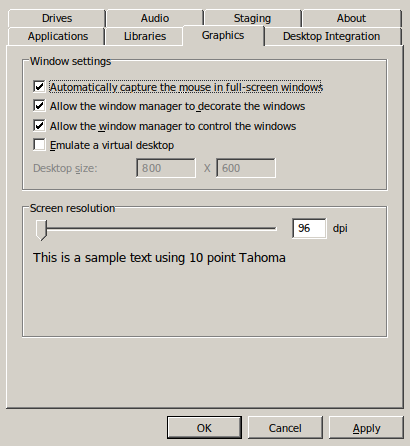

    Graphics Tab
    Check "Automatically capture the mouse in fullscreen windows"
    Click OK


    PlayOnLinux Packages (DLLs, Components, Libraries)

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx10
    • POL_Install_d3dx11
    • POL_Install_d3dx9
    • POL_Install_tahoma
    Click Next


    Note: All packages should automatically download and install

    Click Browse

    Select "setup_metro_last_light_redux_2.0.0.2.exe"
    Click Open


    Click Next again

    Click OK

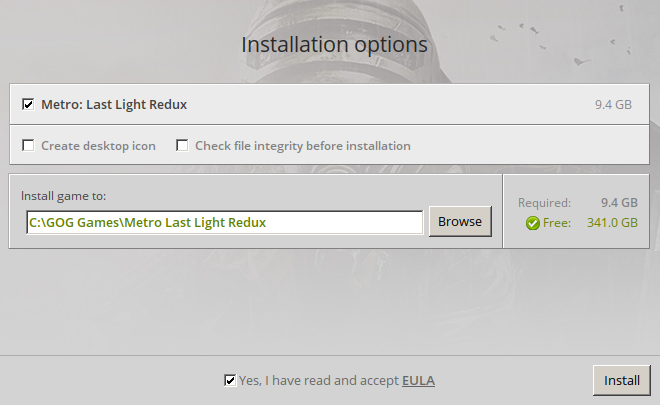

    Click Options
    Check "Yes, I have read and accept EULA"
    Uncheck "Create desktop icon"
    Click Install


    Click OK on all errors


    Click Exit


    PlayOnLinux Shortcut

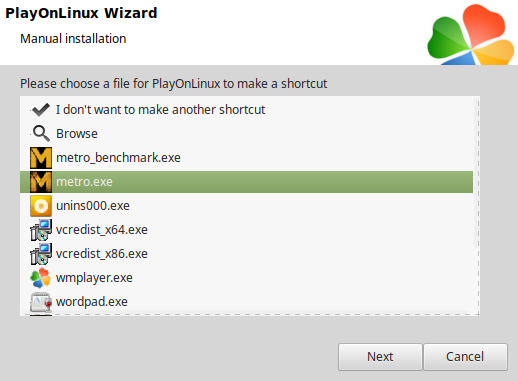

    Select "metro.exe"
    Click Next

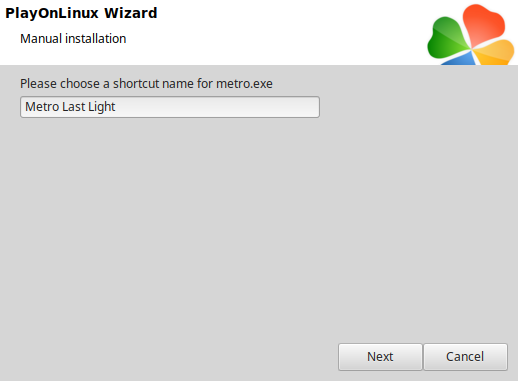

    Name the shortcut: Metro Last Light
    Click Next

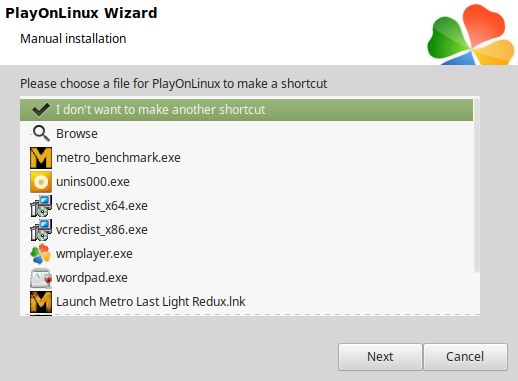

    Select "I don't want to make another shortcut"
    Click Next


    PlayOnLinux Configure

    Back to PlayOnLinux
    Select "Metro Last Light"
    Click Configure

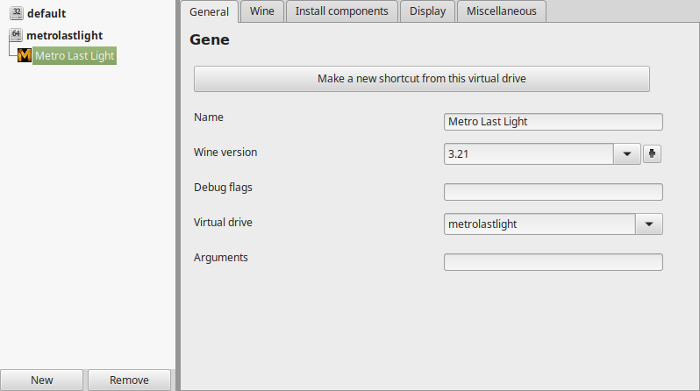

    General Tab
    Wine version: 3.21


    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of Wine

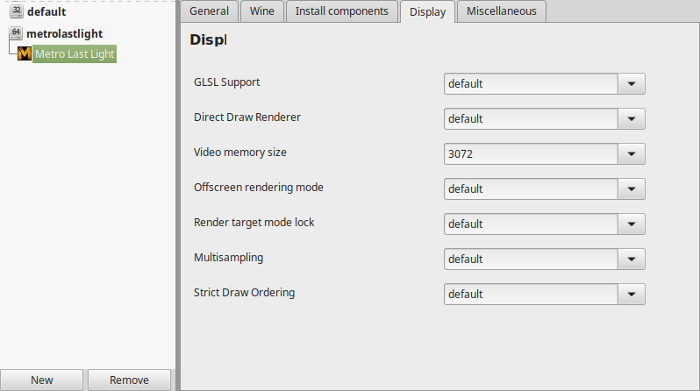

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses

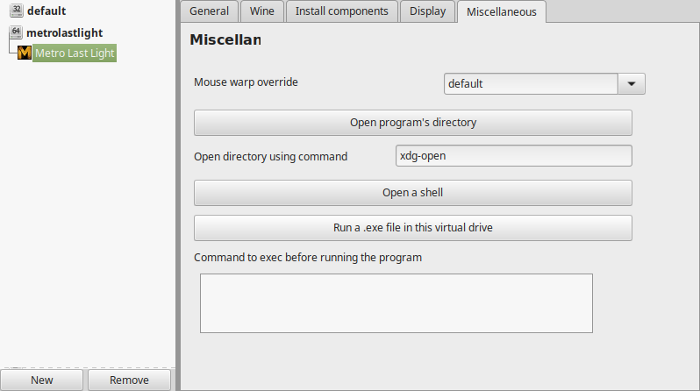

    Miscellaneous Tab
    Download Direct X Runtime to fix the audio bugs

    Go to: https://www.microsoft.com/en-us/download/confirmation.aspx?id=8109
    Save to your Desktop
    Click "Run a .exe file in this virtual drive"
    Select "directx_Jun2010redist.exe"
    Extract to a folder on your desktop

    Click "Run a .exe file in this virtual drive" again
    Navigate to the new folder on your Desktop

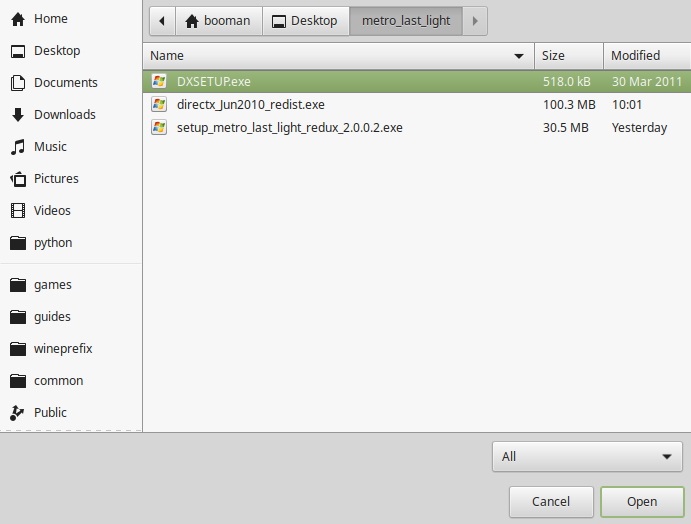

    Select "DXSETUP.exe"
    Click Open

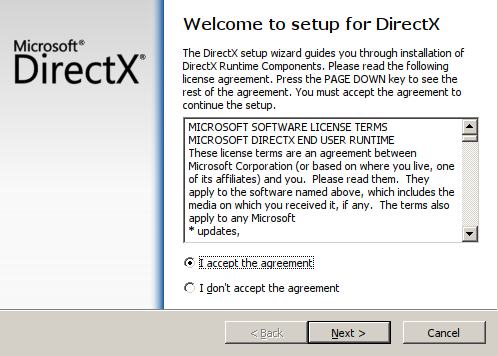

    Select "I accept the agreement"
    Click Next


    Click Next

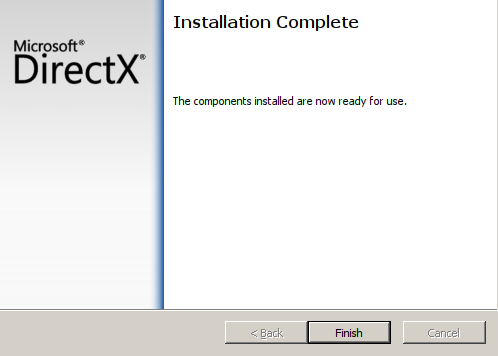

    Click Finish


    DXVK Installation

    Go to: https://github.com/doitsujin/dxvk/releases/tag/v0.93
    Download dxvk-.093.tar.gz
    Save to your Desktop

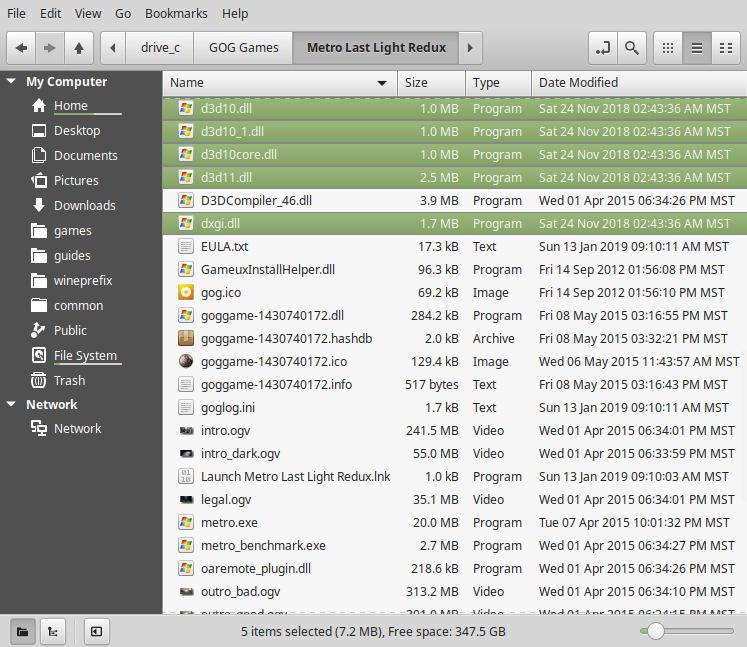

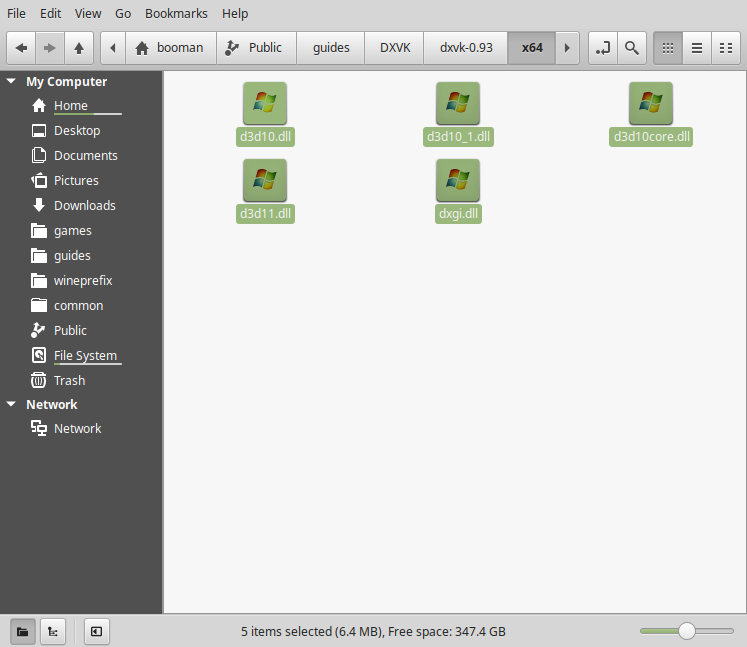

    Extract it and open the x64 Directory
    Copy all of the dlls


    Past the dll in the same directory as metro.exe
    Full path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/metrolastlight/drive_c/GOG Games/Metro Last Light Redux/

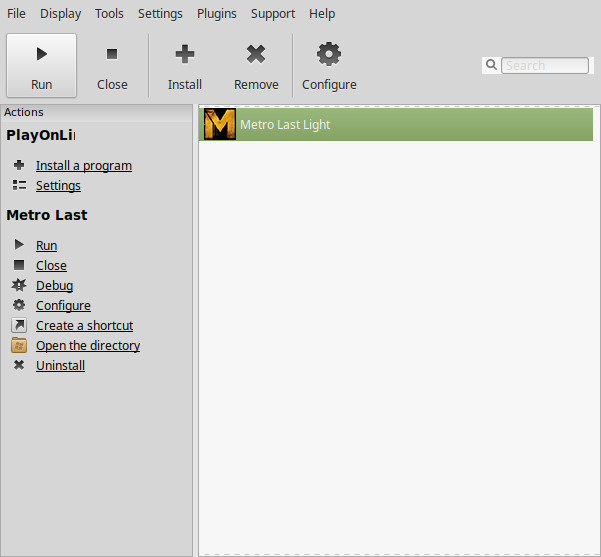

    Back to PlayOnLinux
    Select "Metro Last Light"
    Click Run
    Wait about 1 min for the game to initially launch


    Note: Click debug to see bugs and errors

    Optimization:

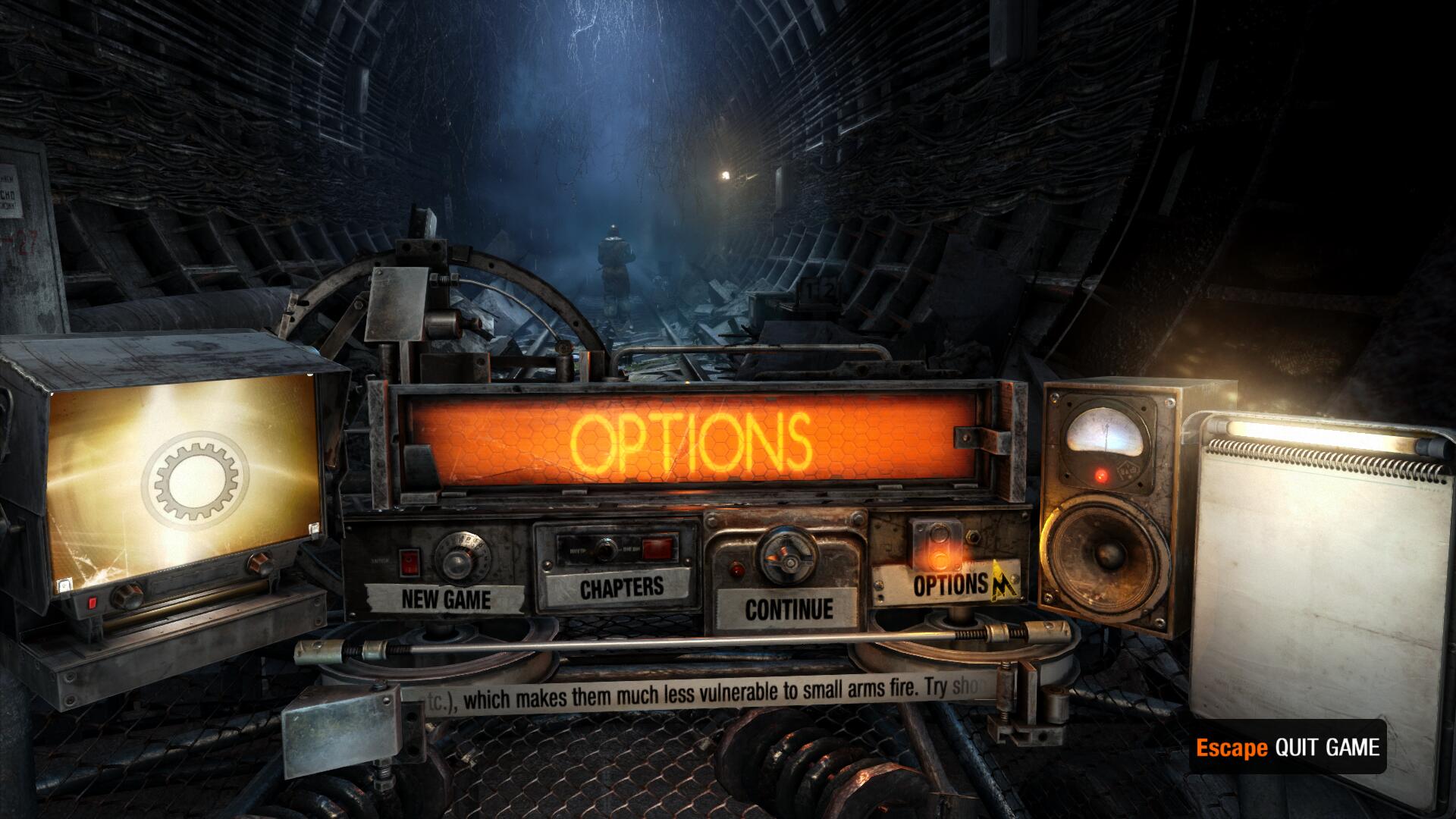

    Click Options

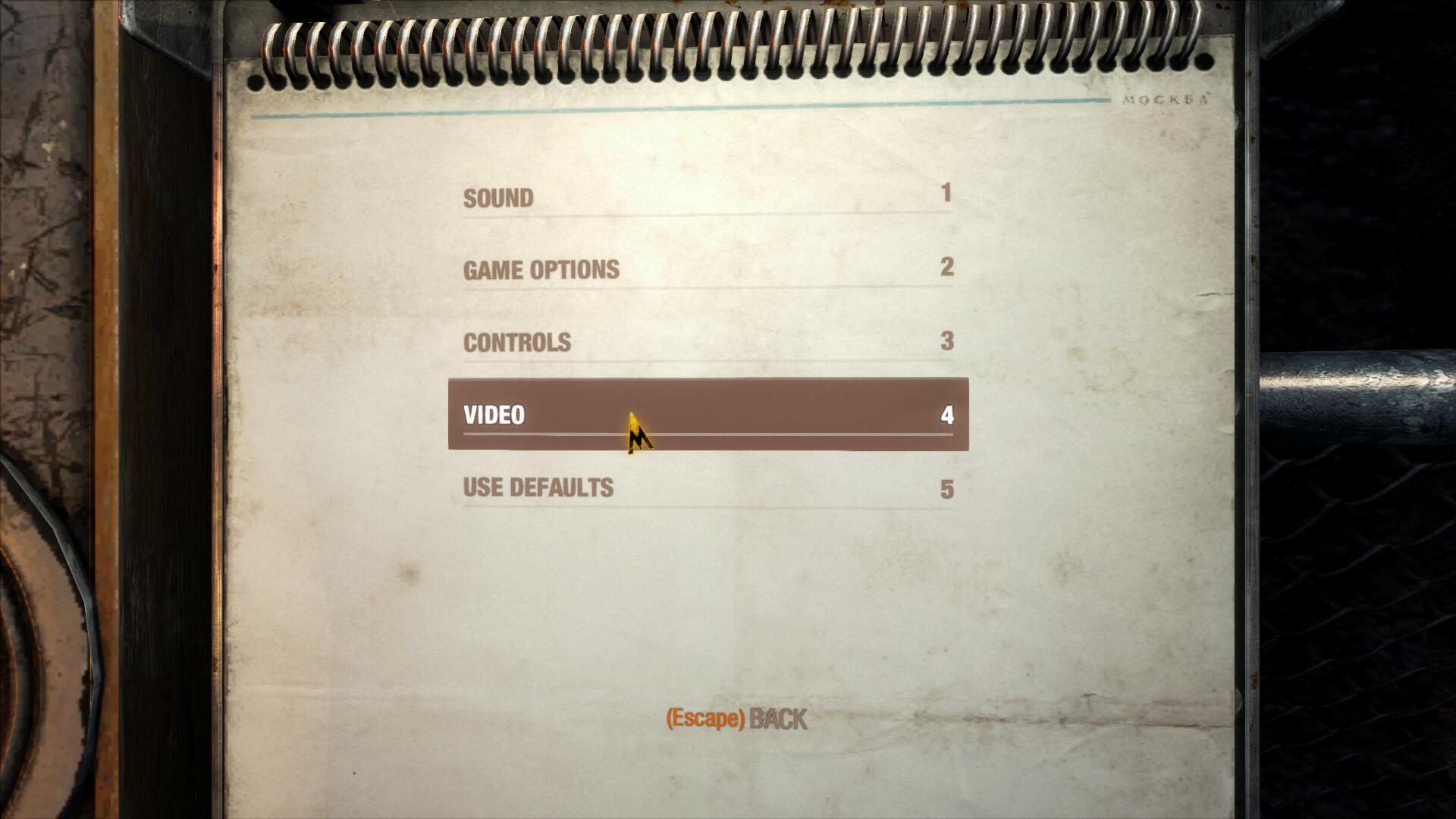

    Click Video


    Adjust:
    • Resolution
    • Quality
    • SSAA
    • Texture Filtering
    • Motion Blur
    • Tessellation
    • VSync


    Conclusion:
    When I have tested Metro Last Light in the past there was a really bad audio problem that caused distortion and stuttering in the sound. But after adding xaudio2_7 and the DirectX Runtime it is completely gone. DXVK does an amazing job with visuals but there still are a bit of flickering objects and textures. Playing with Tessellation might fix it... Other than that, it runs amazingly well! What a beautifully crafted game!

    Gameplay Video:

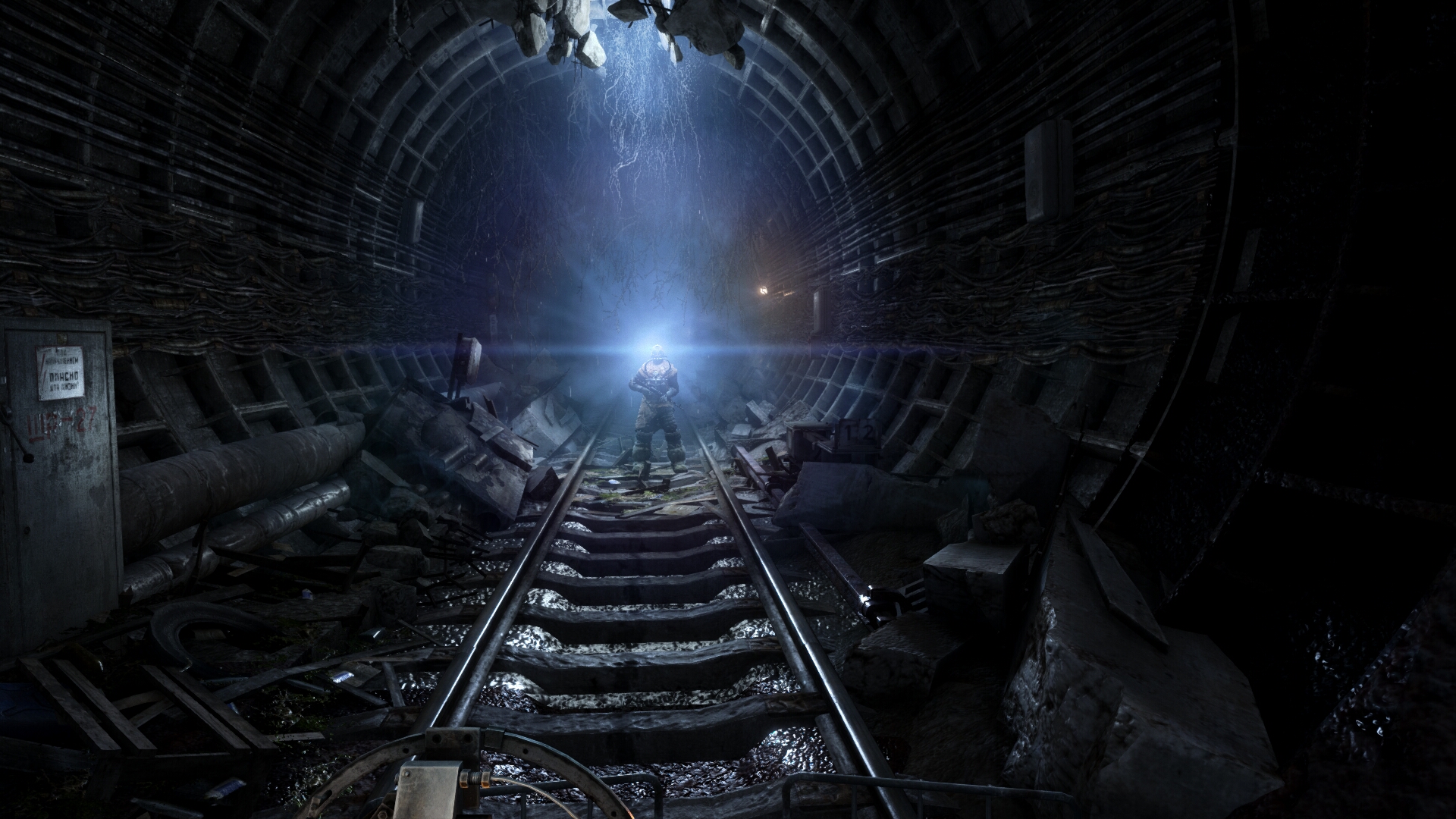

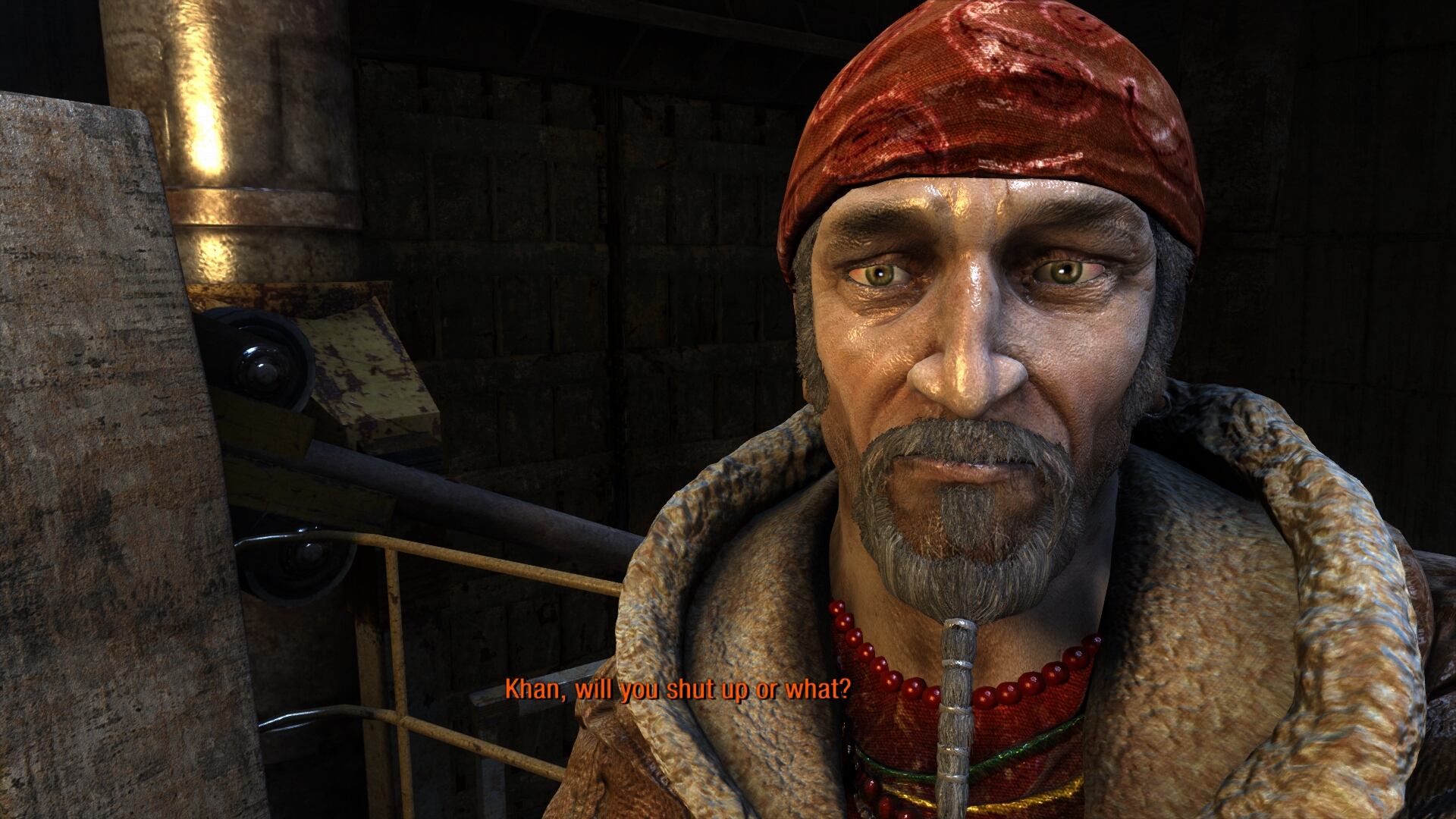

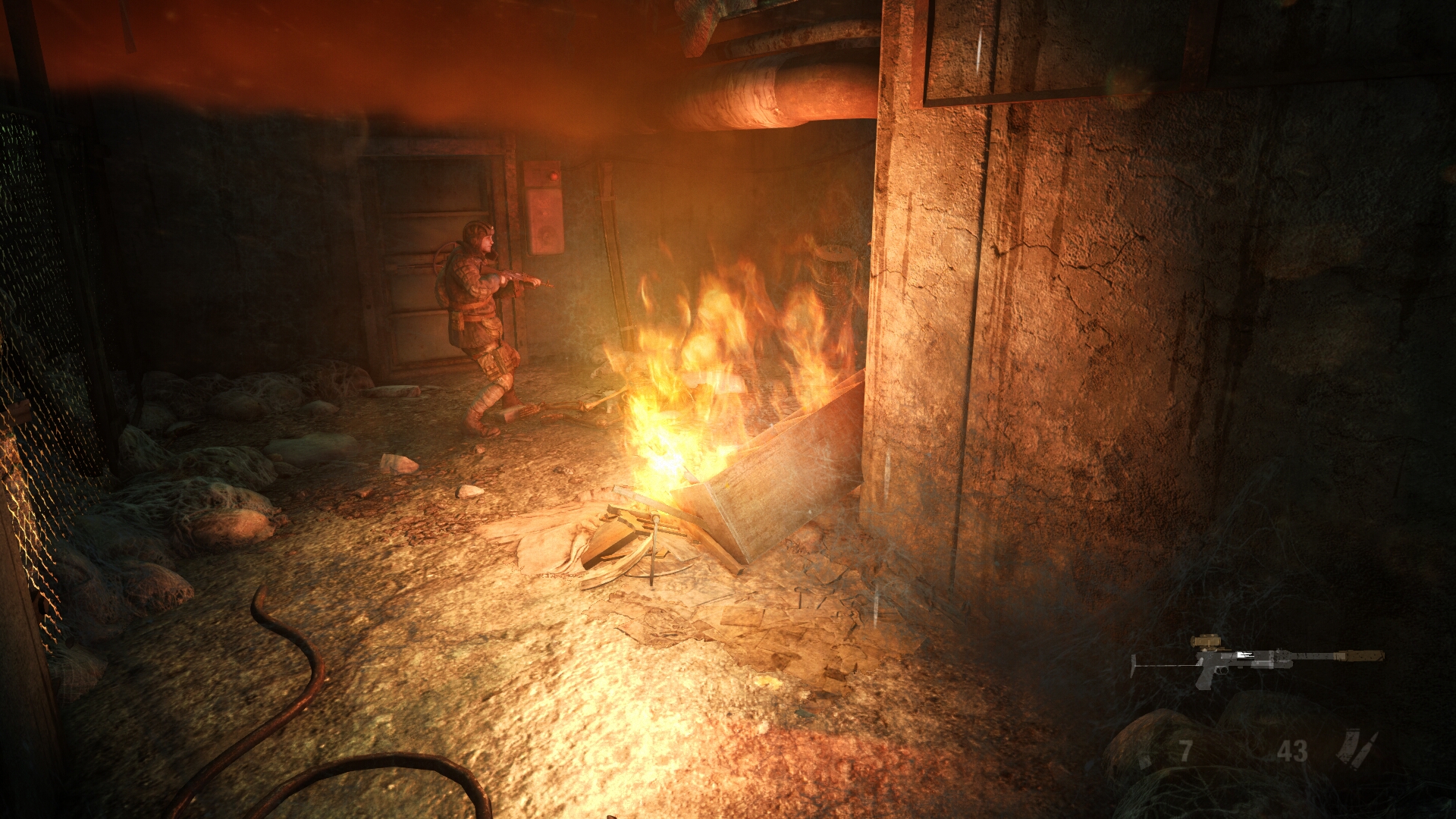

    Screenshots:






    Last edited: Jan 7, 2020

Comments

Discussion in 'Guides' started by booman, Jan 19, 2019.

  1. skweresp
    Metro Last Light and Metro 2033 has also linux versions on steam.
    booman likes this.
  2. booman
    Yes, Steam does have the native versions. I've read that performance isn't so great depending on the video card/chip you use.

    Until the native versions are available on GOG, this guide will get you running with the Windows version.
  3. skweresp
    Thanks, it's great that we have choice on linux :)
  4. booman
    Absolutely!
    That is what Linux is about for me... the freedom to choose how to use it the way I want.
    I may post more guides in the future for Windows games that already have a native Linux port... Mostly because GOG game are DRM Free. SteamPlay is a major reason why I stick to guides for games on other clients.
    There is a chance in the future that SteamPlay will handle all games and we will no longer have any guides to post. Which is a good and bad thing :)
  5. skweresp
    You make a great job. Don't worry, there's be always something to write about.
  6. booman
    My thoughts as well...
    There will always be a stubborn game that won't run in Steam or Native and will require some hacks.
