    Dead Lab is a short indie project by Fractured Games Inc where you play as Sam in an experimental lab where everything has gone wrong. You are awakened in a lab dormitory by a voice on the radio. You must reach the top level at all cost, find weapons, use physics and keep your cool.


    Follow my step-by-step guide on installing, configuring and optimizing Dead Lab 2.0 in Linux with PlayOnLinux.

    Note: This guide applies to the GameJolt version of Dead Lab 2.0. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 19 64-bit
    PlayOnLinux: 4.3.4
    Wine: 4.0.2
    DXVK: 1.4.2

    Wine Installation

    Click Tools
    Select "Manage Wine Versions"


    Look for the Wine Version: 4.0.2
    Select it
    Click the arrow pointing to the right


    Click Next

    Downloading Wine


    Extracting

    Installed

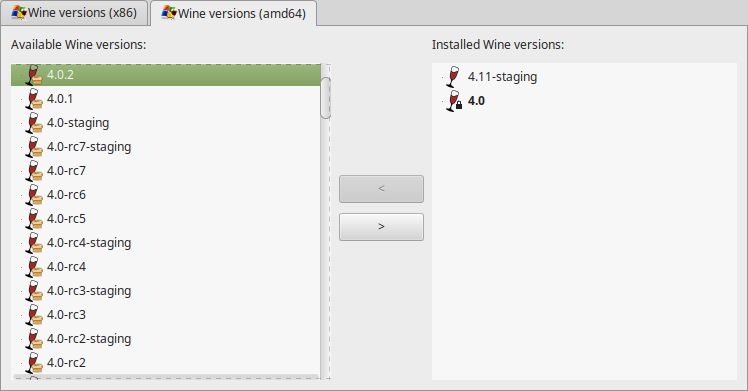

    Click (amd64) Tab
    Select 4.0.2
    Click the arrow pointing to the right

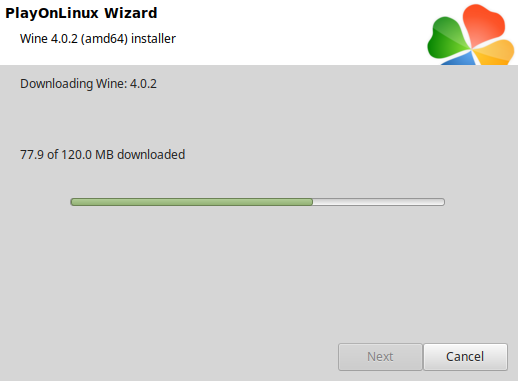

    Downloading Wine 64-bit

    Installed


    Wine 4.0.2 32-bit and 64-bit is installed, you can close this window

    Download Dead Lab 2.0 on GameJolt
    Go to: https://gamejolt.com/games/dead-lab-2-0/187563
    Save to your Desktop

    PlayOnLinux Setup

    Launch PlayOnLinux
    Click Install


    Click "Install a non-listed program"

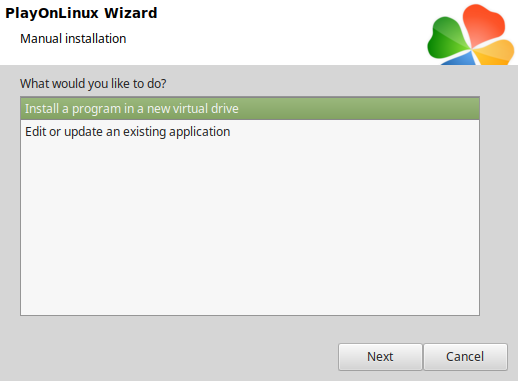

    Select "Install a program in a new virtual drive"
    Click Next


    Name the virtual drive: deadlab
    Click Next

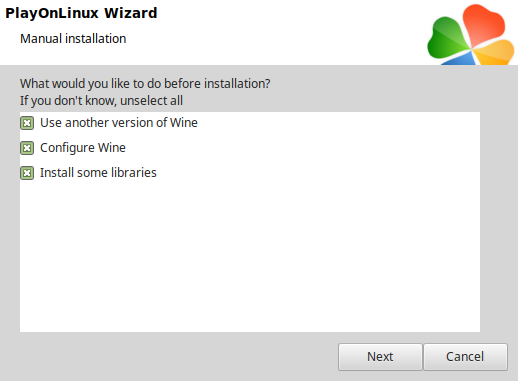

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next


    Select Wine 4.0.2
    Click Next

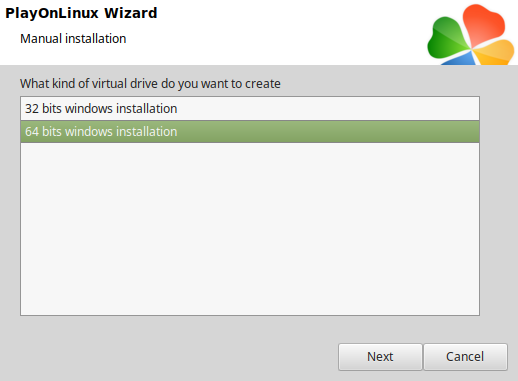

    Select "64 bits windows installation"
    Click Next


    Wine Configuration

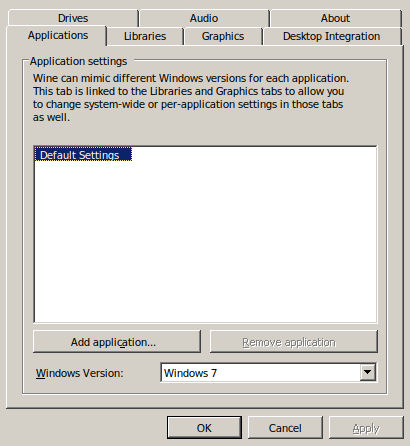

    Applications Tab
    Windows version: Windows 7


    Libraries Tab
    Type the following:
    • d3d10
    • d3d10_1
    • d3d10core
    • d3d11
    • dxgi
    Select one at a time
    Click "Edit"
    Check "native (Windows)"
    Click Apply

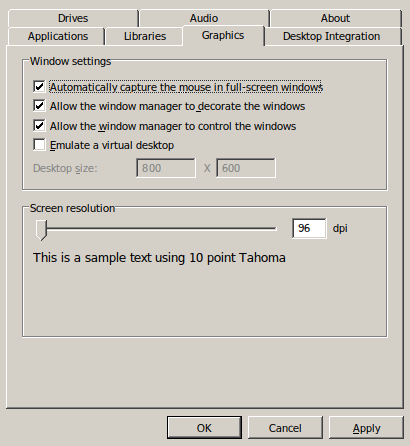

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Click OK


    PlayOnLinux Packages (DLLs, Libaries, Components)

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx10
    • POL_Install_d3dx11
    • POL_Install_d3dx9
    • POL_Install_tahoma
    Click Next


    Note: All packages should automatically download and install

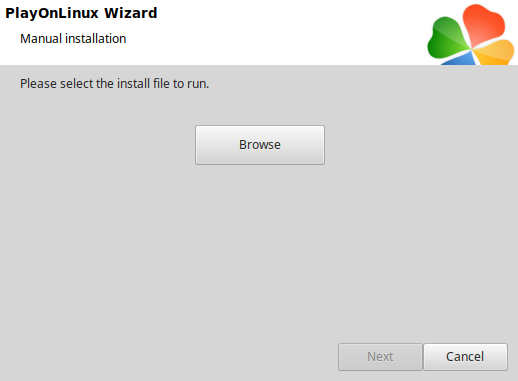

    Do not click Browse
    Dead Lab 2.0 does not have an installer
    Click Cancel

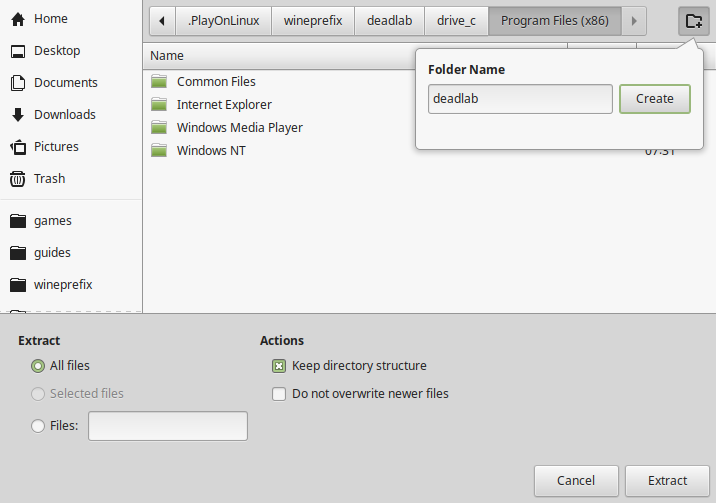

    Open 2.0-32bit.zip with your Archive Manager
    Click Extract


    Navigate to the Program Files (x86) directory
    Full path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/deadlab/drive_c/Program Files (x86)/
    Click the folder button
    Name the folder: deadlab
    Click Creatae
    Click Extract


    Click "Show the Files"


    Installing DXVK

    Download DXVK 1.4.2
    Go to: https://github.com/doitsujin/dxvk/releases/tag/v1.4.2
    Download to your Desktop
    Extract DXVK
    Open the x32 directory
    Copy all of the DLLs


    Paste them in the game folder with "Dead Lab 2.0.exe"


    PlayOnLinux Configure

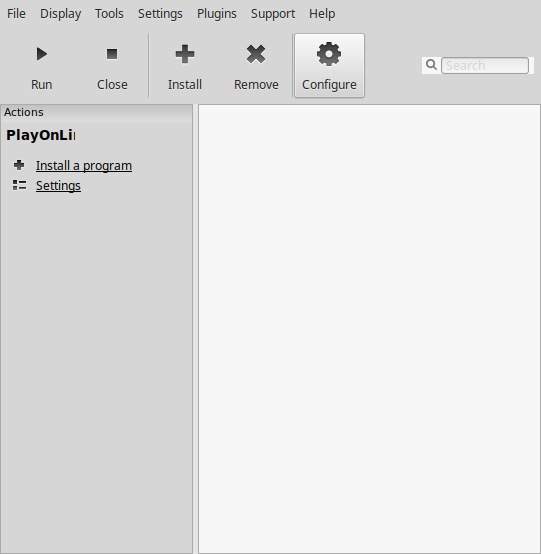

    Back to PlayOnLinux
    Click Configure


    General Tab

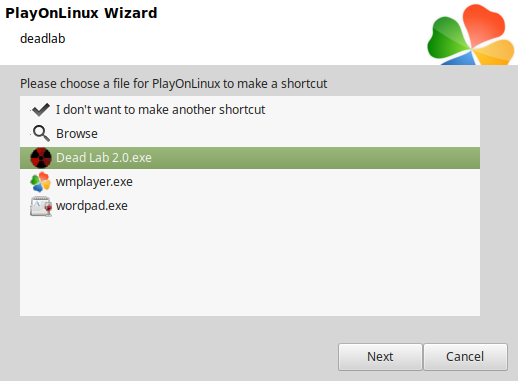

    Click "Make a new shortcut from this virtual drive"


    Select "Dead Lab 2.0.exe"
    Click Next

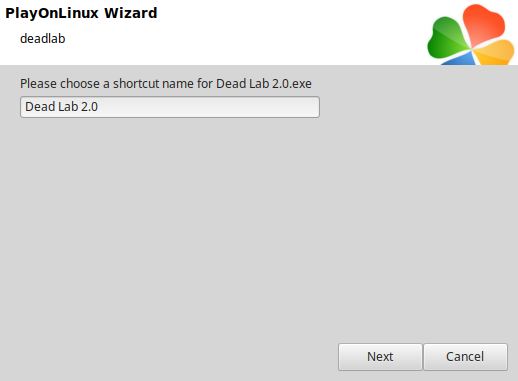

    Leave the default name
    Click Next


    Select "I don't want to make another shortcut"
    Click Next


    Back to General Tab
    Select "Dead Lab 2.0"
    Wine version: 4.0.2


    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of Wine

    Display Tab
    Video Memory size: Enter the amount of memory your video card/chip uses


    Close Configure

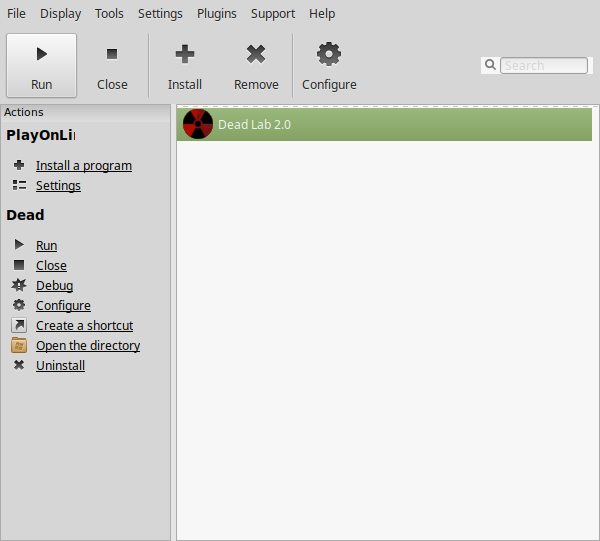

    Run Dead Lab 2.0

    Click Run


    Note: Click debug to see errors and bugs

    Dead Lab Unity 3D Launcher
    Adjust:
    • Screen Resolution
    • Graphics Quality
    • Select Monitor
    • Windowed
    Click Play


    Note: There are some minimal graphical options in-game in the options menu

    Conclusion:
    Playing Dead Lab 2.0 with stable Wine alone resulted in a very low frame rate and some graphical bugs. After adding DXVK it ran perfectly! There were still some slow areas, but very few with graphics set on Very High. My GeForce GTX 1060 was able to handle it.


    Gameplay Video:

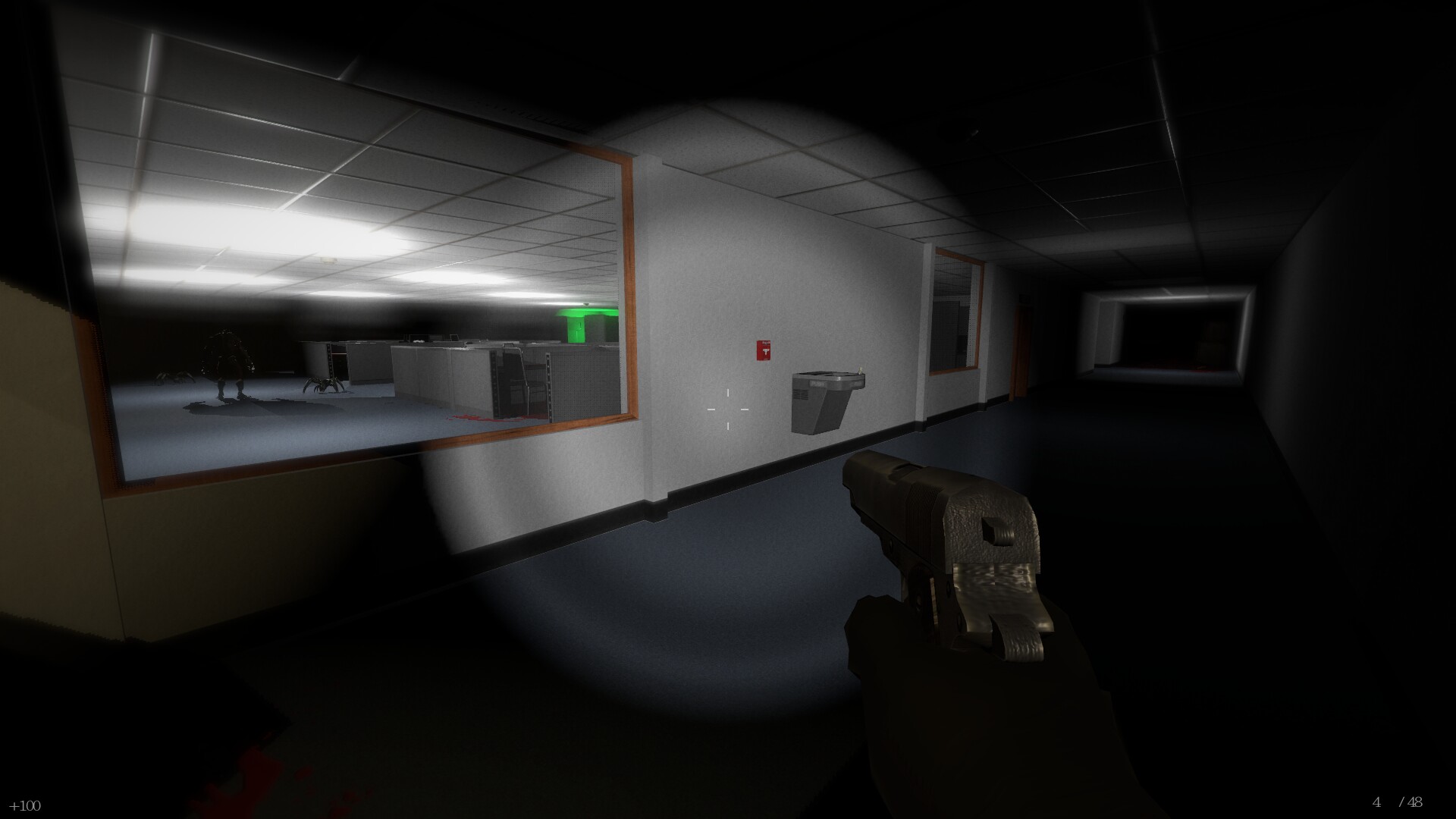

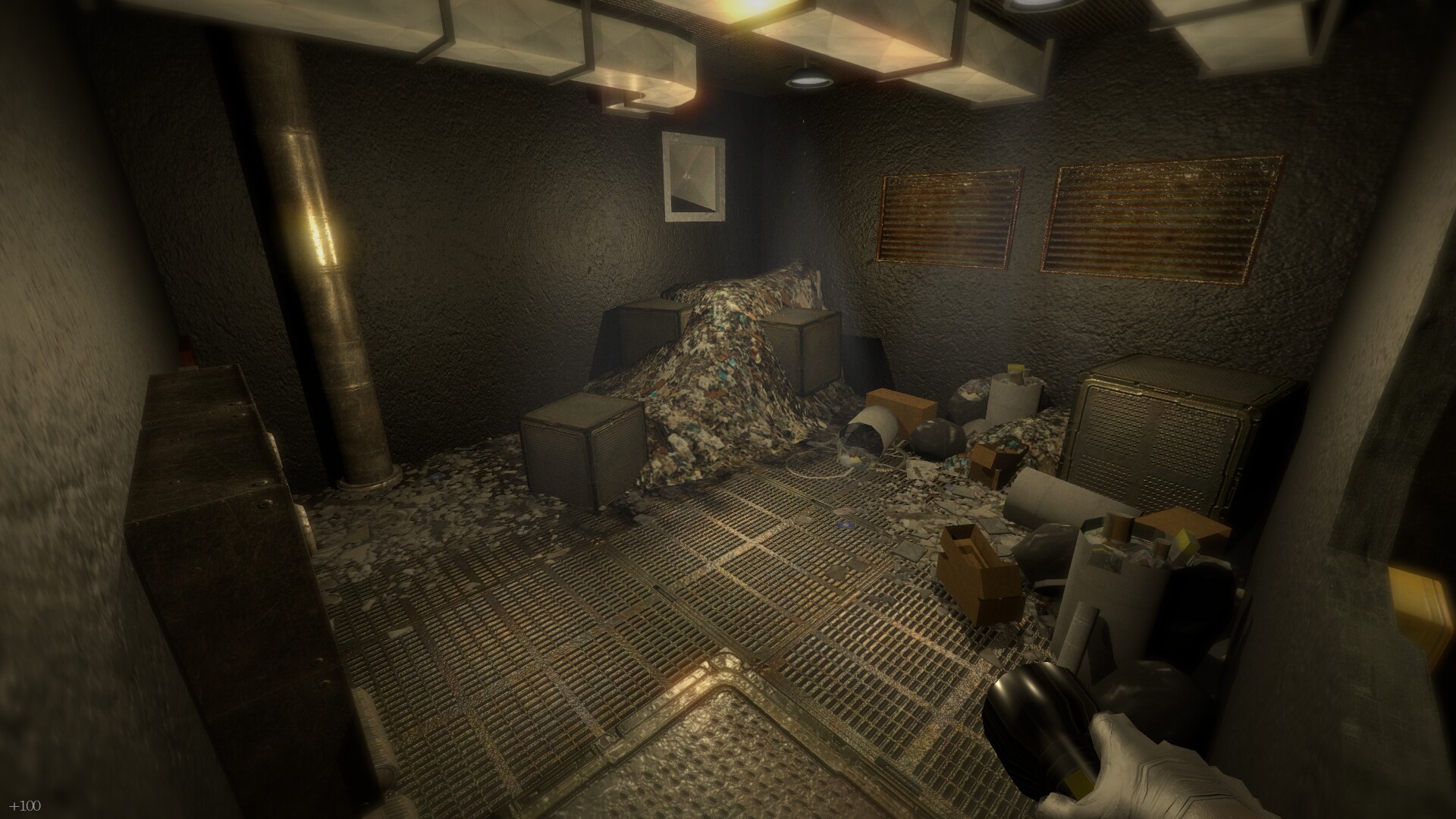

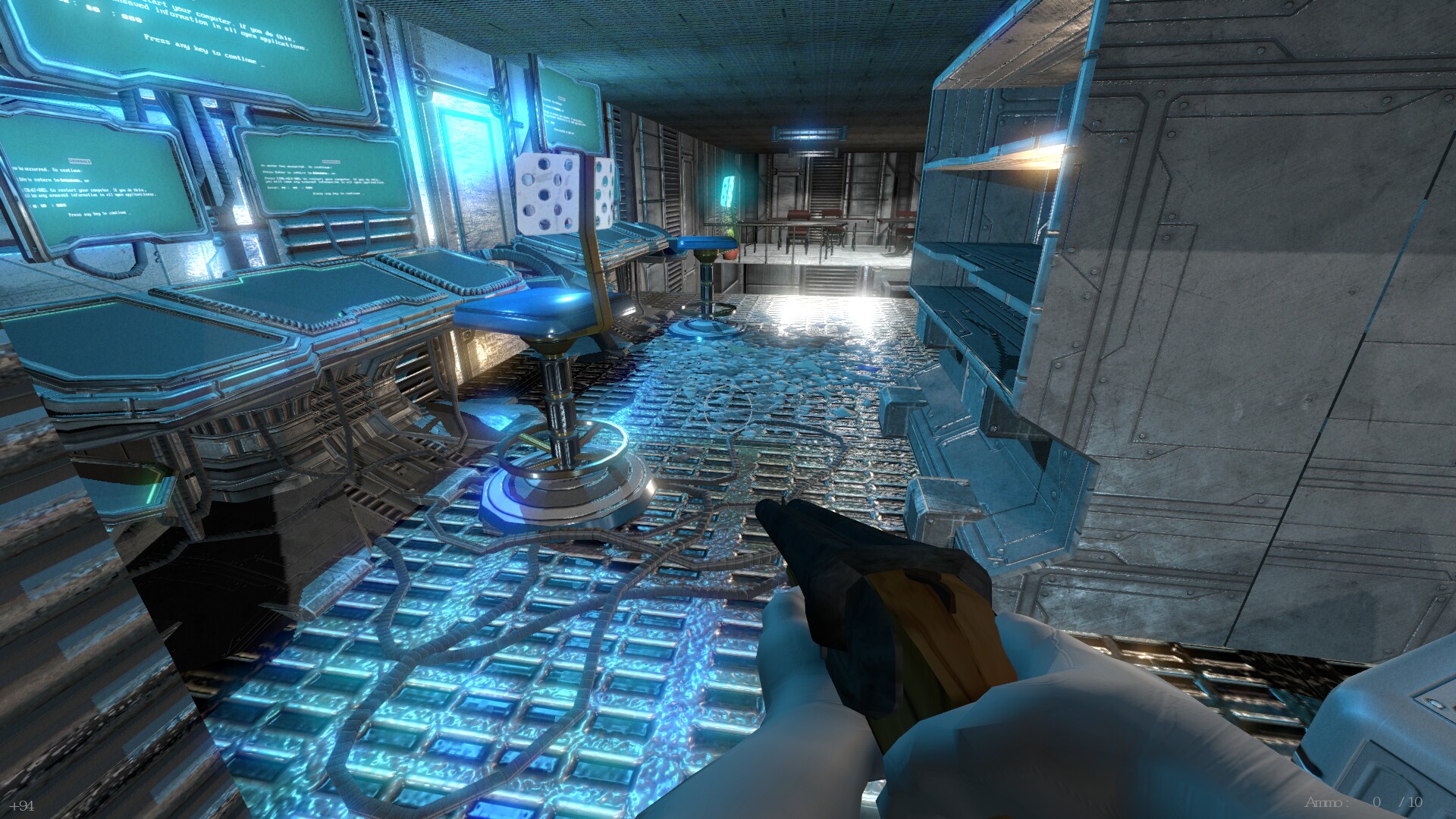

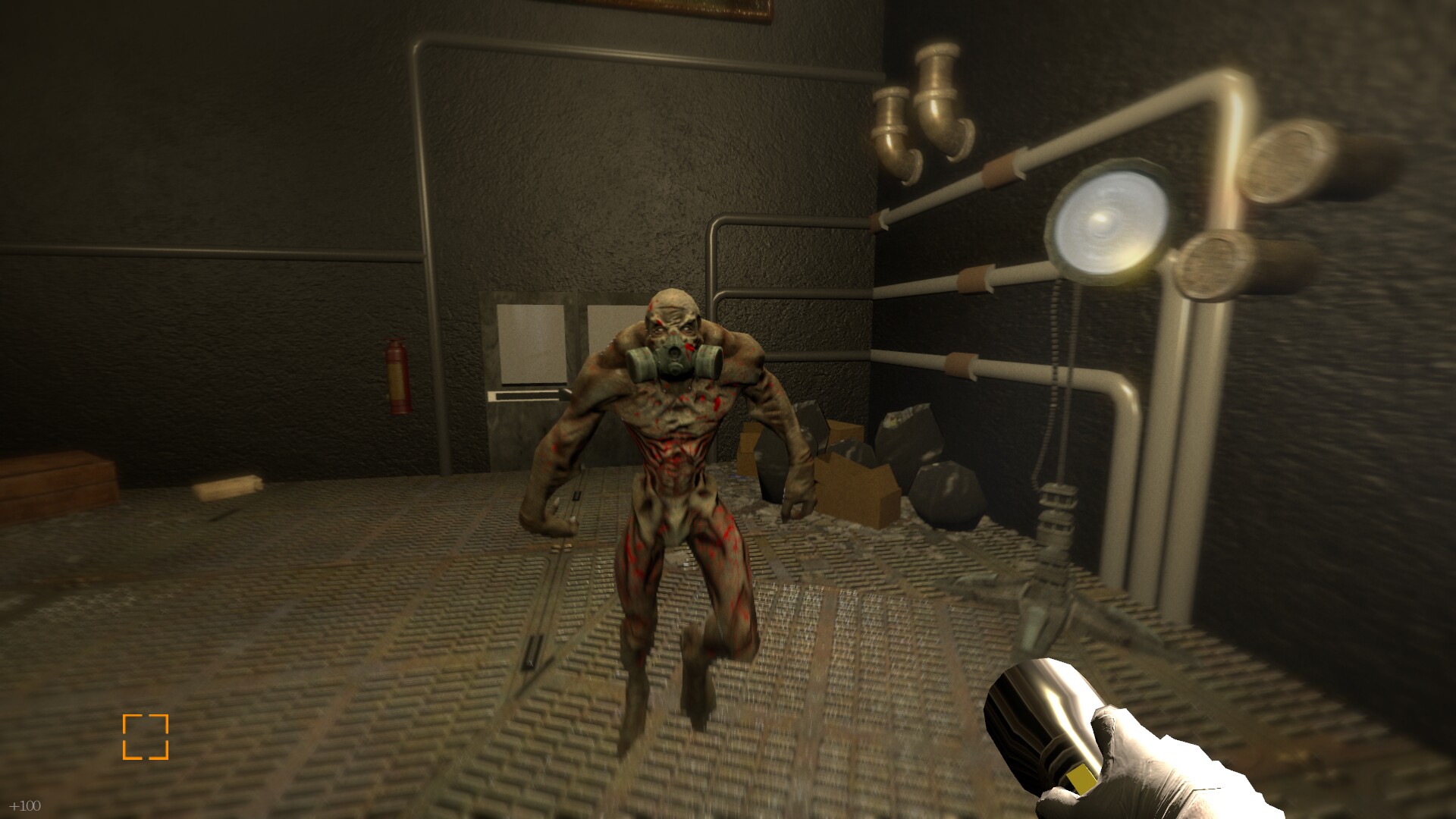

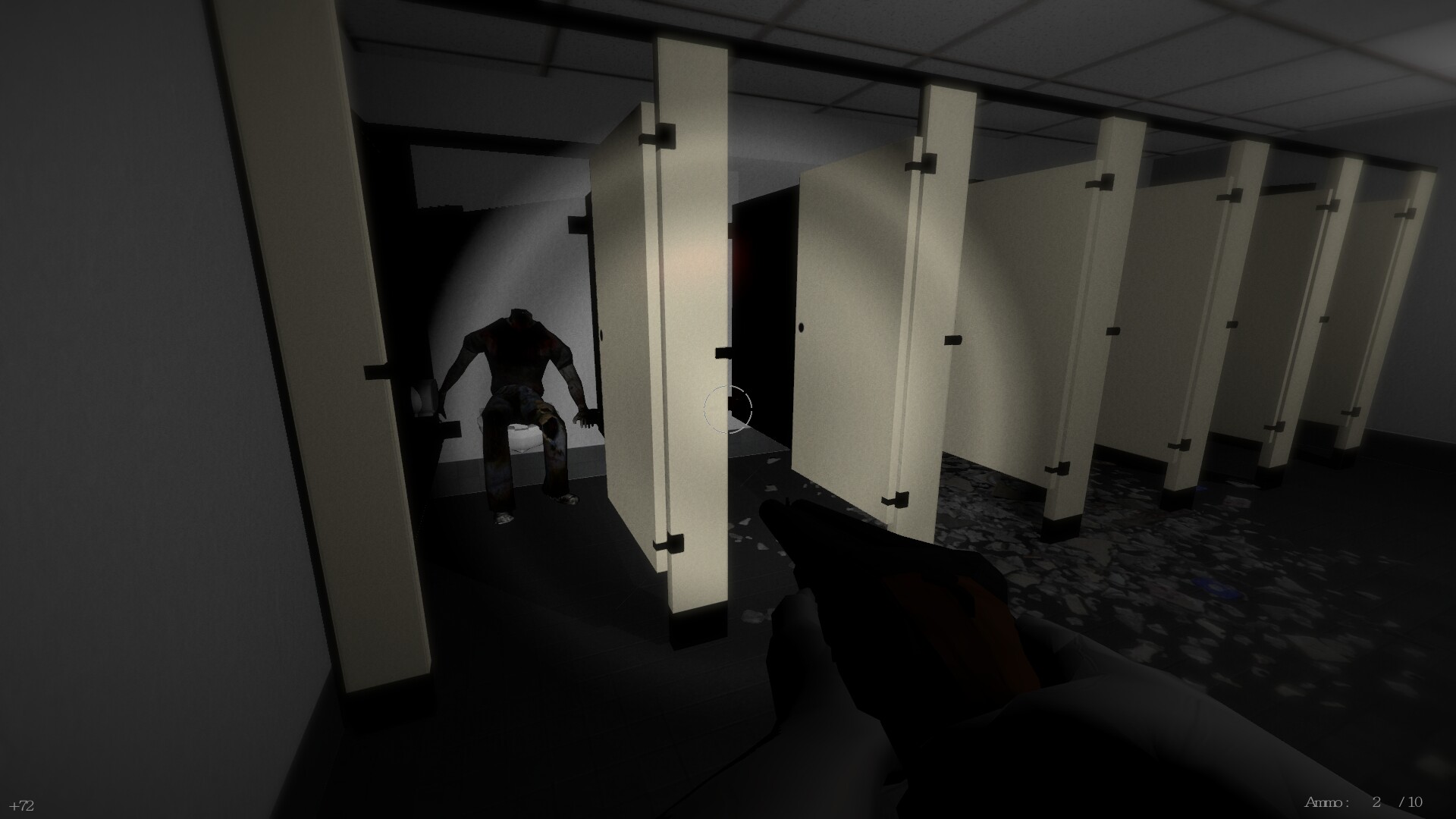

    Screenshots:
