    Cartoon Strike is a Lowpoly team deathmatch first person shooter inspired by Counter-Strike, Star Wars Battlefront and other FPS. This game is in development so there may be further levels like other FPS games in the future.


    Follow my step-by-step guide on installing, configuring and optimizing Cartoon Strike in Linux with PlayOnLinux.

    Note: This guide applies to the itch.io version of Cartoon Strike. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 19 64-bit
    PlayOnLinux: 4.3.4
    Wine: 4.0.2
    DXVK: 1.4.4

    Wine Installation

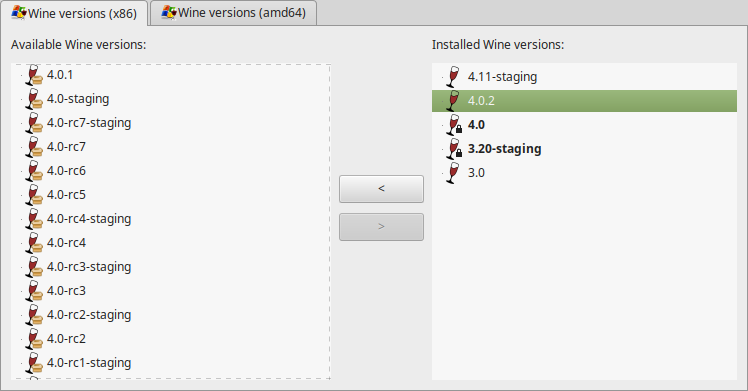

    Click Tools
    Select "Manage Wine Versions"


    Look for the Wine Version: 4.0.2
    Select it
    Click the arrow pointing to the right


    Click Next

    Downloading Wine


    Extracting

    Installed

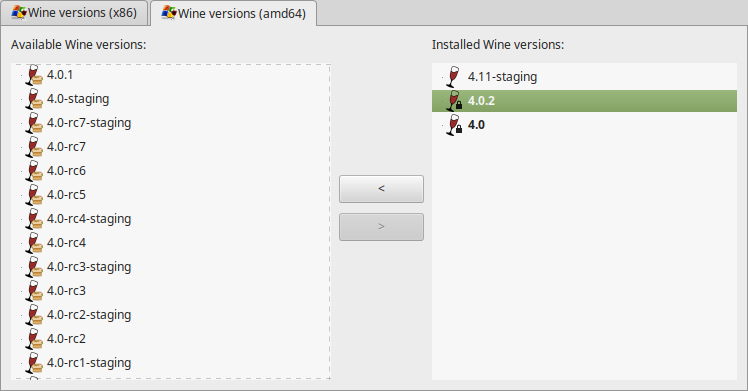

    Click (amd64) Tab
    Select 4.0.2
    Click the arrow pointing to the right


    Downloading Wine 64-bit


    Installed


    Wine 4.0.2 32-bit and 64-bit is installed, you can close this window

    PlayOnLinux Setup

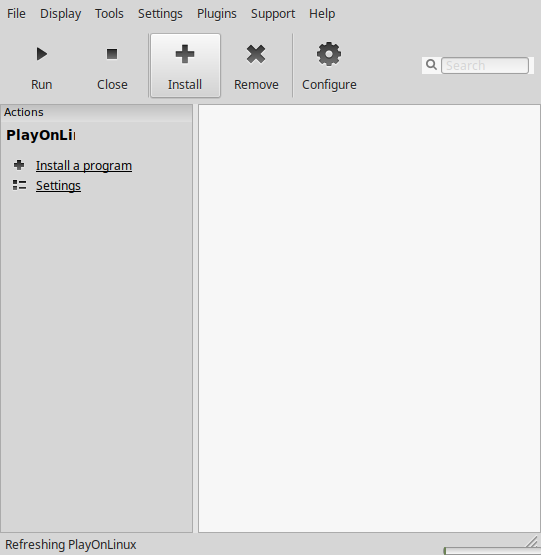

    Launch PlayOnLinux
    Click Install


    Click 'Install a non-listed program'


    Select "Install a program in a new virtual drive"
    Click Next

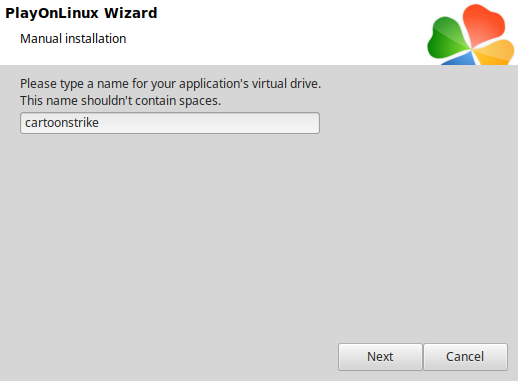

    Name the virtual drive: cartoonstrike
    Click Next

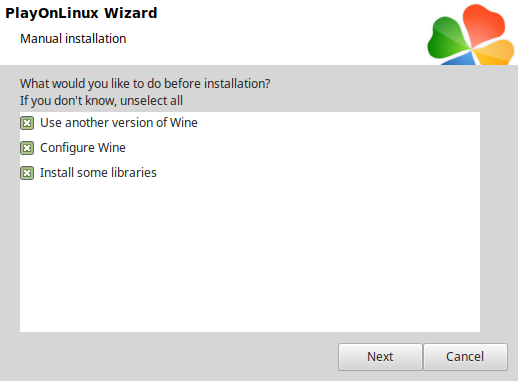

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next


    Select Wine 4.0.2
    Click Next

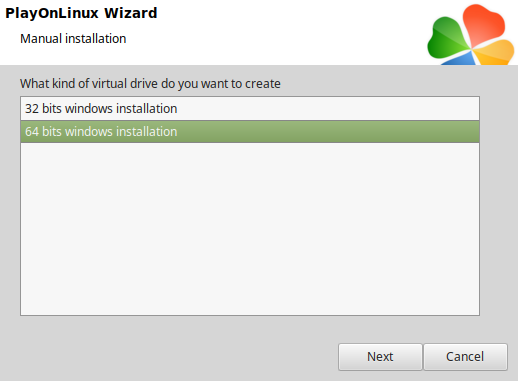

    Select "64 bits windows installation"
    Click Next


    Wine Configuration

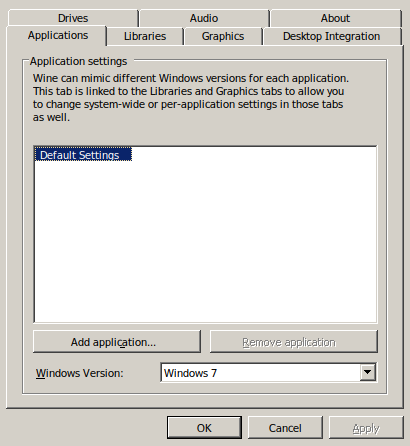

    Applications Tab
    Windows version: Windows 7


    Libraries Tab
    Type the following and click Add
    • d3d10
    • d3d10_1
    • d3d10core
    • d3d11
    • dxgi
    Select one at a time
    Click Edit
    Select "Native (Windows)"
    Click Apply


    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Click OK

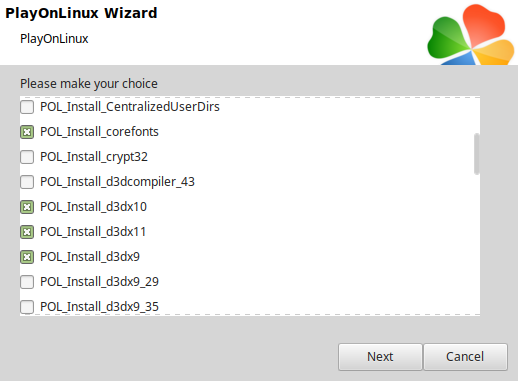

    PlayOnLinux Packages (DLLs, Libraries, Components)

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx10
    • POL_Install_d3dx11
    • POL_Install_d3dx9
    • POL_Install_tahoma
    Click Next


    Note: All packages should automatically download and install

    Do not click Browse
    Cartoon Strike does not have an installer
    Click Cancel


    Download Cartoon Strike Demo

    Go to: https://gametoria.itch.io/cartoon-strike-pc-demo
    Download the demo and save to your Desktop

    Open Cartoon Strike with your Archive Manager
    Click Extract

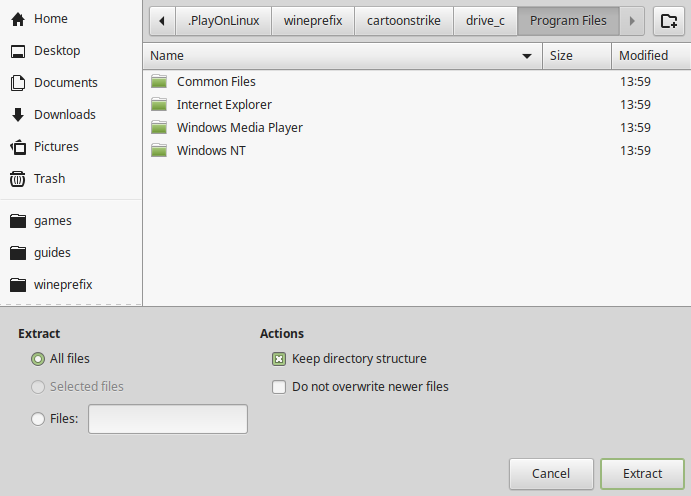

    Navigate to the virtual drives Program Files
    Full Path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/cartoonstrike/drive_c/Program Files/
    Click Extract


    Click "Show the Files"


    Install DXVK

    Download DXVK 1.4.4
    Go to: https://github.com/doitsujin/dxvk/releases/tag/v1.4.4
    Save to your Desktop
    Extract on your Desktop

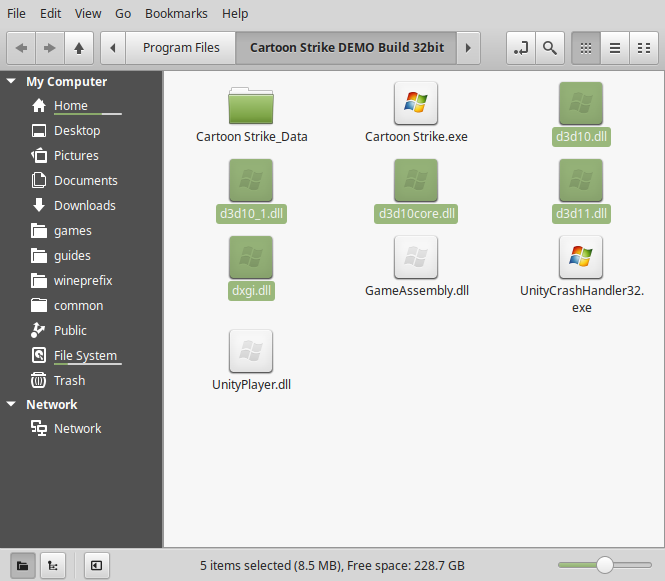

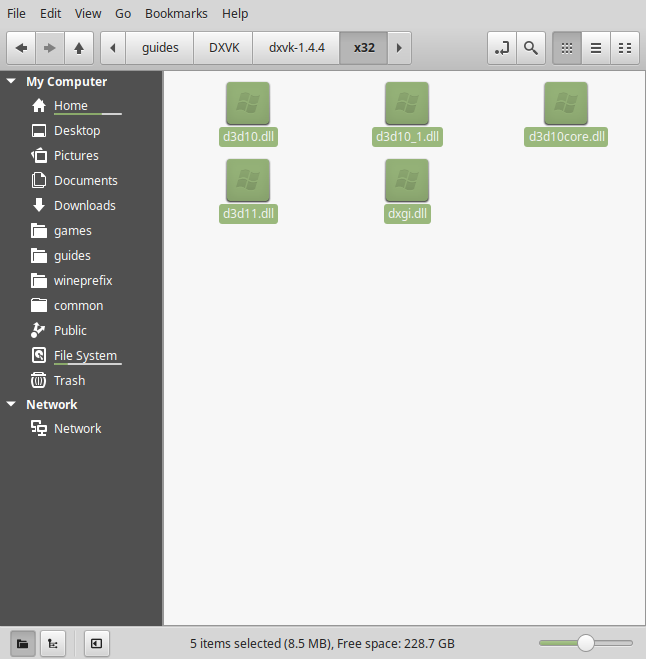

    Open x32 folder
    Copy all of the DLLs


    Paste in the game folder previously open


    PlayOnLinux Configure

    Back to PlayOnLinux

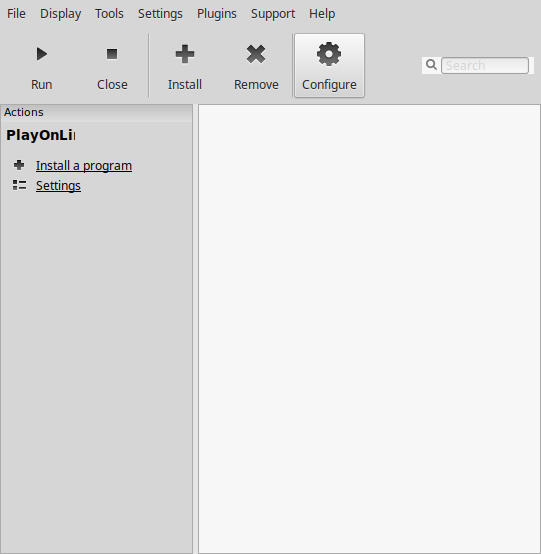

    Click Configure


    Select "cartoonstrike" in the left column
    General Tab
    Click "Make a new shortcut in this virtual drive"

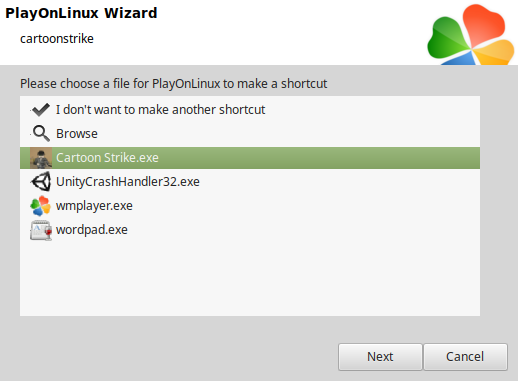

    Select "Cartoon Strike.exe"
    Click Next

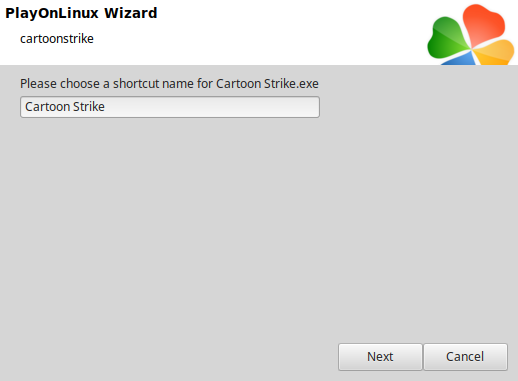

    Name the shortcut: Cartoon Strike
    Click Next

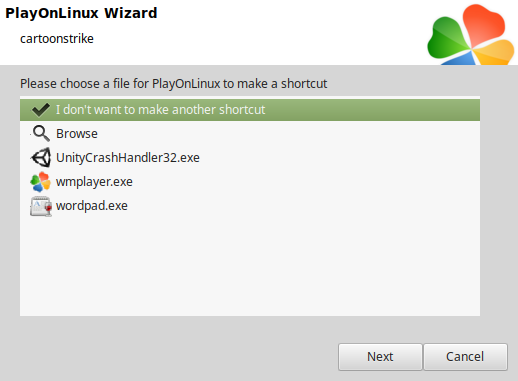

    Select "I don't want to make another shortcut"
    Click Next

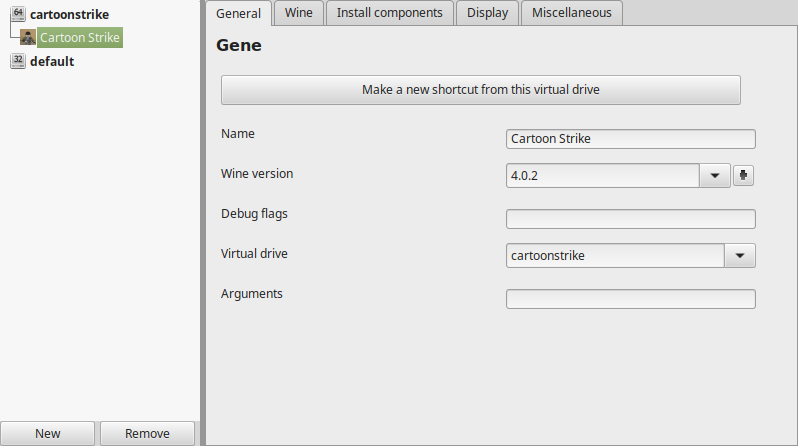

    Select "Cartoon Strike" in the left column

    General Tab
    Wine version: 4.0.2


    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of Wine.

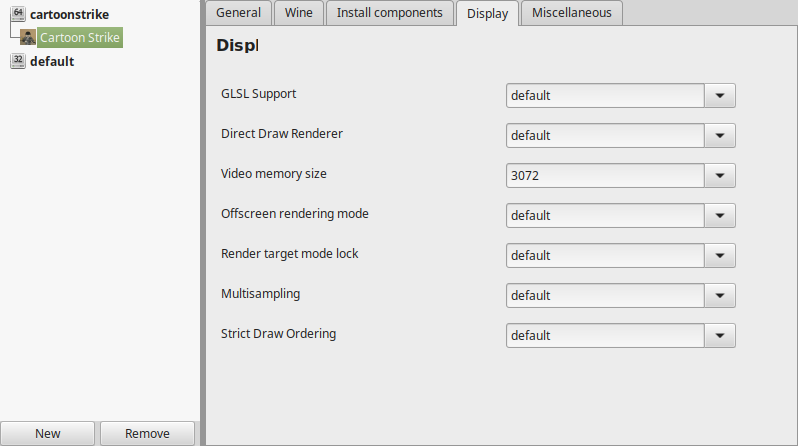

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses


    Close Configure

    Run Cartoon Strike

    Select "Cartoon Strike"
    Click Run


    Note: Click debug to see bugs and errors

    Optimization

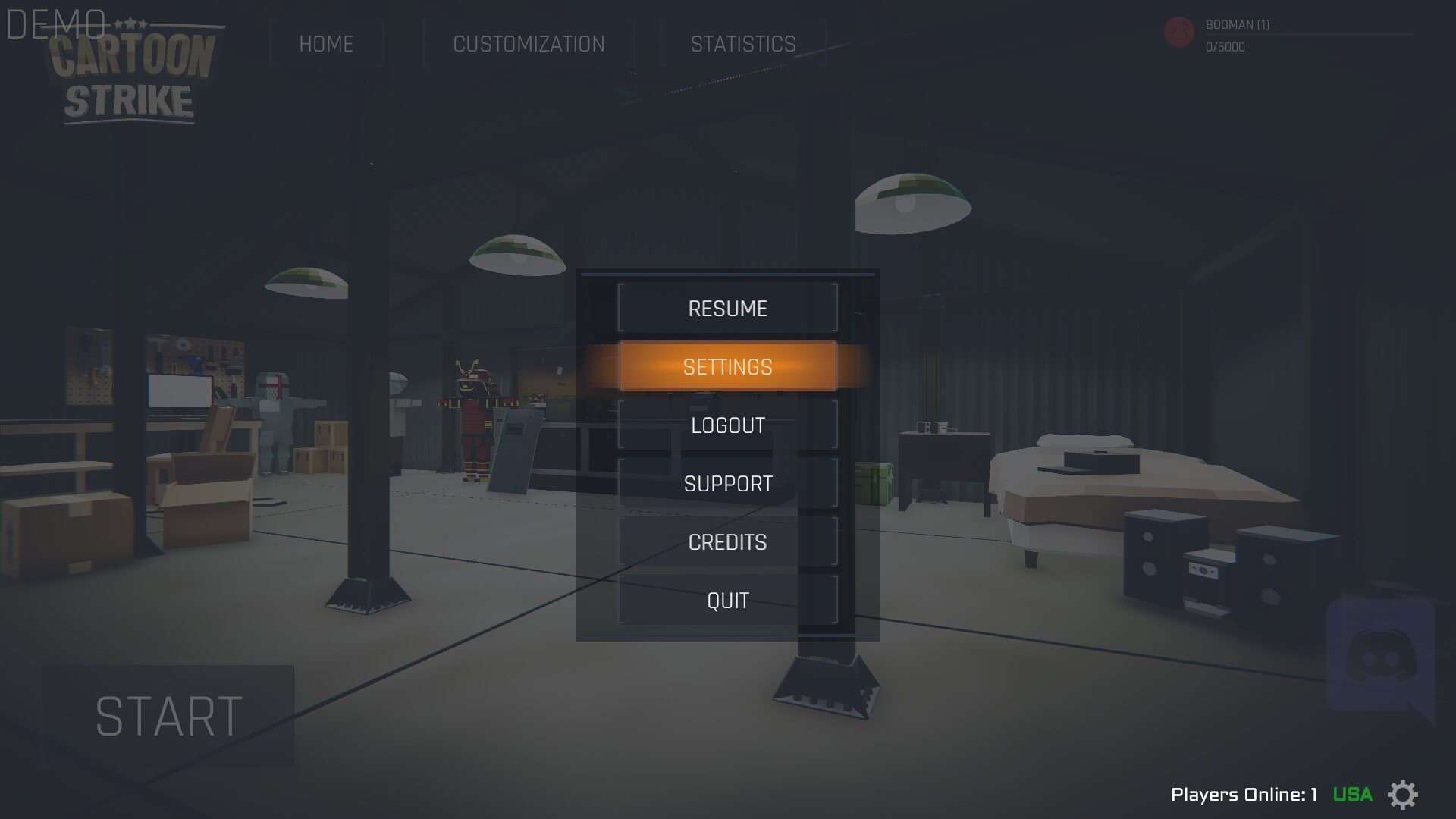

    Click the gear at the bottom right


    Click Settings


    Click "Graphics"
    Adjust:
    • Display Mode
    • Resolution
    • Quality
    • Post Processing

    Conclusion:
    Cartoon strike runs well in PlayOnLinux on my GeForce GTX 1060. This is a low poly cartoonish game, so it might run well on any laptop or netbook, but may require adjusting some of the graphics settings. There was no on online while I was testing, so I hosted my own game with bots. but there is a browser-based version of the game here: https://gameflare.itch.io/cartoon-strike
    It runs well in Linux Chrome and you may find other players online

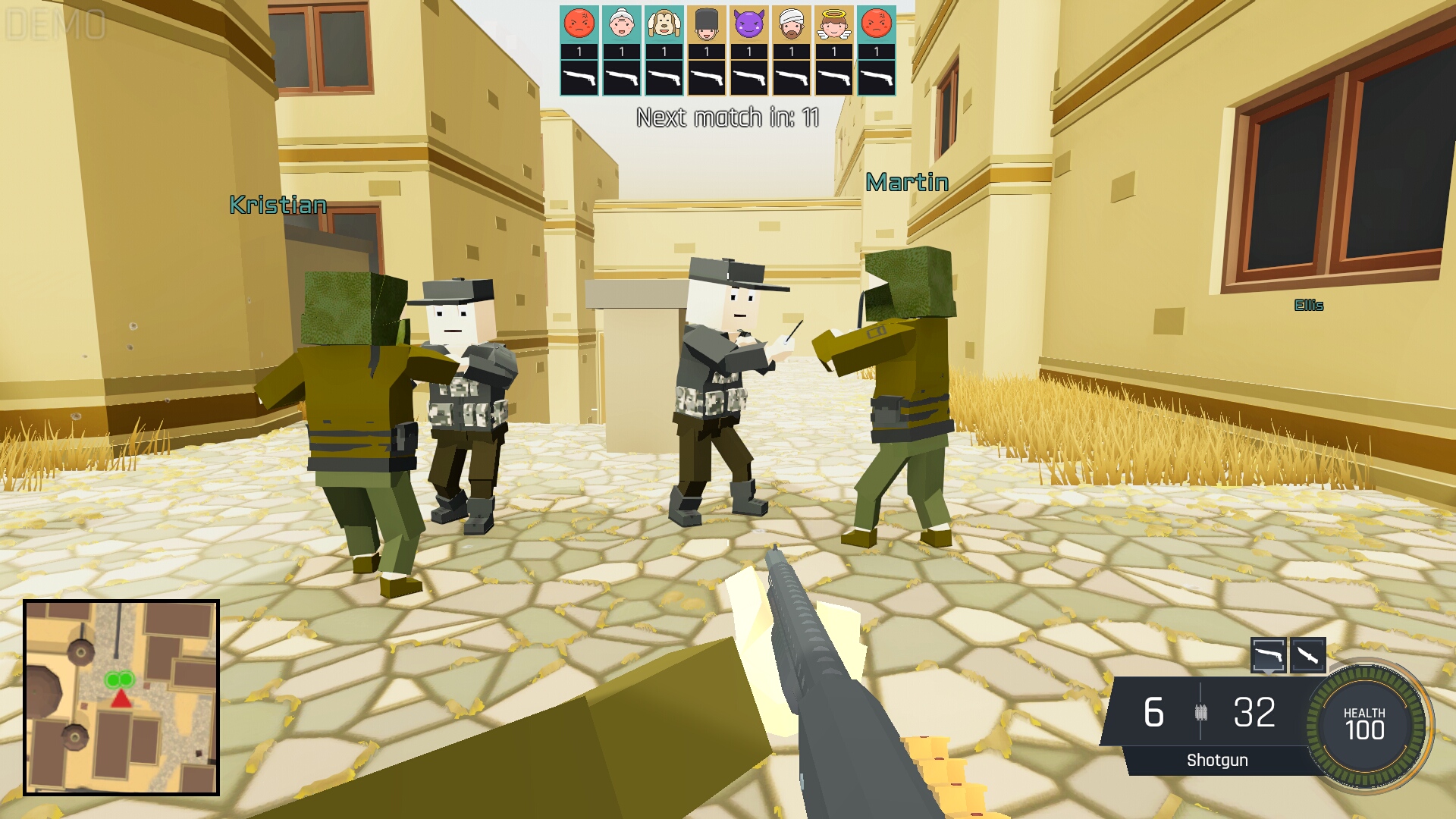

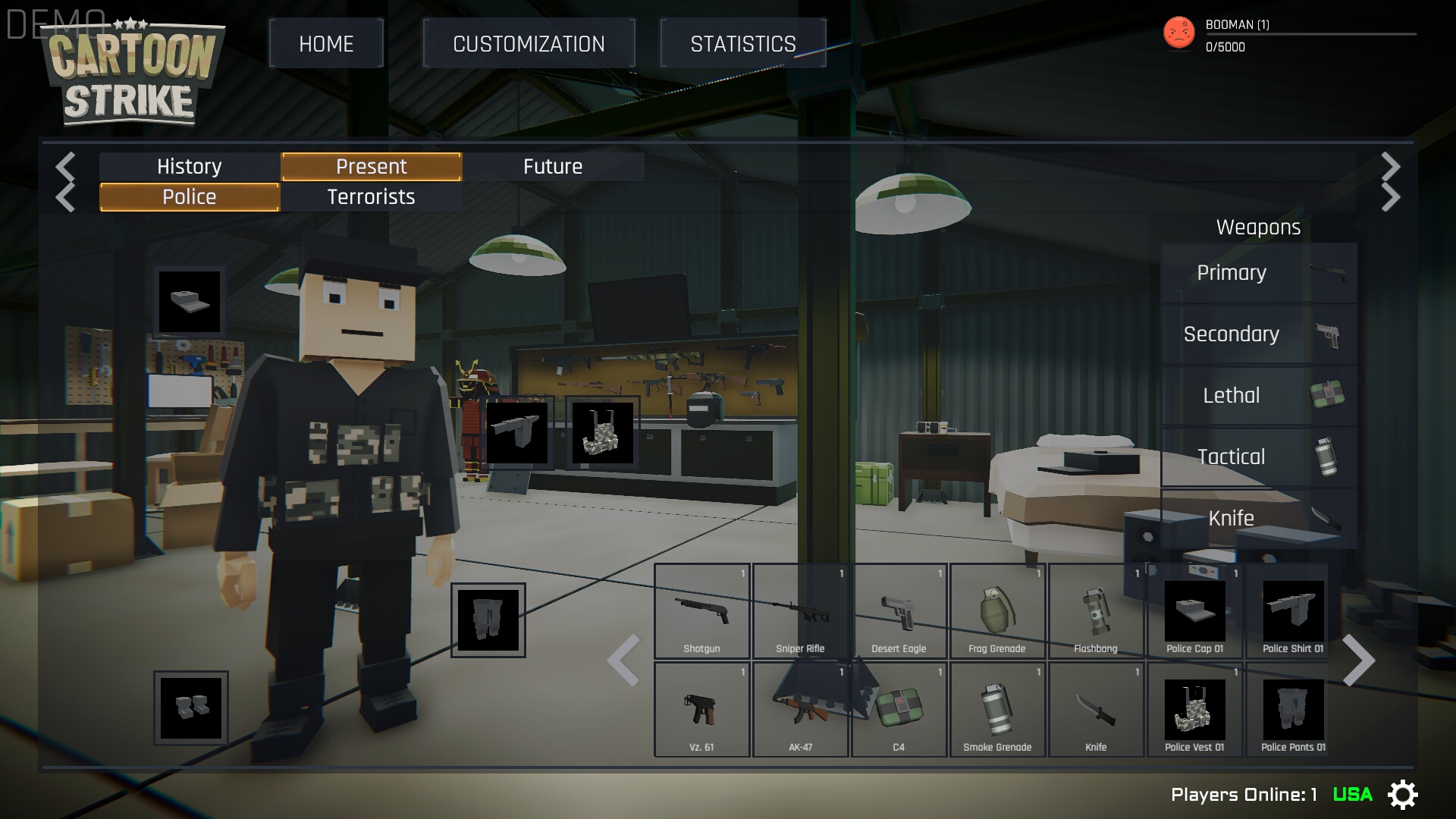

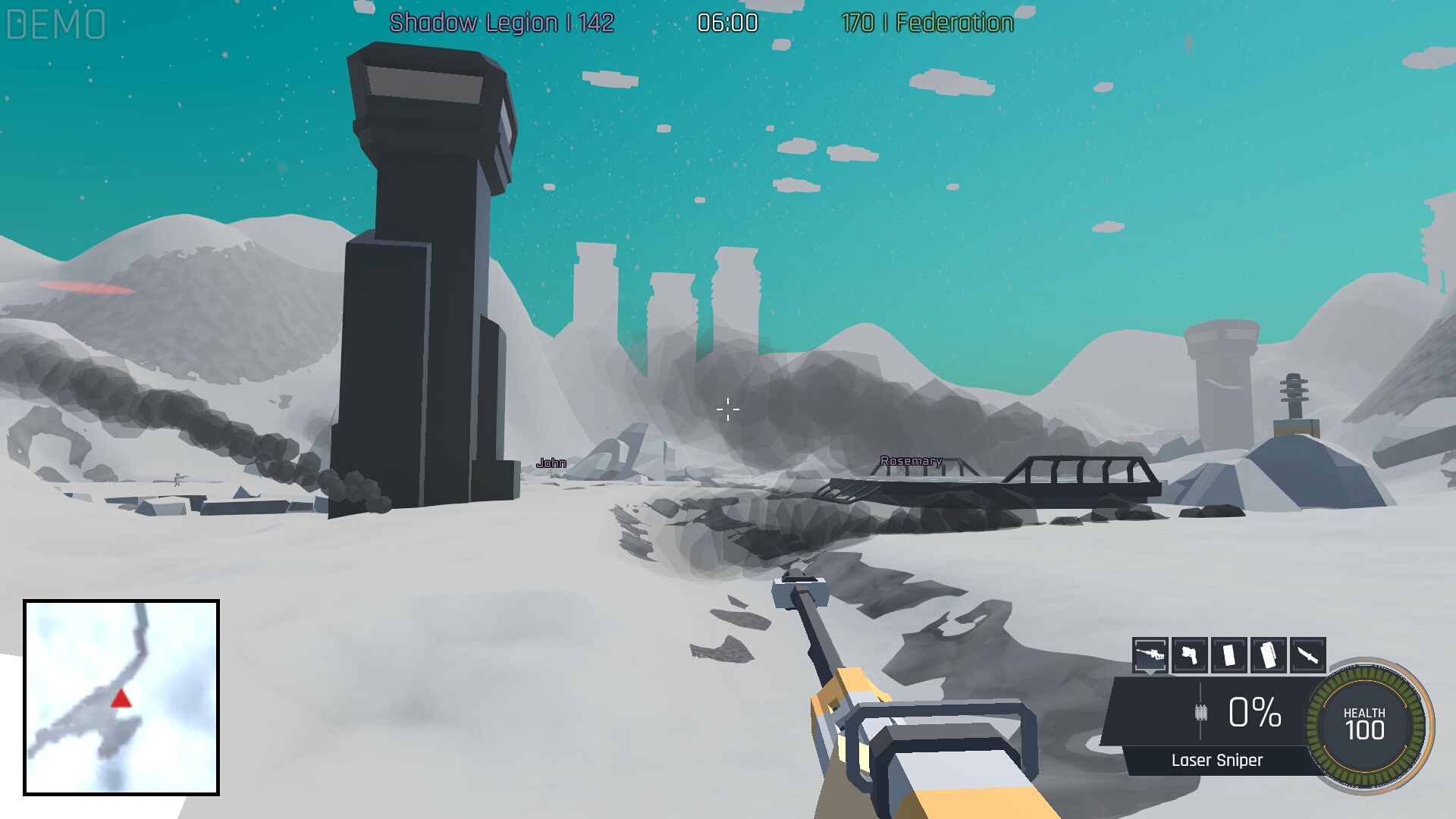

    Screenshots:
