    Raise your hand if you want to fight Orks! Warhammer 40K Space Marine is where you can slaughter thousands of Orks forever... Slay non stop Orks with all kinds of bloody melee weapons and guns while you save the world. What could be better than that?


    Follow my step-by-step guide on installing, configuring and optimizing Warhammer 40K Space Marine in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Warhammer 40K Space Marine. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 18.2 64-bit
    PlayOnLinux: 4.2.12
    Wine: 2.12-staging

    Wine Installation

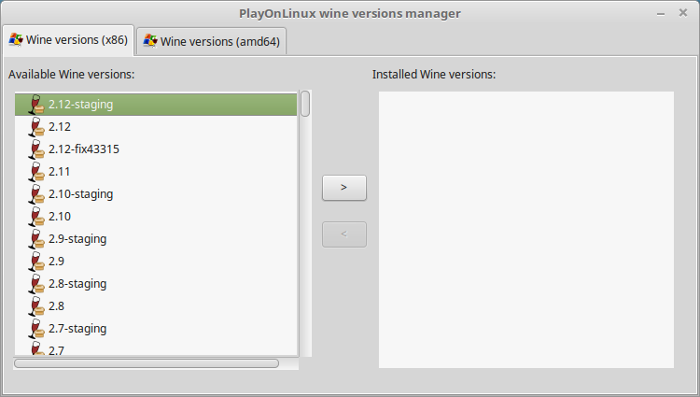

    Click Tools
    Select "Manage Wine Versions"

    Look for the Wine Version: 2.12-staging
    Select it
    Click the arrow pointing to the right

    Click Next

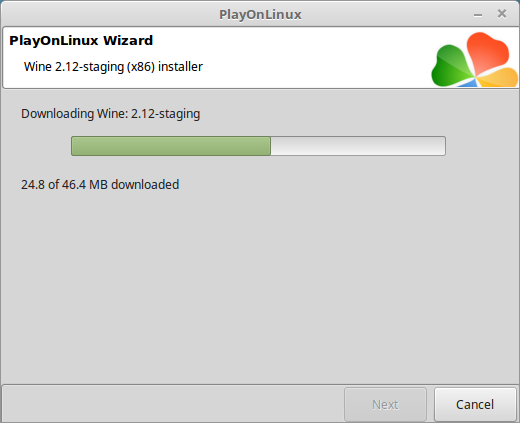

    Downloading Wine

    Extracting

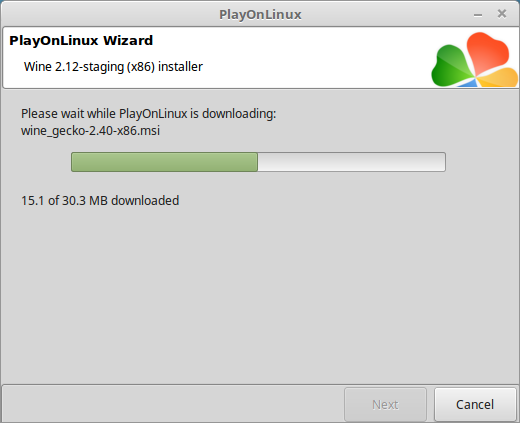

    Downloading Gecko

    Installed

    Wine 2.12-staging is installed and you can close this window

    Downloading Steam

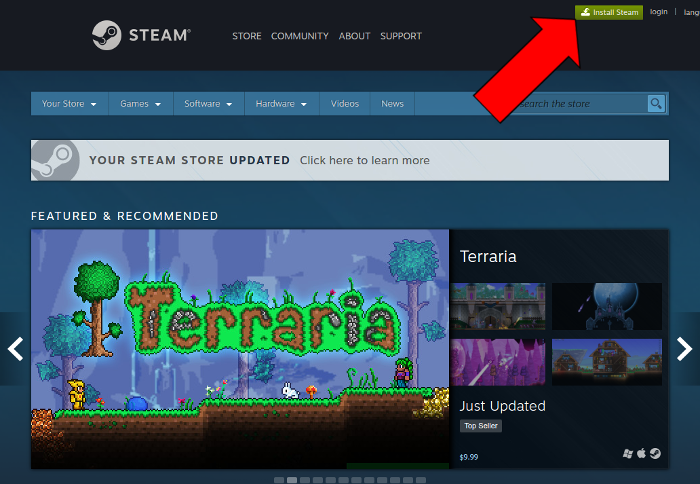

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam

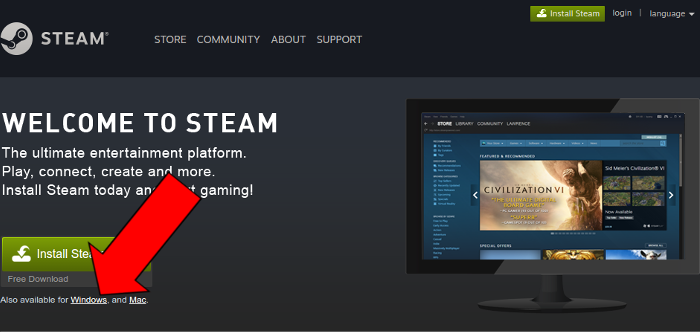

    Select Windows Steam instead
    click "Windows" under the green button

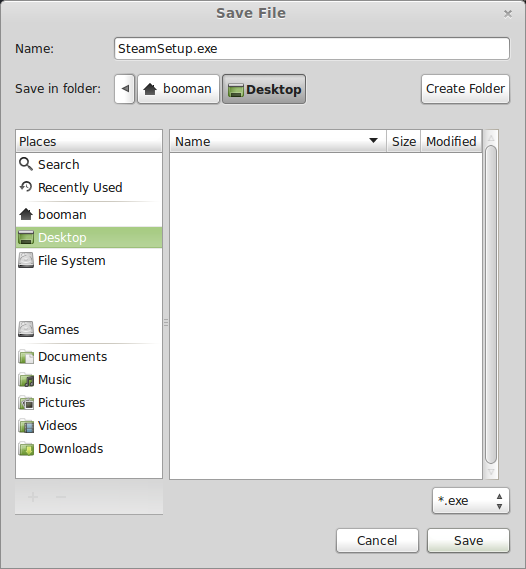

    Navigate to your desktop
    Click Save

    PlayOnLinux Setup

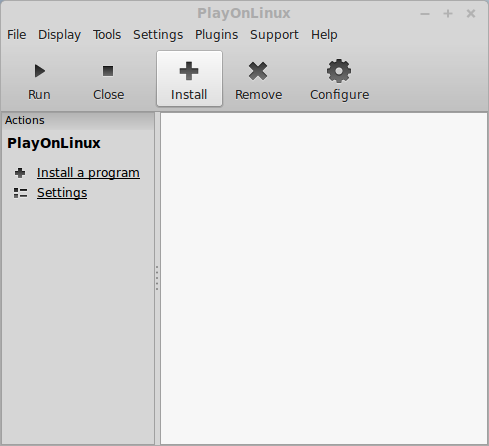

    Launch PlayOnLinux
    Click Install

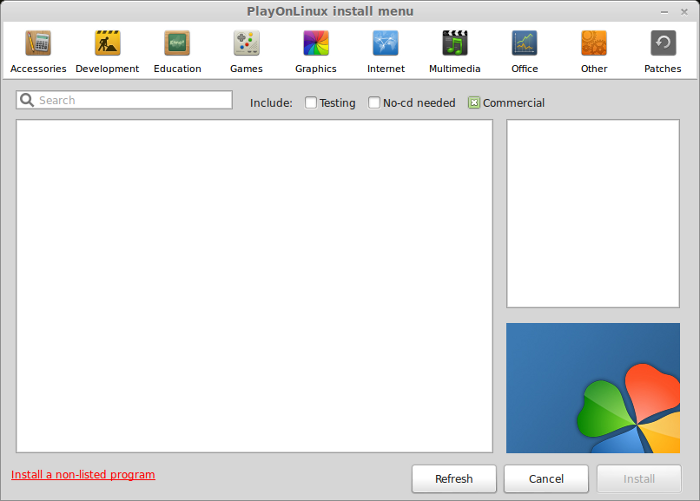

    Click "install a non-listed program"

    Click Next

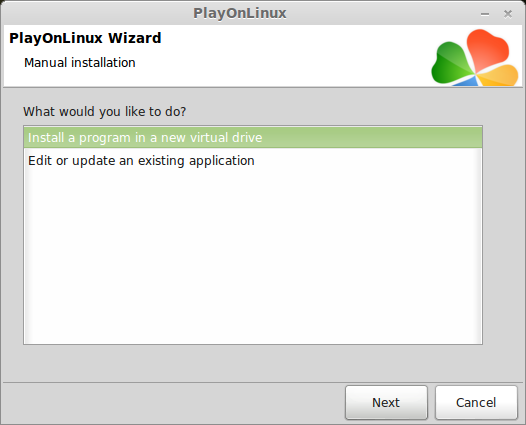

    Select "Install a program in a new virtual drive"
    Click Next

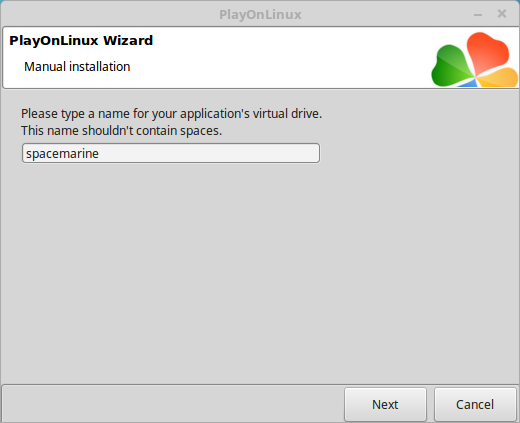

    Name your virtual drive: spacemarine
    No spaces
    Click Next

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

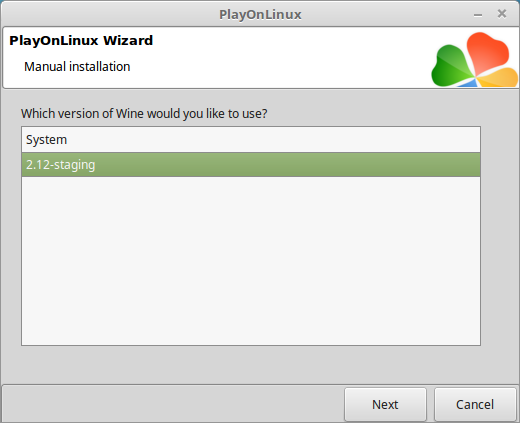

    Select Wine 2.12-staging
    Click Next

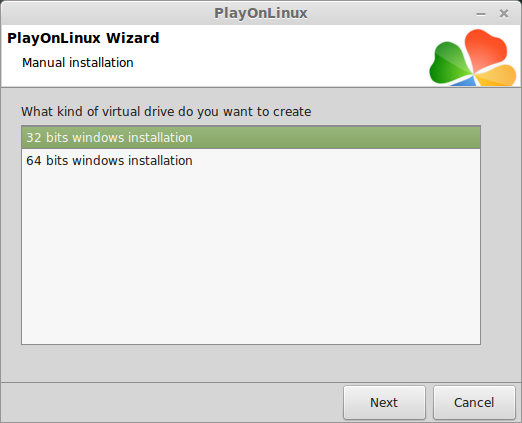

    Select "32 bits windows installation"
    Click Next

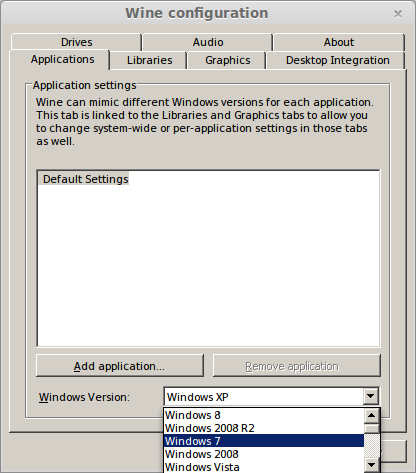

    Configure Wine

    Applications Tab
    Windows Version: Windows 7
    Click Apply

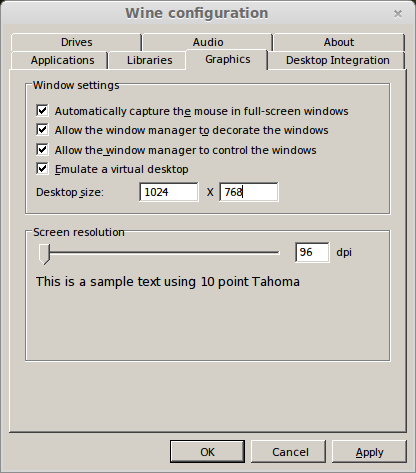

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Check: Emulate a virtual desktop
    Desktop size: 1024x768
    Click Ok

    PlayOnLinux Packages (Libraries, Components, DLL's)

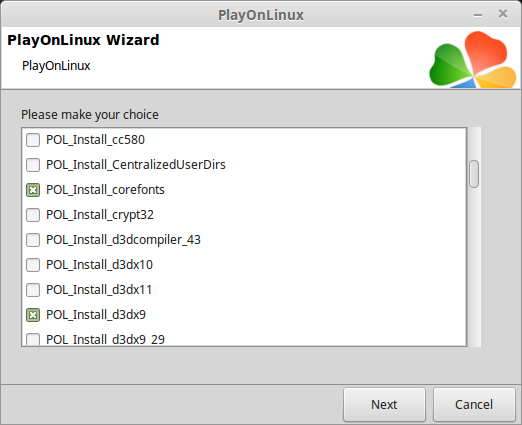

    Check the following libraries:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_tahoma
    • POL_Install_vcrun2005
    • POL_Install_vcrun2008
    • POL_Install_vcrun2010
    Click Next

    Note: All packages will automatically download and install

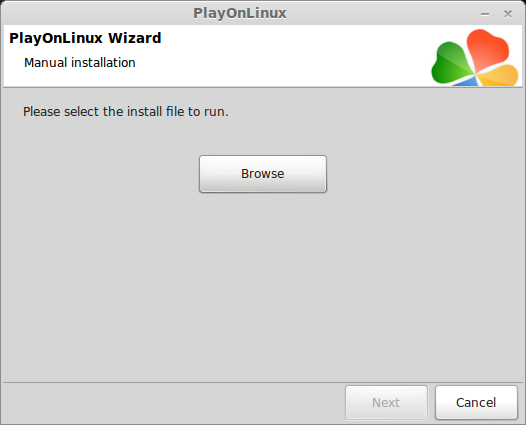

    Installing Steam

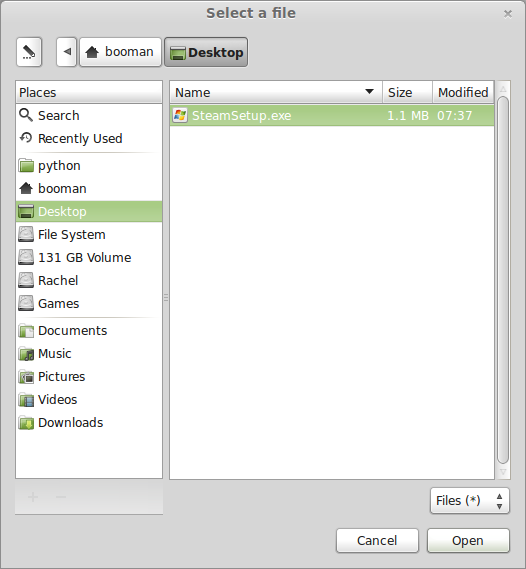

    Click Browse

    Navigate to your desktop
    Select: SteamSetup.exe
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

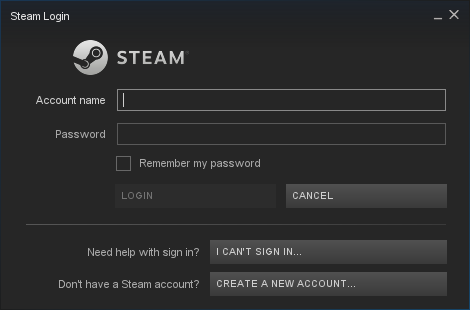

    Updating Steam

    Do not log in yet...
    Click the "X" to close Steam login

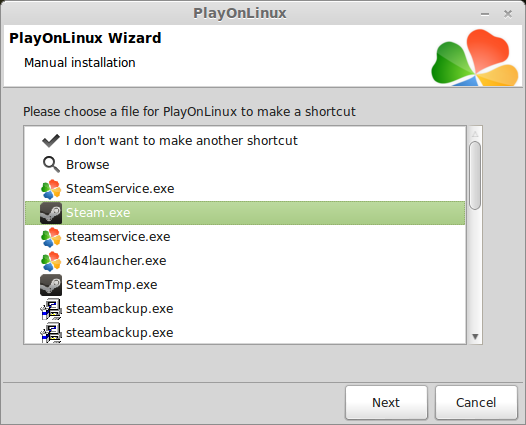

    PlayOnLinux Shortcut

    Select Steam.exe
    Click Next

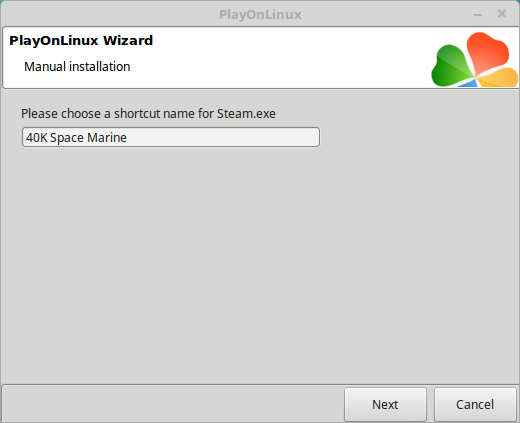

    Name your shortcut: 40K Space Marine
    Click Next

    Select "I don't want to make another shortcut"
    Click Next

    PlayOnLinux Configure

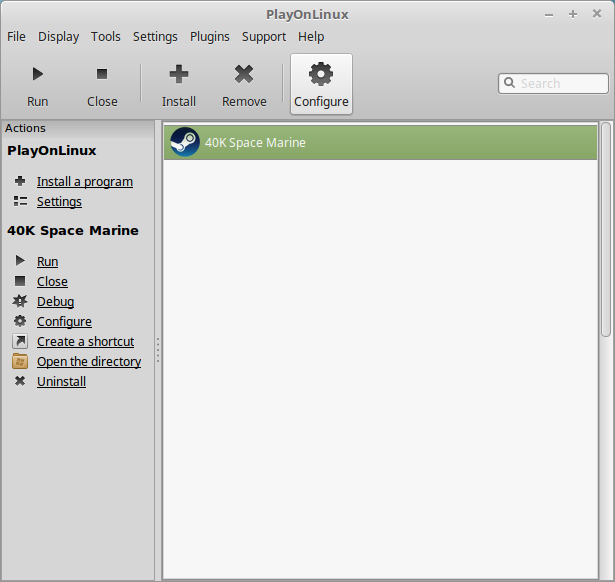

    Back to PlayOnLinux
    Click Configure

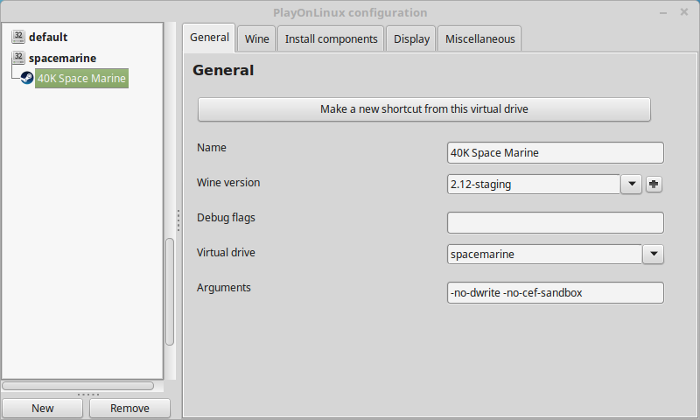

    General Tab
    Arguments: -no-dwrite -no-cef-sandbox
    This fixes any missing font problems and the store problem (must set Windows to XP)

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of wine

    Display Tab
    Video Memory Size: Select the size of Memory your video card/chip uses

    Close Configure

    Launching Steam

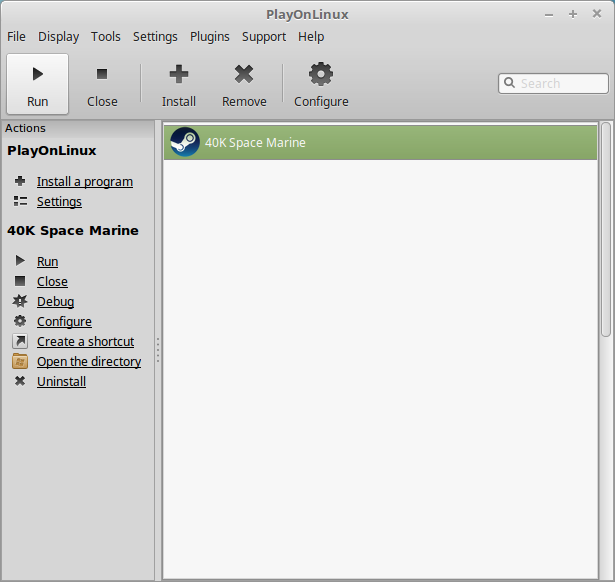

    Select 40K Space Marine
    Click Run

    Note: Click debug to see errors and bugs

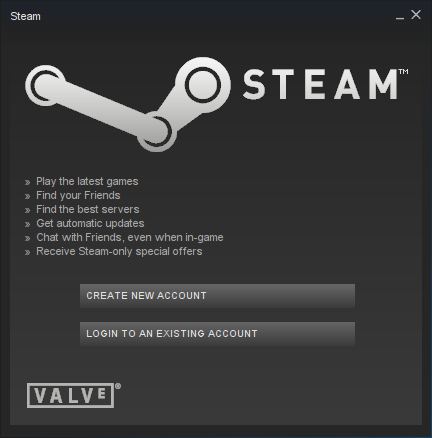

    Click "Login to existing account"

    Login

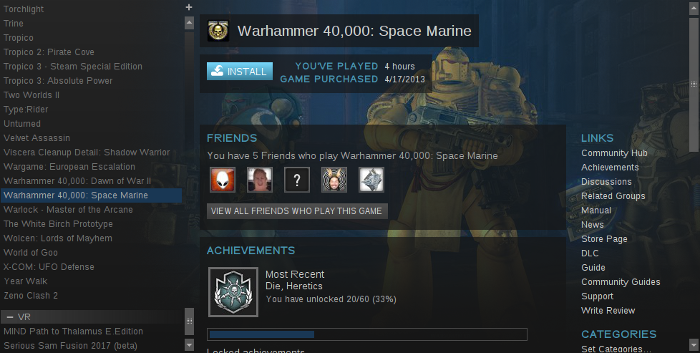

    Go to your Library
    Select "Warhammer 40K Space Marine"

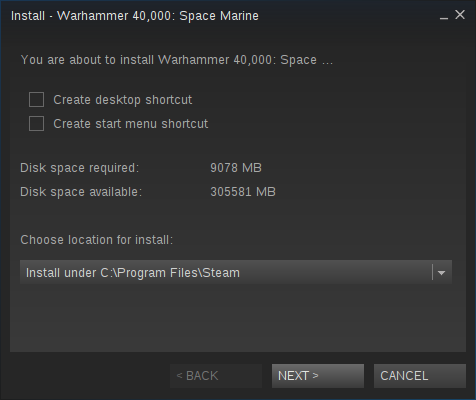

    Click Install

    Uncheck "Create desktop shortcut"
    Uncheck "Create start menu shortcut"
    Click Next

    Click Finish

    Click Play

    Optimization

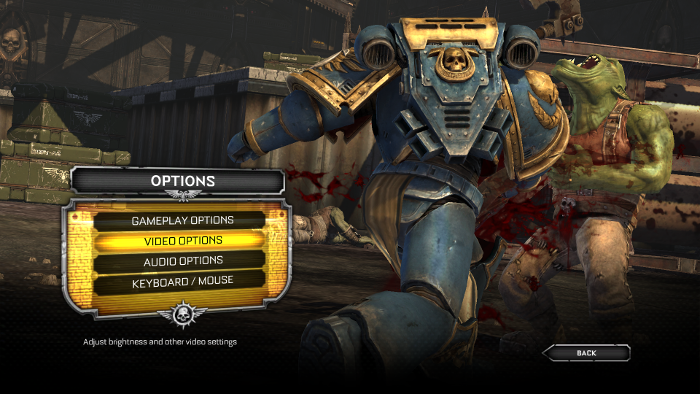

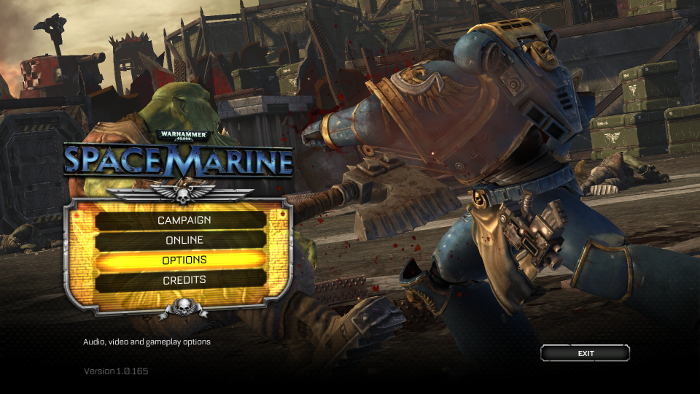

    Click Options

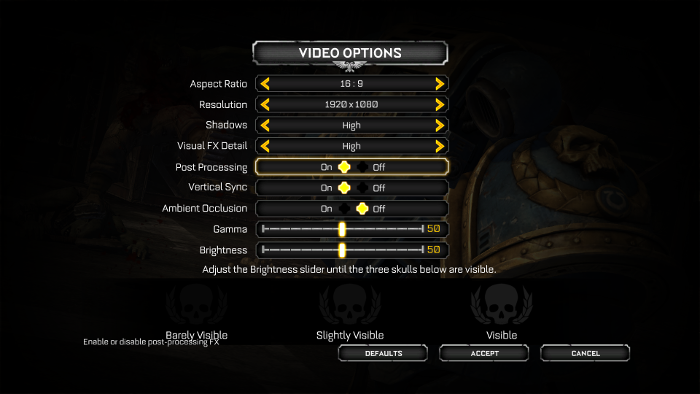

    Click Video Options

    Adjust:
    • Aspect Ratio
    • Resolution
    • Shadows
    • Visual FX Detail
    • Post Processing
    • Vertical Sync
    • Ambient Occlusion
    • Gamma
    • Brightness
    Click Accept

    Important: Post Processing needs to be set to "OFF" because it can cause graphical artifacts

    Rule of Thumb:
    High settings = More detail, lower frame rates
    Low settings = Less detail, higher frame rates

    Conclusion:
    Warhammer 40K Space Marine ran perfectly on my GTX 1060 with a resolution of 1920x1080. Once I turned off Post Processing everything looked great. I'm happy that Wine updates finally allowed this game to run... as I had tested it years ago and it refused to launch.

    Gameplay Video:

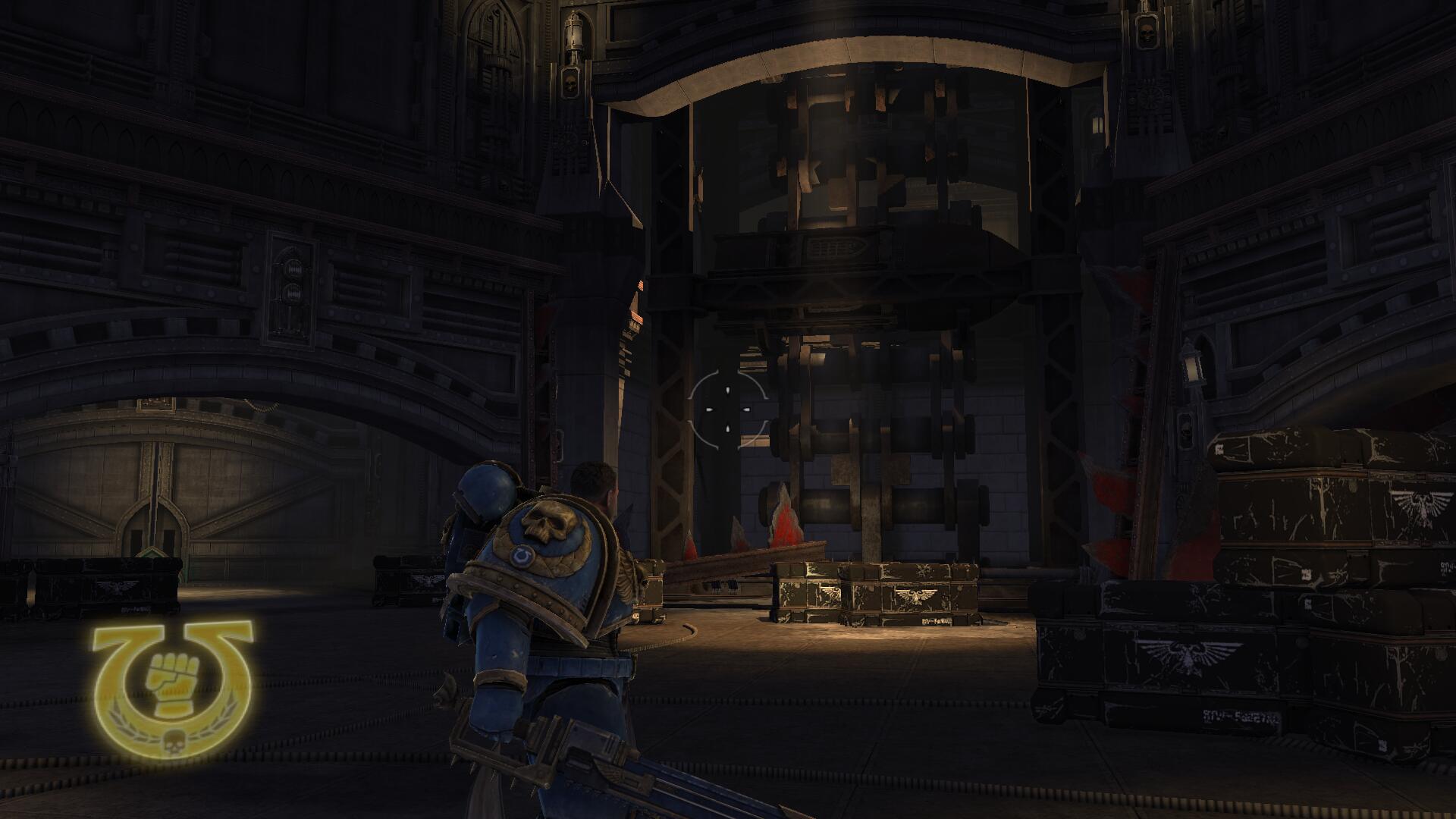

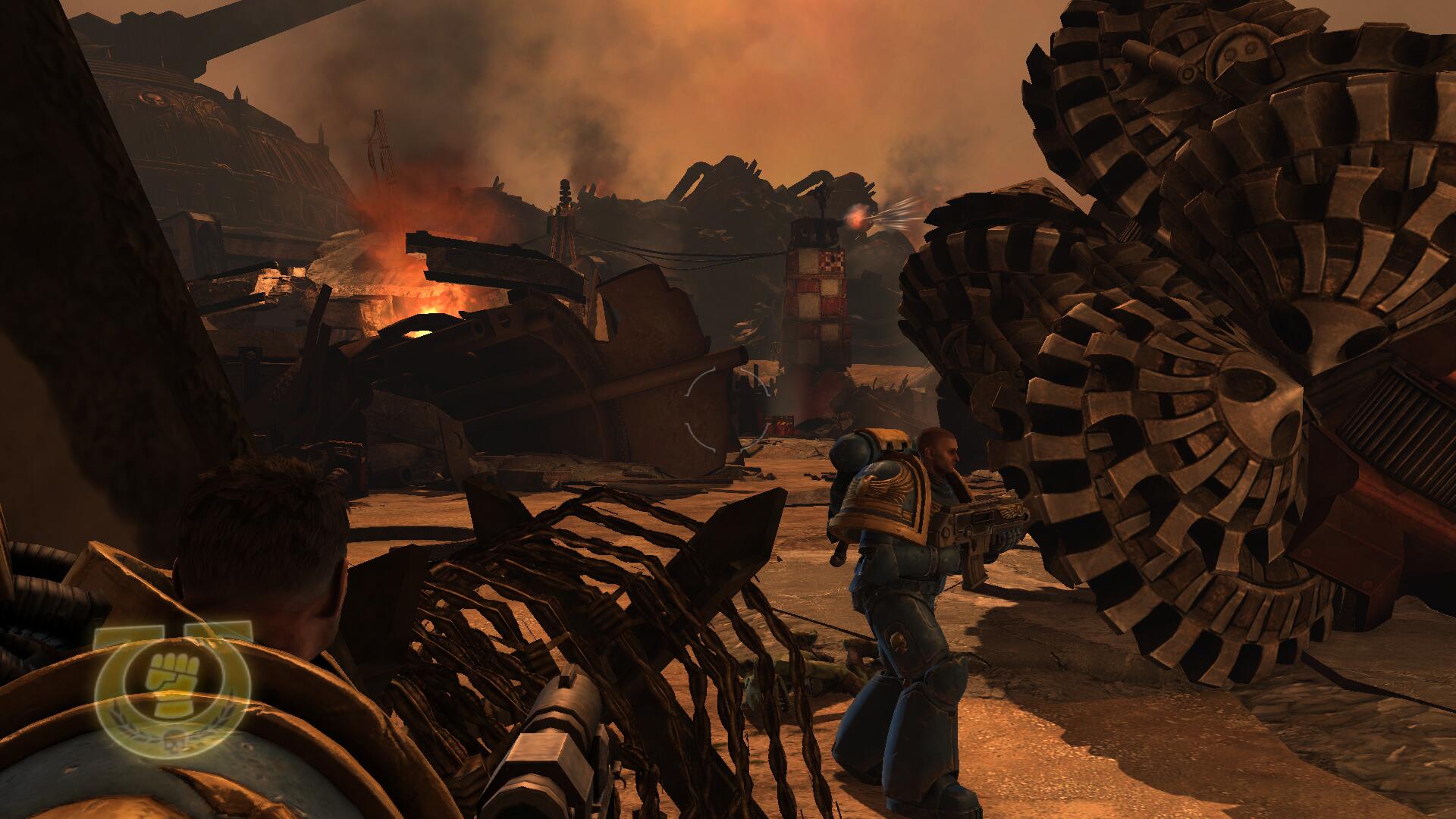

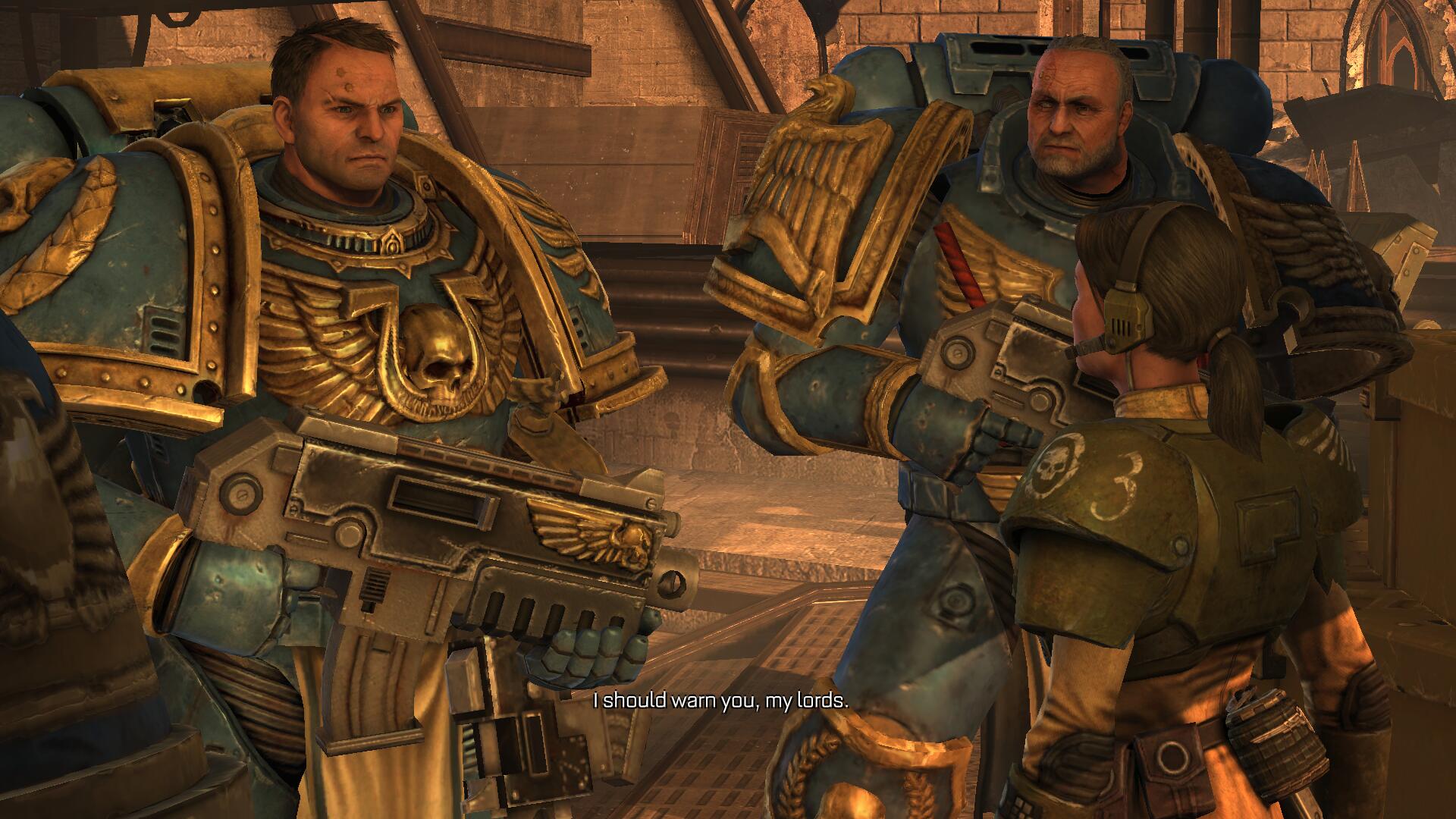

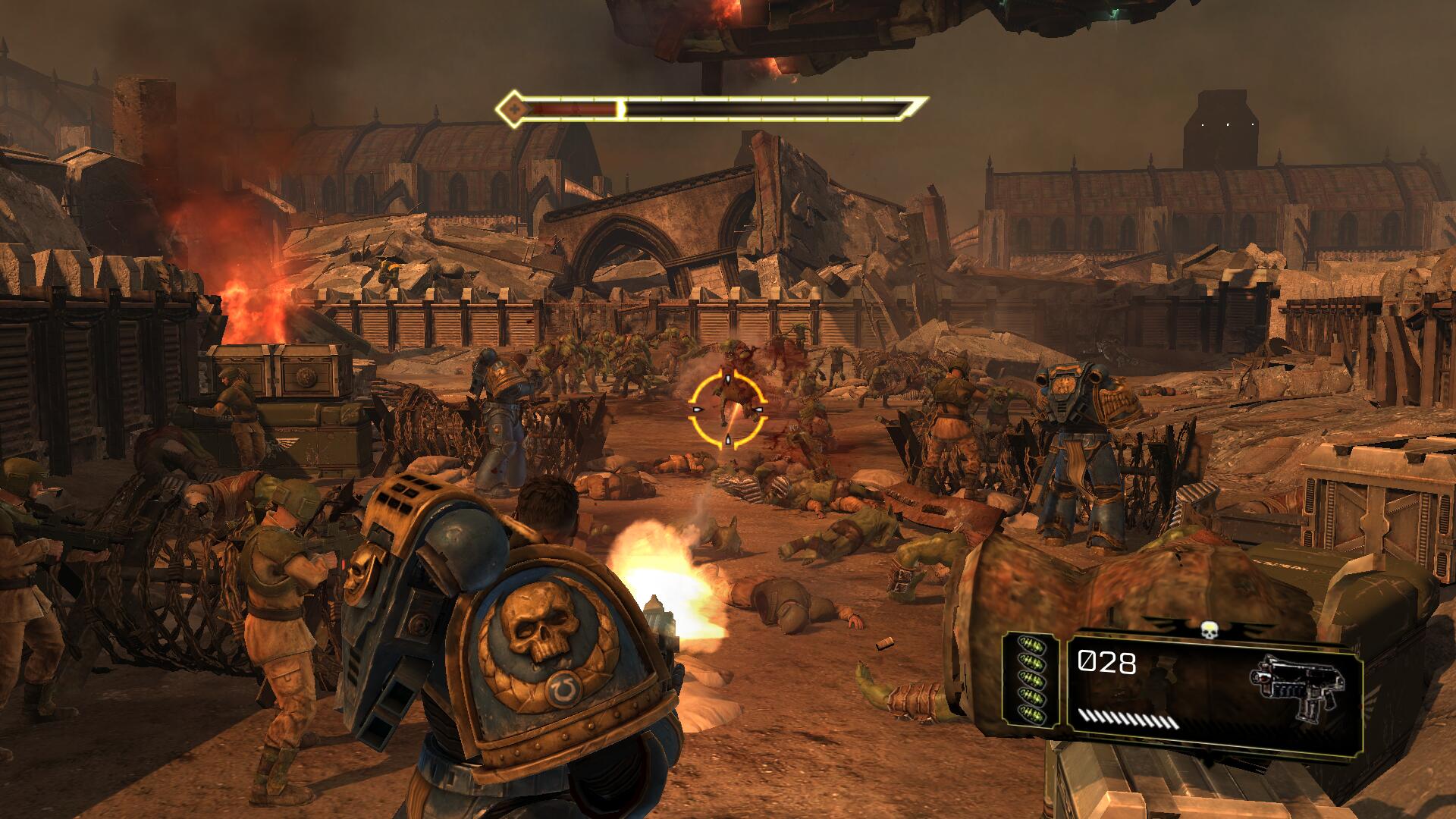

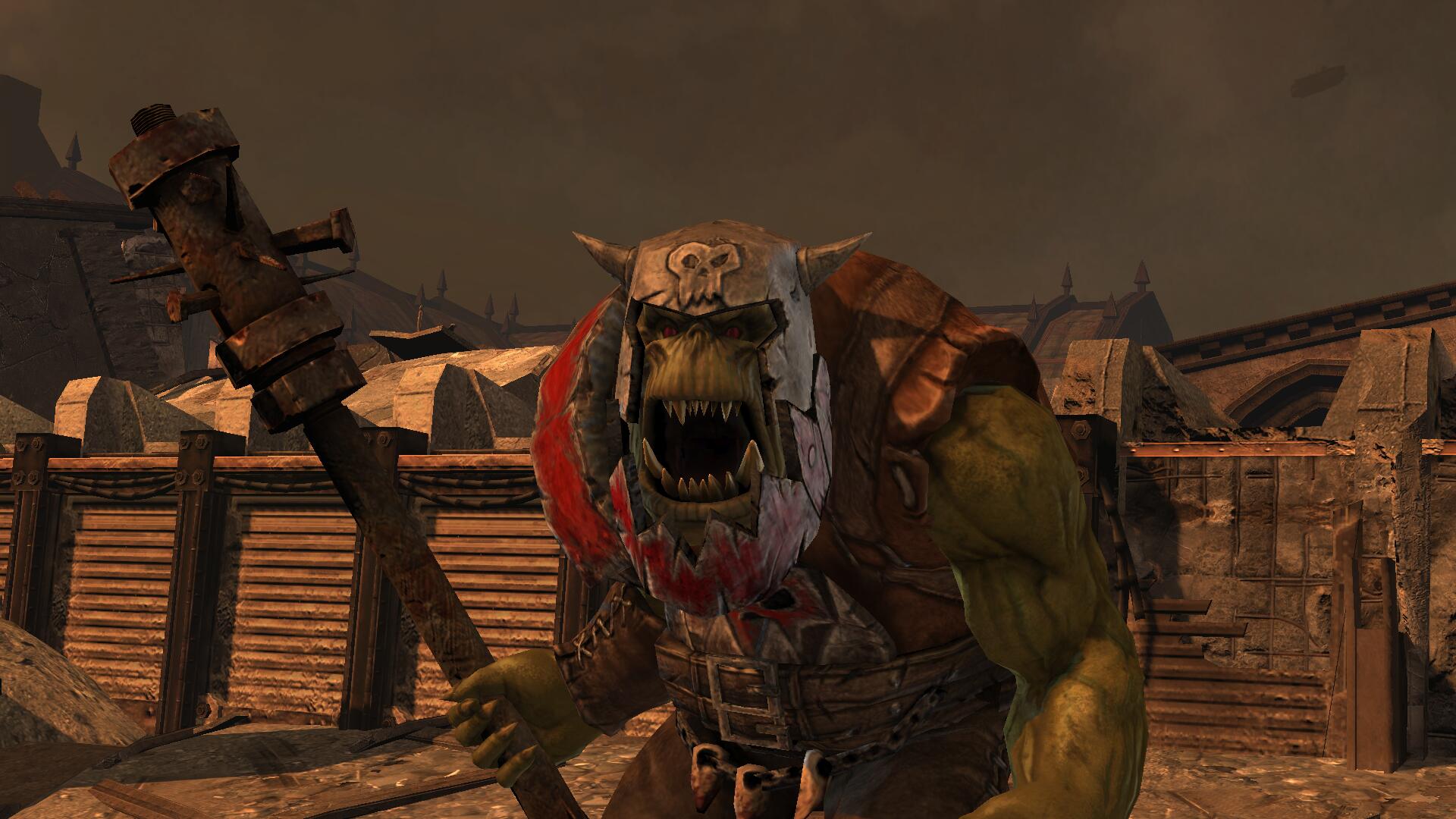

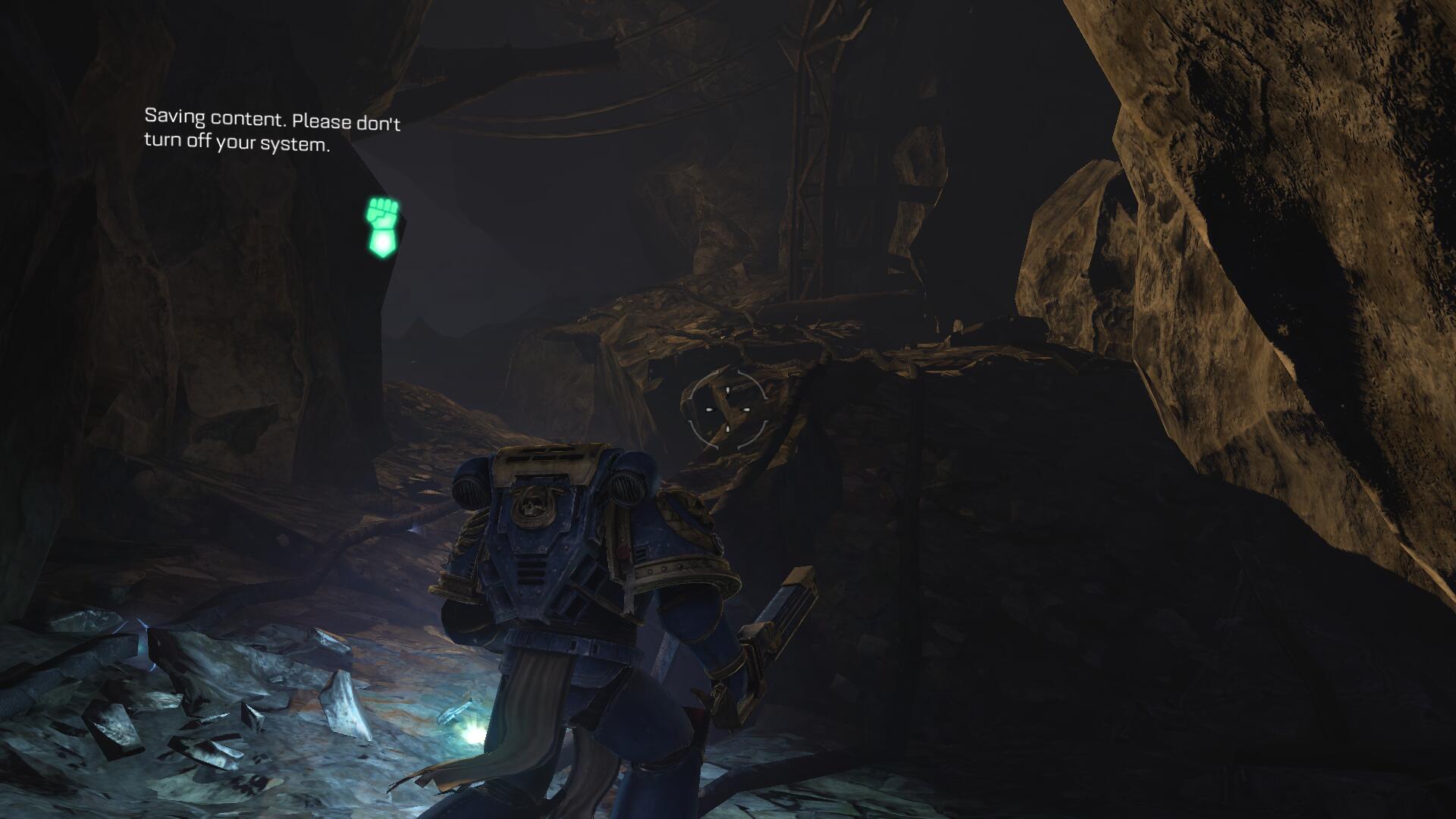

    Screenshots:
