    MX vs ATV Unleashed is more than just a racing game. It includes Waypoint races, Hill Climbs, Freestyle Arena's and of course, Supercross tracks. You can even choose to Free Ride and cruise around a map being creative with your own jumps or transfers.
    The maps are beautiful and the physics are down-right FUN!


    Follow my step-by-step guide on installing, configuring and optimizing MX vs ATV Unleashed in Linux with PlayOnLinux.

    Note: This guide applies to the Retail version of MX vs ATV Unleashed. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    int 16 64-bit
    PlayOnLinux: 4.2.2
    Wine: 1.6.2

    Installing Wine

    Click Tools

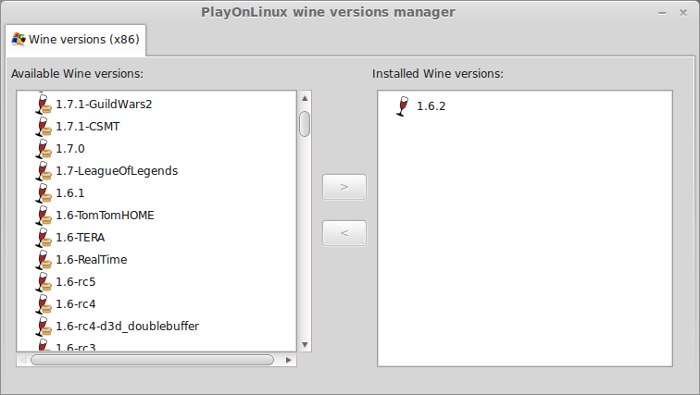

    Select "Manage Wine Versions"

    Look for the Wine Version: 1.6.2
    Note: Try using stable Wine 1.8 and 1.8-staging

    Select it
    Click the arrow pointing to the right

    Click Next

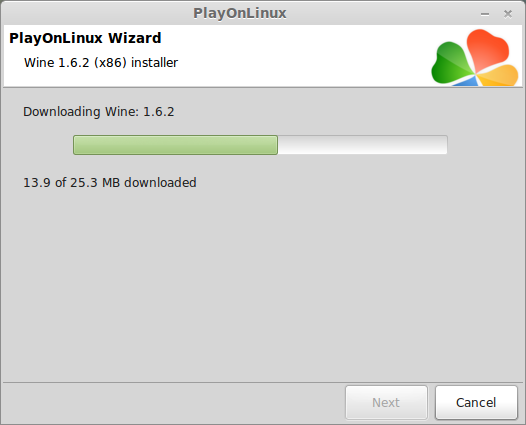

    Downloading Wine

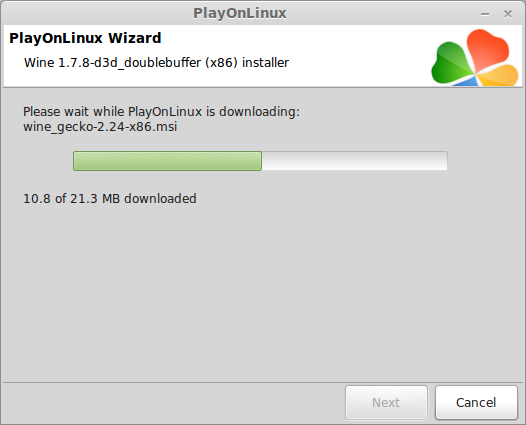

    Downloading Gecko

    Installed

    Wine 1.6.2 is installed and you can close this window

    PlayOnLinux Setup

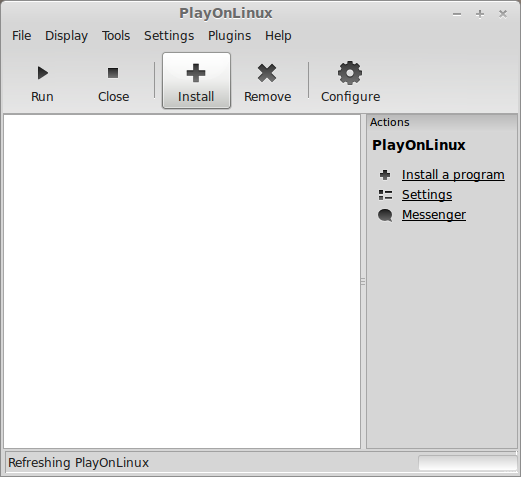

    Launch PlayOnLinux

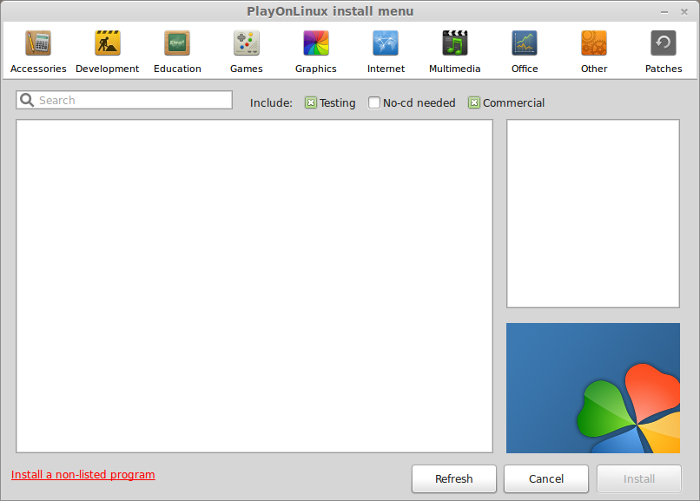

    Click Install

    Click "Install a non-listed program"

    Click Next

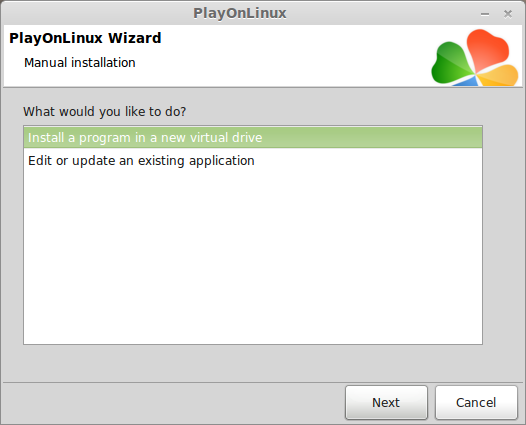

    Select "Install a program in a new virtual drive"
    Click Next

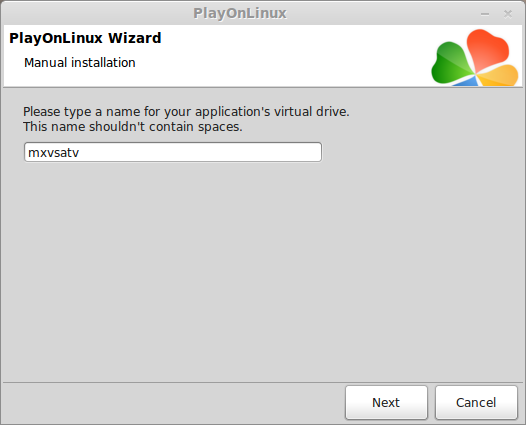

    Name the virtual drive: mxvsatv
    Click Next

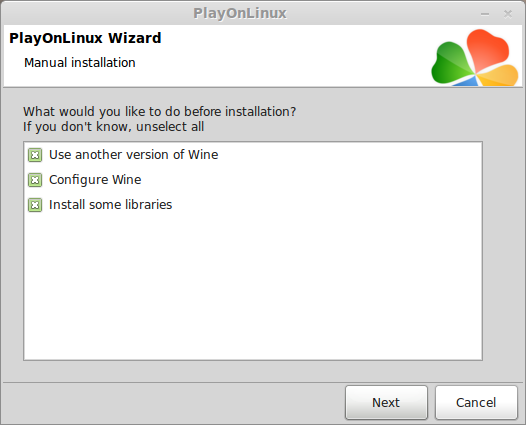

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries

    Click Next

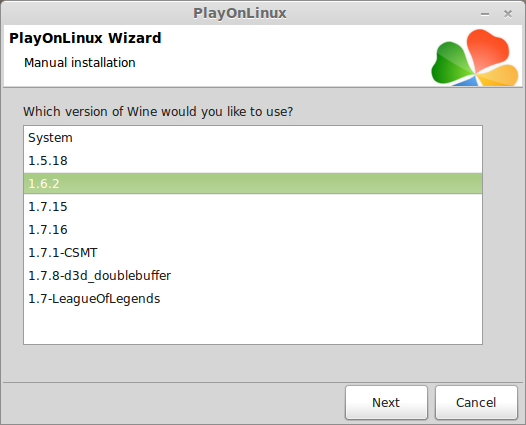

    Select Wine 1.6.2
    Click Next

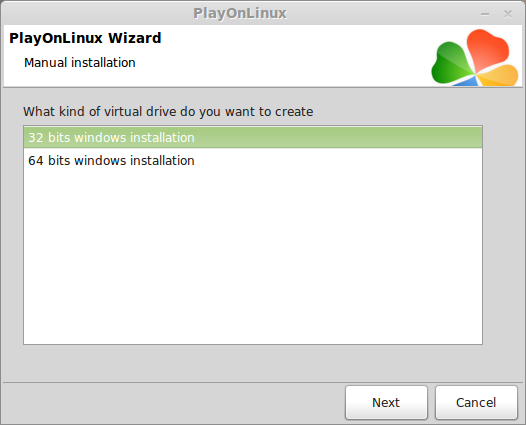

    Select "32 bits windows installation"
    Click Next

    Wine Configuration

    Applications Tab
    Windows Version: Windows 7
    Click Apply

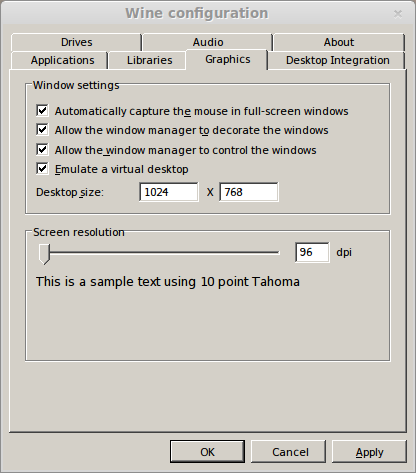

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Check "Emulate a virtual desktop
    Desktop Size: 1024x768
    Click Ok

    PlayOnLinux Packages (Components, Libraries)

    Check the following Packages:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_tahoma

    Note: All packages will automatically download and install

    Click Next

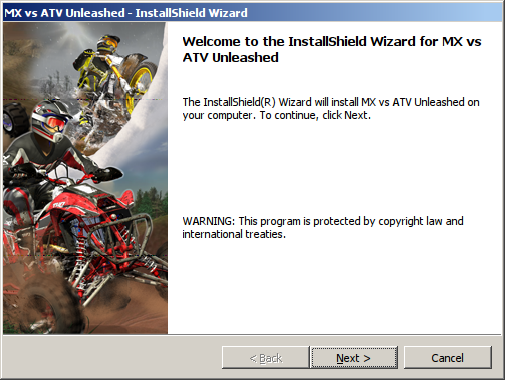

    Installing MX vs ATV Unleashed

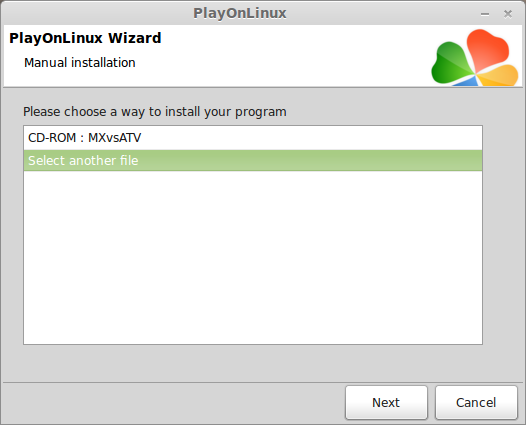

    Click "Select another file"
    Click Next

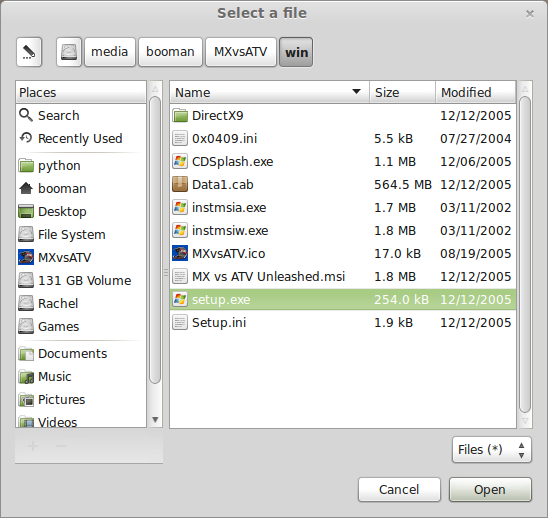

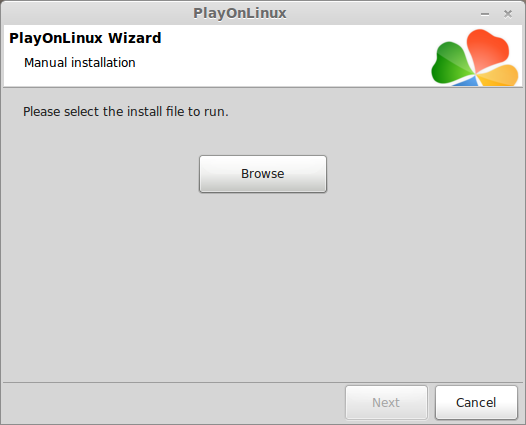

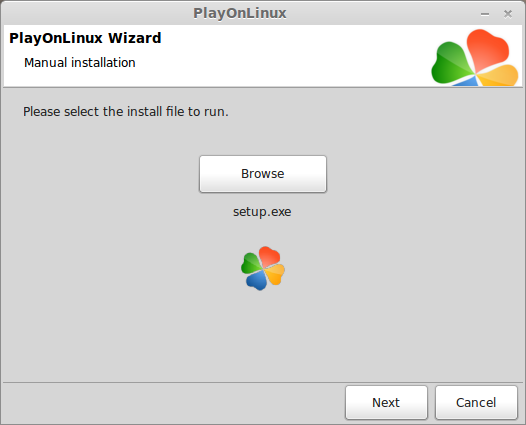

    Click Browse

    Navigate to the MX vs ATV CD-ROM
    Select "Setup.exe"
    Click Open

    Click Next

    Click Next

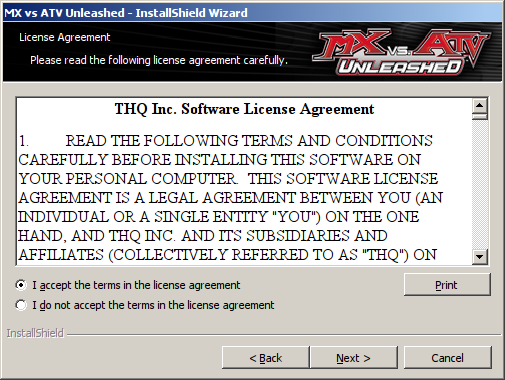

    Check "I accept the terms..."
    Click Next

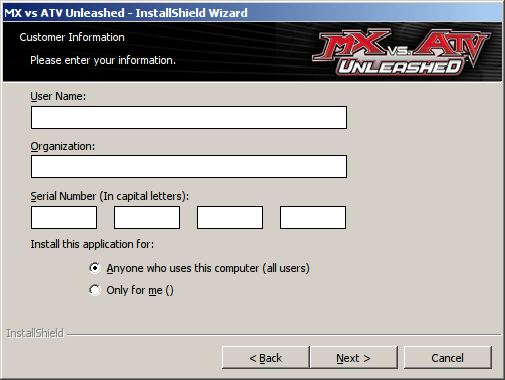

    Enter User Name, Organization and Serial Number
    Click Next

    Click Next

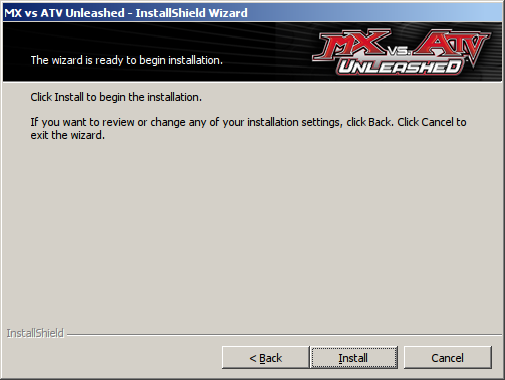

    Click Install

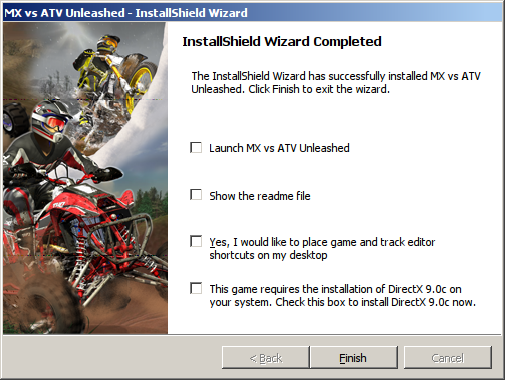

    Uncheck all options
    Click Finish

    PlayOnLinux Shortcut

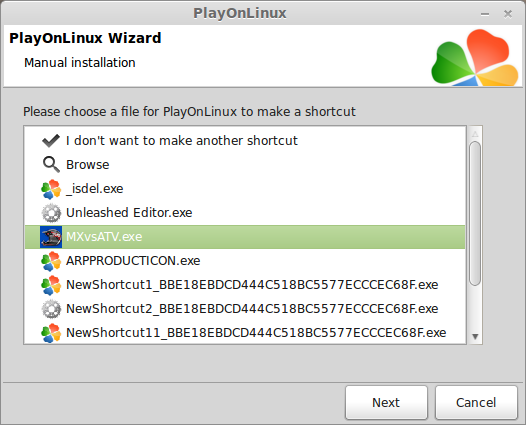

    Select "MXvsATV.exe"
    Click Next

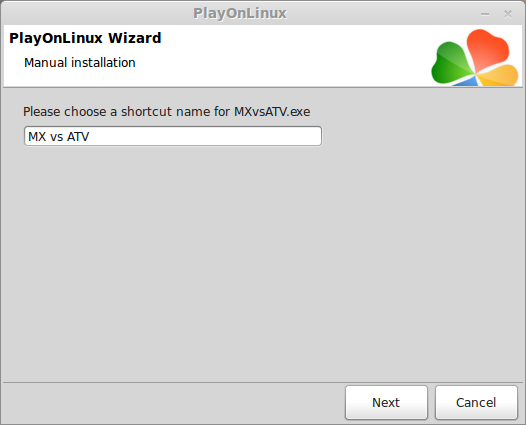

    Name your shortcut: MX vs ATV
    Click Next

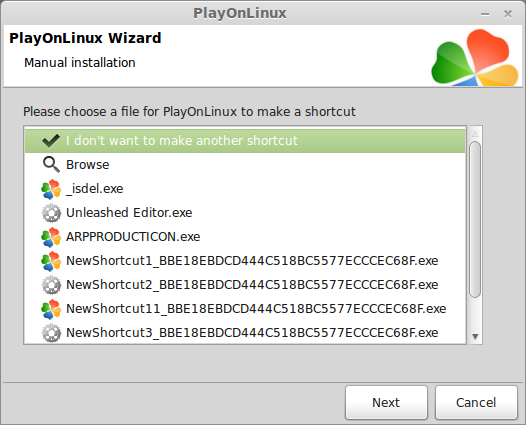

    Select "I don't want to make another shortcut"
    Click Next

    PlayOnLinux Configure

    Back to PlayOnLinux
    Click Configure

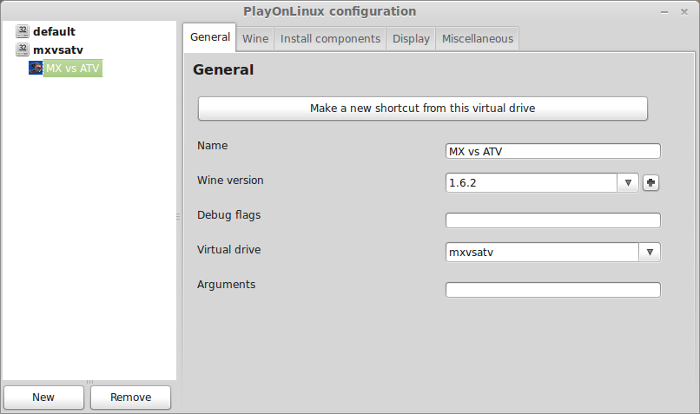

    General Tab
    Wine Version: 1.6.2
    Note: Click the + to download other versions of Wine
    Click the down-arrow to select other versions of Wine

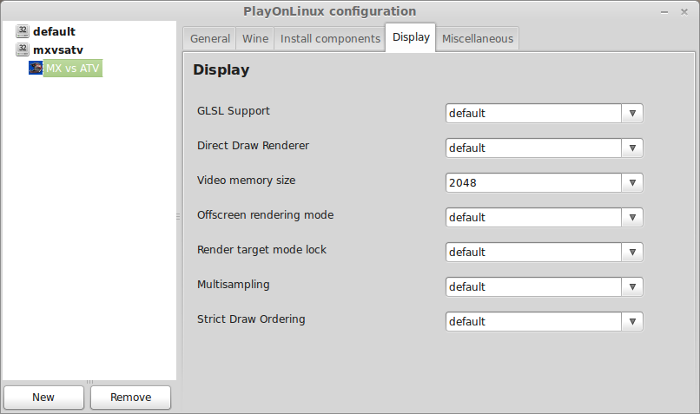

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses

    Patching MX vs ATV Unleashed

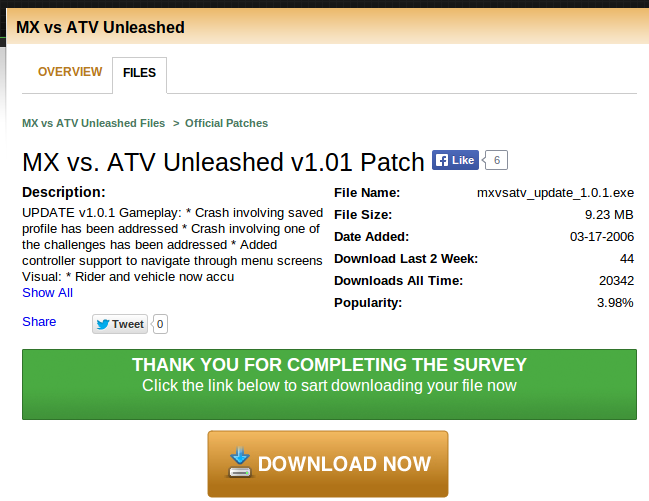

    Go To: http://www.gamefront.com/files/MX vs ATV Unleashed v101 Patch/;4888071;;/fileinfo.html

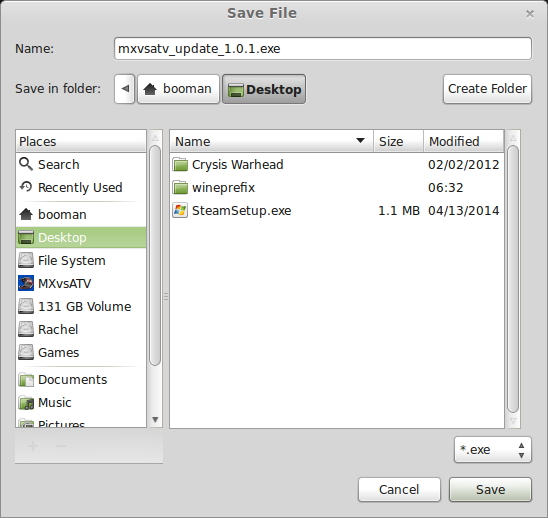

    Download mxvsatv_update_1.0.1.exe
    Navigate to your desktop
    Click Save

    Back to PlayOnLinux
    Click Configure

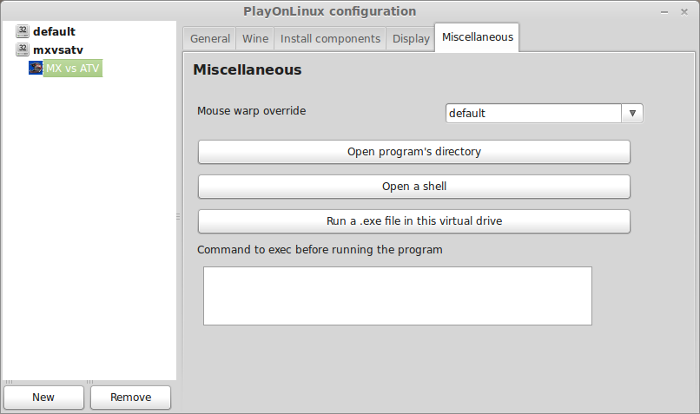

    Miscellaneous Tab
    Click "Run a .exe file in this virtual drive"

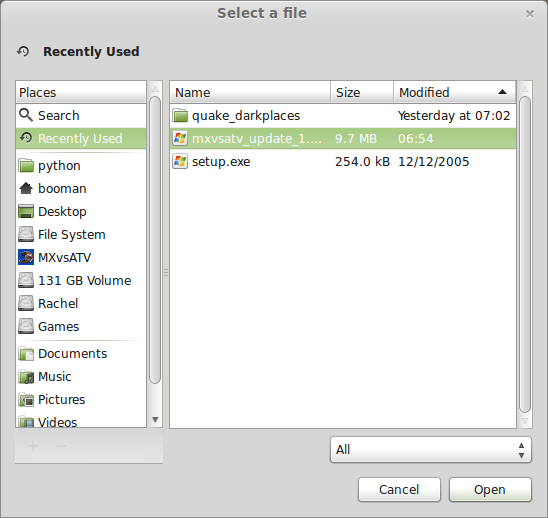

    Navigate to your Desktop
    Select mxvsatv_update_1.0.1.exe
    Click Open

    The patch will automatically install

    Close Configure

    Launching MX vs ATV

    Back to PlayOnLinux
    Select MX vs ATV
    Click Run

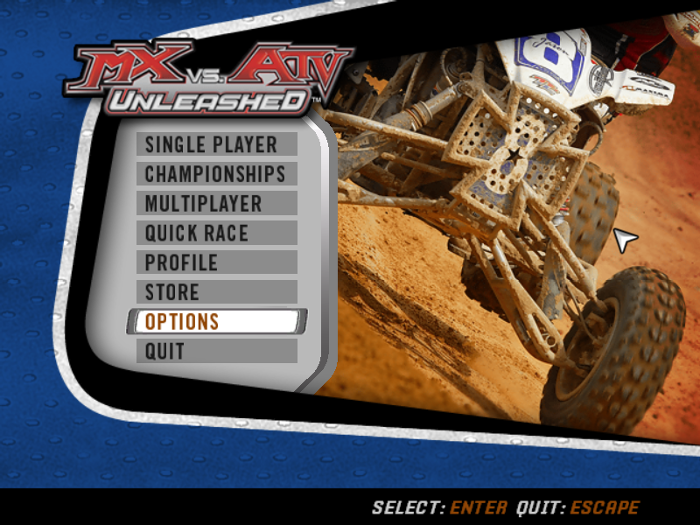

    Click Options

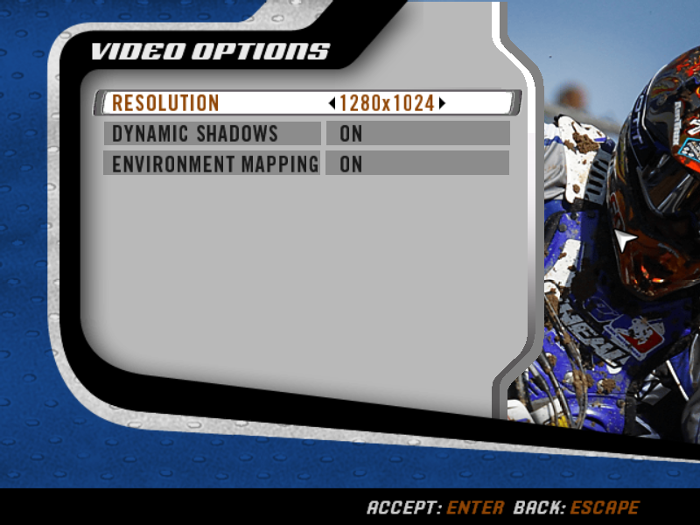

    Click Video Options

    Adjust resolution
    MX vs ATV does not support widescreen
    Note: You will have to either set your Linux desktop to match the game resolution, or disable "virtual desktop" in Wine Configuration.
    Press Enter to accept changes

    Conclusion:
    MX vs ATV Unleashed ran perfectly on my GeForce 550 Ti. Frame rates were smooth and controls were perfect. I didn't test with a controller, but using the keys were not that bad. Controllers can have problems in Wine, so that will have to be another guide all together.
    Besides no widescreen support, I would definitely give this game a Platinum rating.

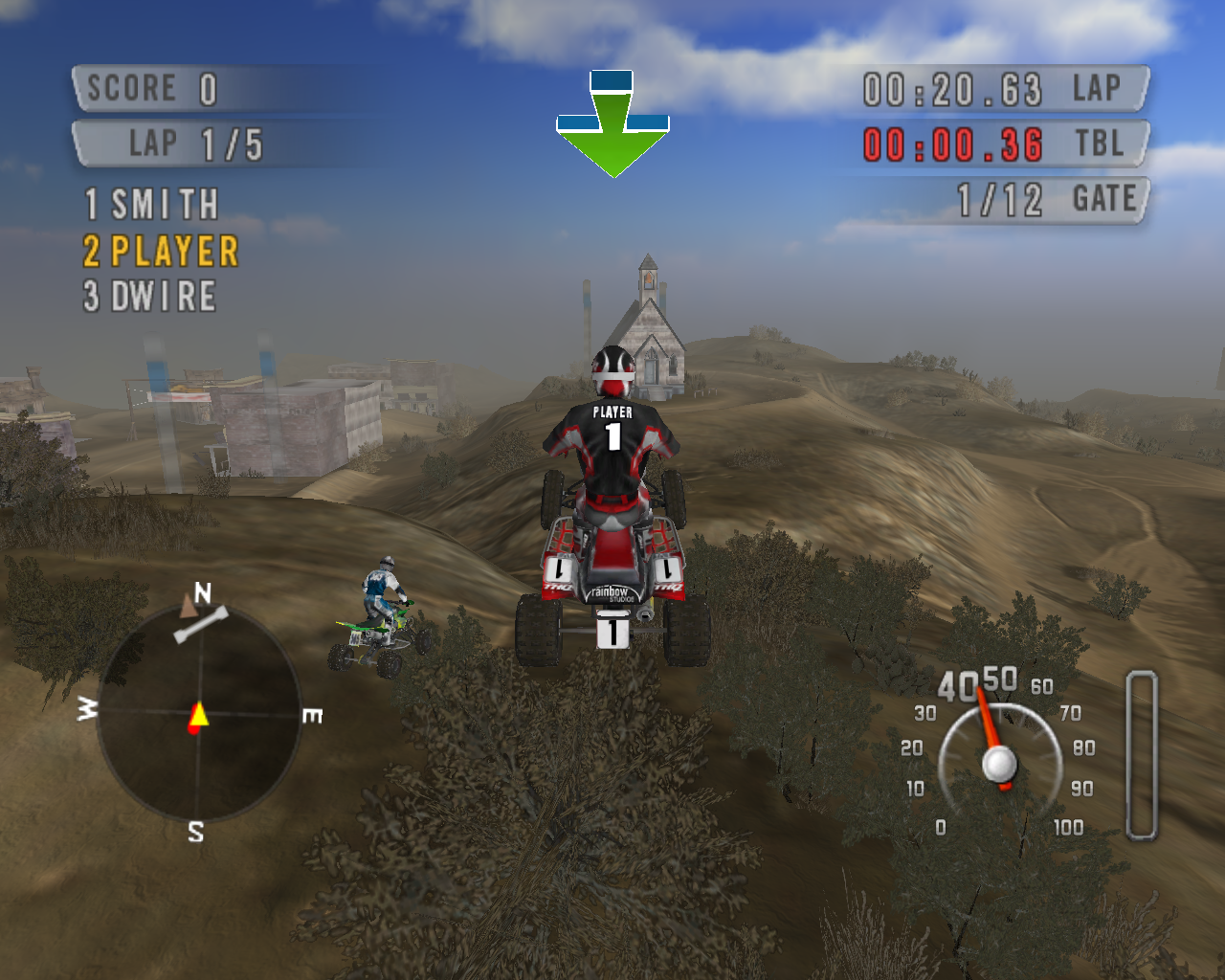

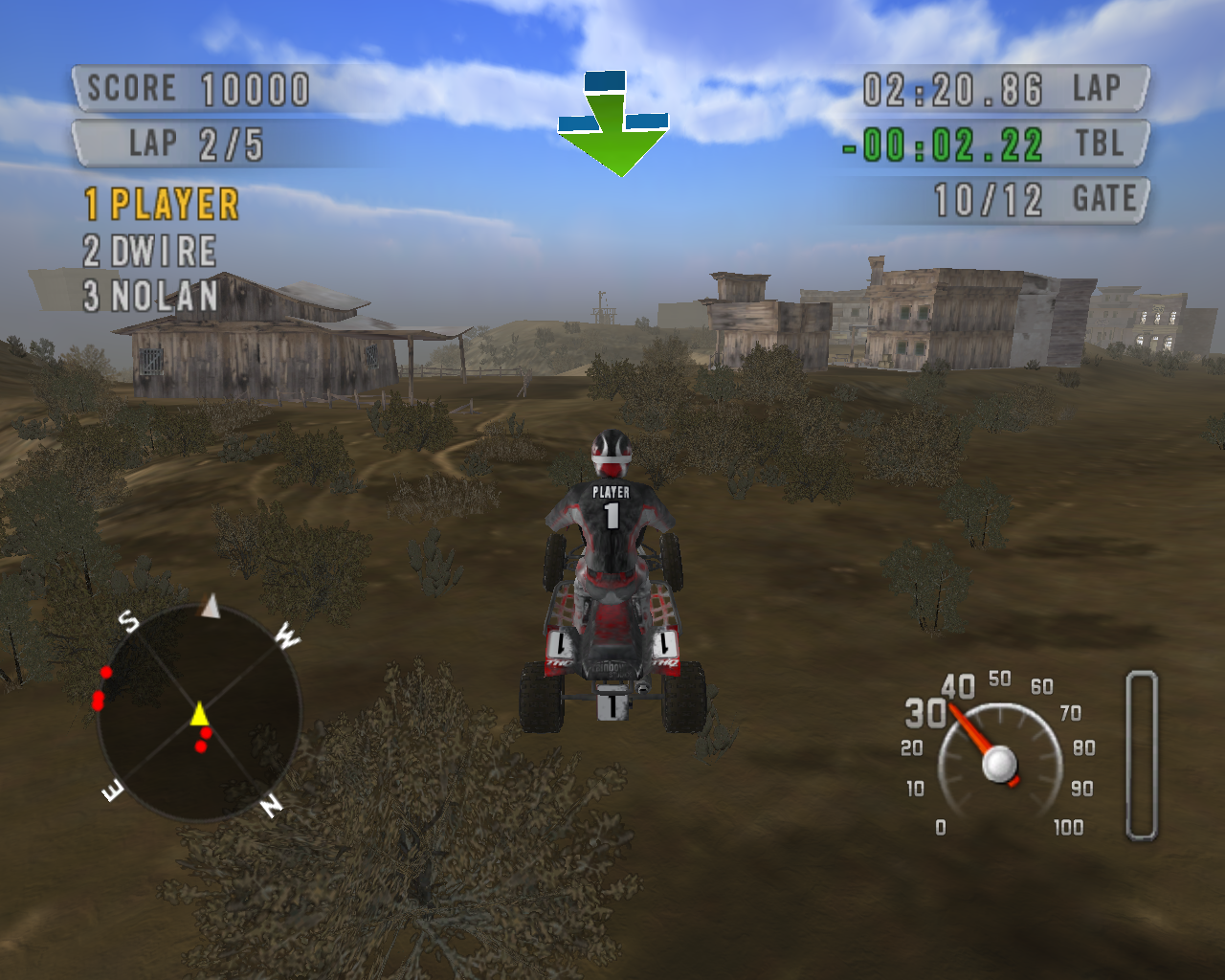

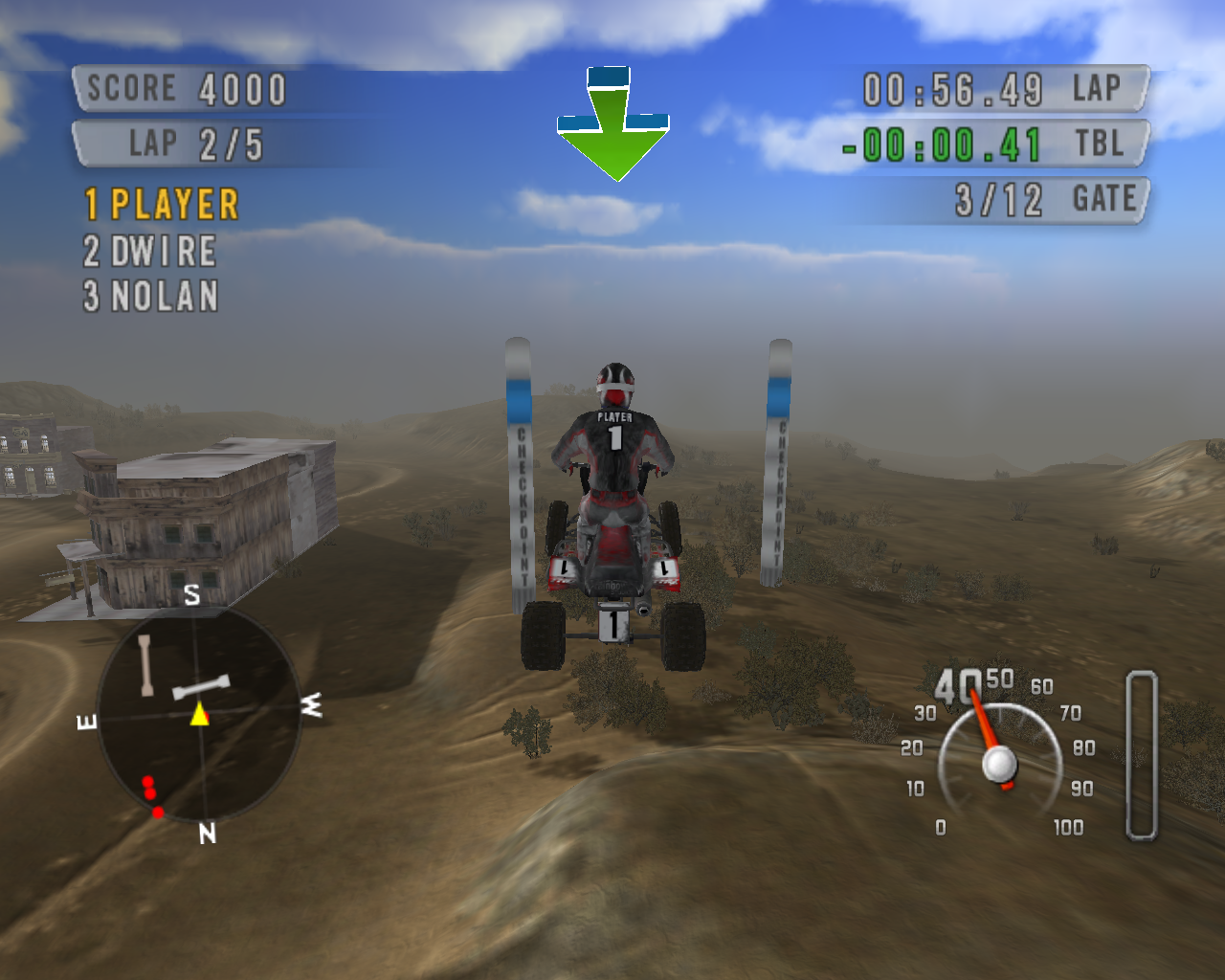

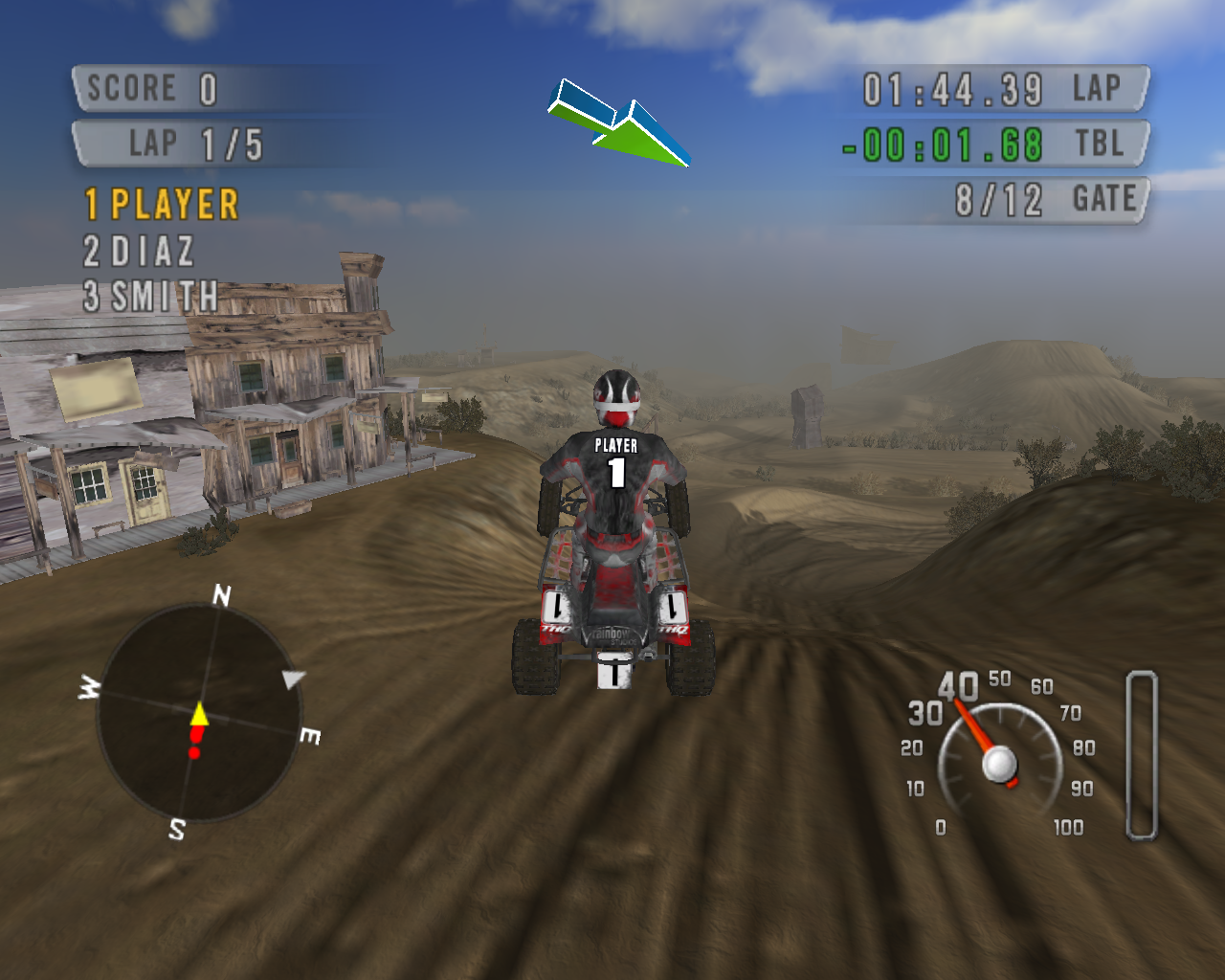

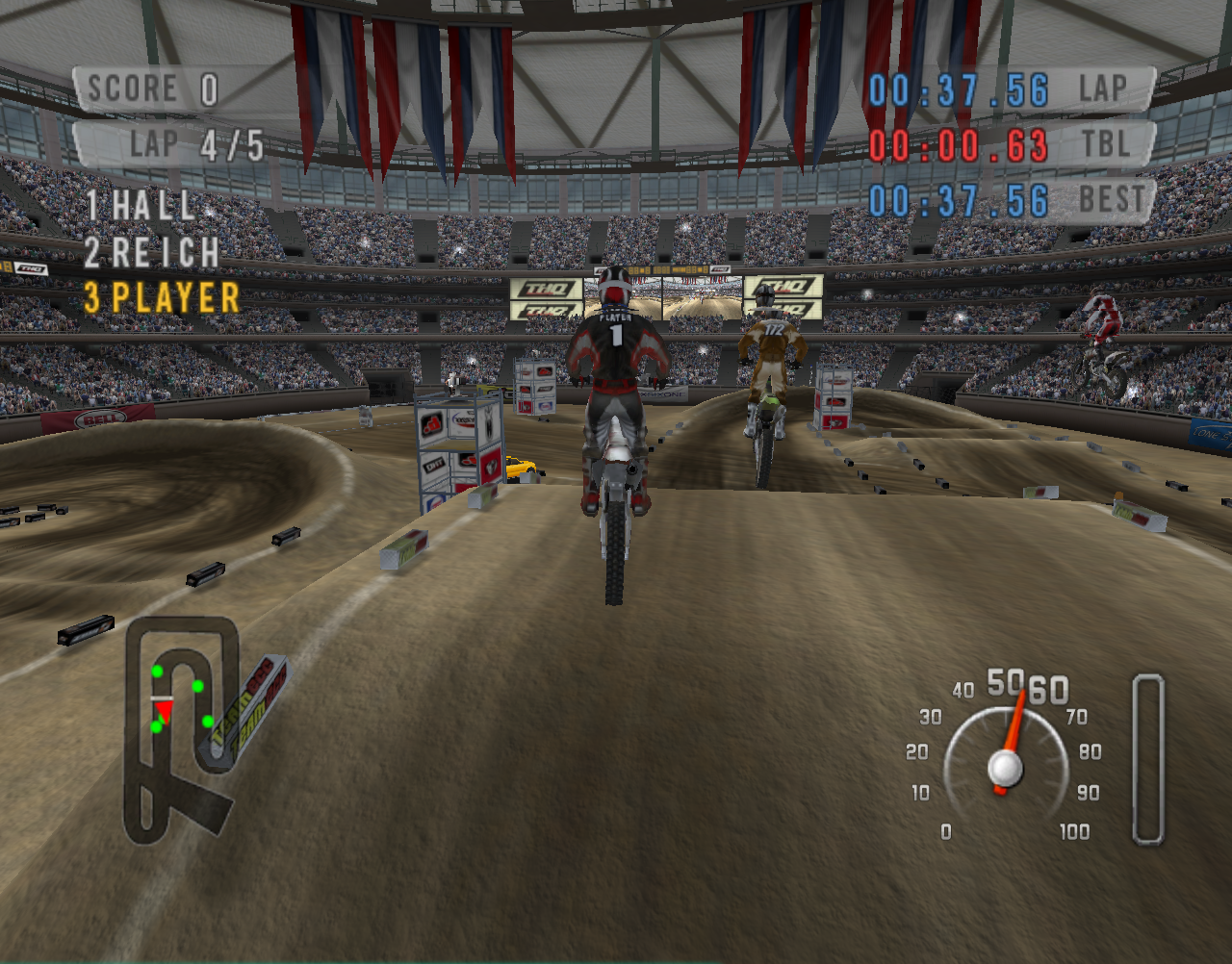

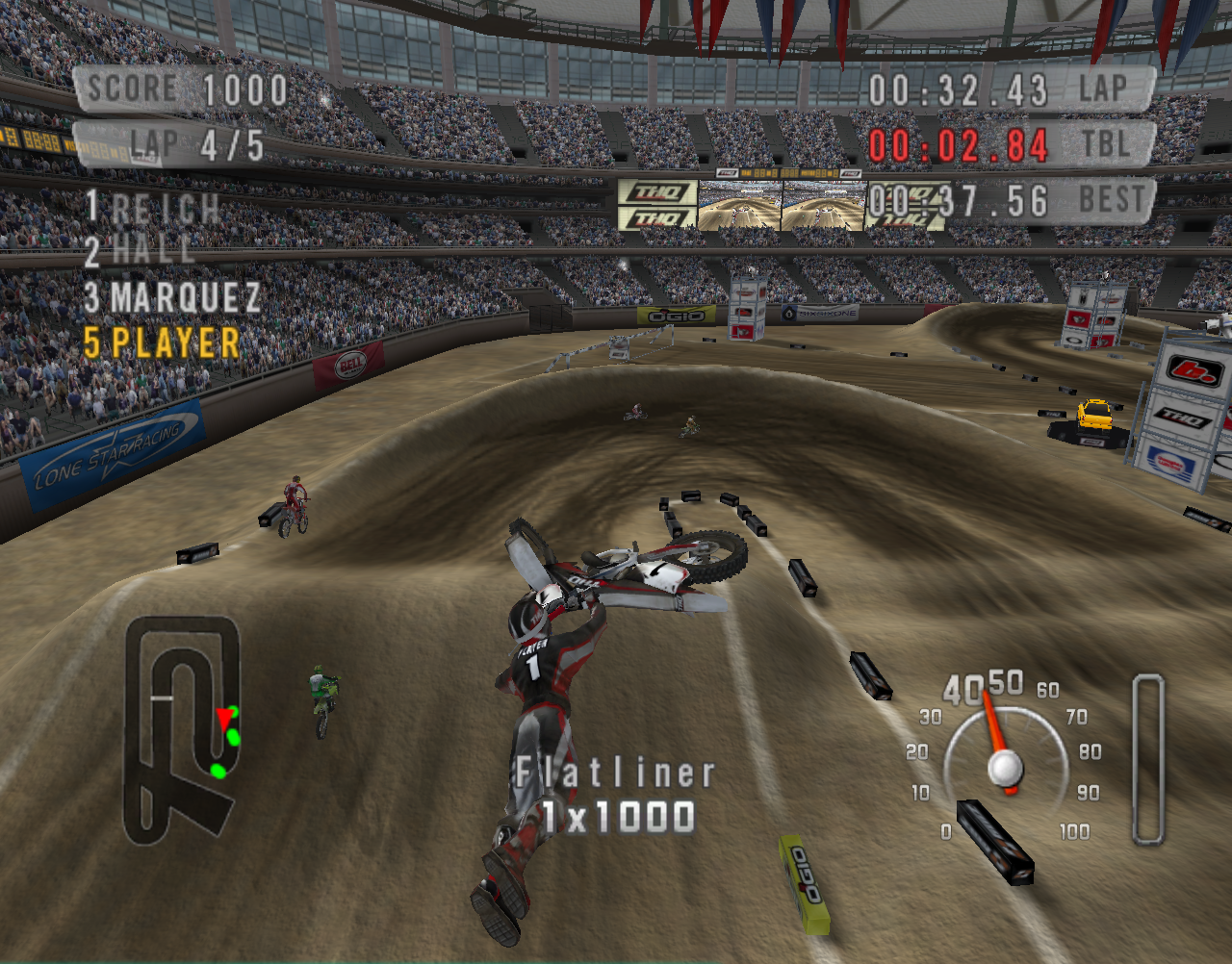

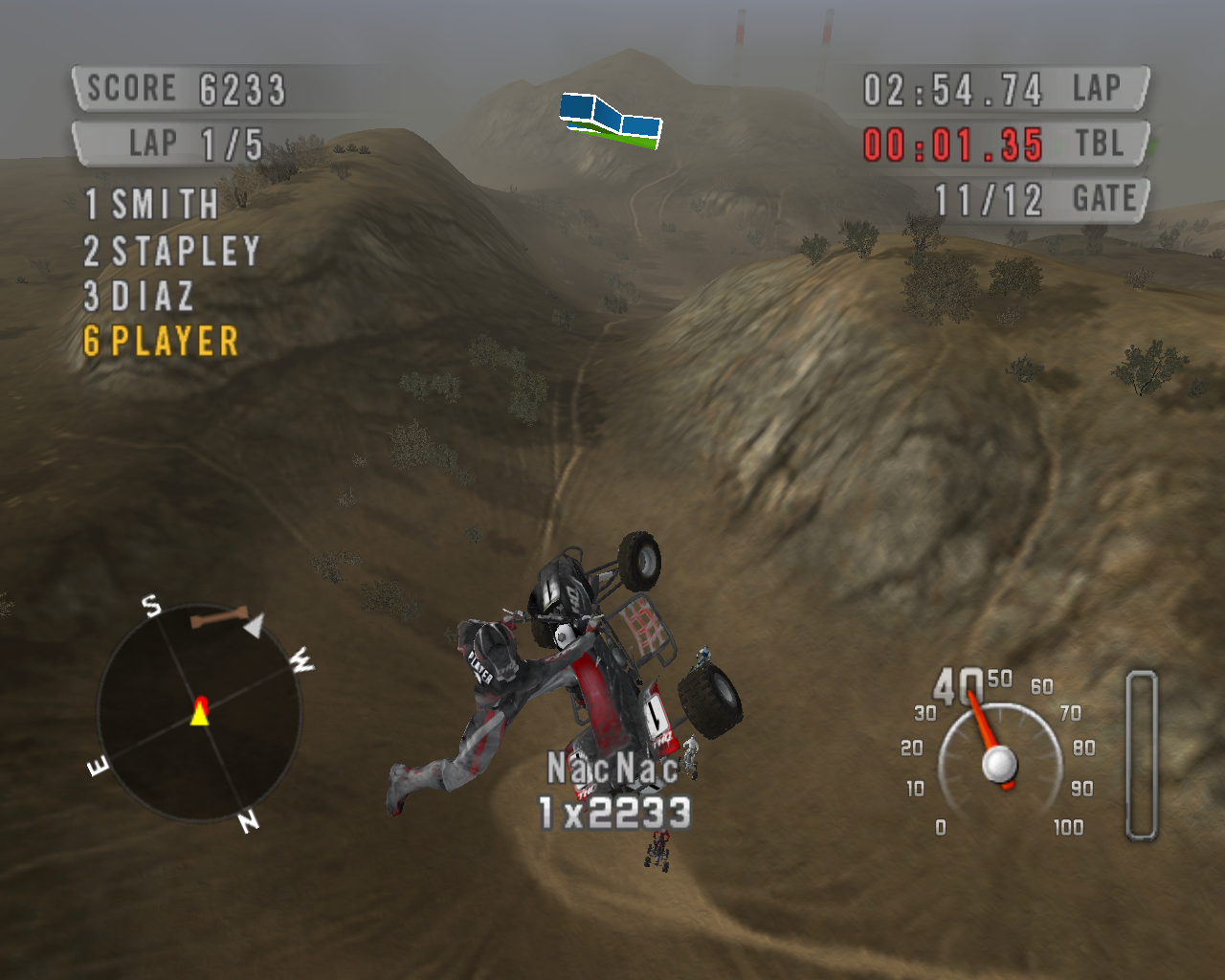

    Screenshots:






    Last edited: Jan 13, 2016
