Mechwarrior Online Guide

Discussion in 'Guides' started by booman, Jul 7, 2017.

  • by booman, Jul 7, 2017 at 1:24 PM
  • booman

    booman Grand High Exalted Mystic Emperor of Linux Gaming Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    6,488
    Likes Received:
    416
    Trophy Points:
    83
    Location:
    Linux, Arizona
    Home page:

    Battle in 3-story high Mechs in epic landscapes of Battletech Universe. Select from hundreds of mechs and customize their skill trees. Join factions or fight in teams with your friends in skirmish modes or capture point modes.


    Follow my step-by-step guide on installing, configuring and optimizing Mechwarrior Online in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Mechwarrior Online. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 18.1 64-bit
    PlayOnLinux: 4.2.10
    Wine: 2.11-staging

    Wine Installation

    Note: Wine versions older than 2.0.2 and 2.12-staging no longer work with Steam.


    Click Tools
    Select "Manage Wine Versions"

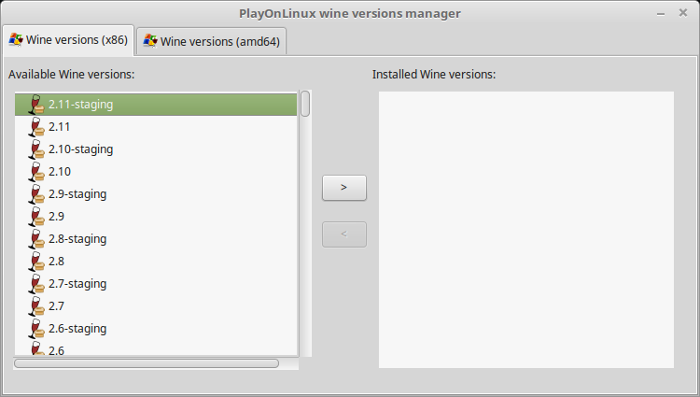

    Look for the Wine Version: 2.11-staging
    Select it
    Click the arrow pointing to the right

    Click Next

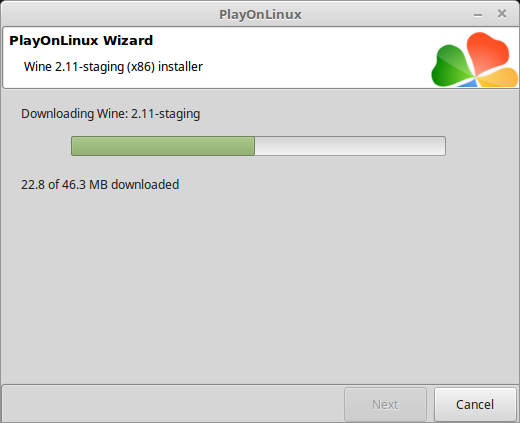

    Downloading Wine

    Extracting

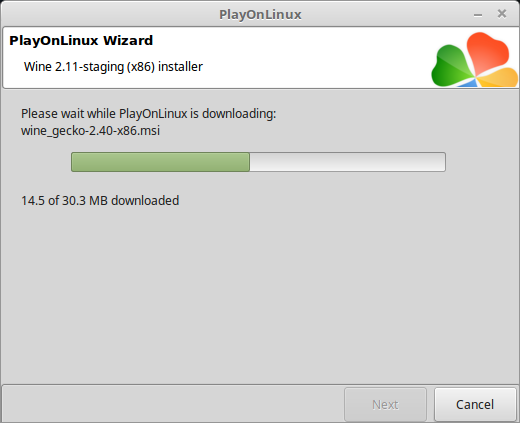

    Downloading Gecko

    Installed

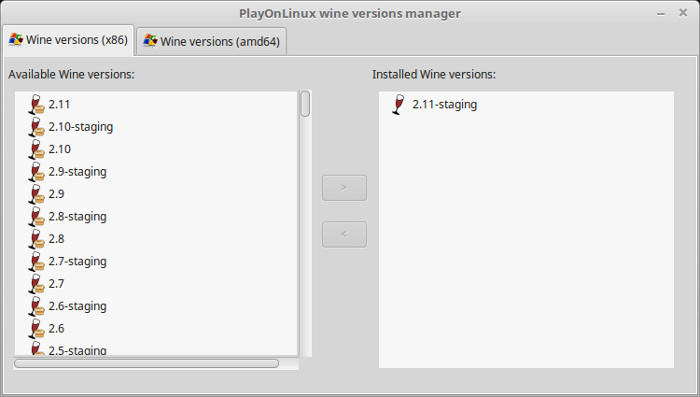

    Wine 2.11-staging is installed and you can close this window

    Downloading Steam

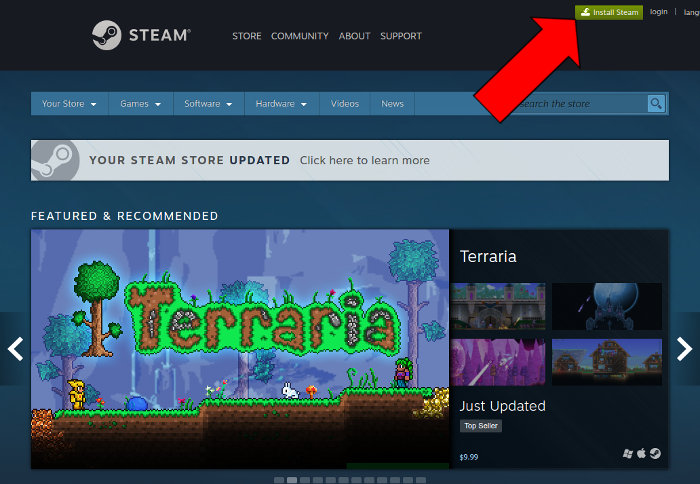

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam

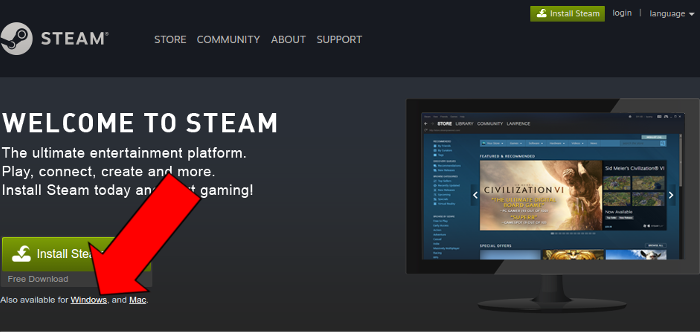

    Select Windows Steam instead
    click "Windows" under the green button

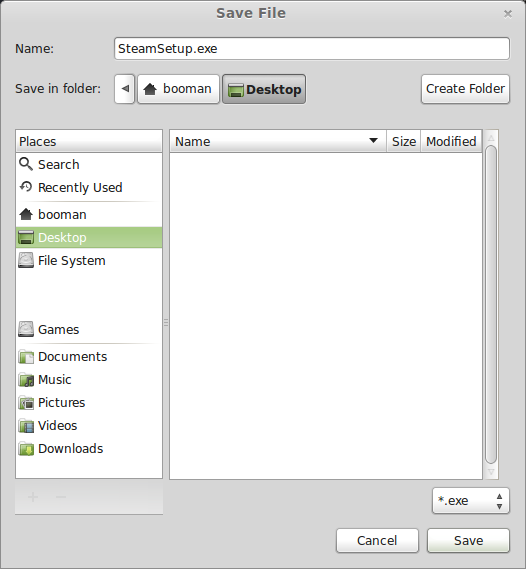

    Navigate to your desktop
    Click Save

    PlayOnLinux Setup

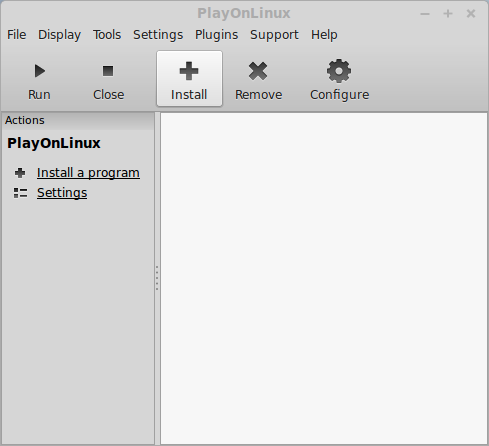

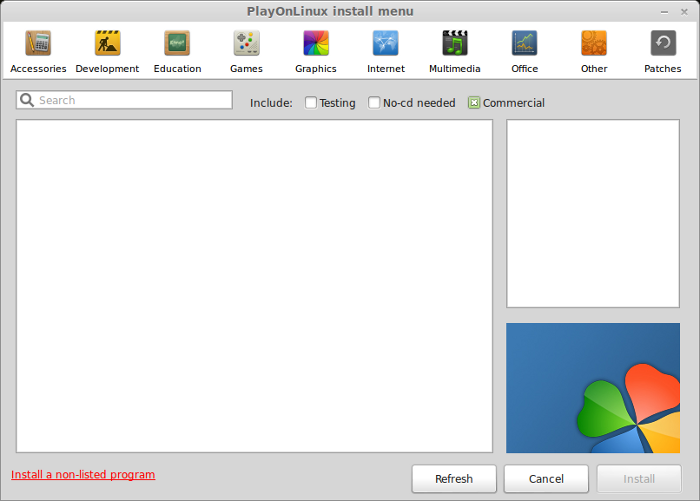

    Launch PlayOnLinux
    Click Install

    Click "install a non-listed program"

    Click Next

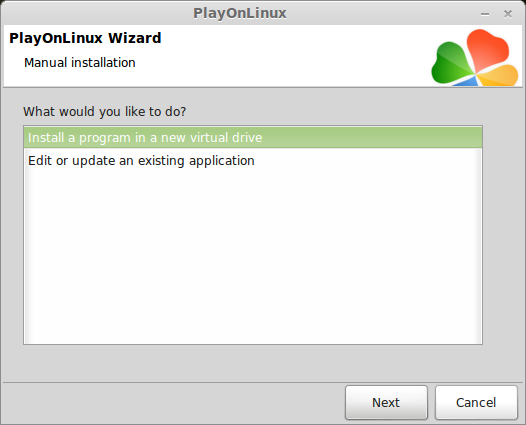

    Select "Install a program in a new virtual drive"
    Click Next

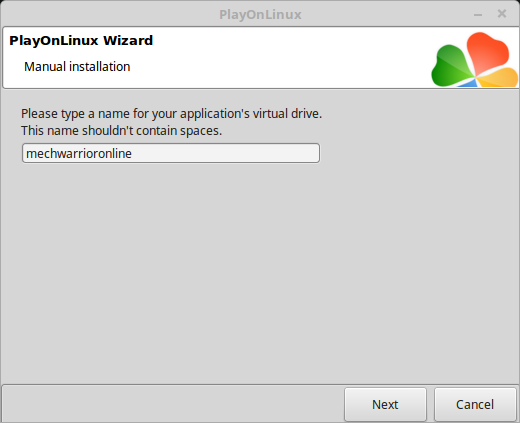

    Name your virtual drive: mechwarrioronline
    No spaces
    Click Next

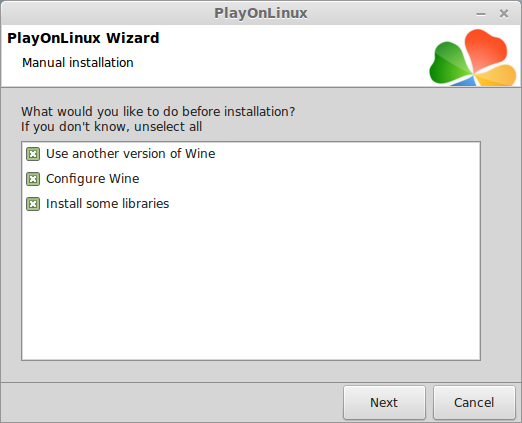

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

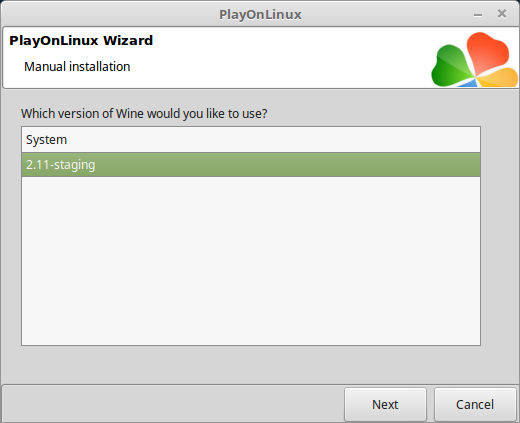

    Select Wine 2.11-staging
    Click Next

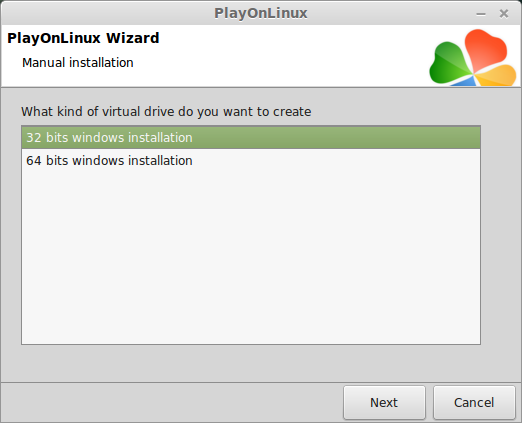

    Select "32 bits windows installation"
    Click Next

    Configure Wine

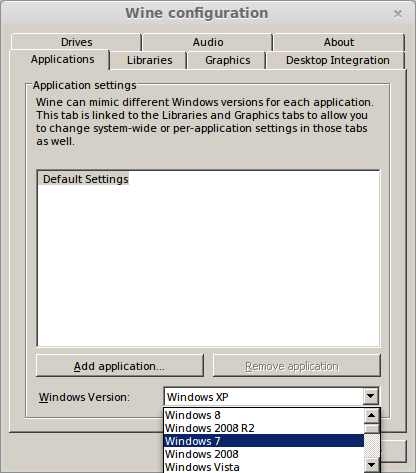

    Applications Tab
    Windows Version: Windows XP
    Click Apply

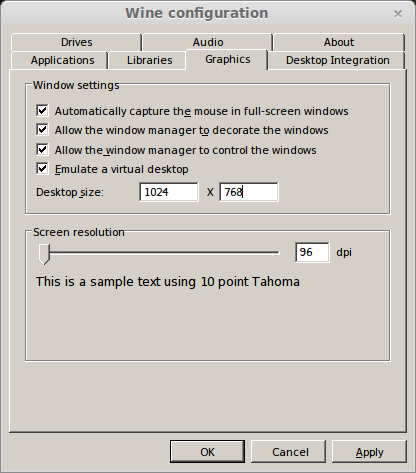

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Check: Emulate a virtual desktop
    Desktop size: 1024x768
    Click Ok

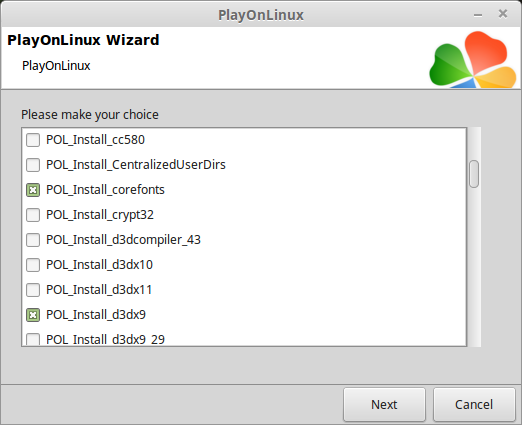

    PlayOnLinux Packages (Libraries, Components, DLL's)

    Check the following libraries:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_d3dx9_43
    • POL_Install_dotnet40
    • POL_Install_msxml3
    • POL_Install_tahoma
    • POL_Install_vcrun2010
    Click Next

    Note: All packages will automatically download and install

    Installing Steam

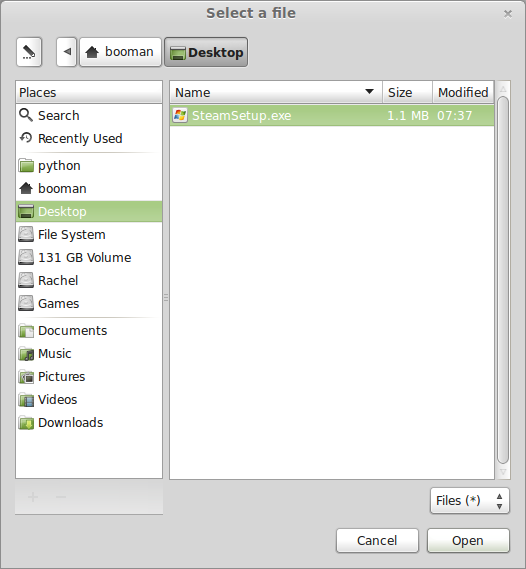

    Click Browse

    Navigate to your desktop
    Select: SteamSetup.exe
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

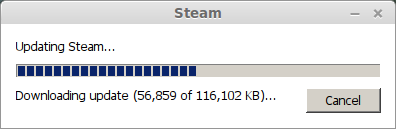

    Updating Steam

    Steam "might not" have any fonts due to dwrite functionality

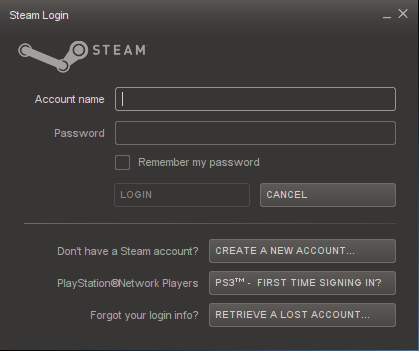

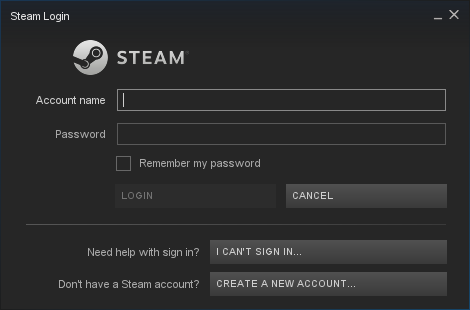

    Click the "X" to close Steam login

    PlayOnLinux Shortcut

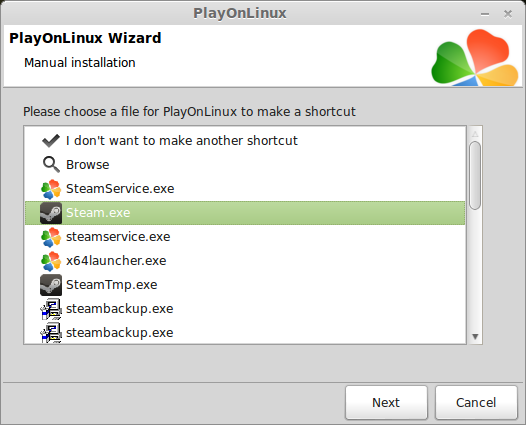

    Select Steam.exe
    Click Next

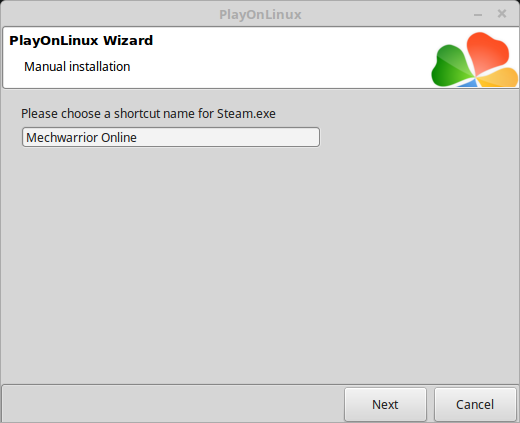

    Name your shortcut: Mechwarrior Online
    Click Next

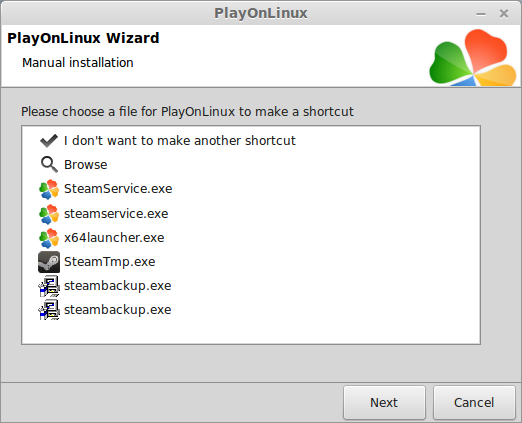

    Select "I don't want to make another shortcut"
    Click Next

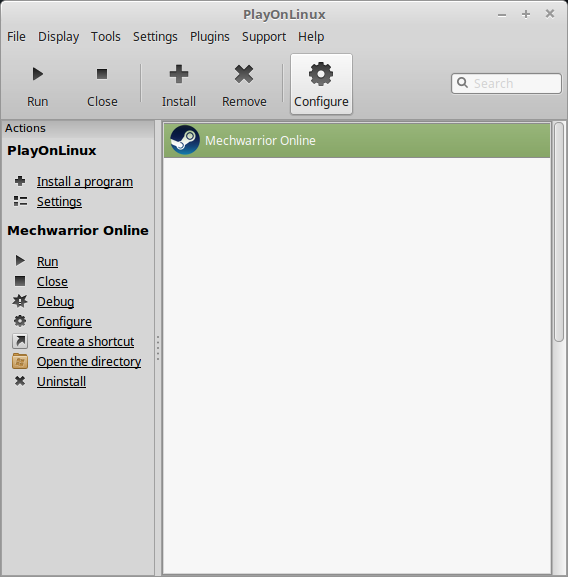

    PlayOnLinux Configure

    Back to PlayOnLinux
    Click Configure

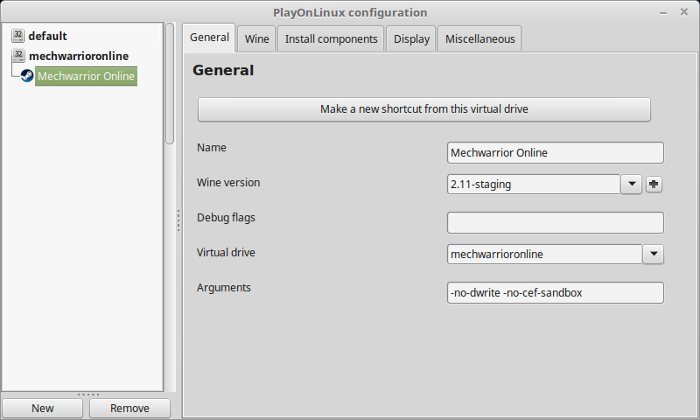

    General Tab
    Arguments: -no-dwrite -no-cef-sandbox

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of wine

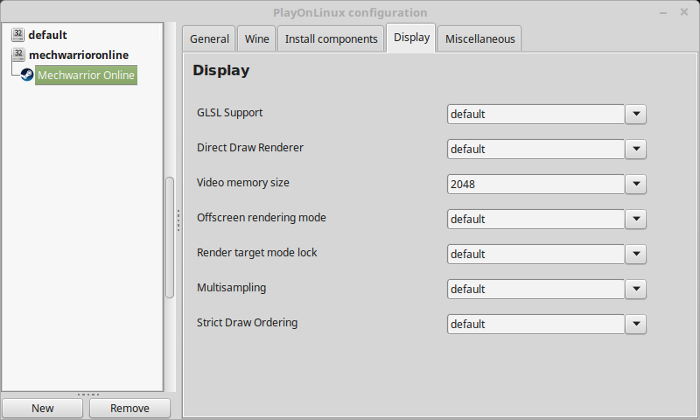

    Display Tab
    Video Memory Size: Select the size of Memory your video card/chip uses

    Close Configure

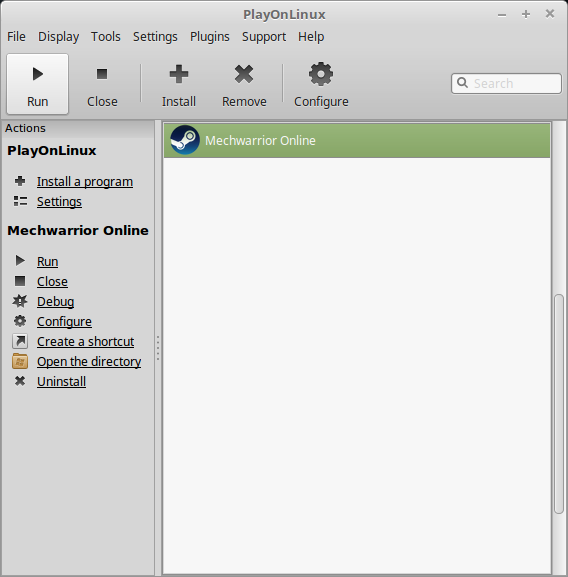

    Launching Mechwarrior Online

    Select Mechwarrior Online
    Click Run

    Note: Click debug to see errors and bugs

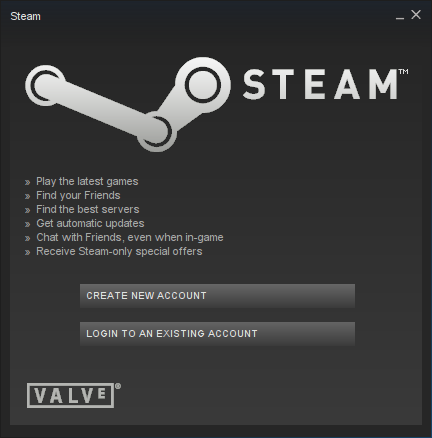

    Click "Login to existing account"

    Login

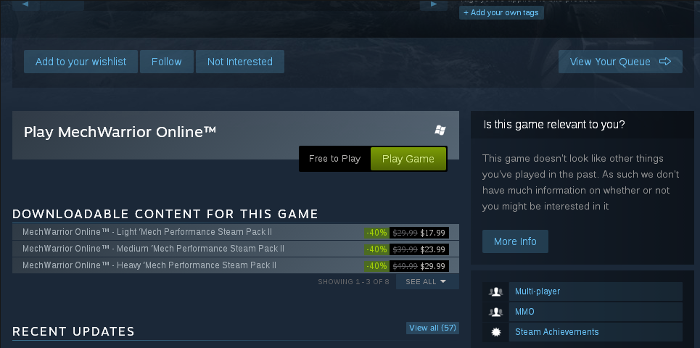

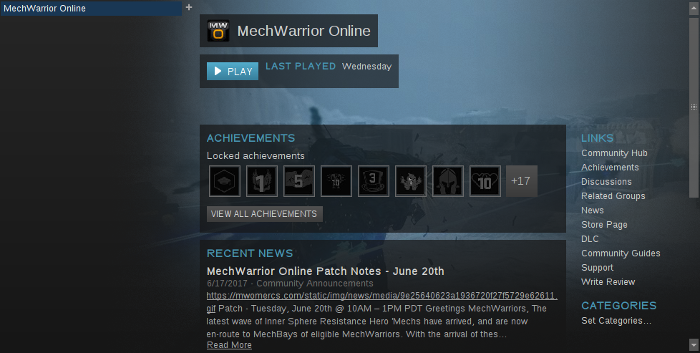

    Search Steam Store for Mechwarrior Online
    Click Play

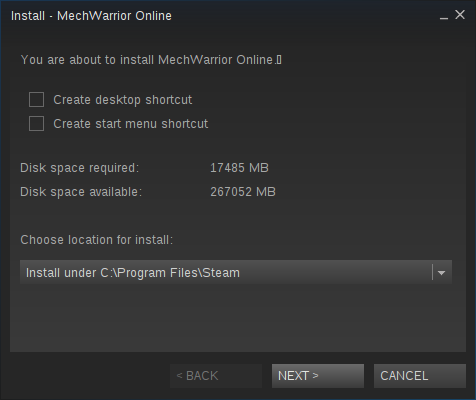

    Uncheck "Created desktop shortcut"
    Uncheck "Create start menu shortcut"
    Click Next

    Click Finish

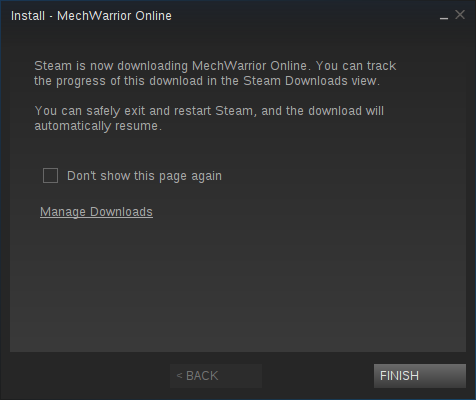

    Wait for Mechwarrior Online to download

    Click Play

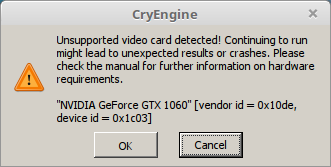

    Video Card error
    Click OK

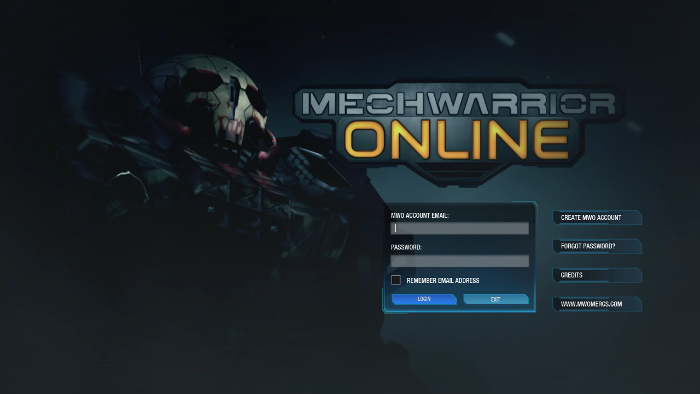

    Login with your Mechwarrior Online account
    Click Login

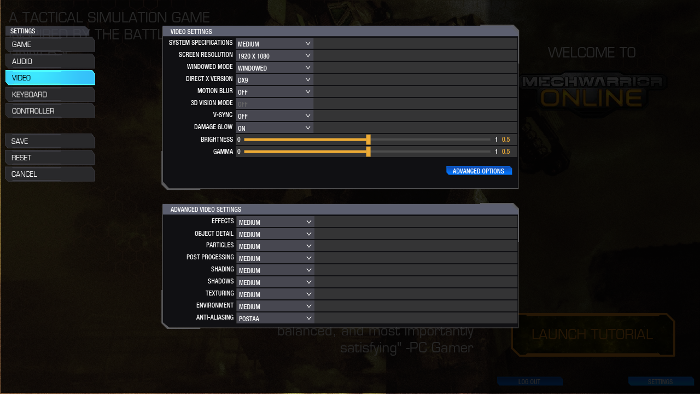

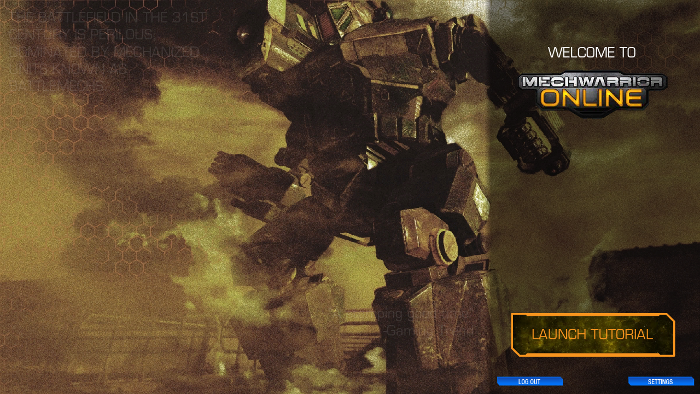

    Optimization

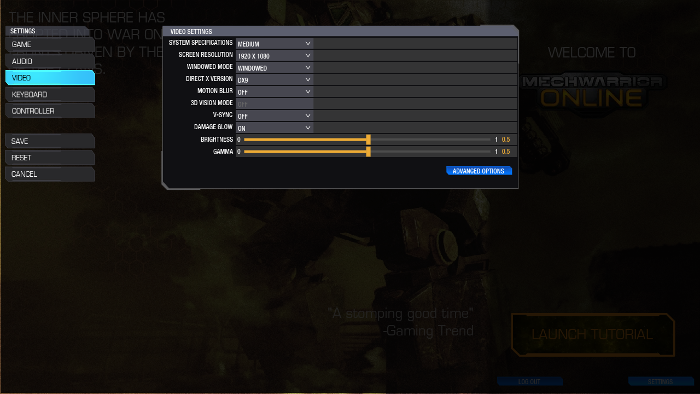

    Click Settings

    Click Video

    Adjust presets or:
    • Screen Resolution
    • Windowed Mode
    • Direct X Version
    • Motion Blur
    • 3D Vision Mode
    • V-Sync
    • Brightness
    • Gamma

    Click Advanced
    Adjust:
    • Effects
    • Object Detail
    • Post Processing
    • Shading
    • Shadows
    • Texturing
    • Environment
    • Anti-Aliasing
    Press ESC to apply

    Conclusion:
    Mechwarrior Online ran well enough to play online in PVP team skirmishes. Sometimes it would lag a bit even on medium settings with my GeForce 1060. It may be due to the video card error when launching the game, or driver related. I read that some Windows gamers had to update their drivers to remove the video card warning, but I'm not sure how that is configured for Wine in Linux...

    Otherwise, there are additional steps that can be taken to gain a few frame per second. Like using Openbox windows manager or DEBUG flags in PlayOnLinux Configure.

    Gameplay Video:

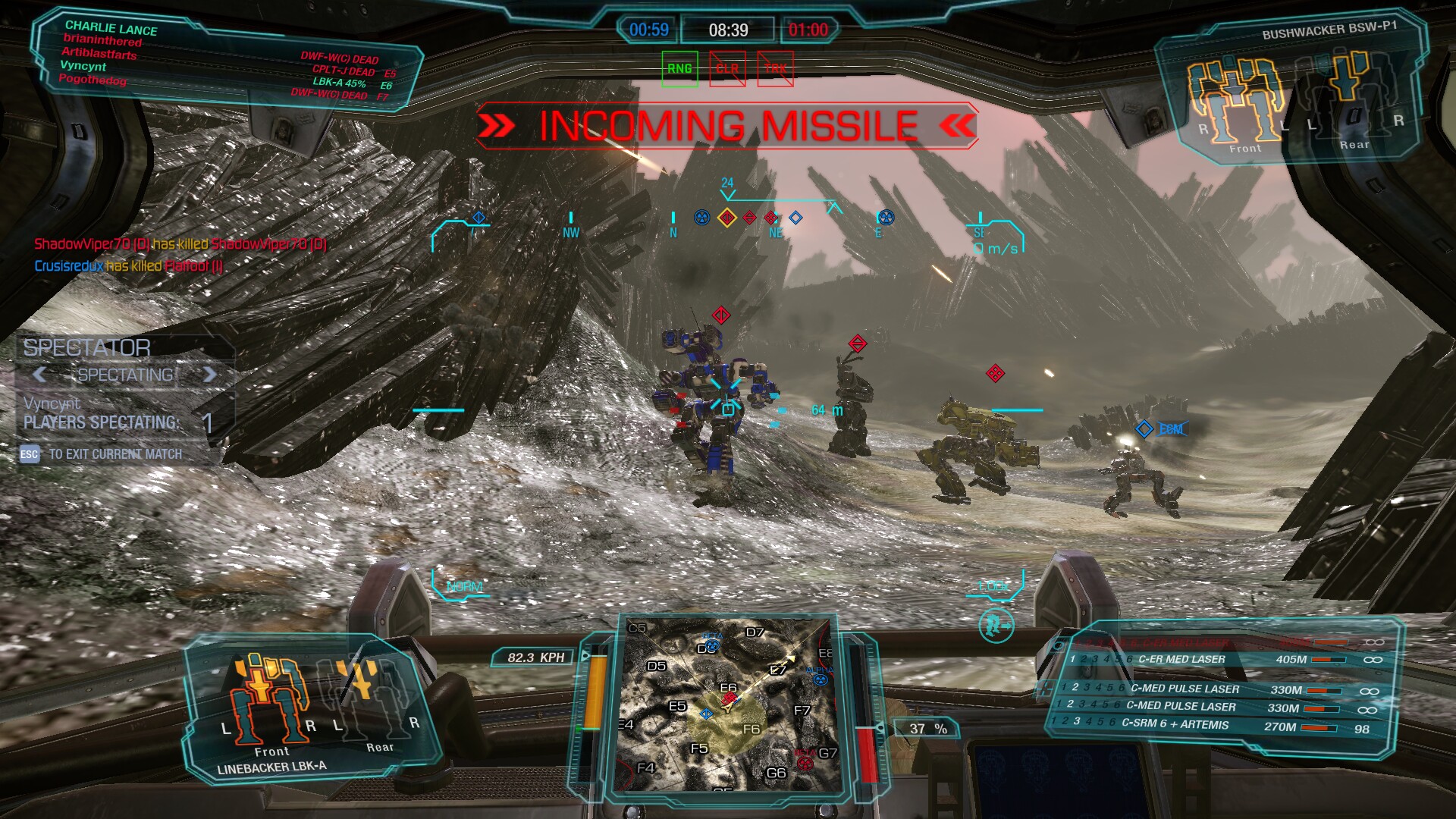

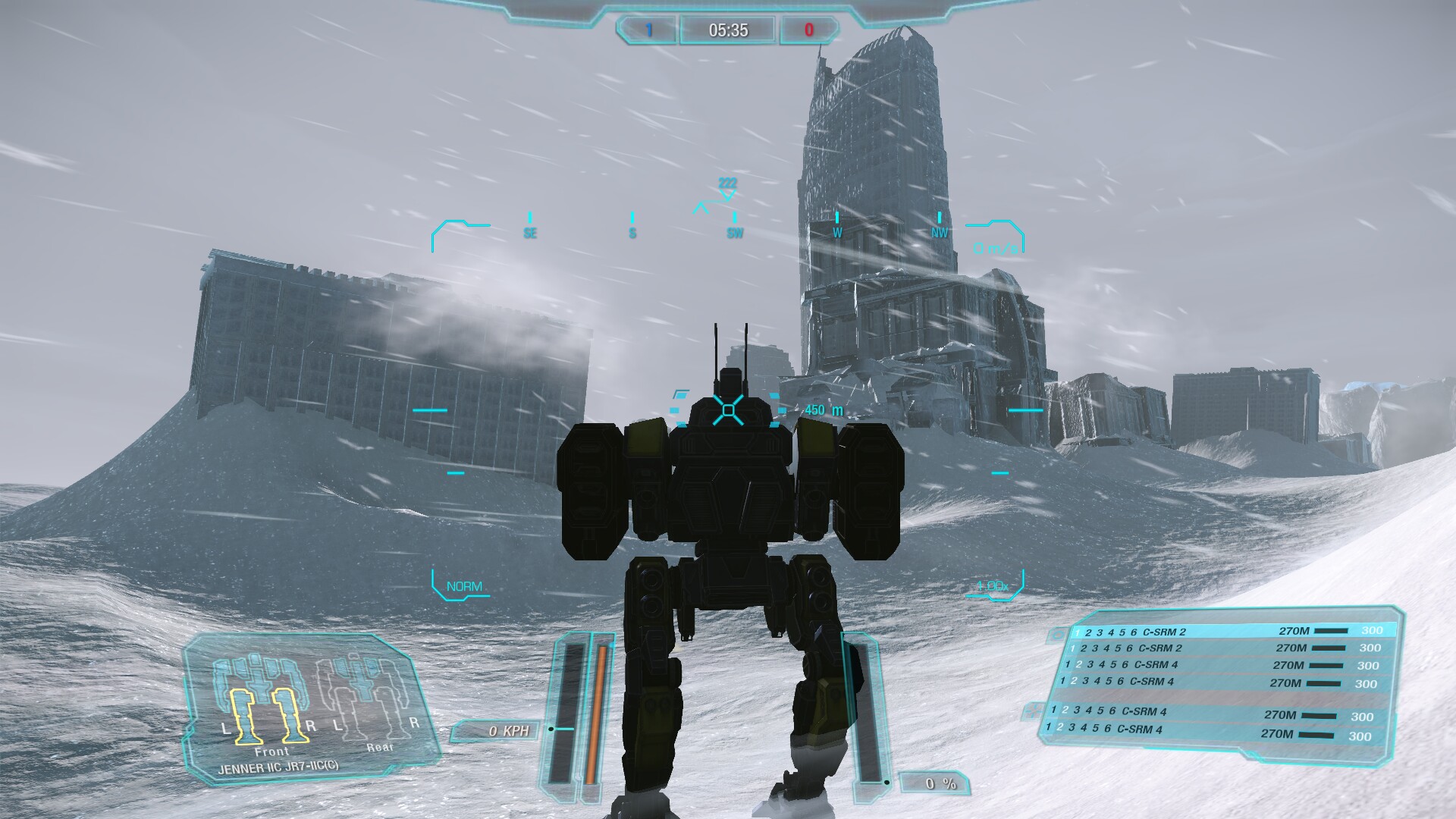

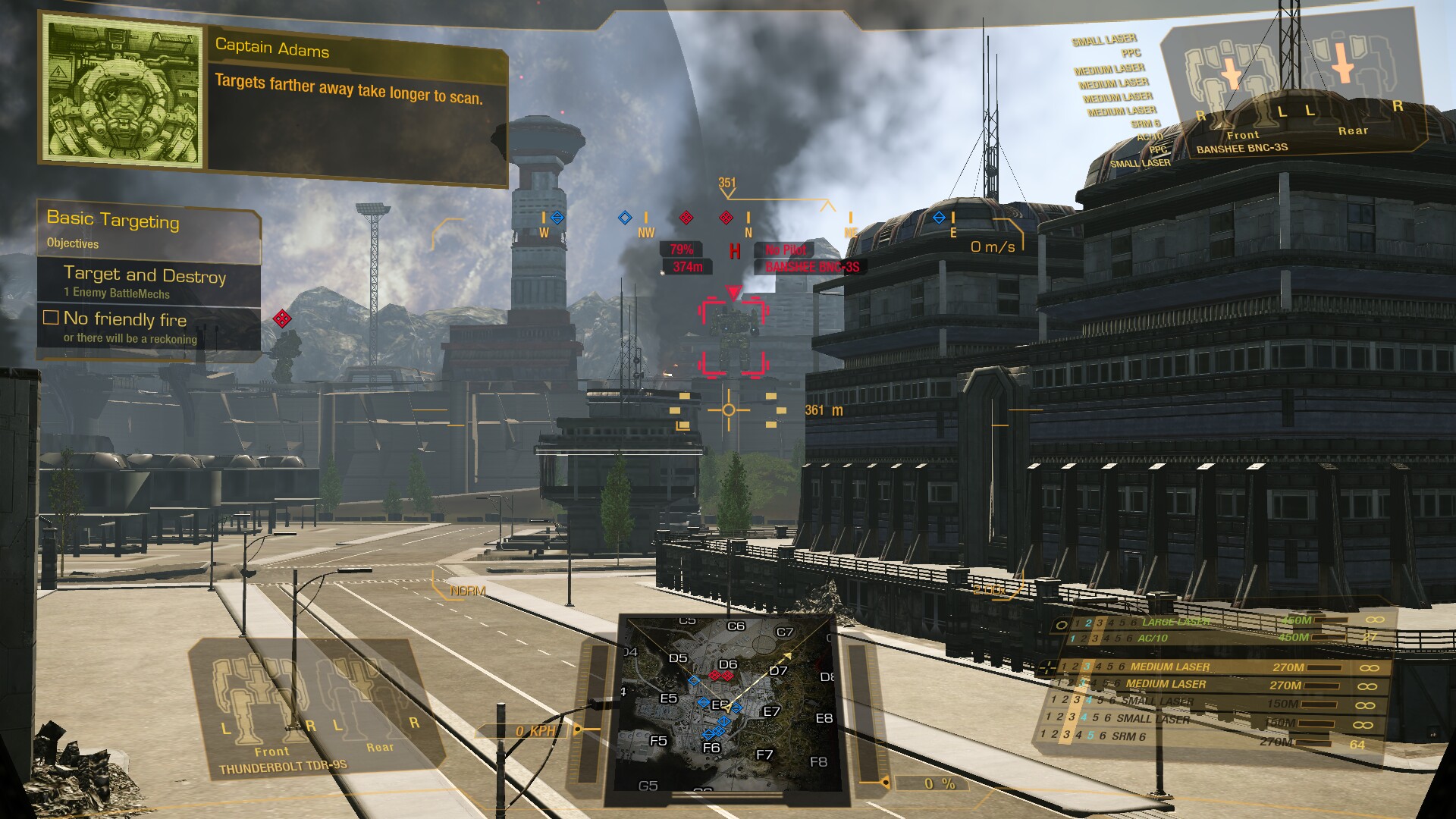

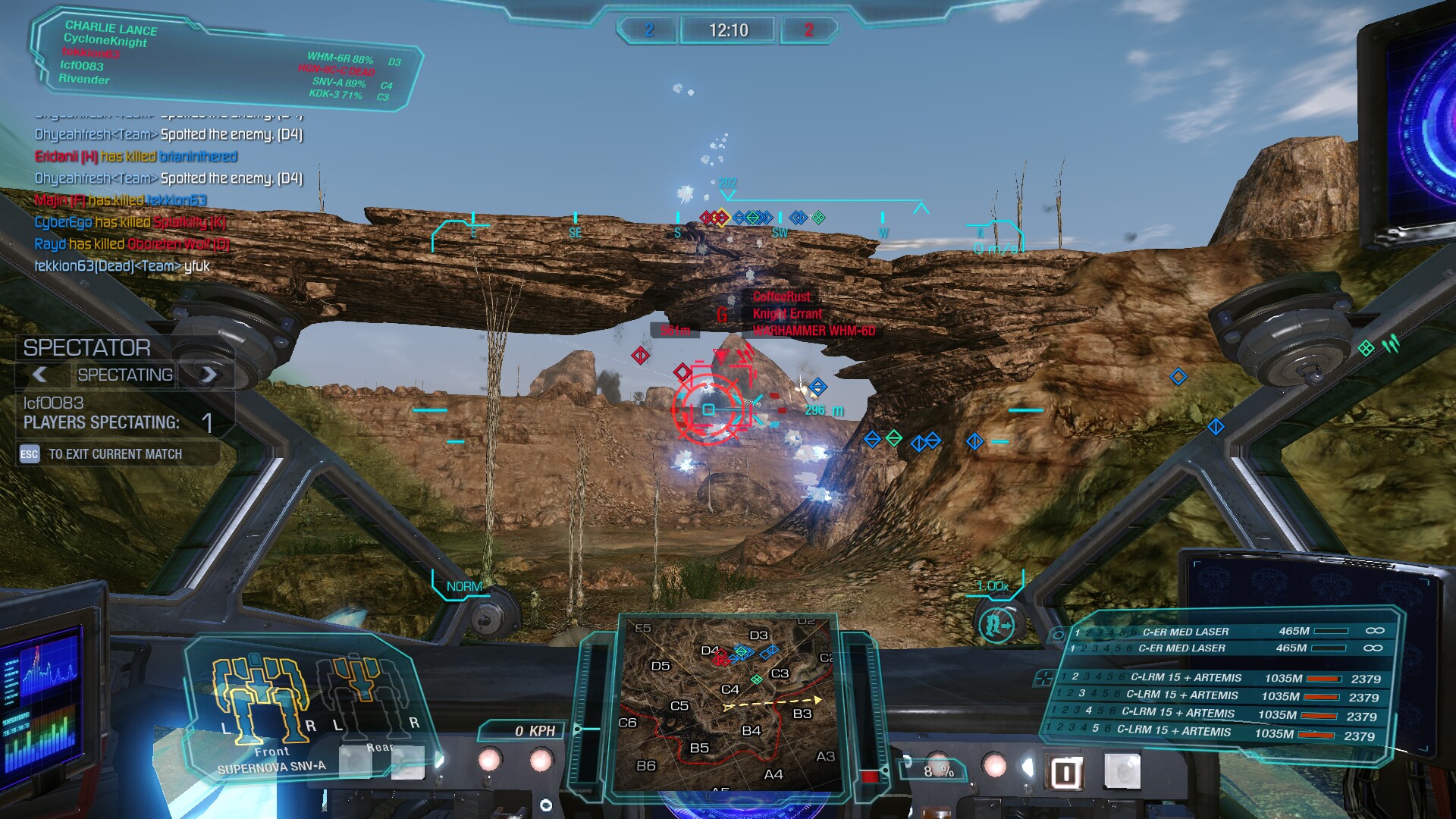

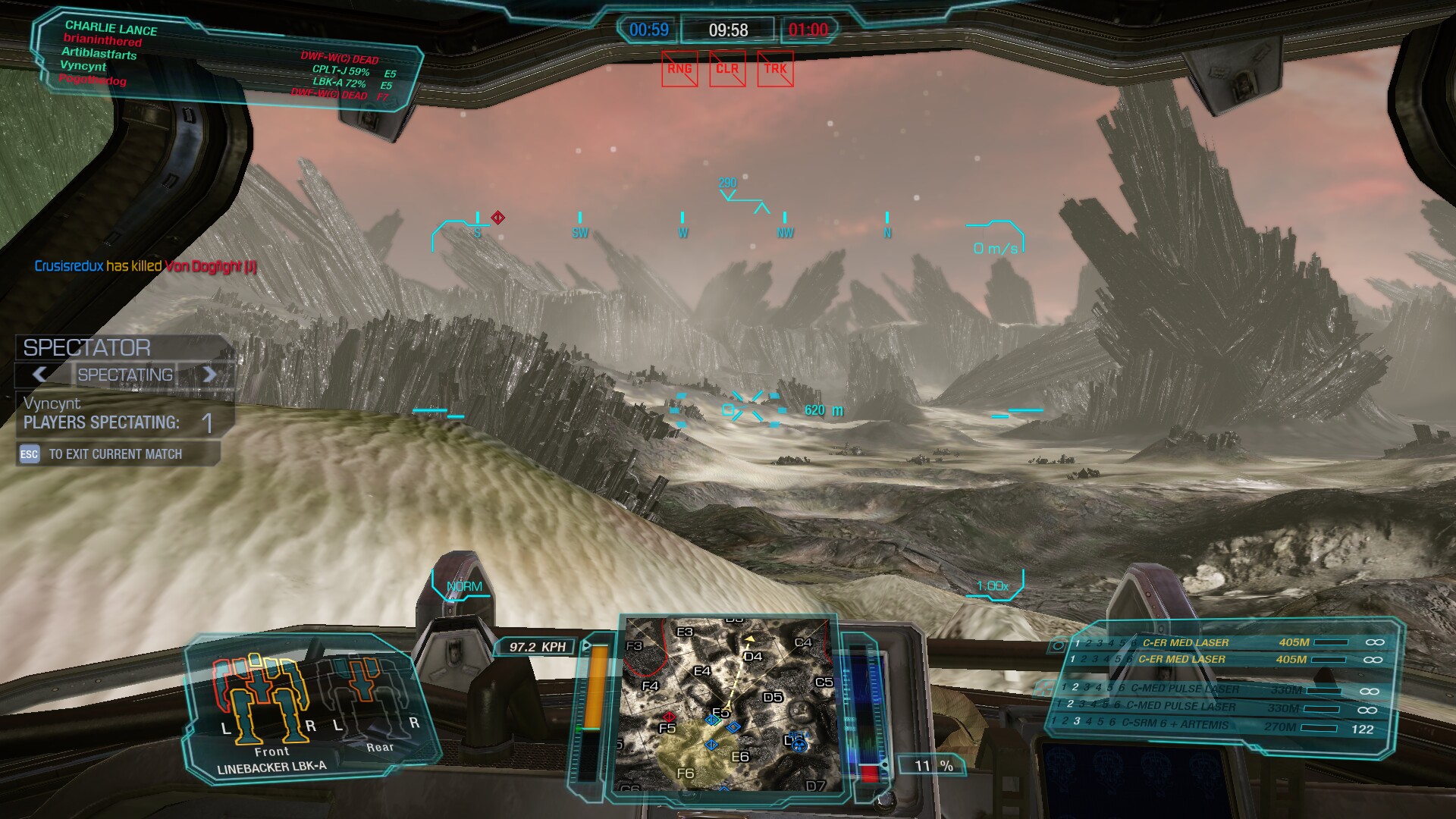

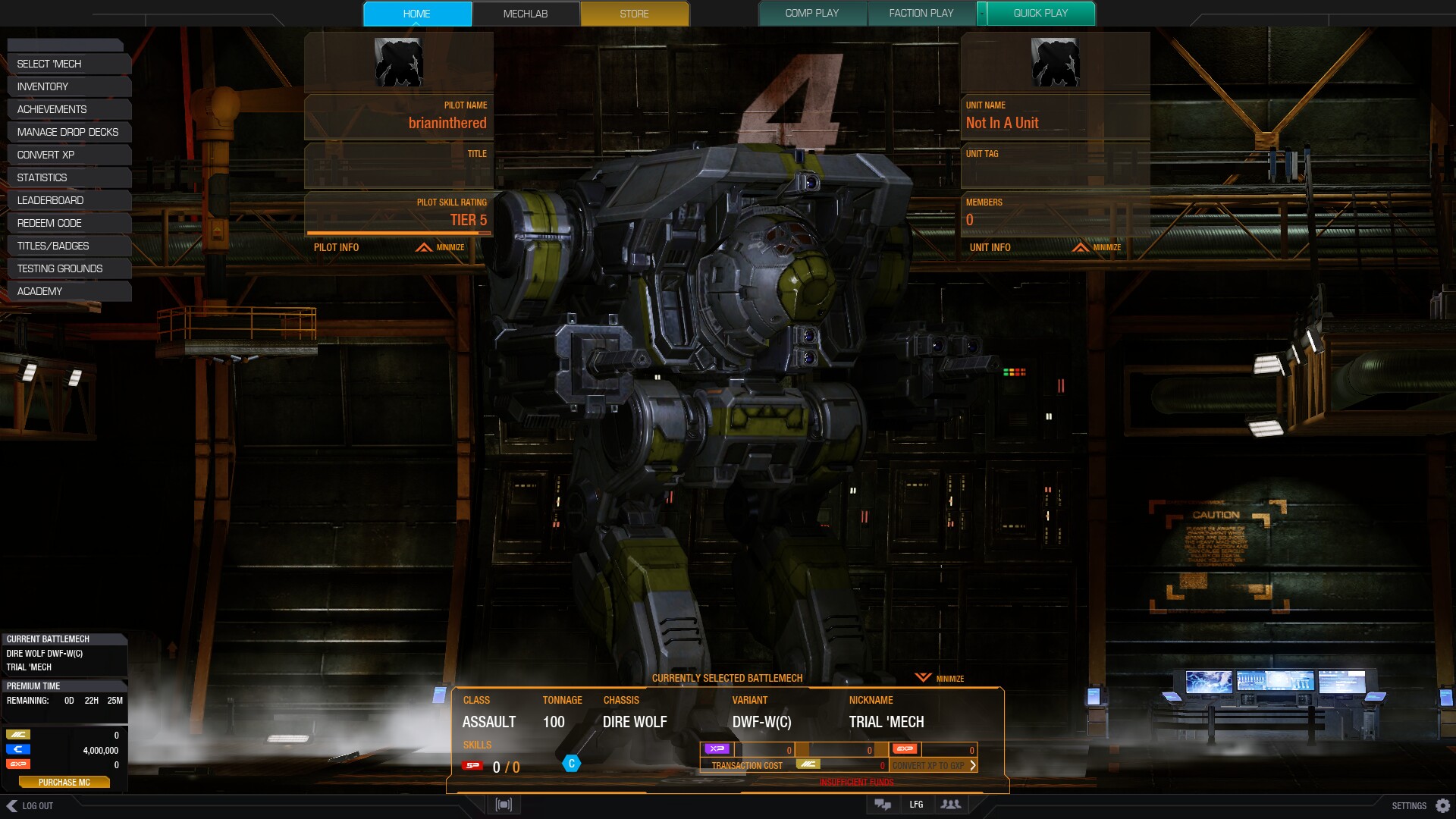

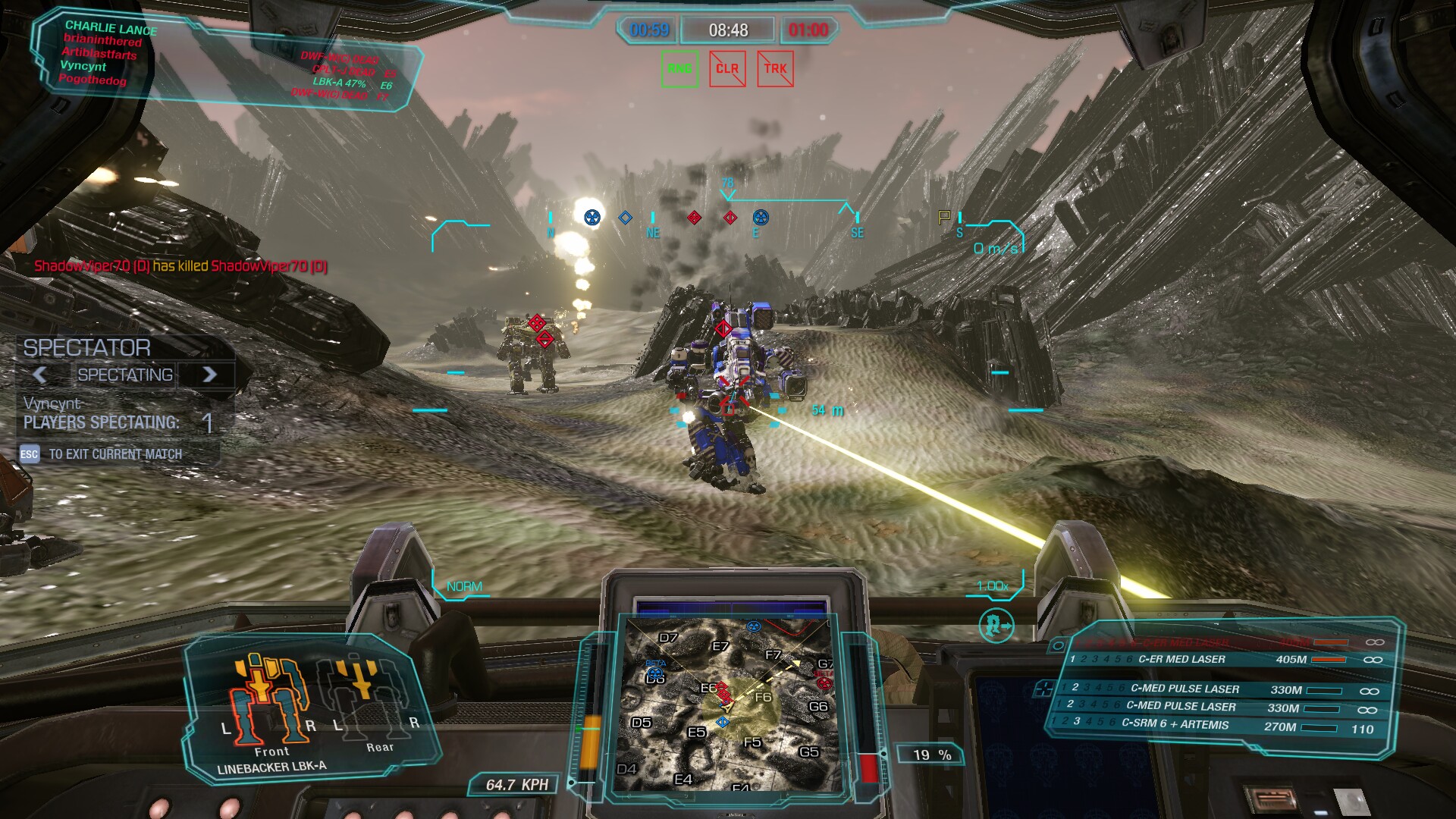

    Screenshots:







    Last edited: Aug 22, 2017

Comments

Discussion in 'Guides' started by booman, Jul 7, 2017.

  1. stryder57
    I followed your guide and every thing seems to be up and running at about 80fps (windows runs at 120fps) but then I get fps dips of about than 15 fps. I see this on older wine setups .Any idea what could be going on?
    booman likes this.
  2. booman
    Yeah, me as well. Even on my GTX 1060. You can always lower the video options like Anisotrophic and disable Anti-Aliasing. This should help your frame rates. Other than that, it may just be a limitation with Wine converting Direct X to OpenGL.
  3. cloasters
    Didn't know that ~65 fps was considered bad. Thank you for your intense work on this, booman!
    booman likes this.
  4. booman
    Of course not... but anything below 30 fps is really going to get choppy. Below 20 fps is unplayable.
  5. cloasters
    Choppy games are not much fun. 20fps? Agreed, terrible.
