    Gauntlet is one of the most unique arcade classics from the 80s. It was the first co-op multiplayer dungeon game with classes and has several sequels. But in 2014 Gauntlet finally got a sequel to rule-them-all...


    Follow my step-by-step guide on installing, configuring and optimizing Gauntlet in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Gauntlet. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 18.1 64-bit
    PlayOnLinux: 4.2.12
    Wine: 2.12-staging

    Wine Installation

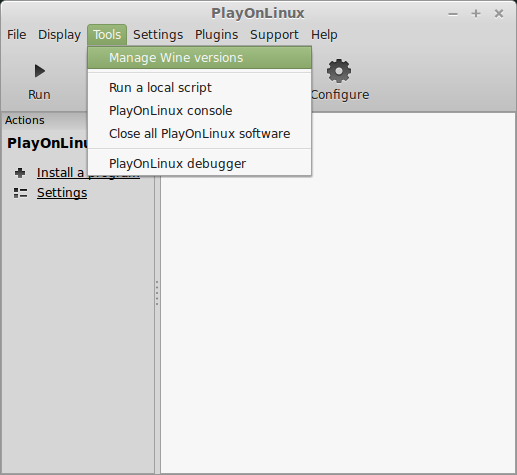

    Click Tools
    Select "Manage Wine Versions"

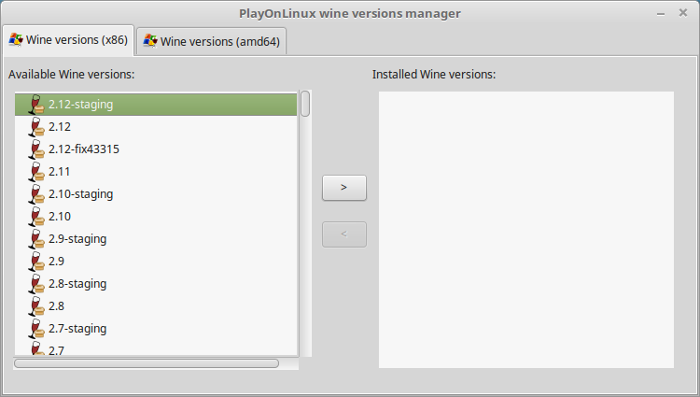

    Look for the Wine Version: 2.12-staging
    Select it
    Click the arrow pointing to the right

    Click Next

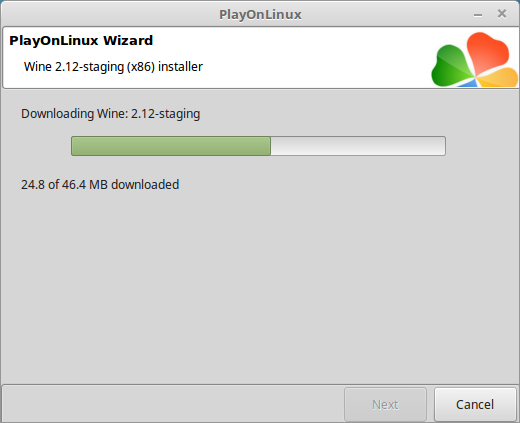

    Downloading Wine

    Extracting

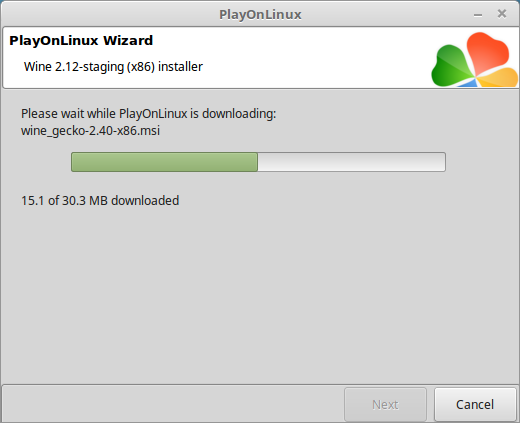

    Downloading Gecko

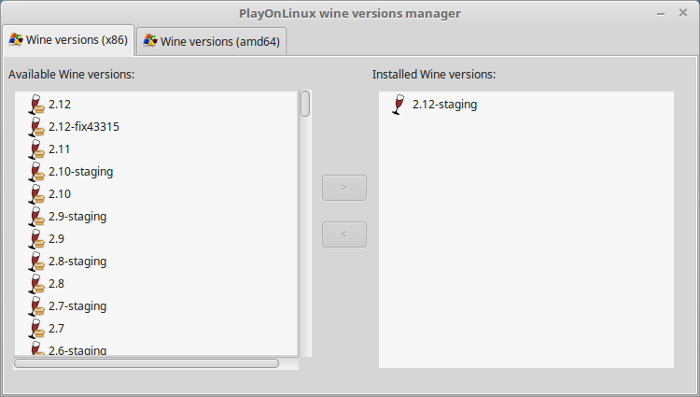

    Installed

    Wine 2.12-staging is installed and you can close this window

    Downloading Steam

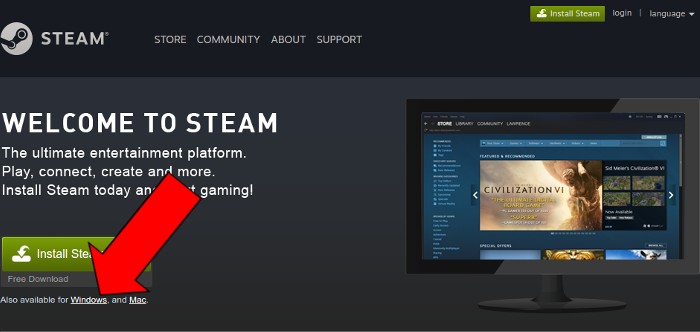

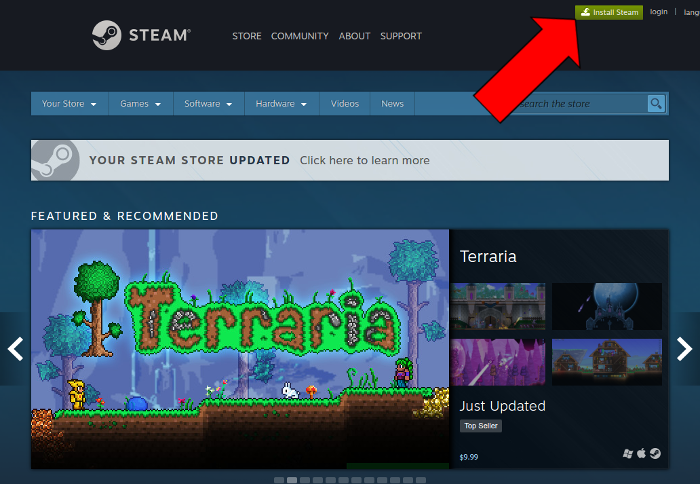

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam
    Select Windows Steam instead
    click "Windows" under the green button

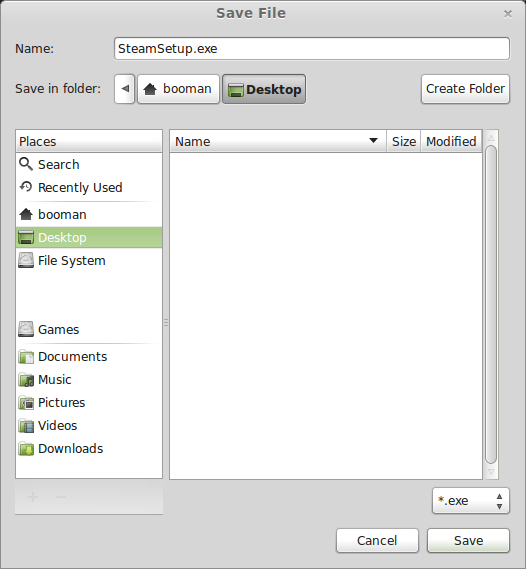

    Navigate to your desktop
    Click Save

    PlayOnLinux Setup

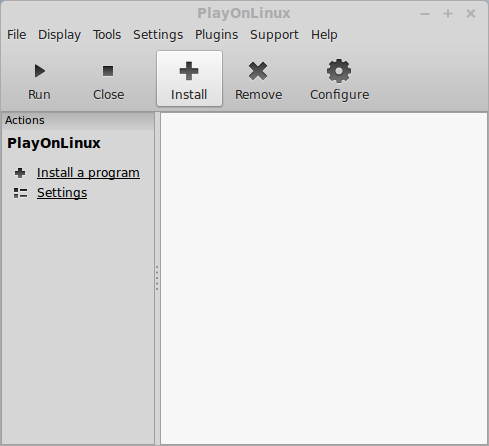

    Launch PlayOnLinux
    Click Install

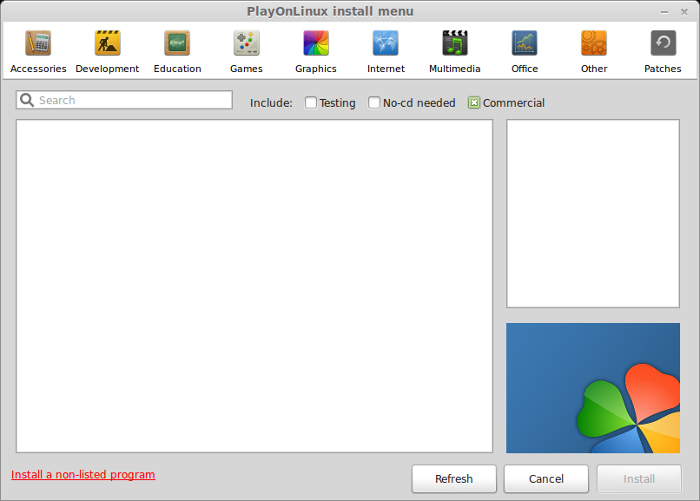

    Click "install a non-listed program"

    Click Next

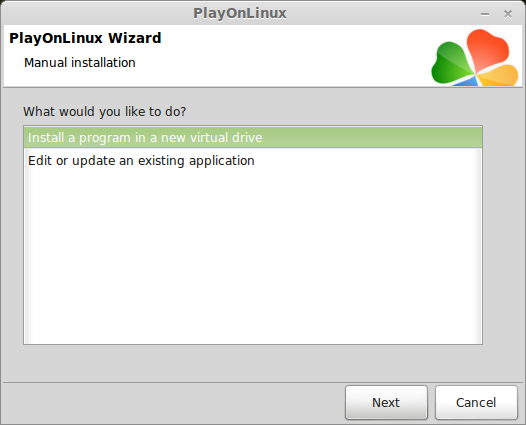

    Select "Install a program in a new virtual drive"
    Click Next

    Name your virtual drive: gauntlet
    No spaces
    Click Next

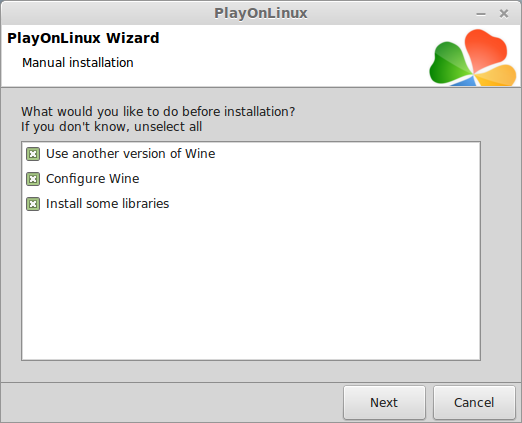

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

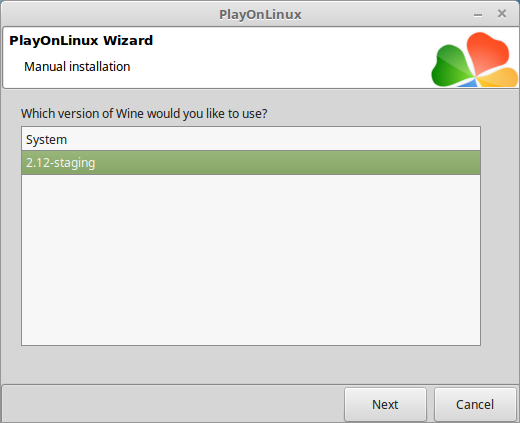

    Select Wine 2.12-staging
    Click Next

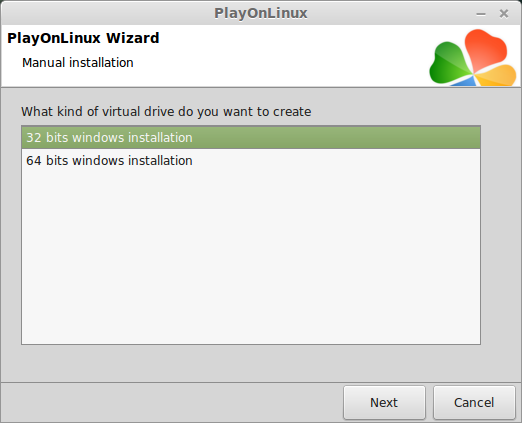

    Select "32 bits windows installation"
    Click Next

    Configure Wine

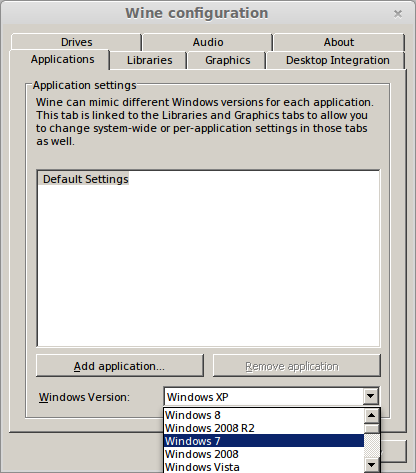

    Applications Tab
    Windows Version: Windows 7
    Click Apply

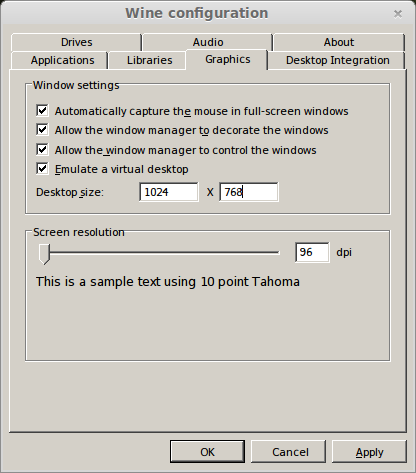

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Check: Emulate a virtual desktop
    Desktop size: 1024x768
    Click Ok

    PlayOnLinux Packages (Libraries, Components, DLL's)

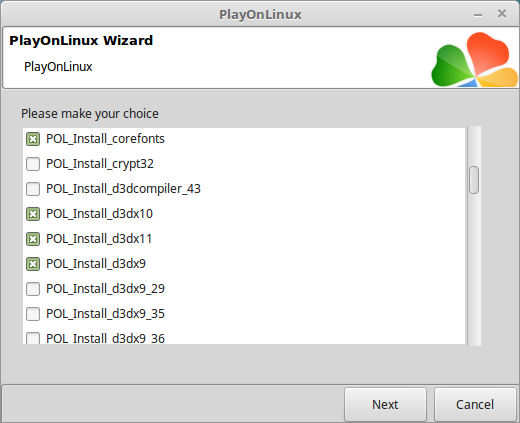

    Check the following libraries:
    • POL_Install_corefonts
    • POL_Install_d3dx10
    • POL_Install_d3dx11
    • POL_Install_d3dx9
    • POL_Install_Physx
    • POL_Install_tahoma
    Click Next

    Note: All packages will automatically download and install

    Installing Steam

    Click Browse

    Navigate to your desktop
    Select: SteamSetup.exe
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

    Updating Steam

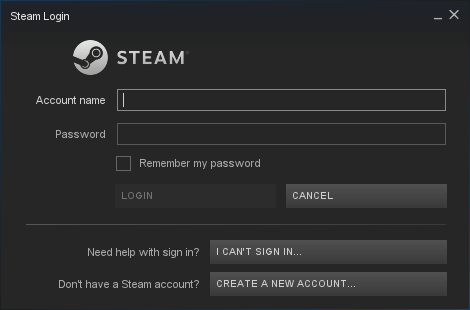

    Click the "X" to close Steam login

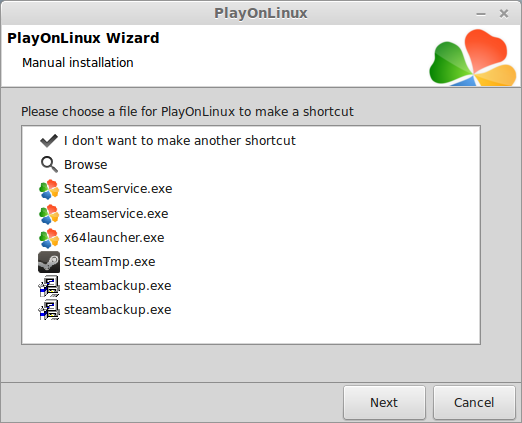

    PlayOnLinux Shortcut

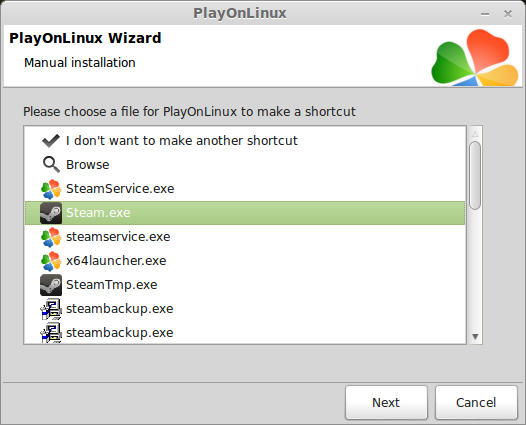

    Select Steam.exe
    Click Next

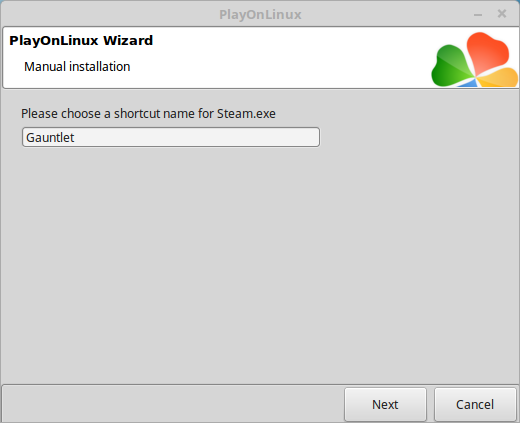

    Name your shortcut: Gauntlet
    Click Next

    Select "I don't want to make another shortcut"
    Click Next

    PlayOnLinux Configure

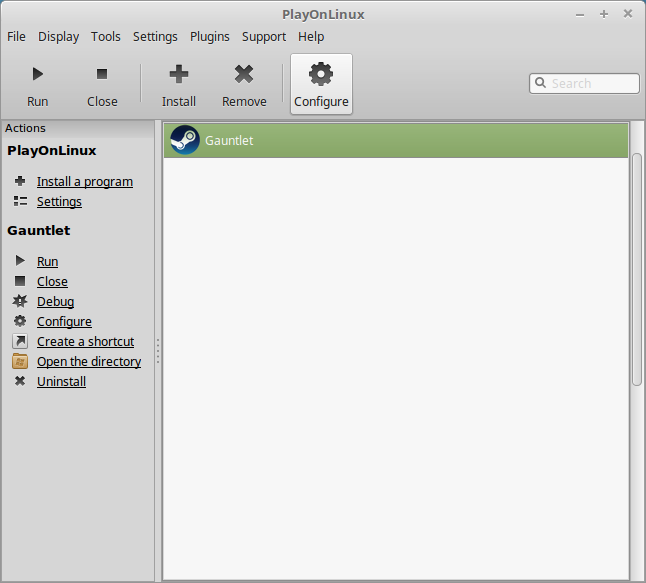

    Back to PlayOnLinux
    Click Configure

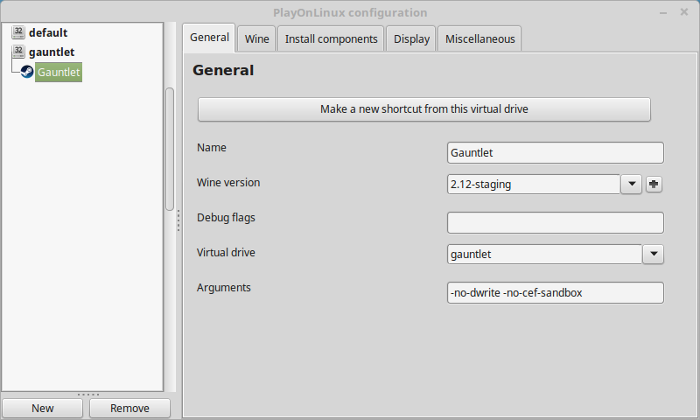

    General Tab
    Arguments: -no-dwrite -no-cef-sandbox

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of wine

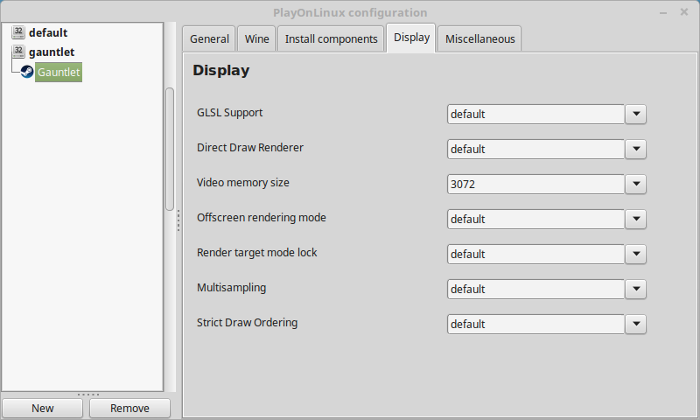

    Display Tab
    Video Memory Size: Select the size of Memory your video card/chip uses

    Close Configure

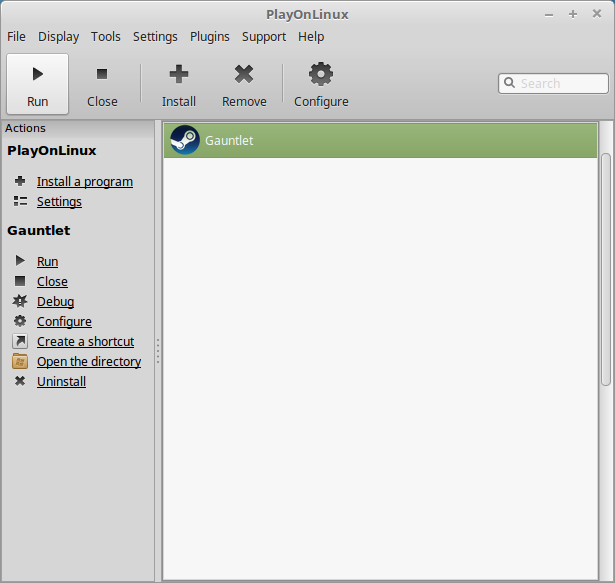

    Launching Steam

    Select Gauntlet
    Click Run

    Note: Click debug to see errors and bugs

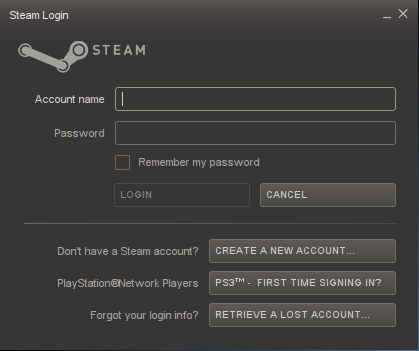

    Click "Login to existing account"

    Login

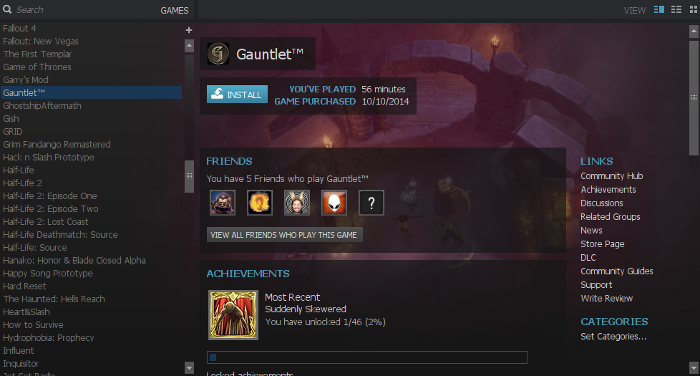

    Find Gauntlet in your Library
    Click Install

    Uncheck "Created desktop shortcut"
    Uncheck "Create start menu shortcut"
    Click Next

    Click "I Agree"

    Click Finish
    Wait for Gauntlet to download...

    Setting Windowed Mode

    Gauntlet will refuse to load due to some screen resolution issue
    Go to:
    Code:
    /home/username/.PlayOnLinux/wineprefix/gauntlet/drive_c/Program Files/Steam/SteamApps/Common/Gauntlet/content
    Open settings.ini in TextEditor

    Scroll down to fullscreen = True

    Change it to fullscreen = False
    Click Save
    Close TextEditor

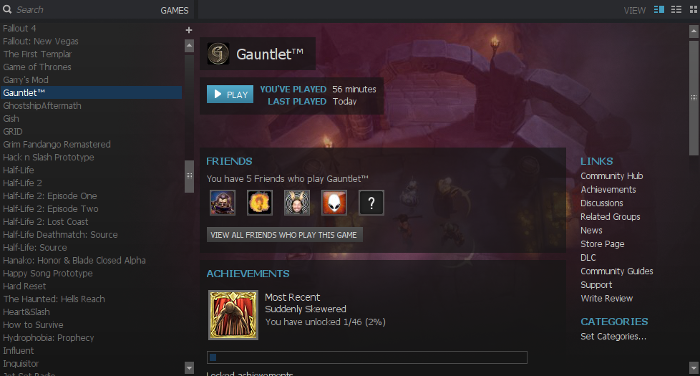

    Back to Steam
    Click Play

    Now it will launch in Windowed mode and you can change it back to fullscreen

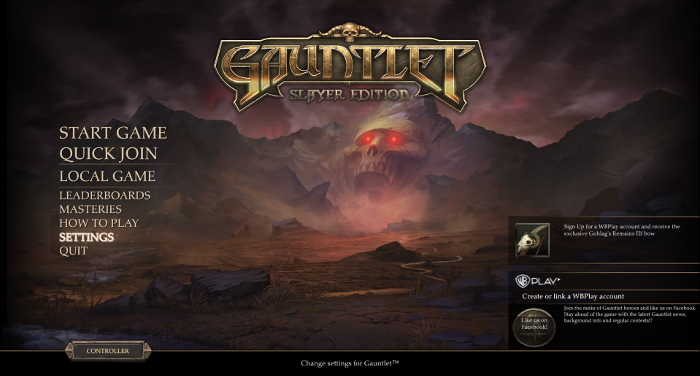

    Click Settings

    Click Display
    Check Fullscreen
    Click Apply

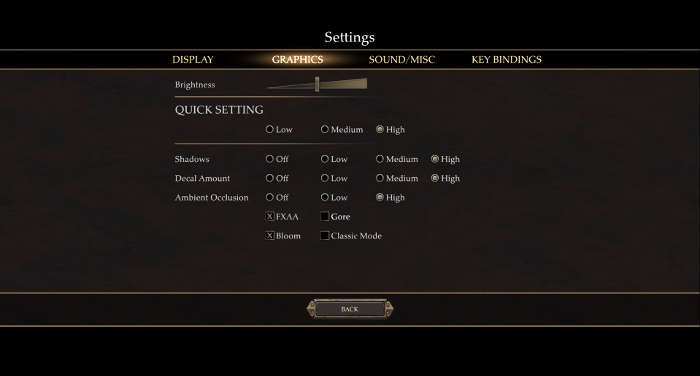

    Click Graphics
    Adjust:
    • Brightness
    • Shadows
    • Decal Amount
    • Ambient Occlusion
    • FXAA
    • Gore
    • Bloom
    • Classic Mode

    Bugs

    The only bugs I've encountered are keyboard interactivity when launching the game.
    The simple fix is to use Alt+Tab out of the window and Alt+Tab back and then it works fine

    Another bug is Exiting the game. It will crash each time
    Just Alt+Tab to PlayOnLinux

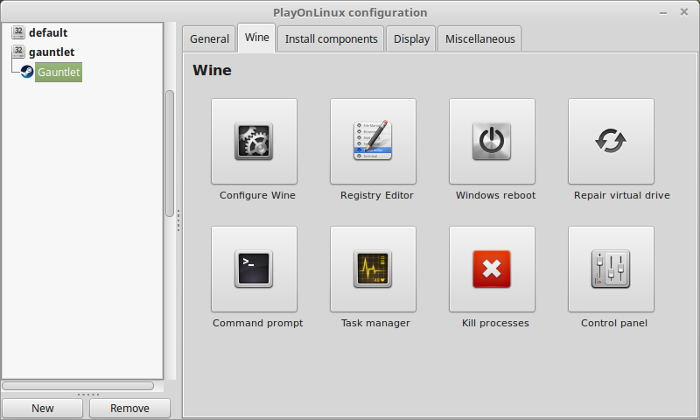

    Click Configure
    Go to Wine Tab
    Click "Kill Processes"

    Conclusion:
    I was amazed that Gauntlet runs now even though it is a Direct X 10/11 game. Wine staging does a great job handling everything and I was able to play with all settings on high on my GeForce GTX 1060 and GTX 950. I was even able to play co-op online as well. It played just as well as in Windows.

    Gameplay Video:

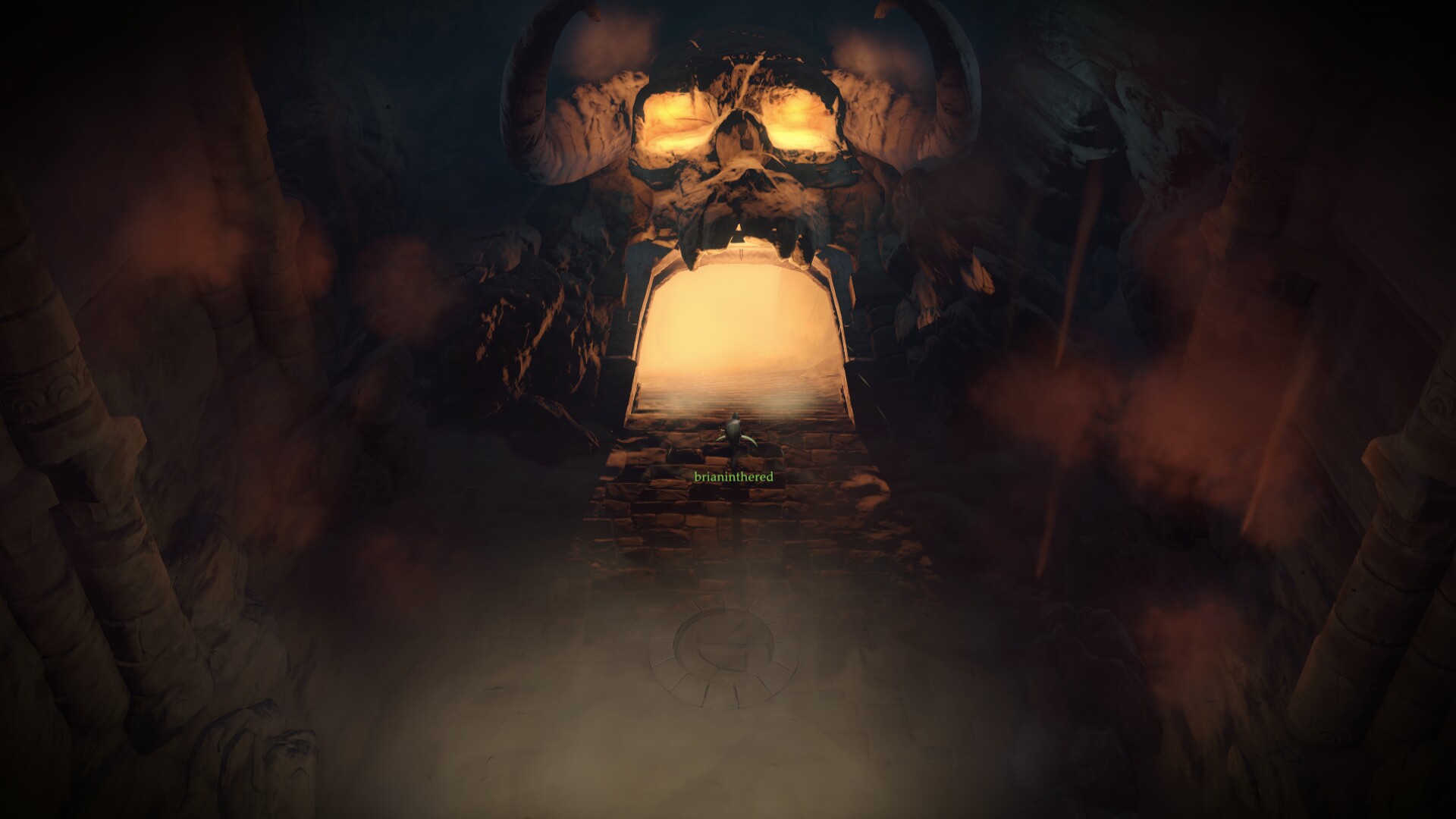

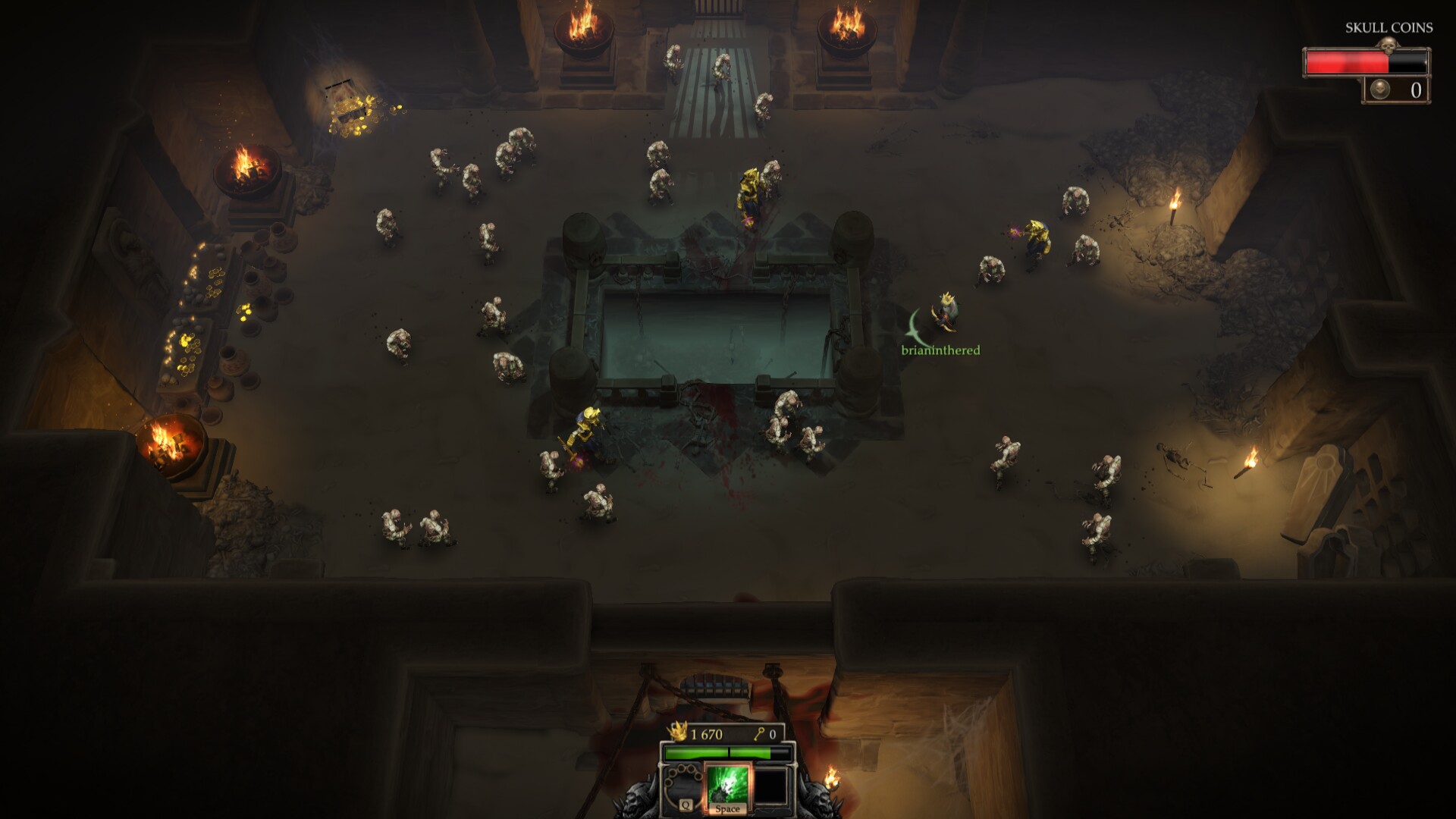

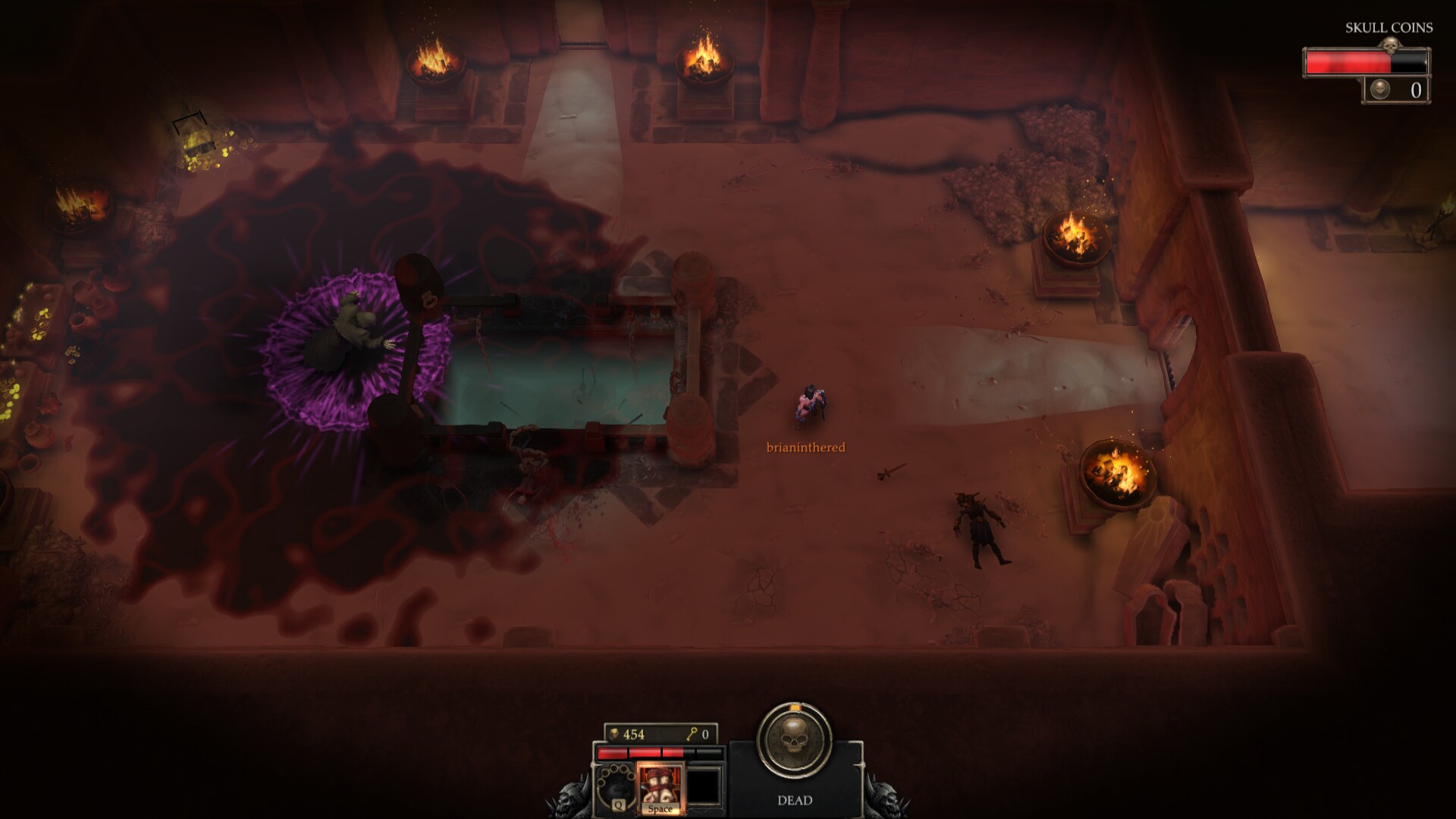

    Screenshots:





    vashin likes this.

Comments

Discussion in 'Guides' started by booman, Jul 28, 2017.

  1. vashin
    Runs very well on Archlabs. Only issue I have is a little sound crackle however I'm running it under POL 4.2.10.
    booman likes this.
  2. booman
    You might want to update to PlayOnLinux 4.2.12
    I've been using it for a few weeks now and it seems to run just fine.

    The only issues I've experienced is some frame stutter in the later dungeons and one time my character died and respawned out of the map.
    vashin likes this.
  3. mrdeathjr28
    Good and actually runs well for DX10 title

    :)
    booman likes this.
  4. booman
    I'm very happy that Wine developers are working on Direct X 10/11 compatibility!
