    Elder Scrolls: IV Oblivion was a state-of-the-art benchmark for gaming before Skyrim. Consisting of a massive open-world full of dungeons, castles, ruins, mountains, swamps, forests and countless enemies. Anyone could easily invest 200+ hours just exploring Tamriel, leveling up and completing quests. There is always somewhere new to explore, someone new to talk to and some new minion to slay.


    Follow my step-by-step guide on installing, configuring and optimizing Elder Scrolls: IV Oblivion in Linux with PlayOnLinux.

    Note: This guide applies to the Retail version of Elder Scrolls: IV Oblivion. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 17 64-bit
    PlayOnLinux: 4.2.8
    Wine: 1.7.46

    Wine Installation

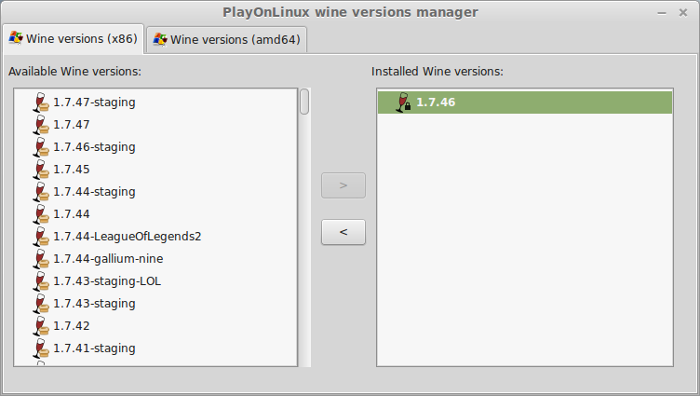

    Click Tools
    Select "Manage Wine Versions"

    Look for the Wine Version: 1.7.46
    Note: Try using stable Wine 1.8 and 1.8-staging

    Select it
    Click the arrow pointing to the right

    Click Next

    Downloading Wine

    Extracting

    Downloading Gecko

    Installed

    Wine 1.7.46 is installed and you can close this window

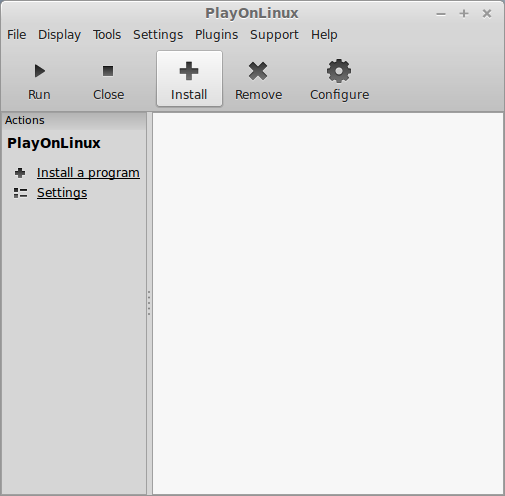

    PlayOnLinux Setup

    Launch PlayOnLinux

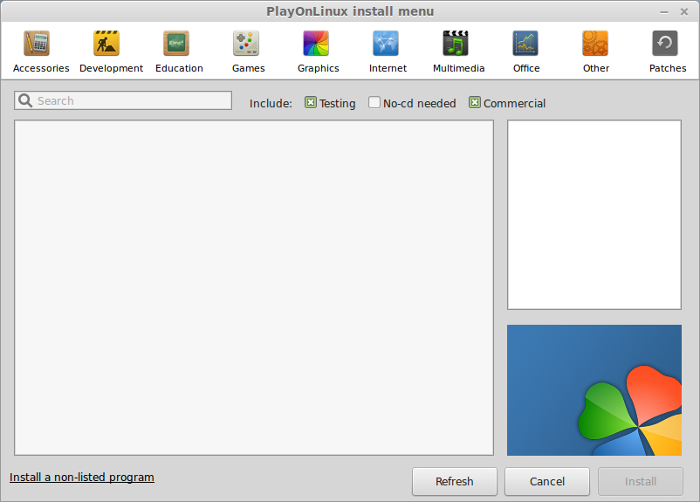

    Click Install

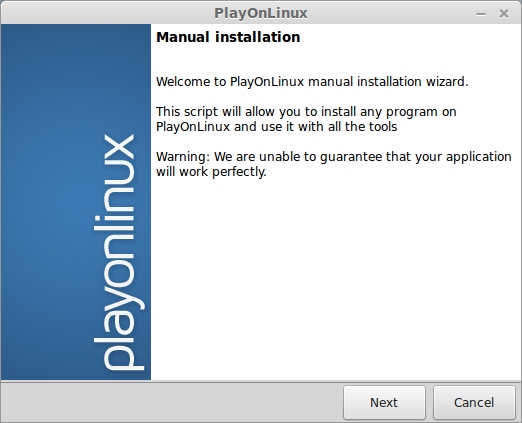

    Click "Install a non-listed program"

    Click Next

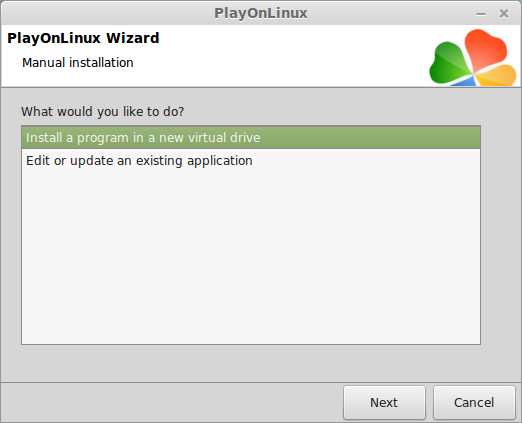

    Click "Install a program in a new virtual drive"
    Click Next

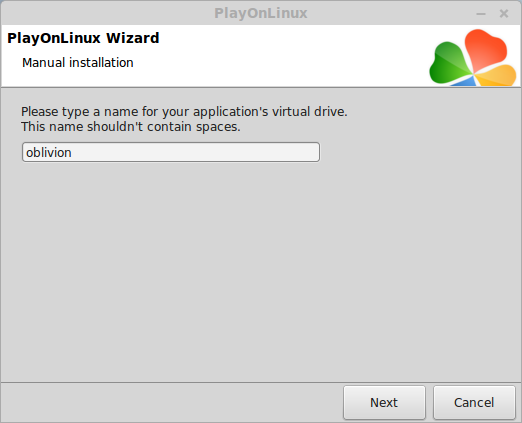

    Name the virtual drive: oblivion
    Click Next

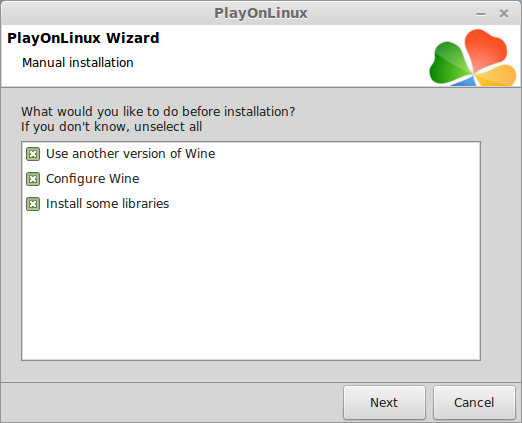

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

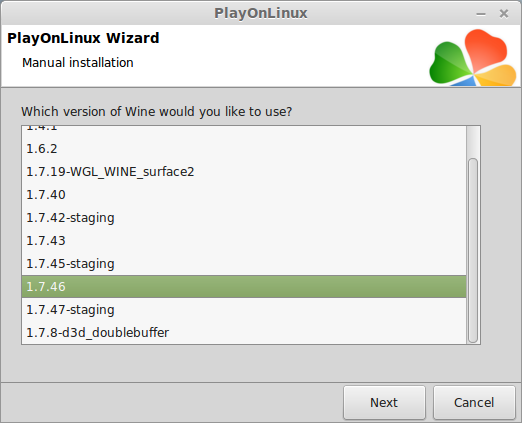

    Select Wine 1.7.46
    Click Next

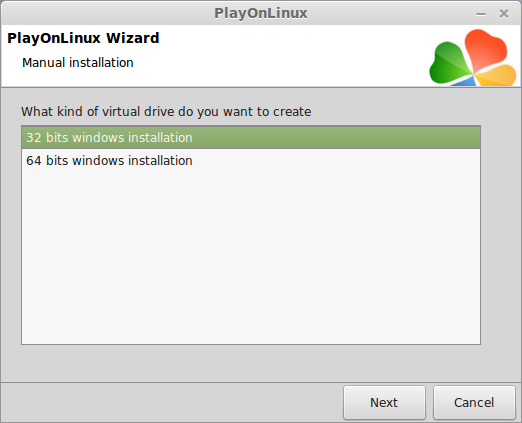

    Select "32 bits windows installation"
    Click Next

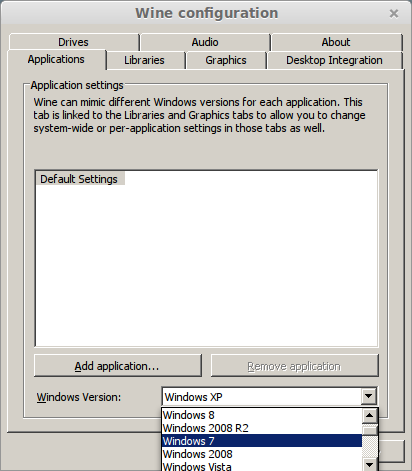

    Wine Configuration

    Applications Tab
    Windows Version: Windows 7
    Click Apply

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Check "Emulate a virtual desktop"
    Desktop Size: 1024x768
    Click OK

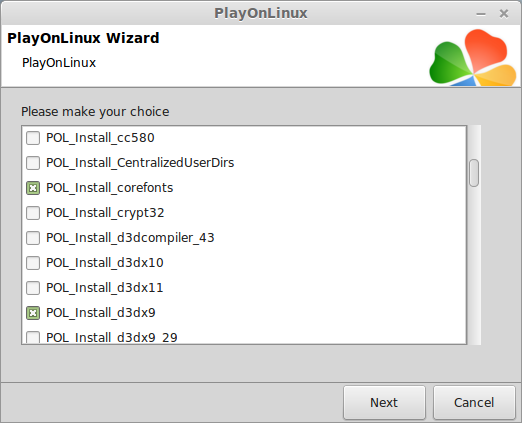

    PlayOnLinux Packages (Libraries, Components, DLL's)

    Check the following packages:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_tahoma
    • POL_Install_vcrun2005
    Click Next

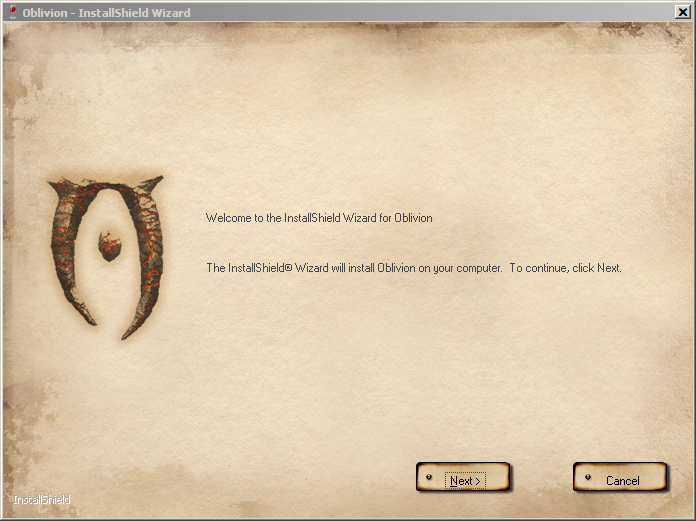

    Installing Oblivion

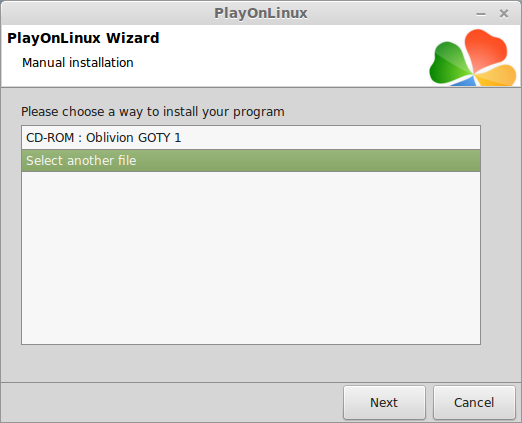

    Click "Select another file"
    Click Next

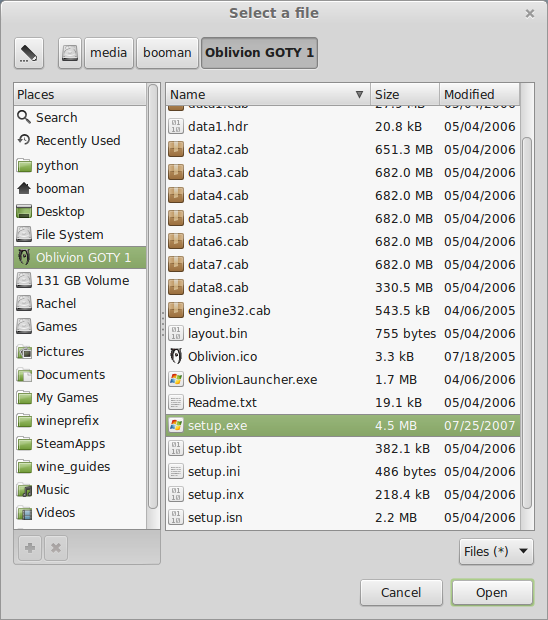

    Click Browse

    Navigate to the Oblivion CD ROM
    Select "setup.exe"
    Click Open

    Click Next

    Click Next

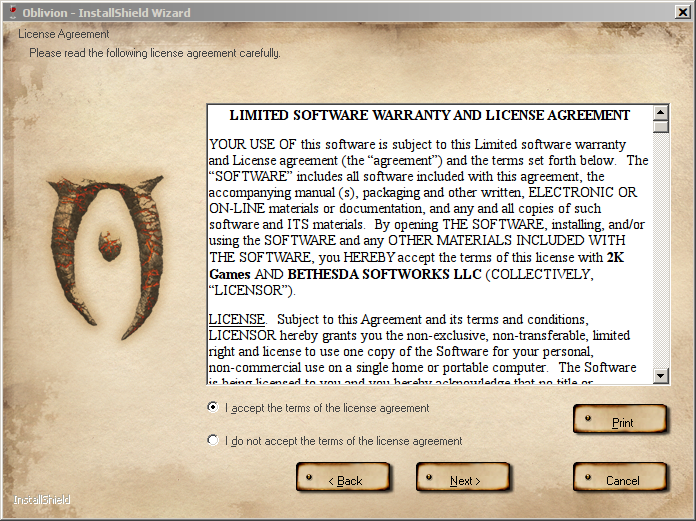

    Click "I accept the terms..."
    Click Next

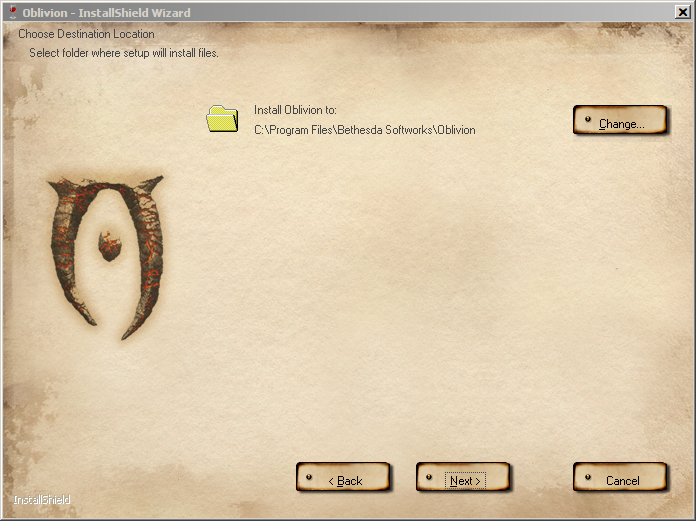

    Click Next

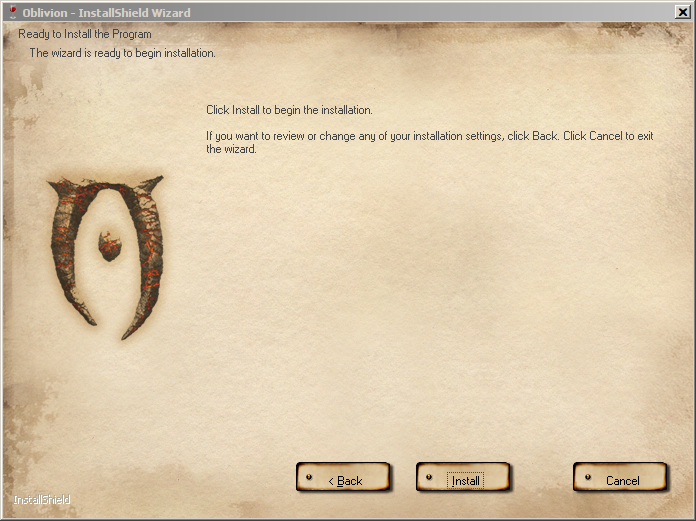

    Click Install

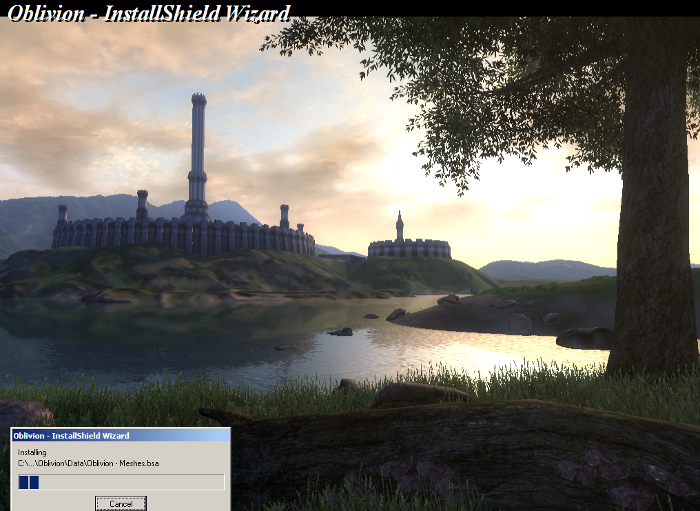

    Installing...

    Uncheck "Add Oblivion shortcut to your desktop
    Uncheck "Yes, I want to view the ReadMe file
    Click Finish

    Unfortunately the installer refuses to close on its own
    It will just hang at this window

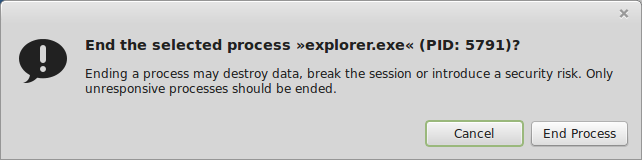

    Open the Linux activity monitor

    Select Wineserver.exe
    Click End Process

    PlayOnLinux Shortcut

    Select "Oblivion.exe"
    Click Next

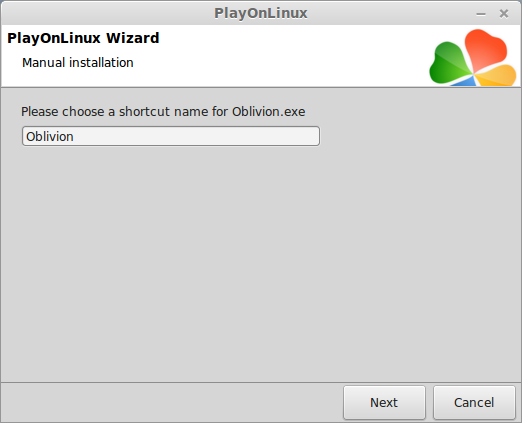

    Name your shortcut: Oblivion
    Click Next

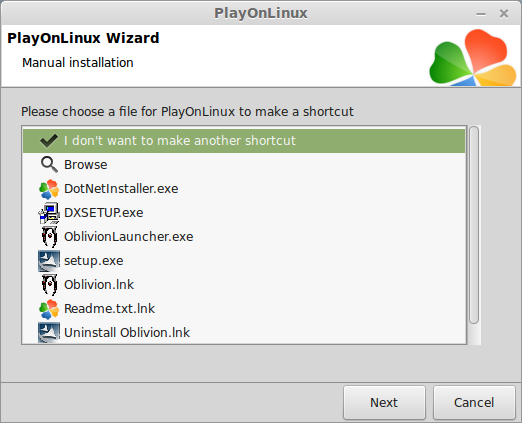

    Click "I don't want to make another shortcut"
    Click Next

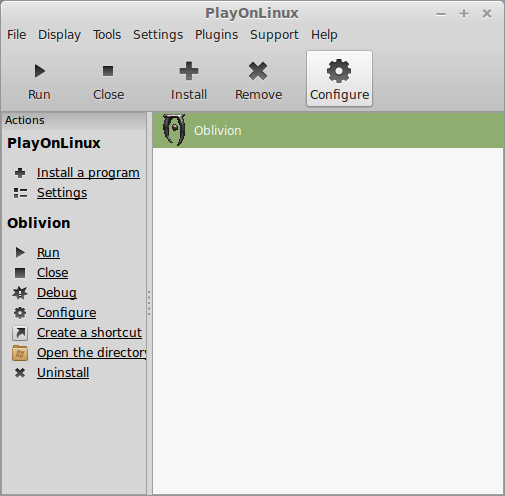

    PlayOnLinux Configure

    Select Oblivion
    Click Configure

    General Tab
    Wine version: 1.7.46

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of Wine. Always try downloading the newest version of Wine to test on Oblivion.

    Display Tab
    Video Memory size: Select the amount of Memory your video card/chip uses

    Close Configure

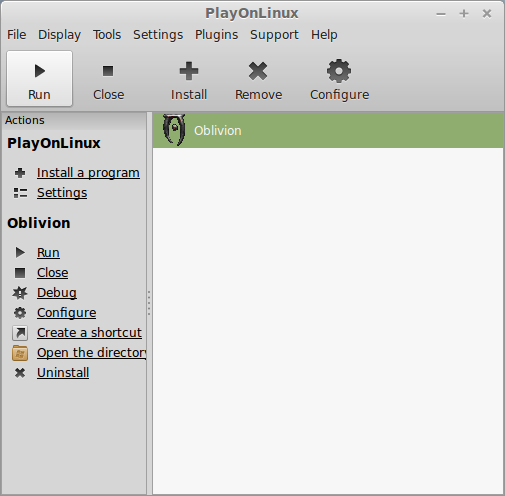

    Launching Oblivion

    Back to PlayOnLinux
    Select Oblivion
    Click Run

    Note: Click Debug to see errors and bugs

    Optimization

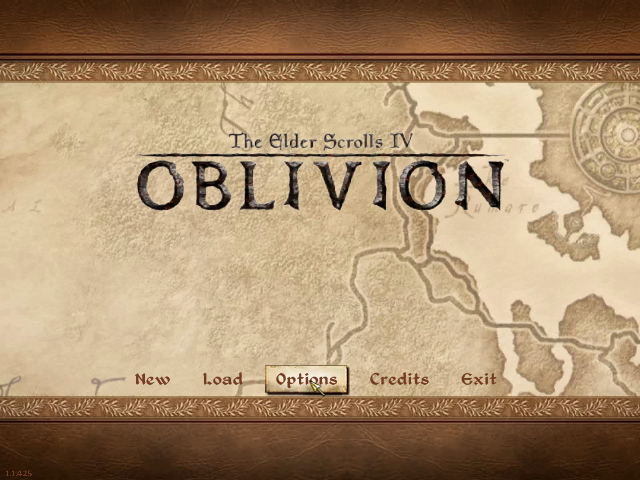

    Click options

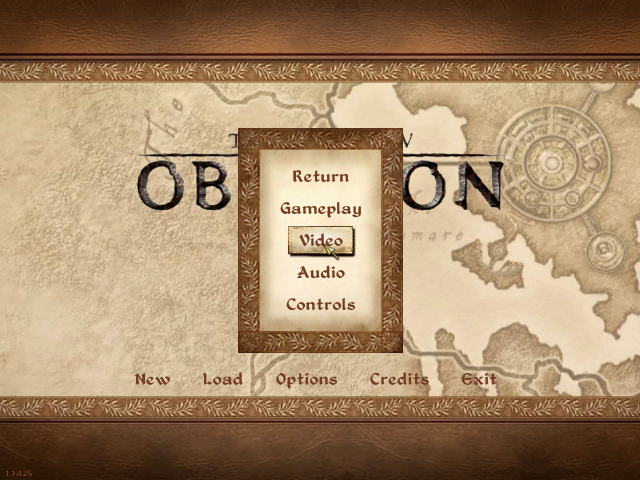

    Click Video

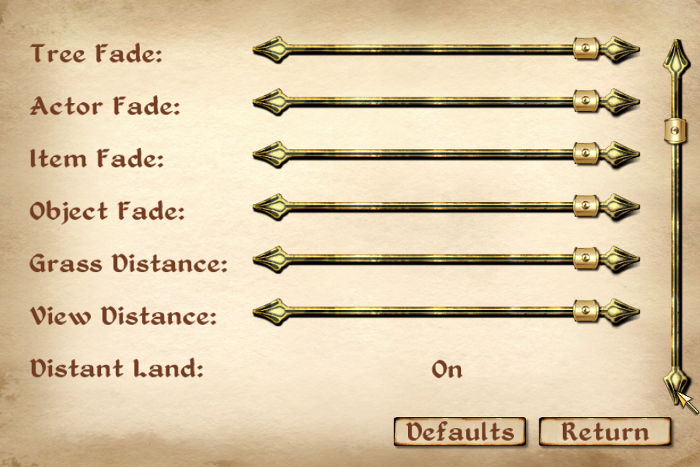

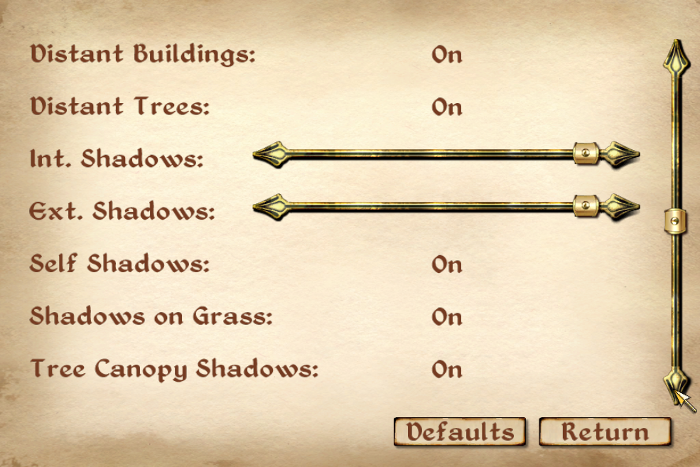

    Adjust:
    • Resolution
    • Brightness
    • Texture Size
    • Tree Fade
    • Actor Fade
    • Item Fade
    • Object Fade
    • Grass Distance
    • View Distance
    • Distand Land
    • Distant Buildings
    • Distant Trees
    • Interior Shadows
    • Exterior Shadows
    • Self Shadows
    • Shadows on Grass
    • Tree Canopy Shadows
    • Shadow Filtering
    • Specular Distance
    • HDR Lighting
    • Bloom Lighting
    • Water Detail
    • Water Reflections
    • Water Ripples





    Rule of Thumb:
    High settings = More detail, lower frame rates
    Low settings = Less detail, higher frame rates

    Conclusion:
    Elder Scrolls IV: Oblivion ran perfectly in PlayOnLinux on my GeForce 550 Ti with almost all the settings on high. Its quite a beautiful game even considering its age. The only problem I had was the installer locking up.

    Gameplay Video:

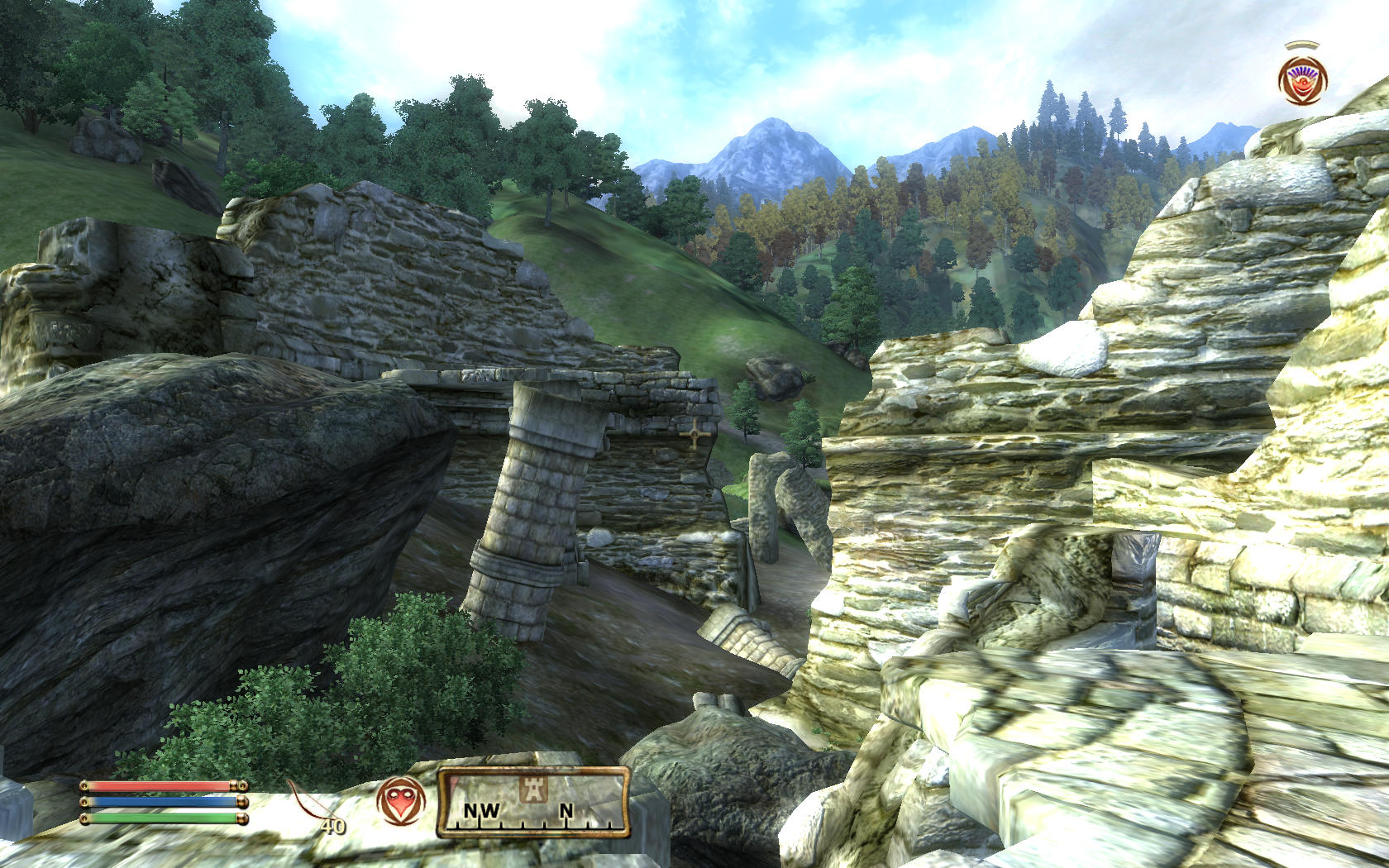

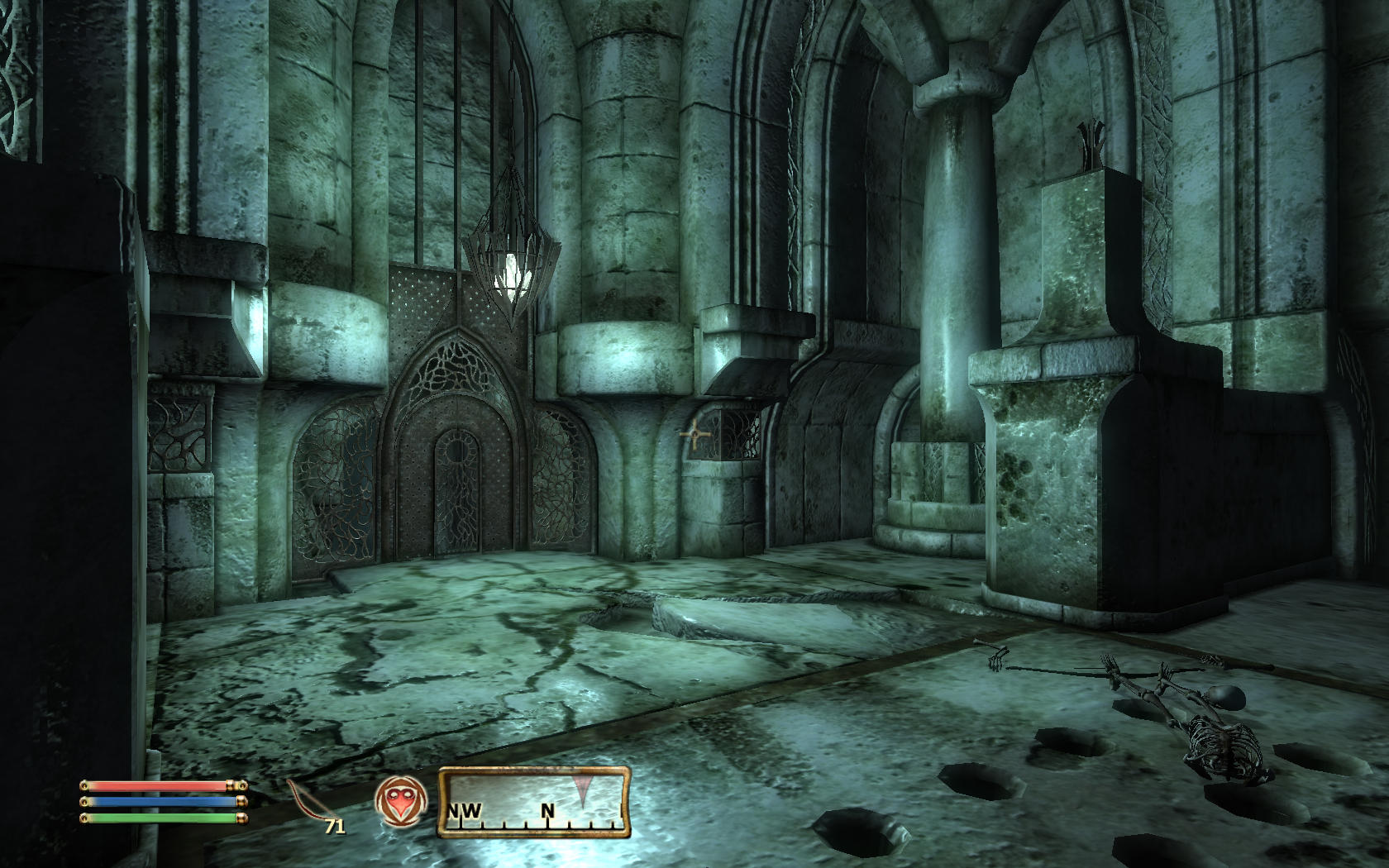

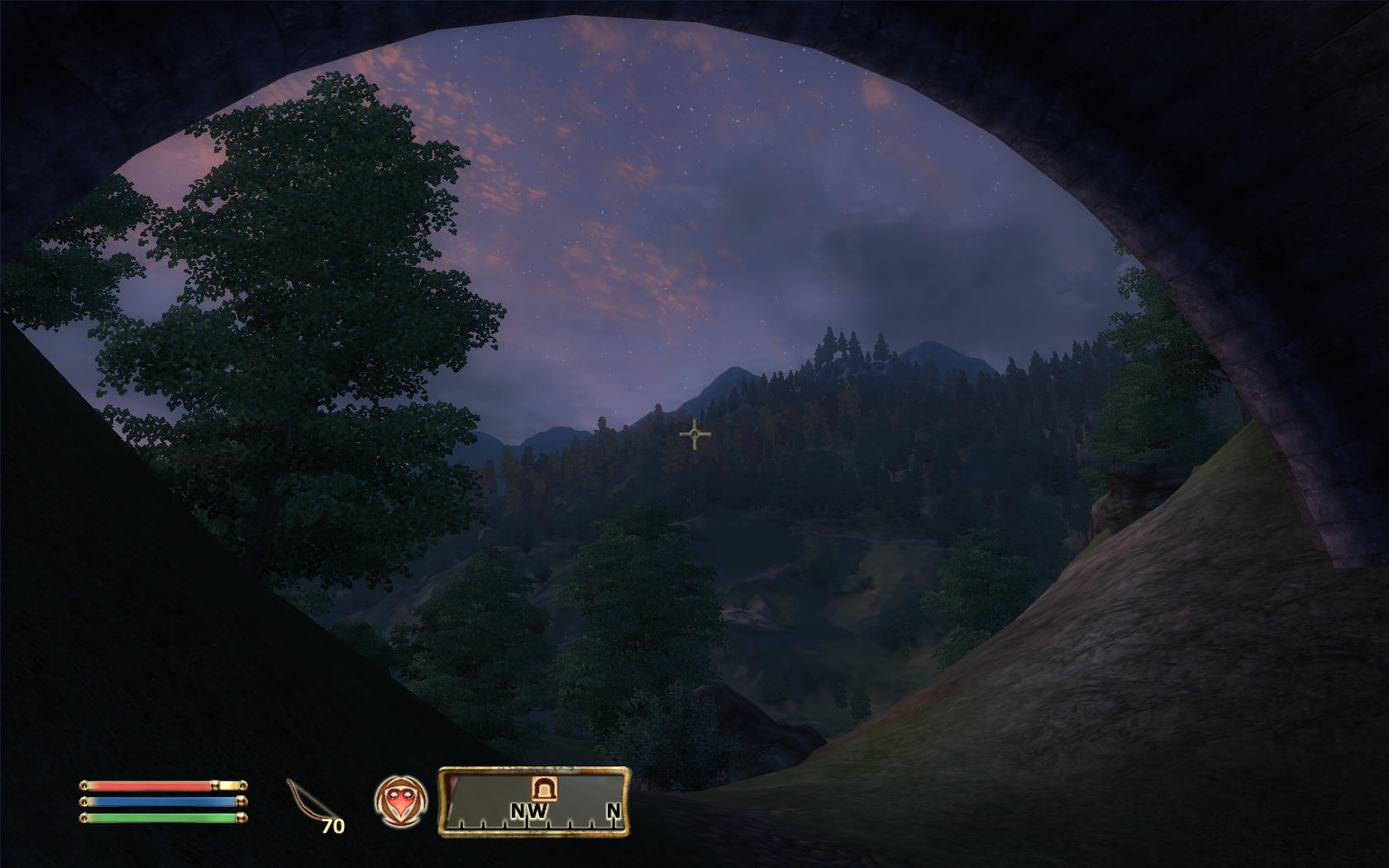

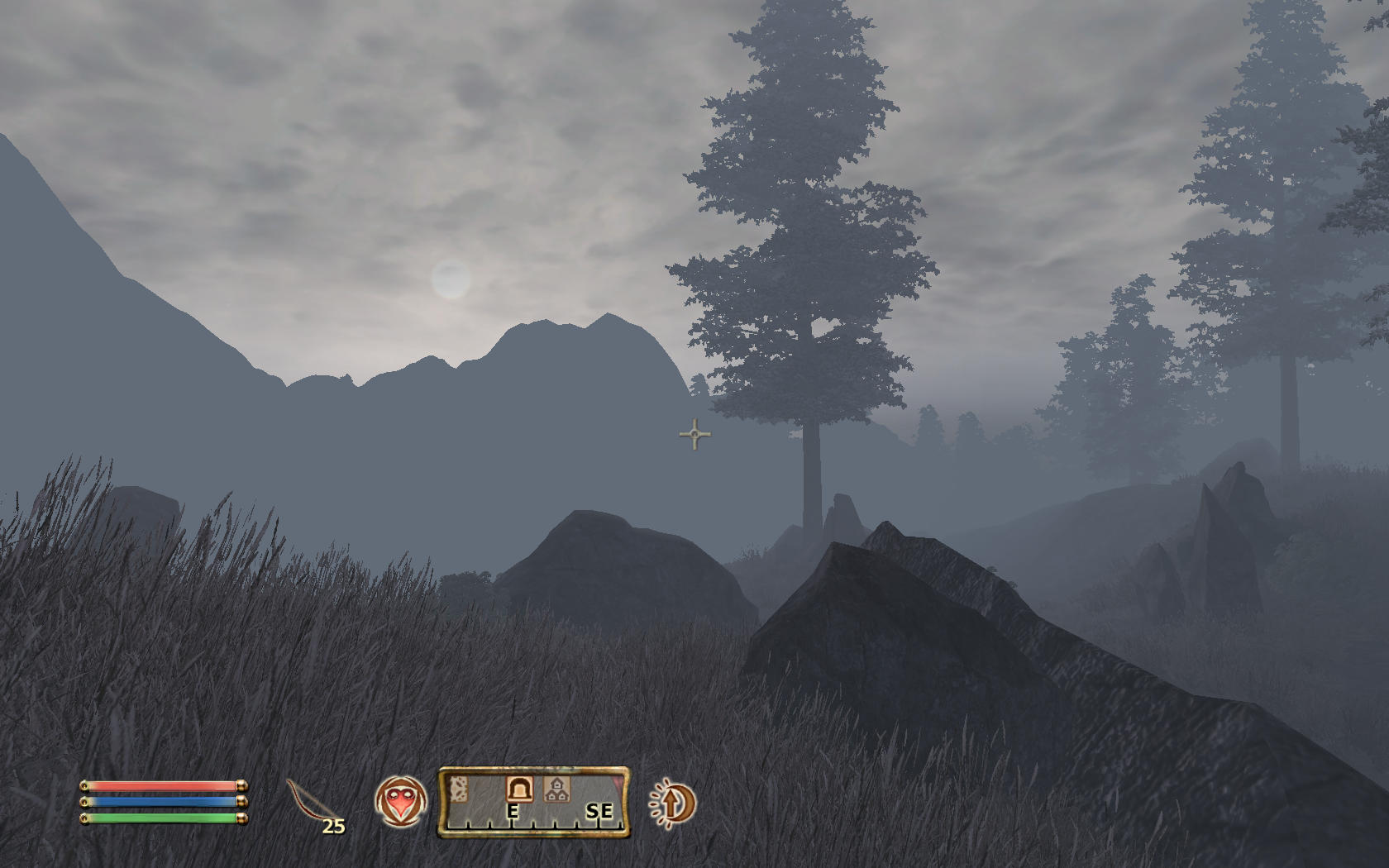

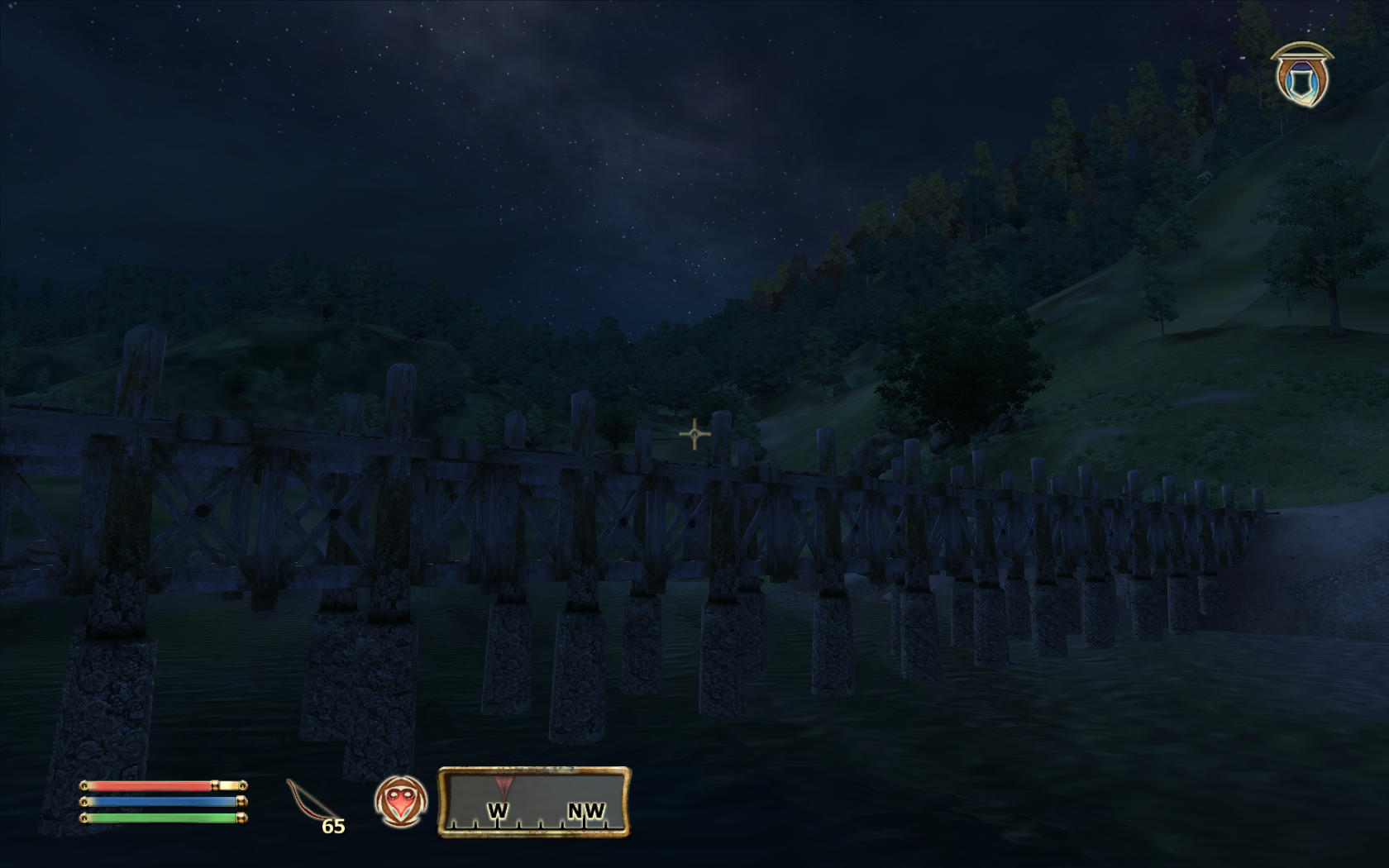

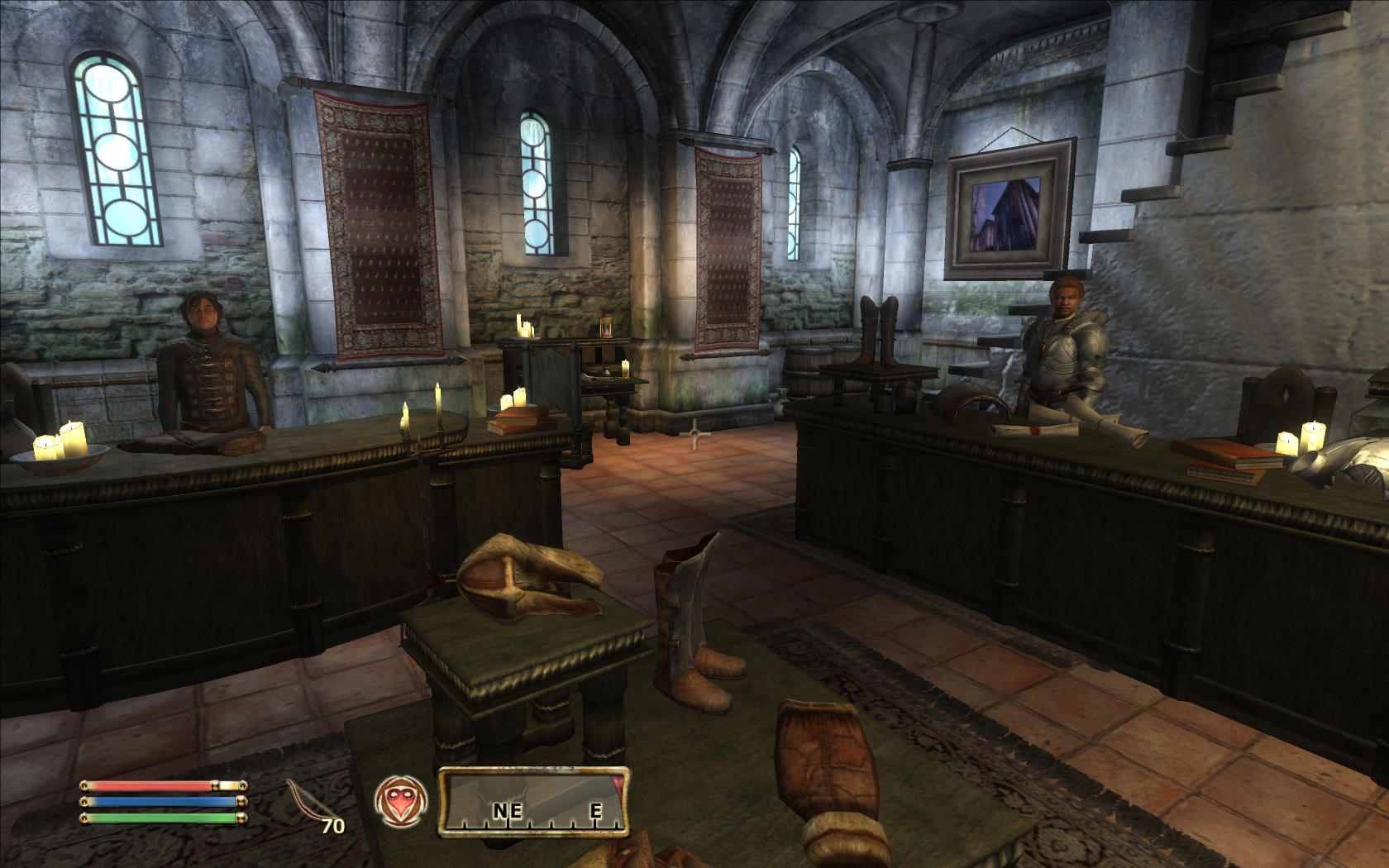

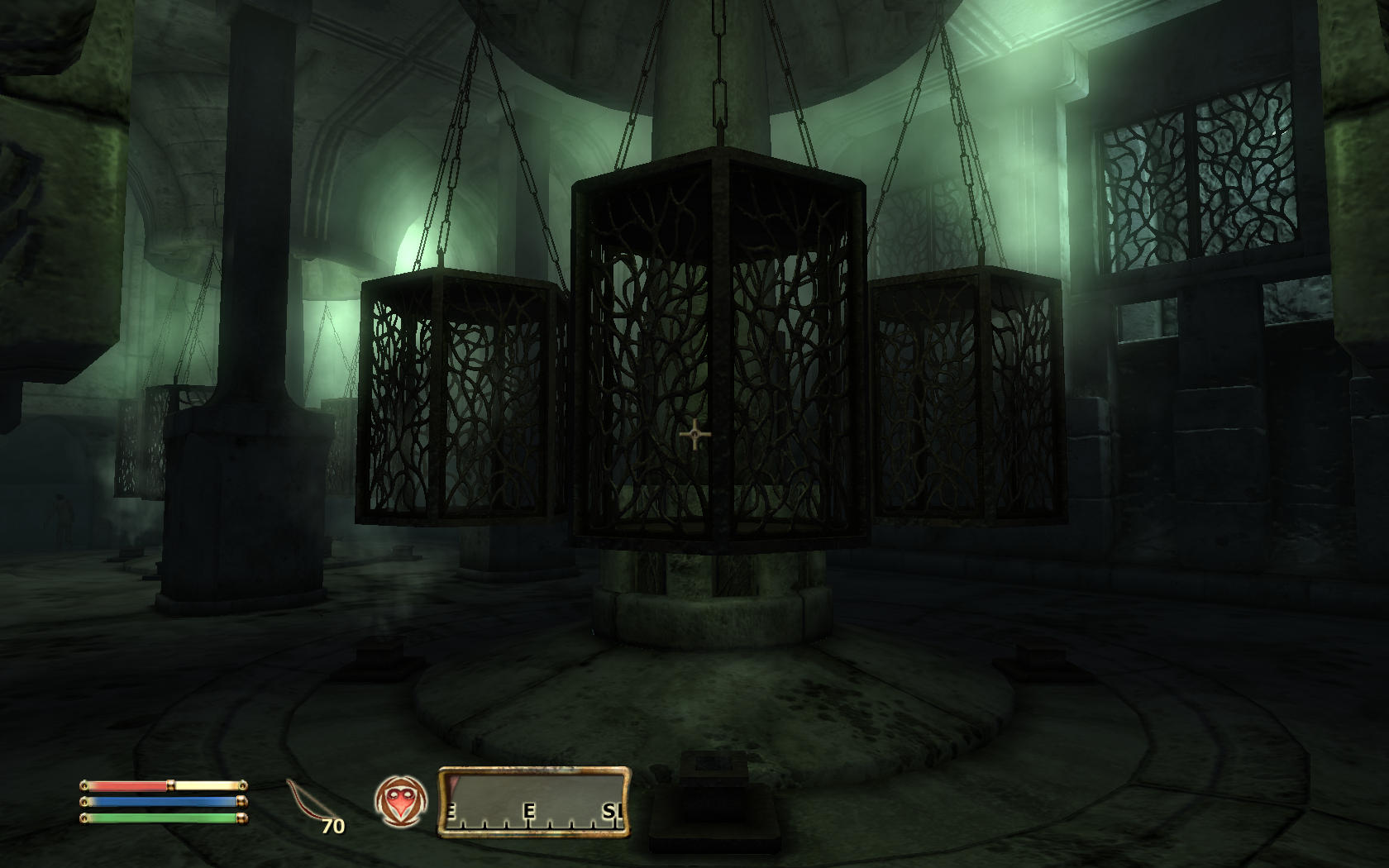

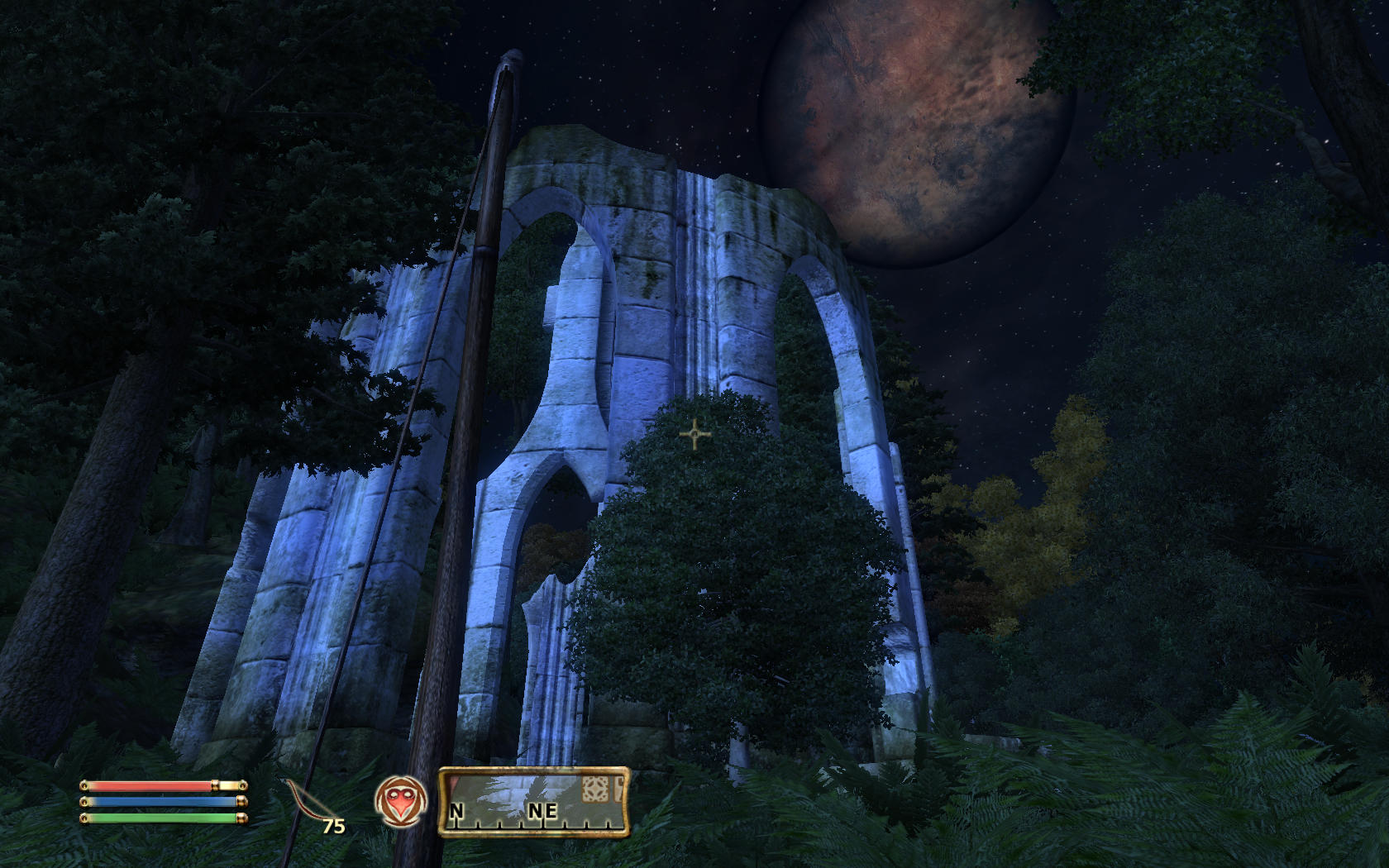

    Screenshots:
