    Imagine a place of wonder, where magick and technology hold equal sway, and an adventurer might just as easily wield a flintlock pistol as a flaming sword. A place where great industrial cities house castle keeps and factories, home to Dwarves, Humans, Orcs and Elves alike. A place of ancient runes and steamworks, of magic and machines, of sorcery and science.


    Follow my step-by-step guide on installing, configuring and optimizing Arcanum in Linux with PlayOnLinux.

    Note: This guide applies to the GOG version of Arcanum. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 17.3 64-bit
    PlayOnLinux: 4.2.10
    Wine: 1.8.2

    Wine Installation

    Click Tools

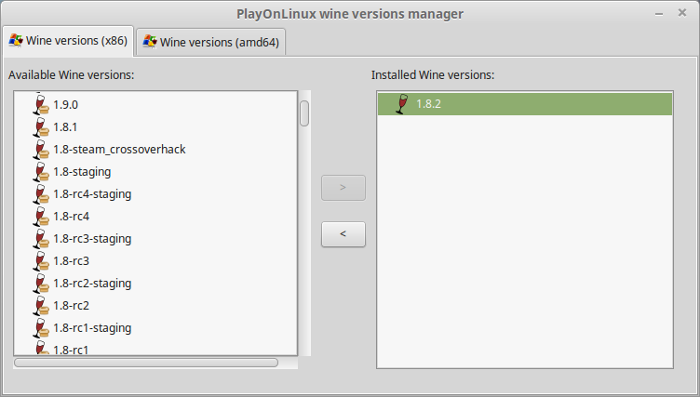

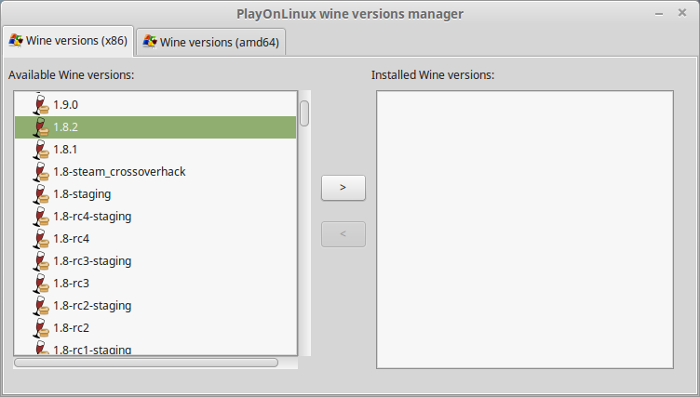

    Select "Manage Wine Versions"

    Look for the Wine Version: 1.8.2
    Select it
    Click the arrow pointing to the right

    Click Next

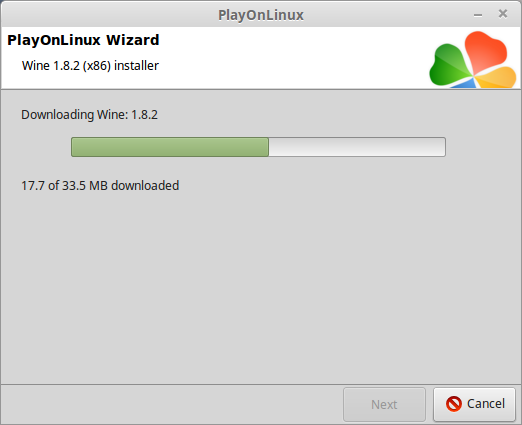

    Downloading Wine

    Extracting

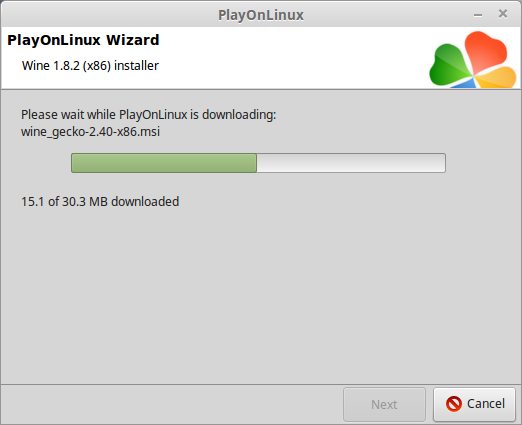

    Downloading Gecko

    Installed

    Wine 1.8.2 is installed and you can close this window

    Download Arcanum unofficial patch and widescreen patch

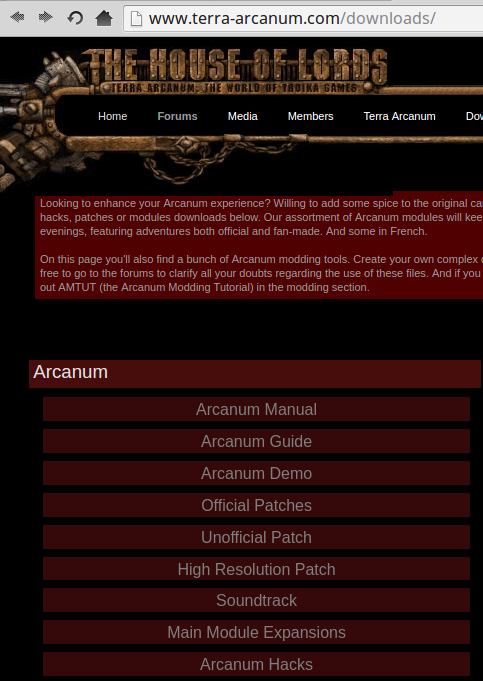

    Go to: http://www.terra-arcanum.com/downloads/
    Click Unofficial Patch

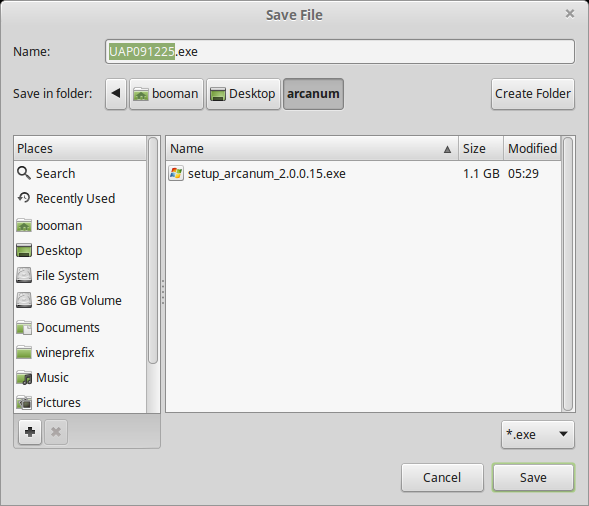

    Download patch: UAP091225.exe

    Click High Resolution Patch
    Download patch: HighRes1.1a.exe

    Note: Wait until the first patch is completely downloaded before clicking the next patch.

    PlayOnLinux Setup

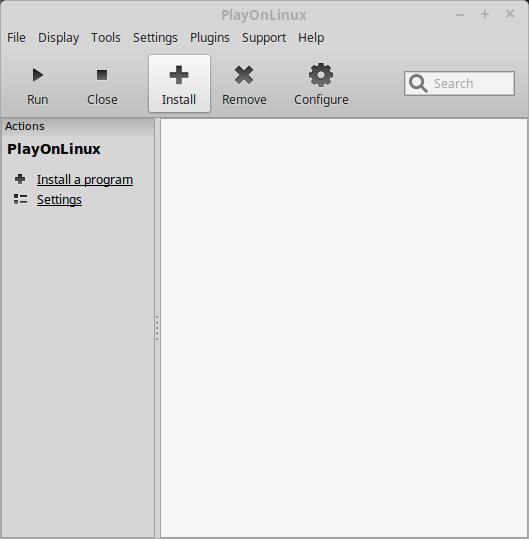

    Launch PlayOnLinux

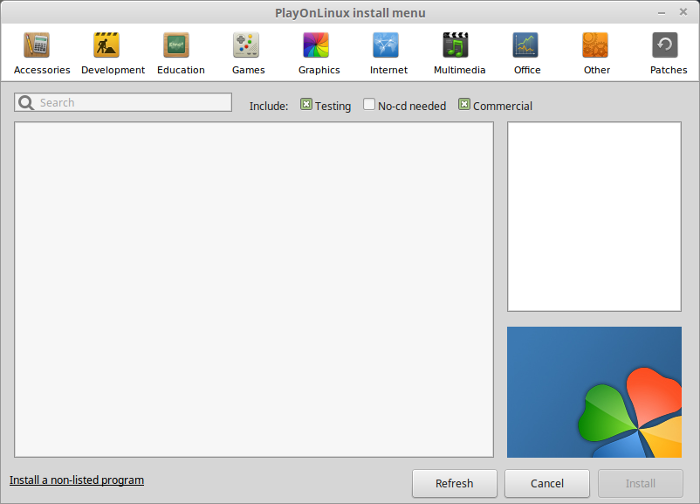

    Click Install

    Click "Install a non-listed program"

    Click Next

    Select "Install a program in a new virtual drive"
    Click Next

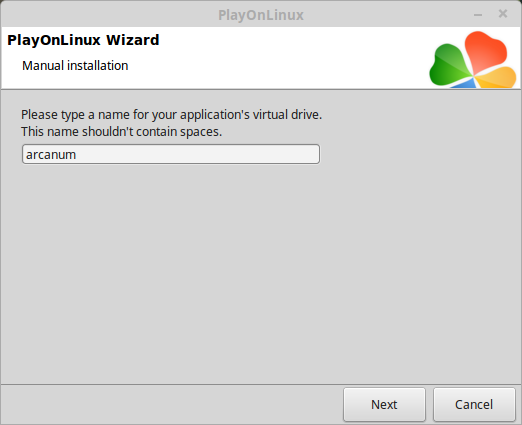

    Name your virtual drive: arcanum
    Click Next

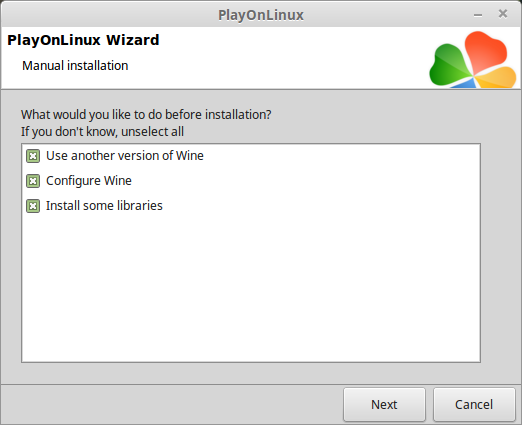

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

    Select Wine 1.8.2
    Click Next

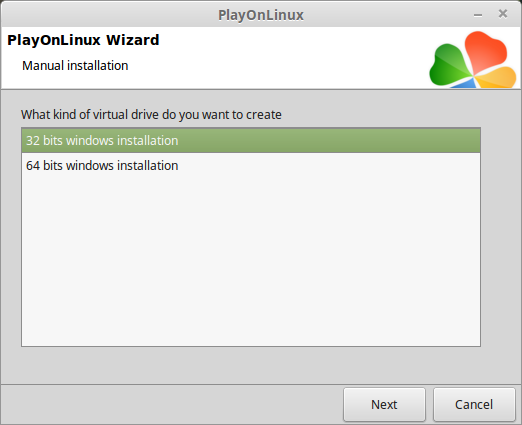

    Select "32 bits windows installation"
    Click Next

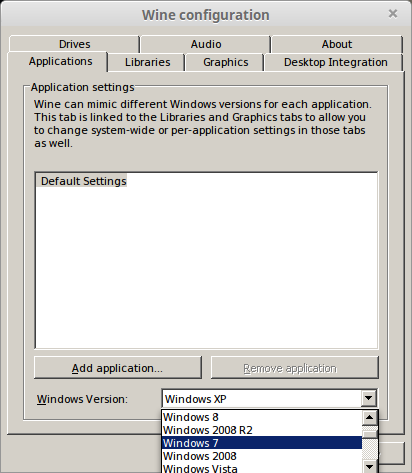

    Wine Configuration

    Applications Tab
    Windows version: Windows 7
    Click Apply

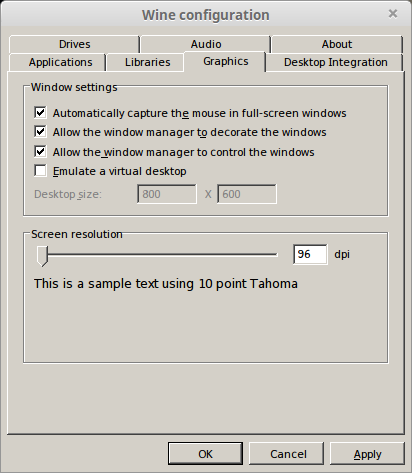

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Click OK

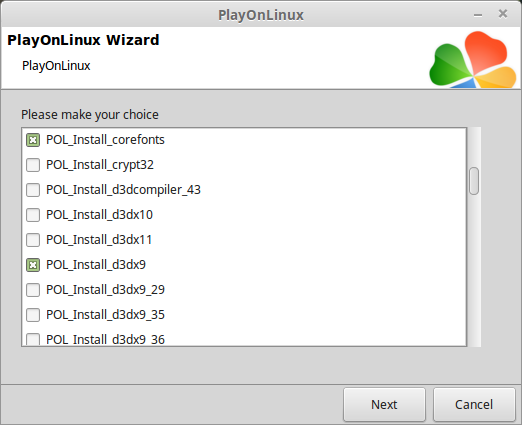

    PlayOnLinux Packages (Components, DLL's, Libraries)

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_gdiplus
    • POL_Install_tahoma
    Click Next

    Note: All packages will automatically download and install

    Installing Arcanum

    Click Browse

    Select "setup_arcanum_2.0.0.15.exe"
    Click Open

    Click Next again

    Check "Yes, I have read and accept EULA"

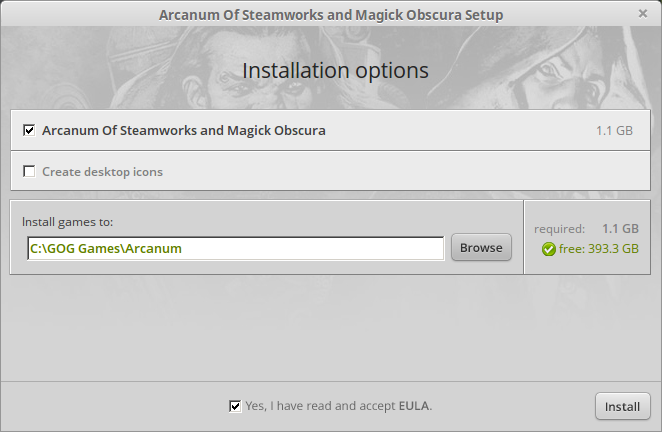

    Click Options
    Uncheck "Create desktop icons"
    Click Install

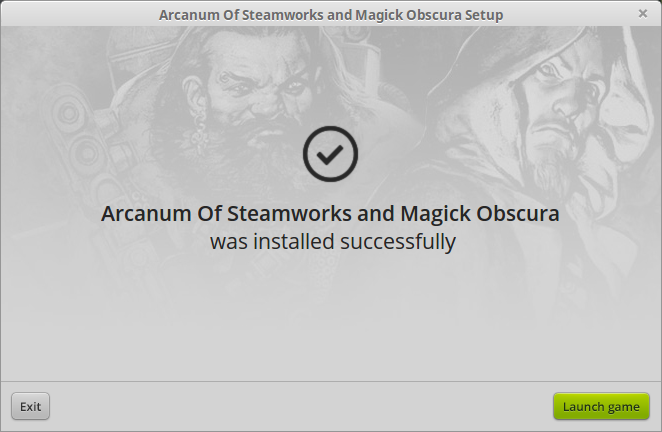

    Click Exit

    PlayOnLinux Shortcut

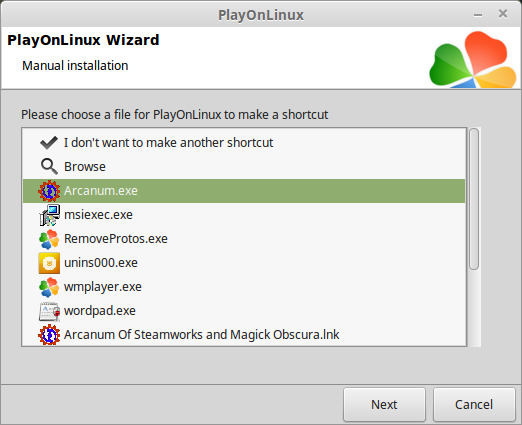

    Select "Arcanum.exe"
    Click Next

    Click Next

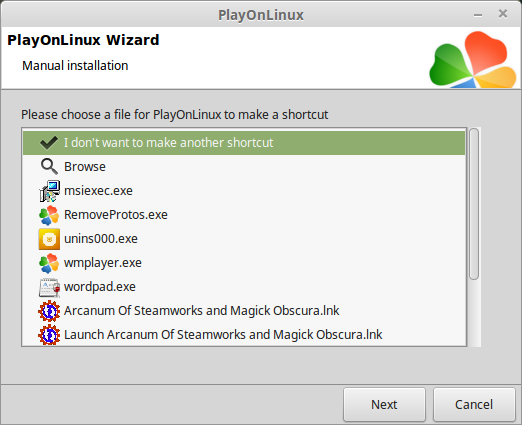

    Select "I don't want to make another shortcut"
    Click Next

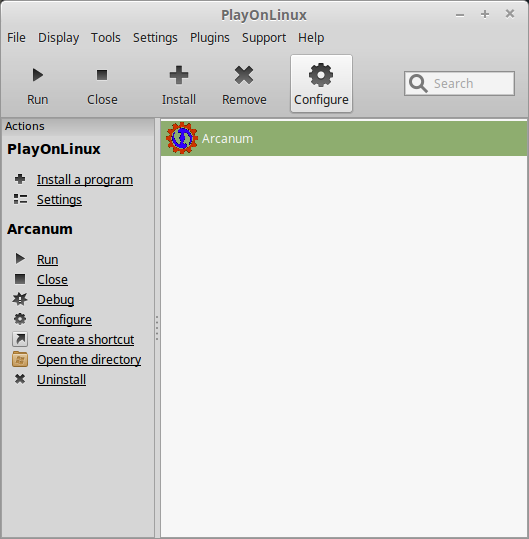

    PlayOnLinux Configure

    Select Arcanum
    Click Configure

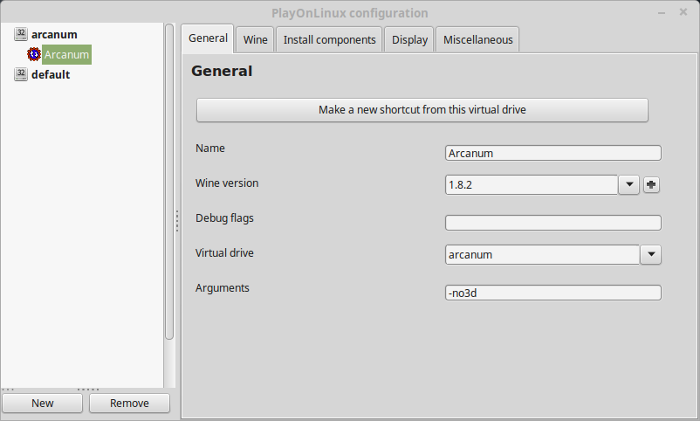

    General Tab
    Wine version: 1.8.2
    Arguments: -no3d

    Note: -no3d eliminates graphical artifacts. Click the + to download other versions of Wine, click the down-arrow to select other versions of Wine

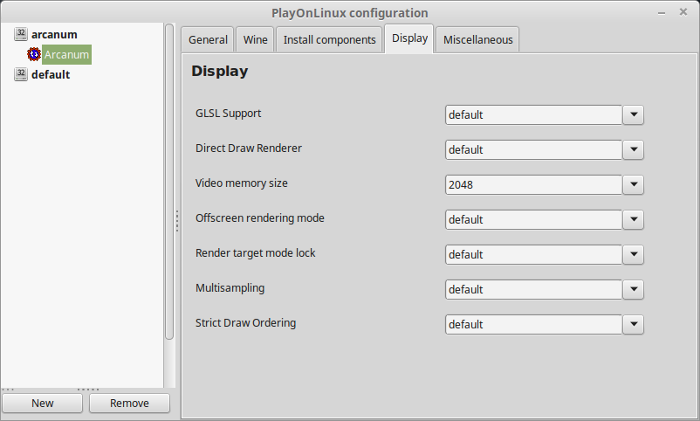

    Display Tab
    Video Memory size: Enter the amount of memory your video card/chip uses

    Installing Patches

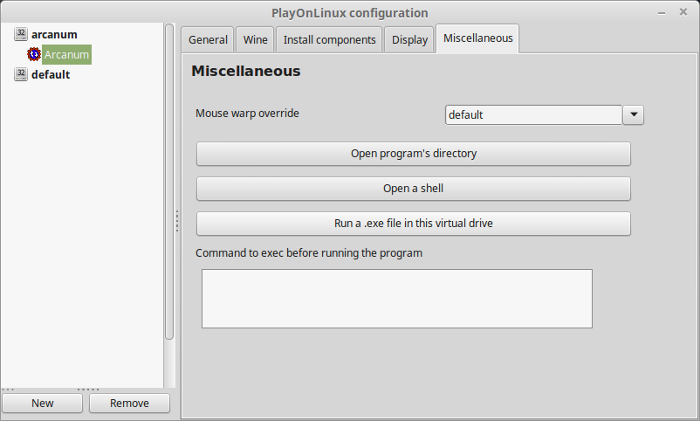

    Miscellaneous Tab

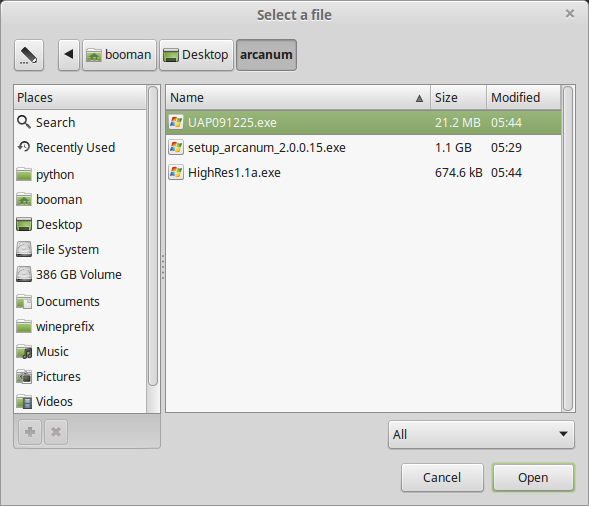

    Click "Run a .exe in this virtual drive"

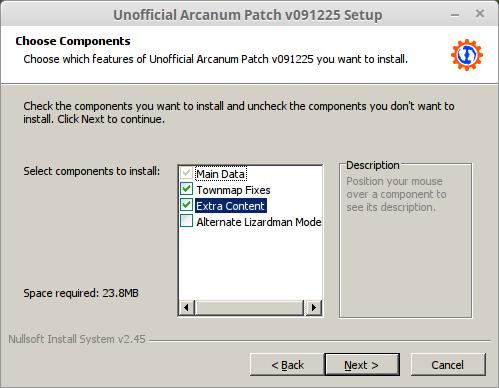

    Select UAP091225.exe
    Click Open

    Click Next

    Check "Townmap Fixes"
    Check "Extra Content"
    Click Next

    Click Install

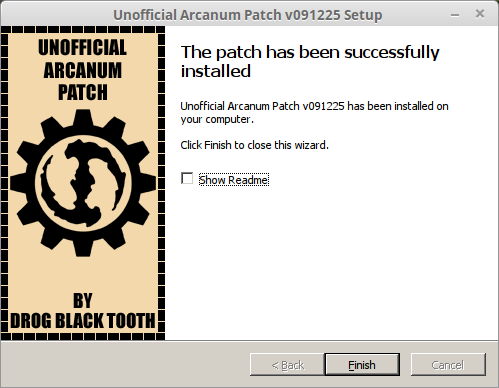

    Uncheck "Show Readme"
    Click Finish

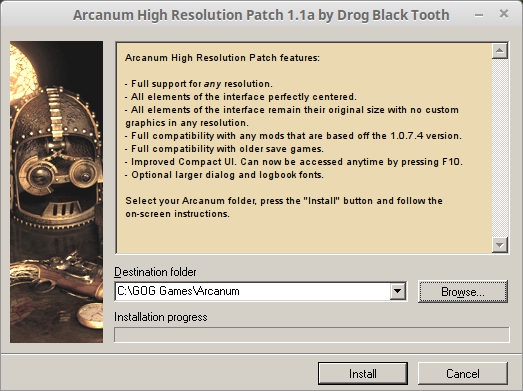

    Click "Run a .exe in this virtual drive"

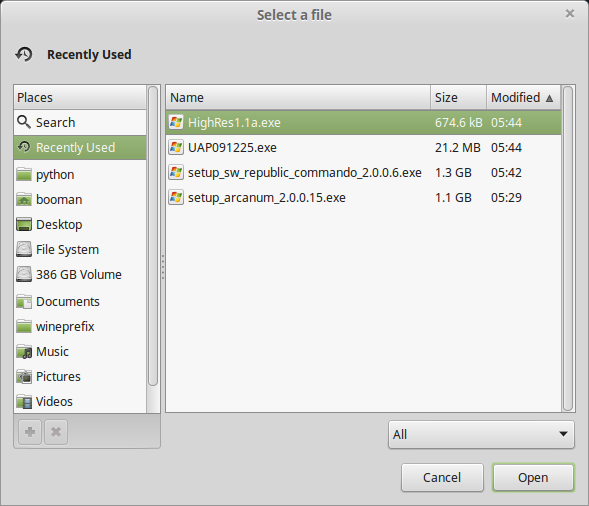

    Select HighRes1.1a.exe
    Click Open

    Type Destination folder:
    C:\GOG Games\Arcanum
    Click Install

    Readme?
    Press n
    Press Enter

    Install High Resolution Patch?
    Press i
    Press Enter

    Type width
    ex: 1920
    Press Enter

    Type height
    ex: 1080
    Press Enter

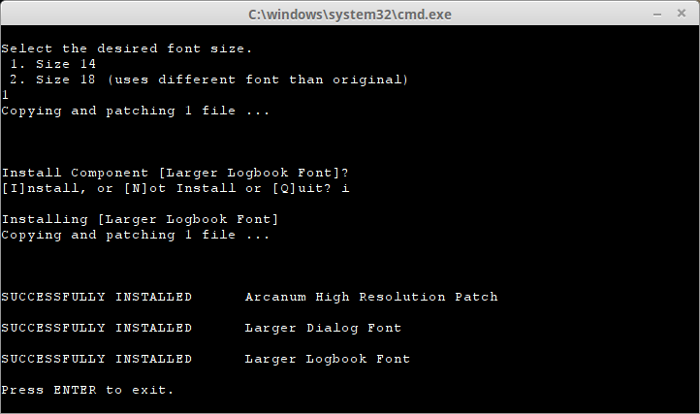

    Follow the rest of the instructions about Dialog and Logbook fonts

    Successful
    Press Enter

    Close Configure

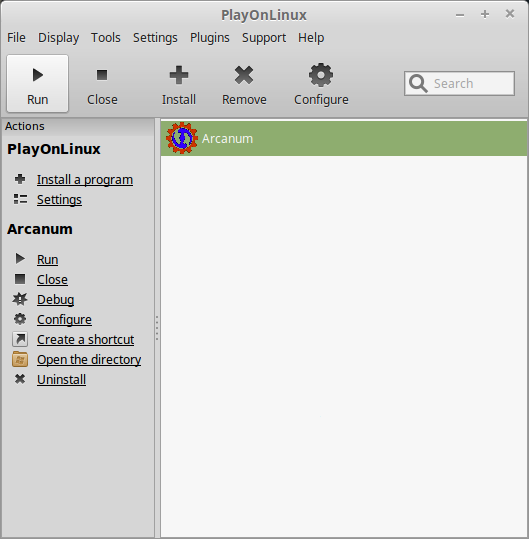

    Launching Arcanum

    Select Arcanum
    Click Run

    Note: Click Debug to see errors and bugs

    Conclusion:
    Arcanum ran perfectly after adding the High Resolution patch and using the -no3d argument. It is an old school game, but very detailed in character development. There seems to be endless options for skills, strengths, spells, items, disciplines and more.

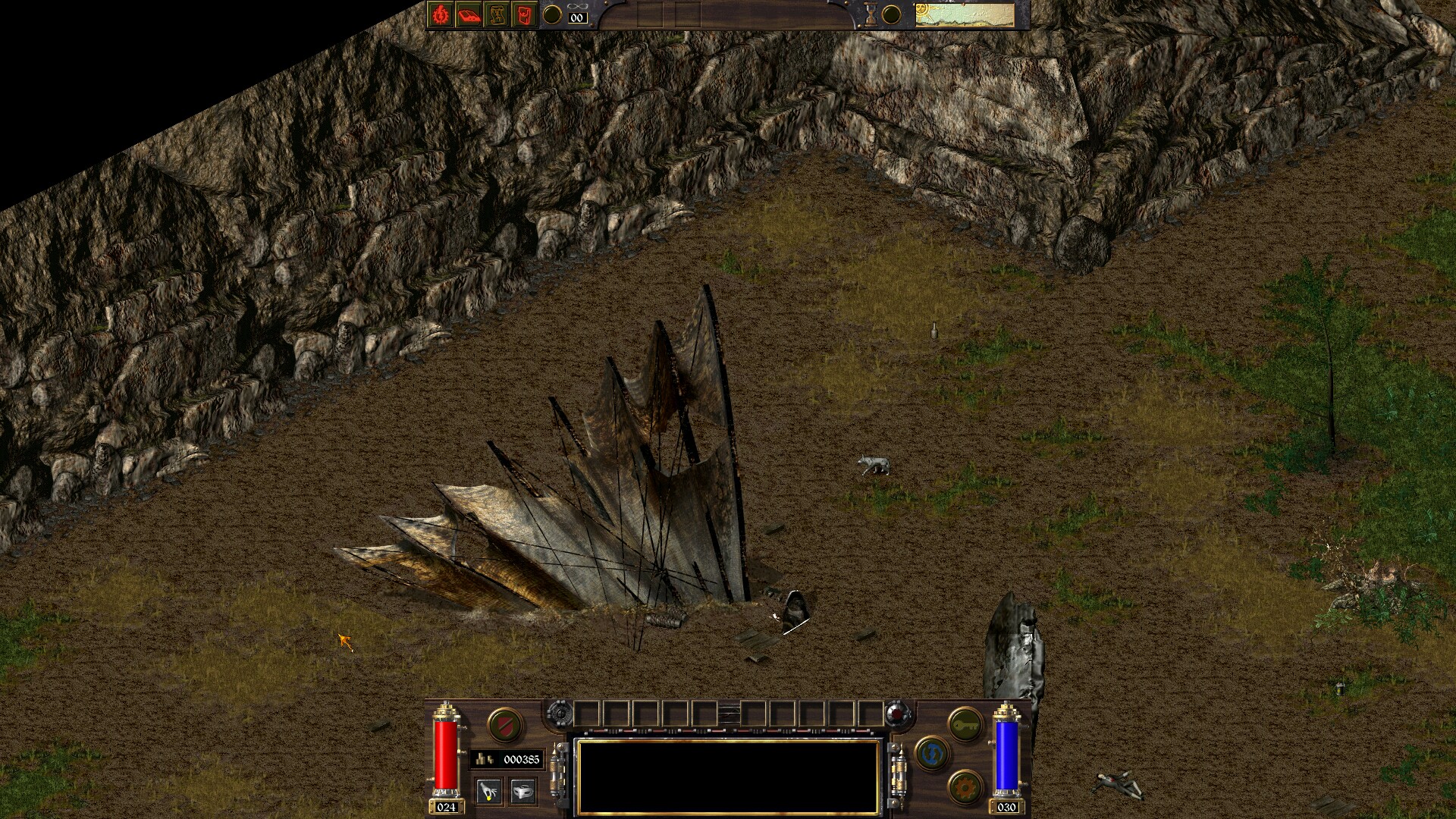

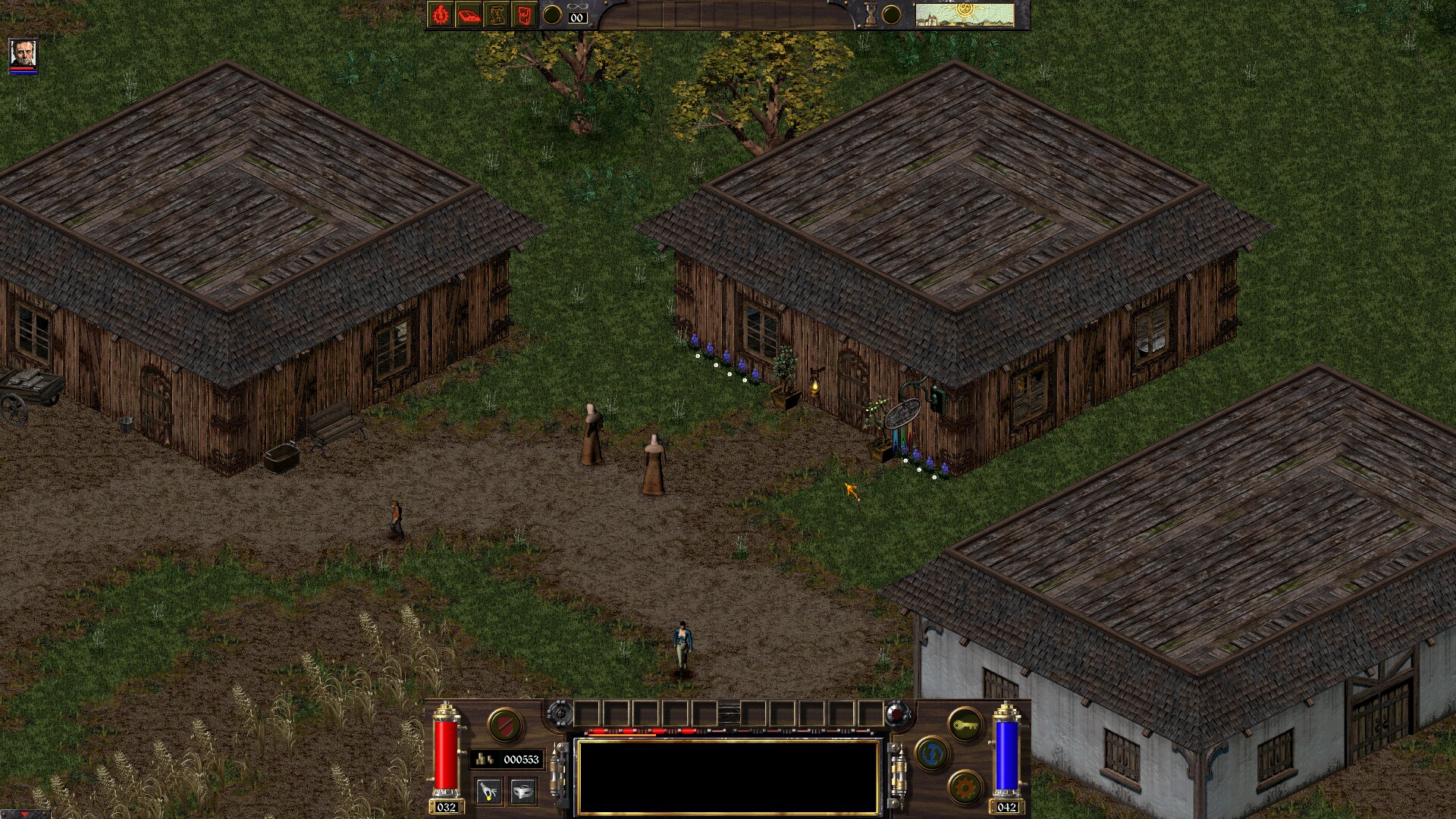

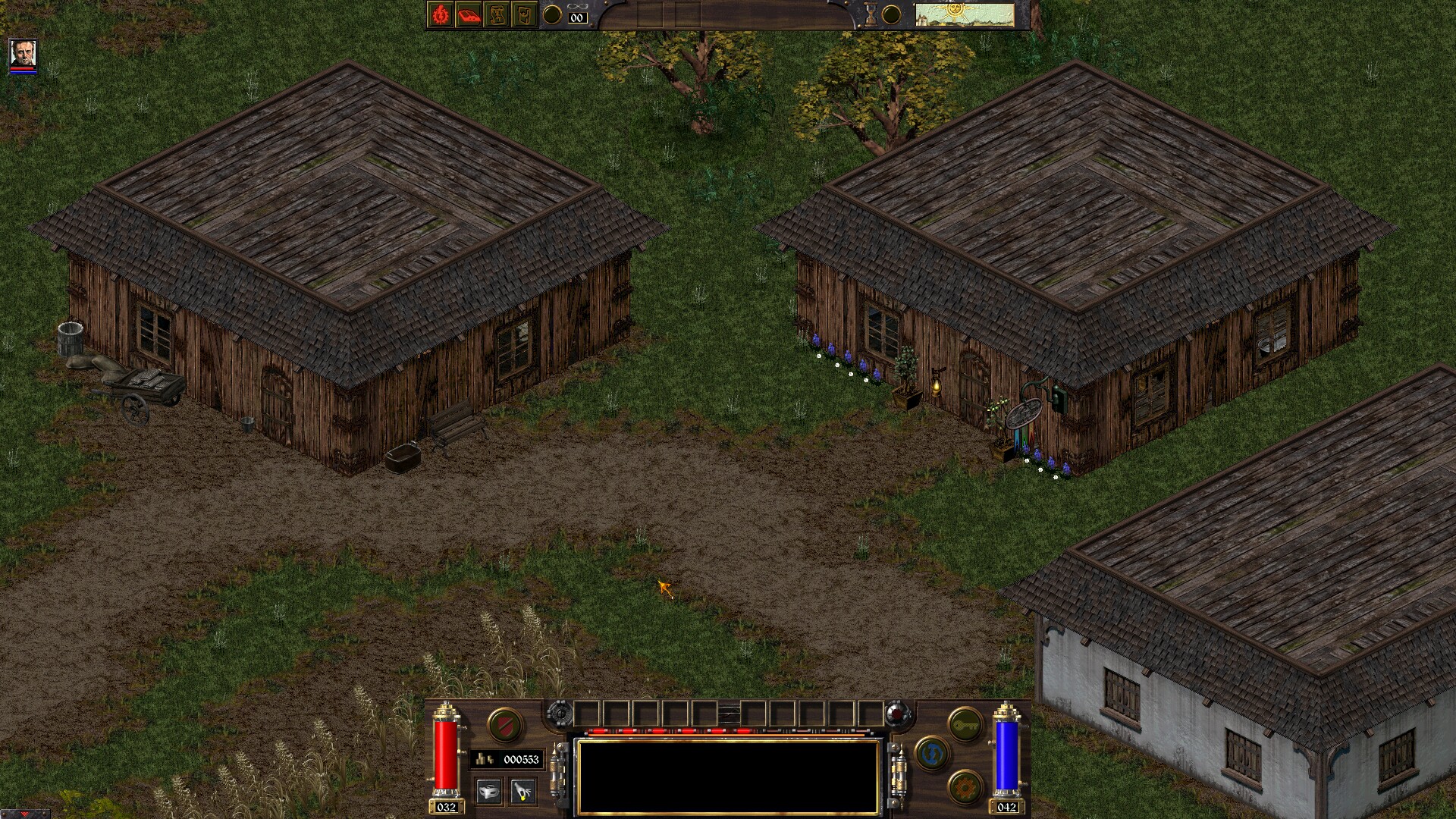

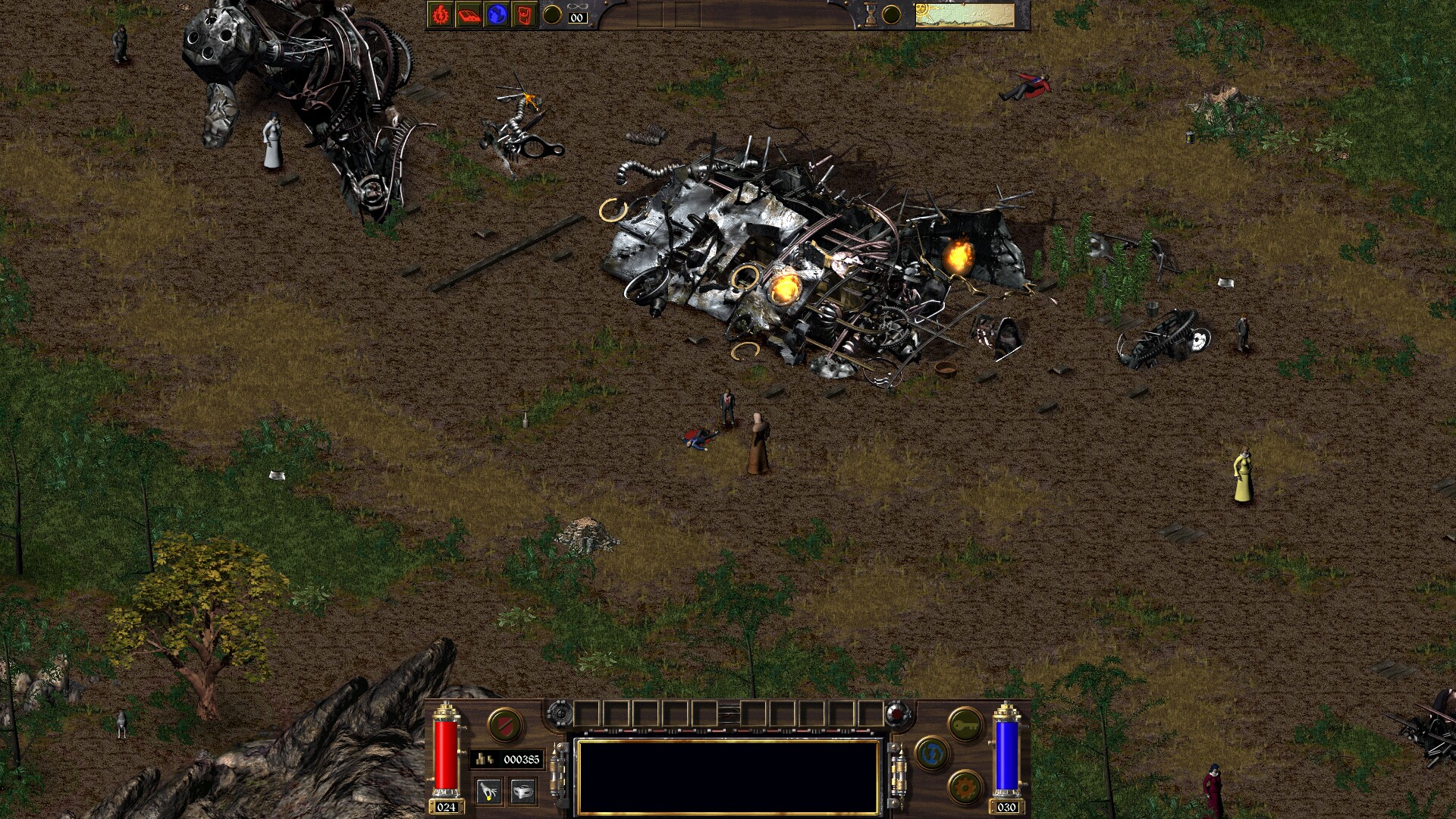

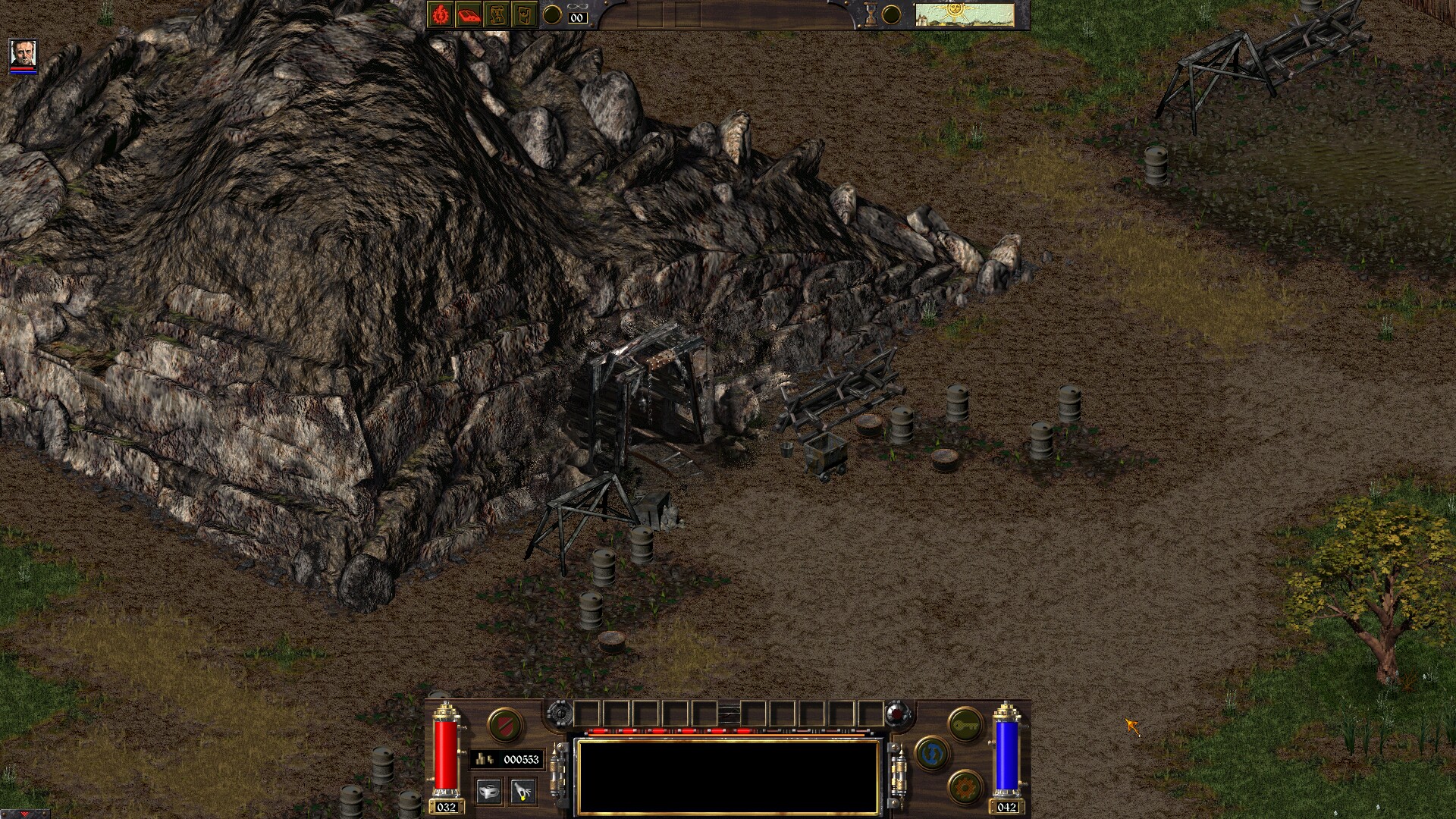

    Screenshots:
