    Rage is ID Software's answer to all the Post-Apocalypse games like Borderlands, Metro 2033, Fallout 3, etc. Play as "Ark Survivor" who awakens in a wasteland and has to fight for survival against bandit, mutants and looting supplies.


    Follow my step-by-step guide on installing, configuring and optimizing Rage in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Rage. Other versions may require additional steps.

    Tips & Specs:

    Try SteamPlay before using this guide as Valve now uses a fork of Wine called Proton and should run most Windows games.


    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 16 32-bit
    PlayOnLinux: 4.2.2
    Wine: 1.7.10

    Installing Wine

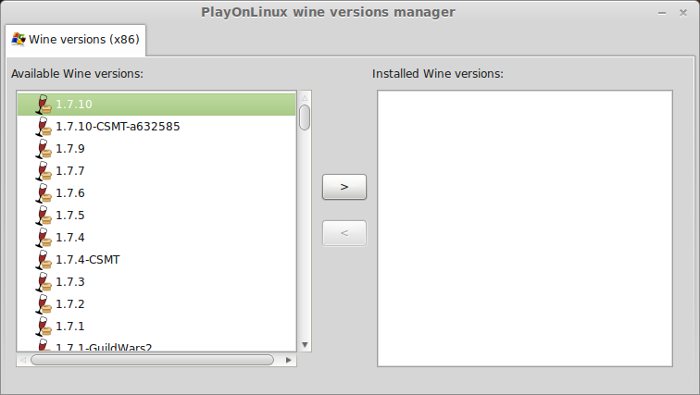

    Click Tools

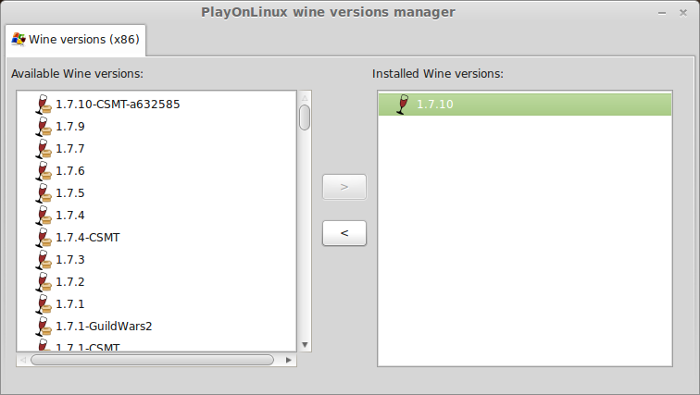

    Select "Manage Wine Versions"

    Look for the Wine Version: 1.7.10
    Note: Try using stable Wine 1.8 and 1.8-staging

    Select it
    Click the arrow pointing to the right

    Click Next

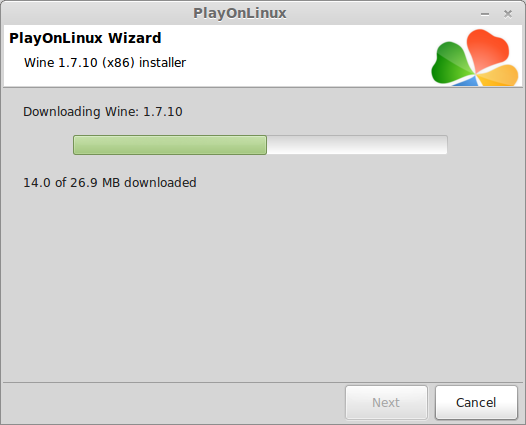

    Downloading Wine

    Extracting

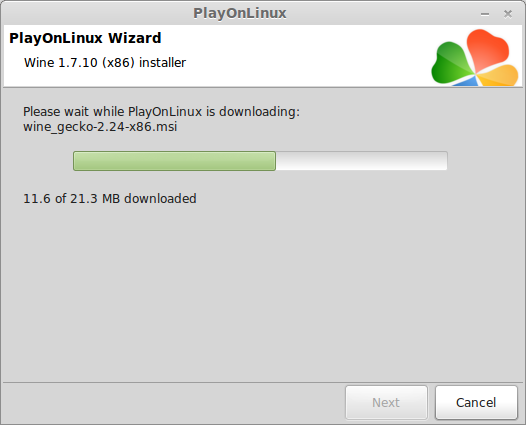

    Downloading Gecko

    Installed

    Wine 1.7.10 is installed and you can close this window

    Downloading Steam

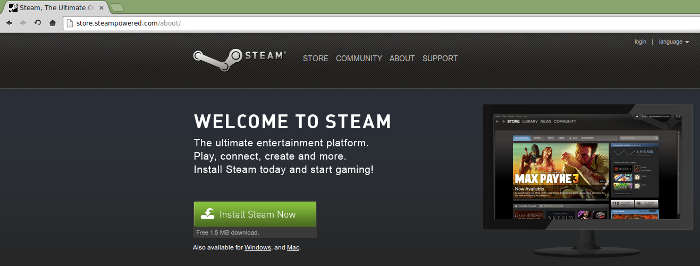

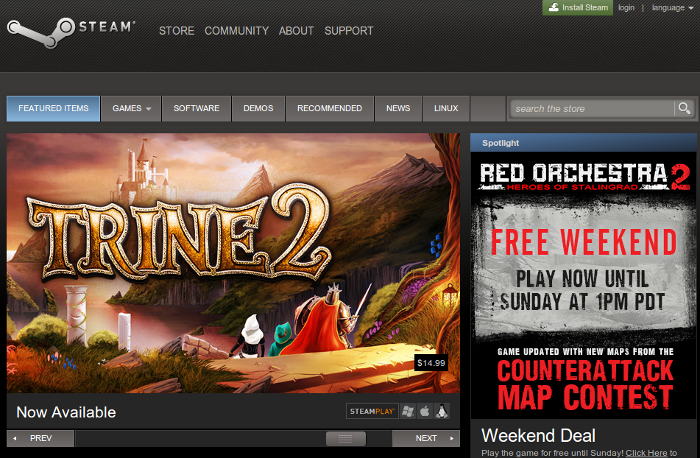

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam. Since Rage isn't made for Linux, we will download the Windows Steam instead.
    click "Windows" under the green button

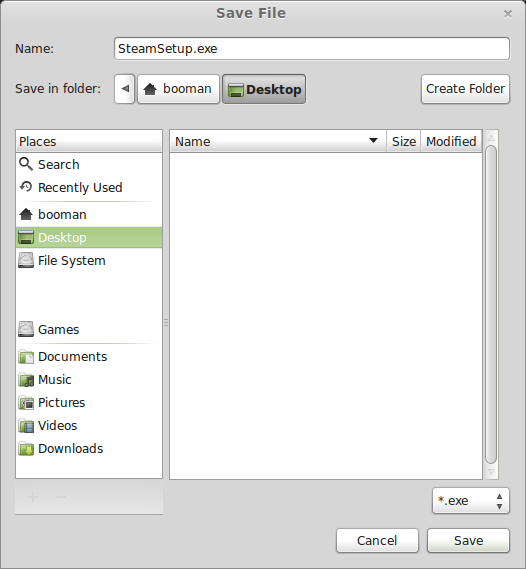

    Navigate to your desktop
    Click Save

    Setup PlayOnLinux

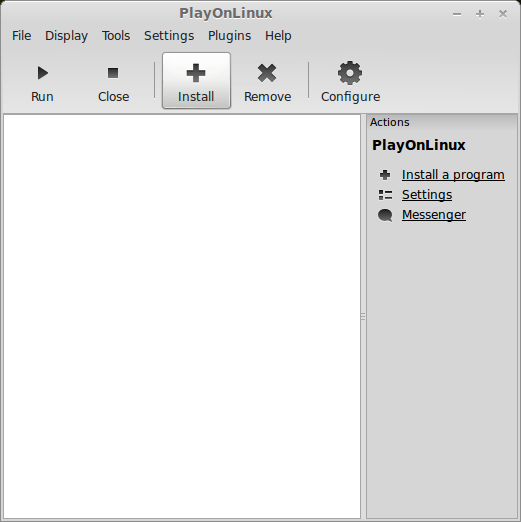

    Launch PlayOnLinux

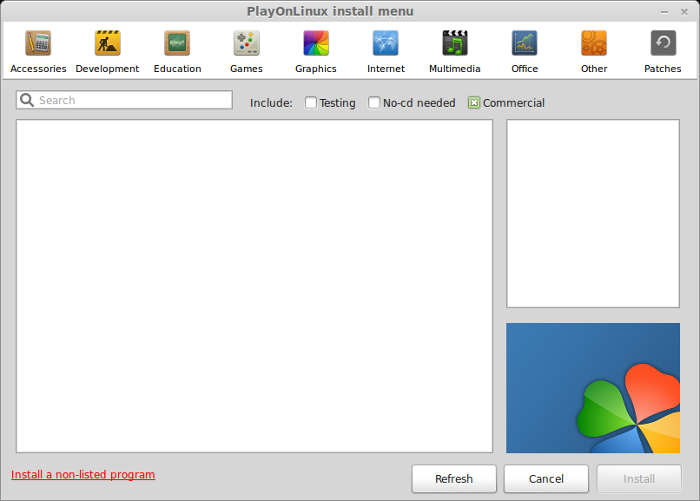

    Click Install

    Click "install a non-listed program"

    Click Next

    Select "Install a program in a new virtual drive"
    Click Next

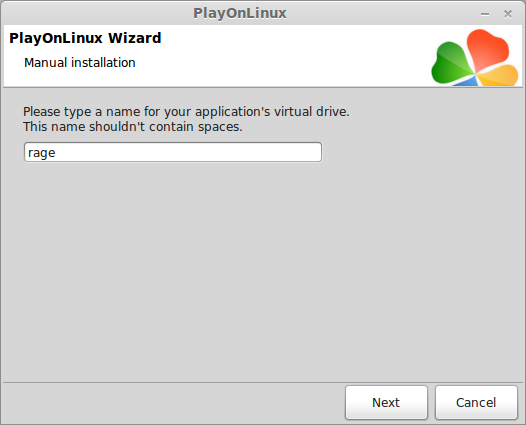

    Name you virtual drive: rage
    No spaces
    Click Next

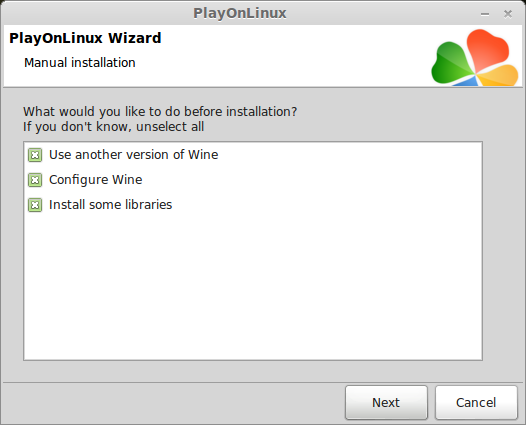

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries

    Click Next

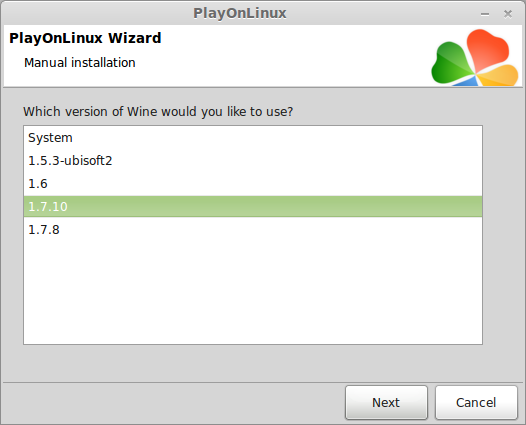

    Select Wine 1.7.10
    Click Next

    Note: If you are running a 64-bit system, PlayOnLinux will prompt if you want to use a 64-bit or 32-bit virtual drive. 64 bit Rage wasn't tested for this guide.
    Always select 32-bit virtual drive.

    Configure Wine

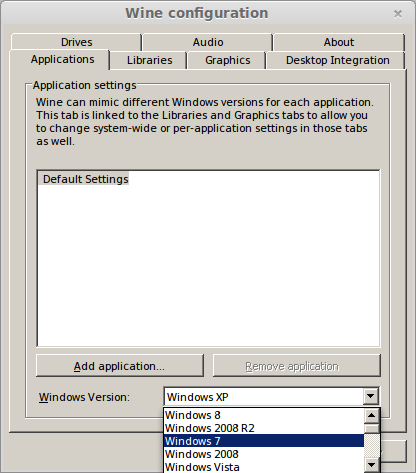

    Applications Tab
    Windows Version: Windows 7
    Click Apply

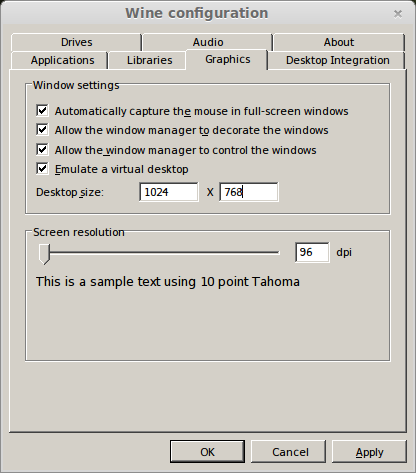

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Check: Emulate a virtual desktop
    Desktop size: 1024x768
    Click Ok

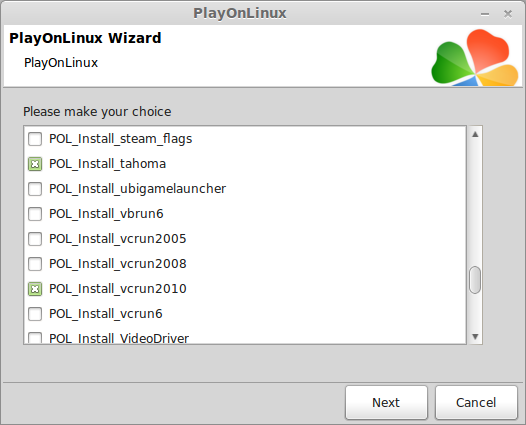

    Install Libraries

    Check the following libraries:
    • POL_Install_corefonts
    • POL_Install_dxfullsetup
    • POL_Install_vcrun2010
    • POL_Install_tahoma

    Click Next

    Installing Steam

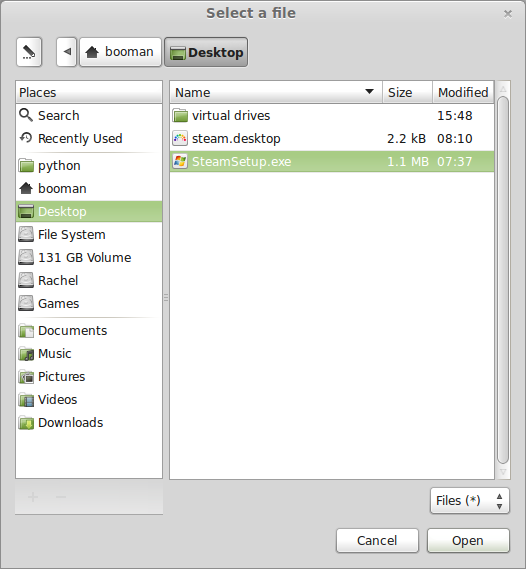

    Click Browse

    Navigate to your desktop
    Select: SteamSetup.exe
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

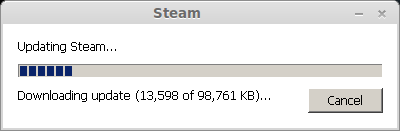

    Updating Steam

    More updating, extracting and installing

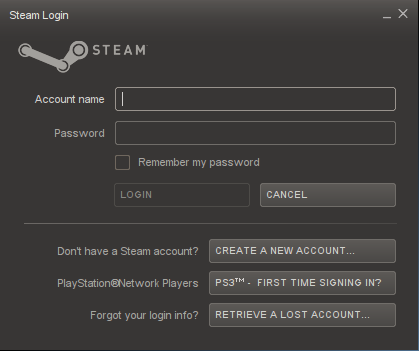

    When Steam is done installing the login screen will pop up. You probably won't see any text because there is a font bug.
    Click the "X" to close Steam login

    PlayOnLinux Shortcut

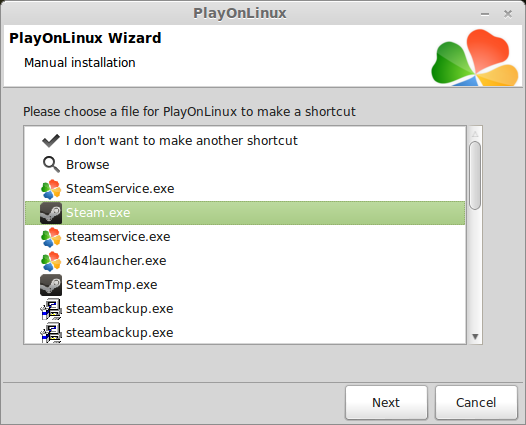

    Select Steam.exe
    Click Next

    Name your shortcut: Rage Steam
    Click Next

    Select "I don't want to make another shortcut"
    Click Next

    More PlayOnLinux Configuration

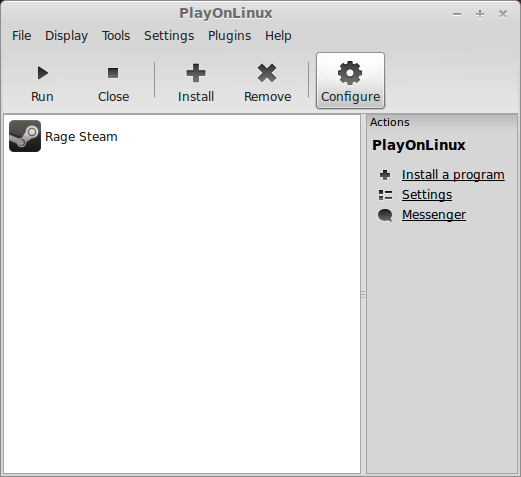

    Back to PlayOnLinux
    Click Configure
    Select Steam virtual drive

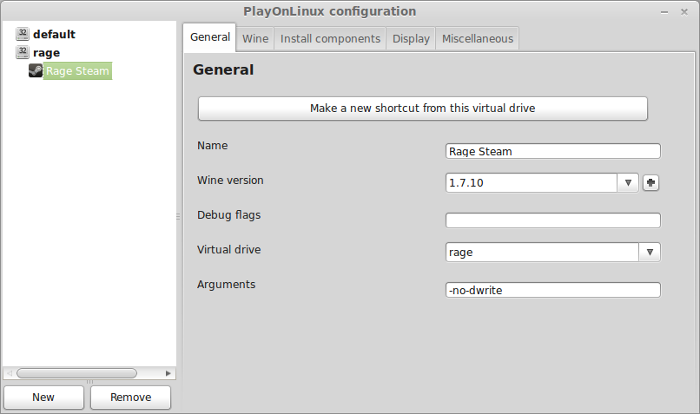

    General Tab
    Arguments: -no-dwrite -no-cef-sandbox
    This fixes the missing font and store problem

    Note: -no-dwrite only works if you launch Steam from PlayOnLinux. Steam is automatically set to launch when Windows starts, which means if you do a "Windows Reboot" from the Wine tab -no-dwrite won't execute. Just close Steam and try again.

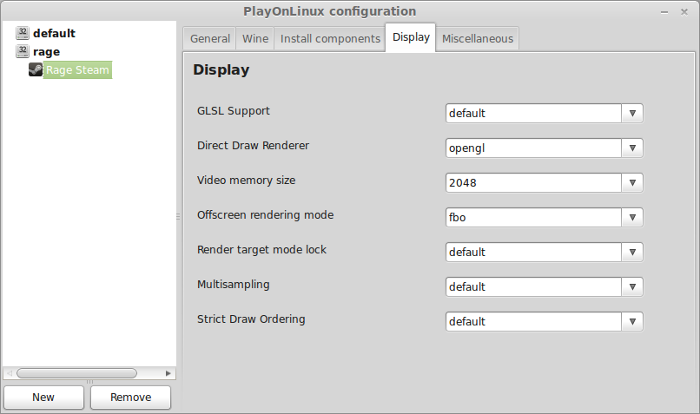

    Display Tab
    Direct Draw Renderer: opengl
    Video Memory Size: size of memory on your video card
    Offscreen rendering mode: fbo

    Close Configure

    Launching Steam

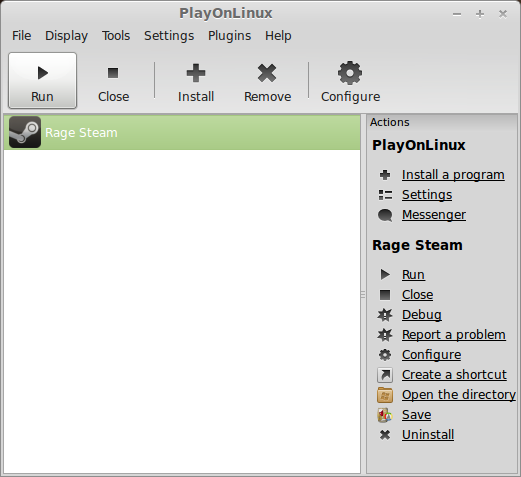

    Select Steam
    Click Run

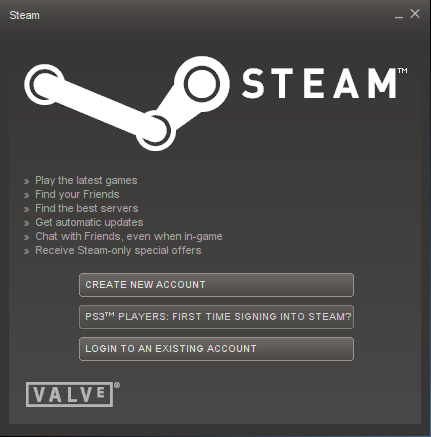

    Click "Login to existing account"

    Login

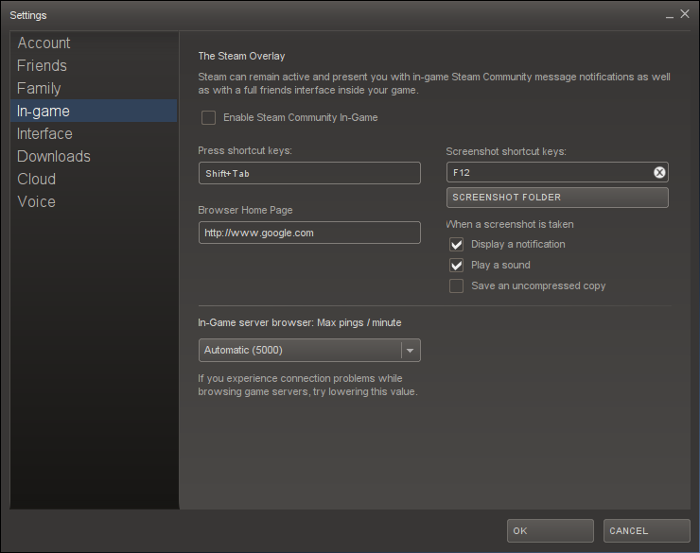

    Steam Overlay

    Steam overlay has been known to cause problems launching games.
    Click Steam menu
    Click Settings

    Select "In-game"
    Uncheck "Enable Steam Community In-Game"
    Click OK

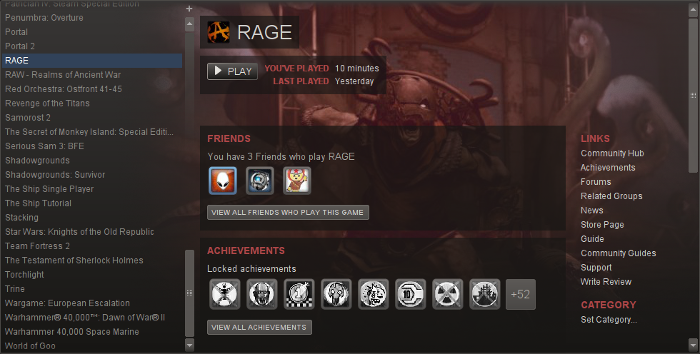

    Go to Library
    Select Rage

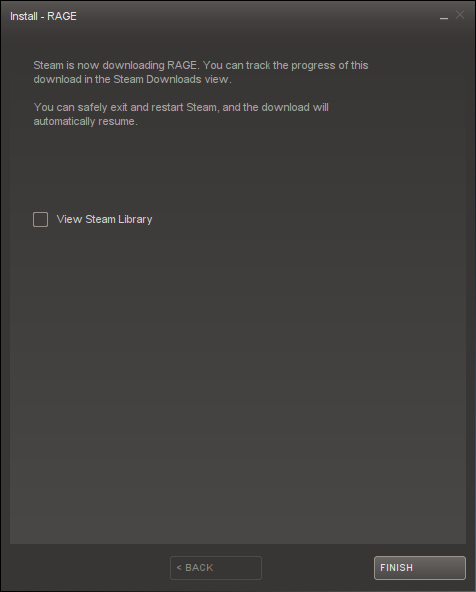

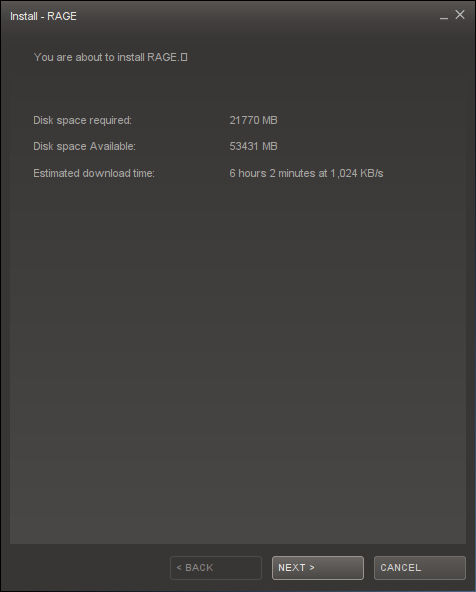

    Click Install

    Click Next

    Click Finish

    Rage is about 22 Gigs for download. Depending on your internet speed, it can take all night to download.

    Launching Rage

    Click Play

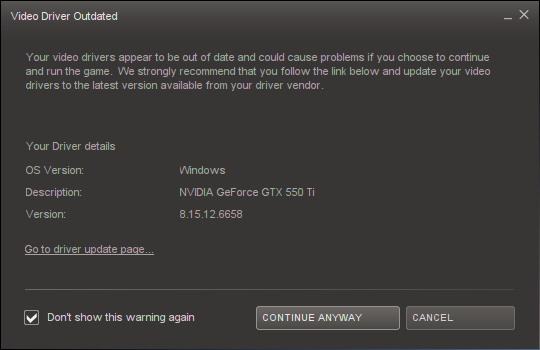

    Video warning
    Check "Don't show this warning again"
    Click "Continue Anyway"

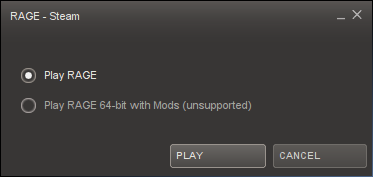

    Check "Play RAGE"
    Click Play

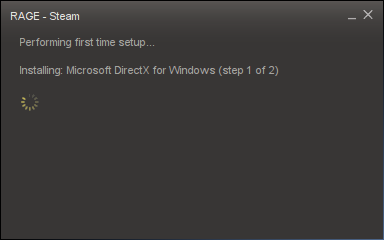

    Performing first time setup...
    Rage will try to install DirectX and Microsoft VC every single time you launch, since its already installed just it "go its course"

    Optimizing Rage

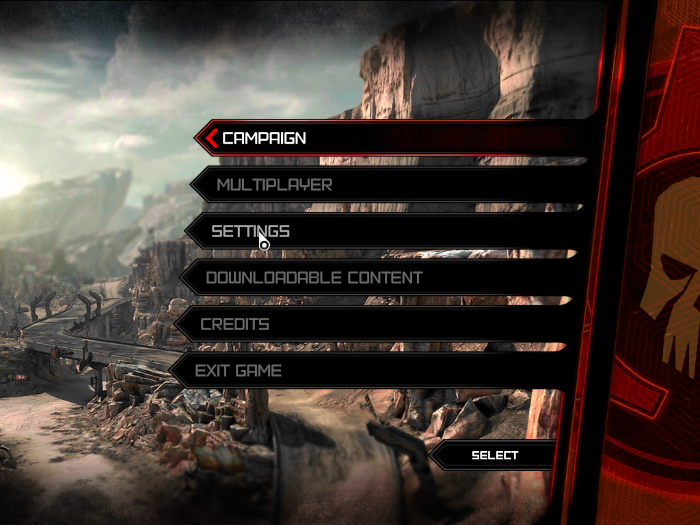

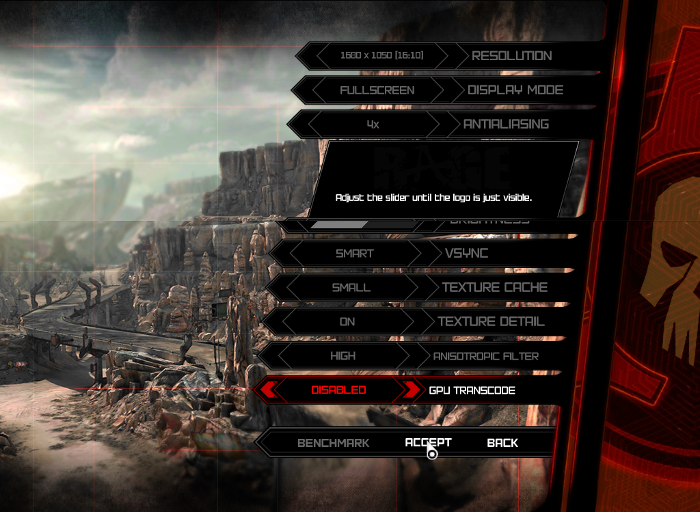

    Click Settings

    Click Video

    Select your resolution
    Note: I recommend setting the resolution to match your Linux desktop so the game will be fullscreen. Otherwise you will need to change the Linux desktop resolution first and then match in game.

    Laptops and older video cards will probably require VSYNC to be off and Texture Cache/Texture Detail set to off.

    Experiment with different settings to get the best performance out of your hardware.
    My GeForce 550 Ti ran really well with everything on high.

    Rule of Thumb:
    High Settings = Higher detail, lower frame rates
    Low Settings = Lower detail, higher frame rates

    Conclusion:
    Rage ran really well with my GeForce 550 Ti and resolution of 1680x1050
    Frame rates were smooth and gameplay was intense with lots of eye candy.
    Rage has super high detail and huge levels (even though they are nonlinear)

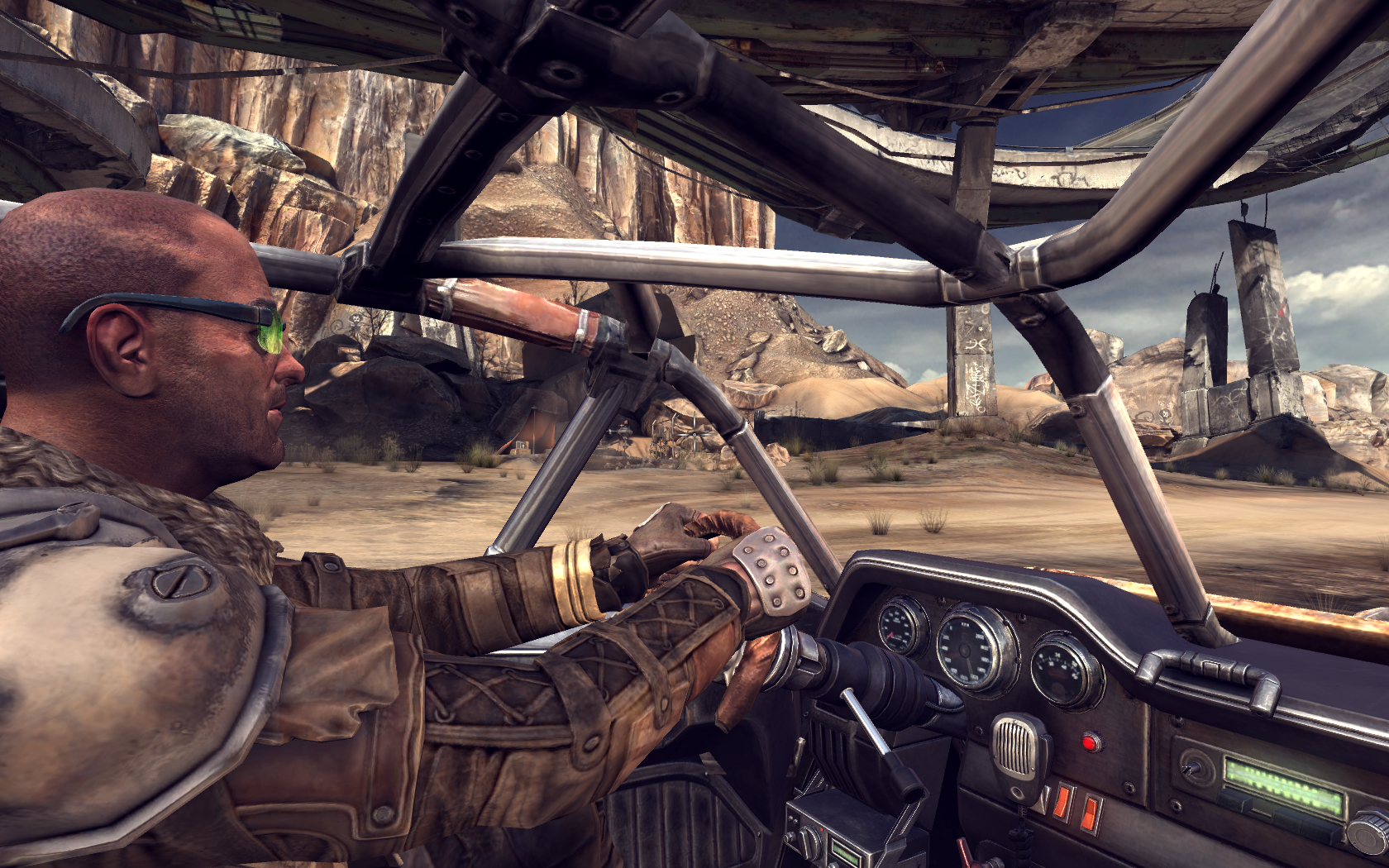

    The only bug I found was in the very beginning when you ride in the buggy with Dan Hagar, if you move the mouse and look around the entire game will crash every time. So the fix is... don't move your mouse.

    Screenshots:




    Last edited: Dec 12, 2019

Comments

Discussion in 'Guides' started by booman, Jan 18, 2014.

  1. booman

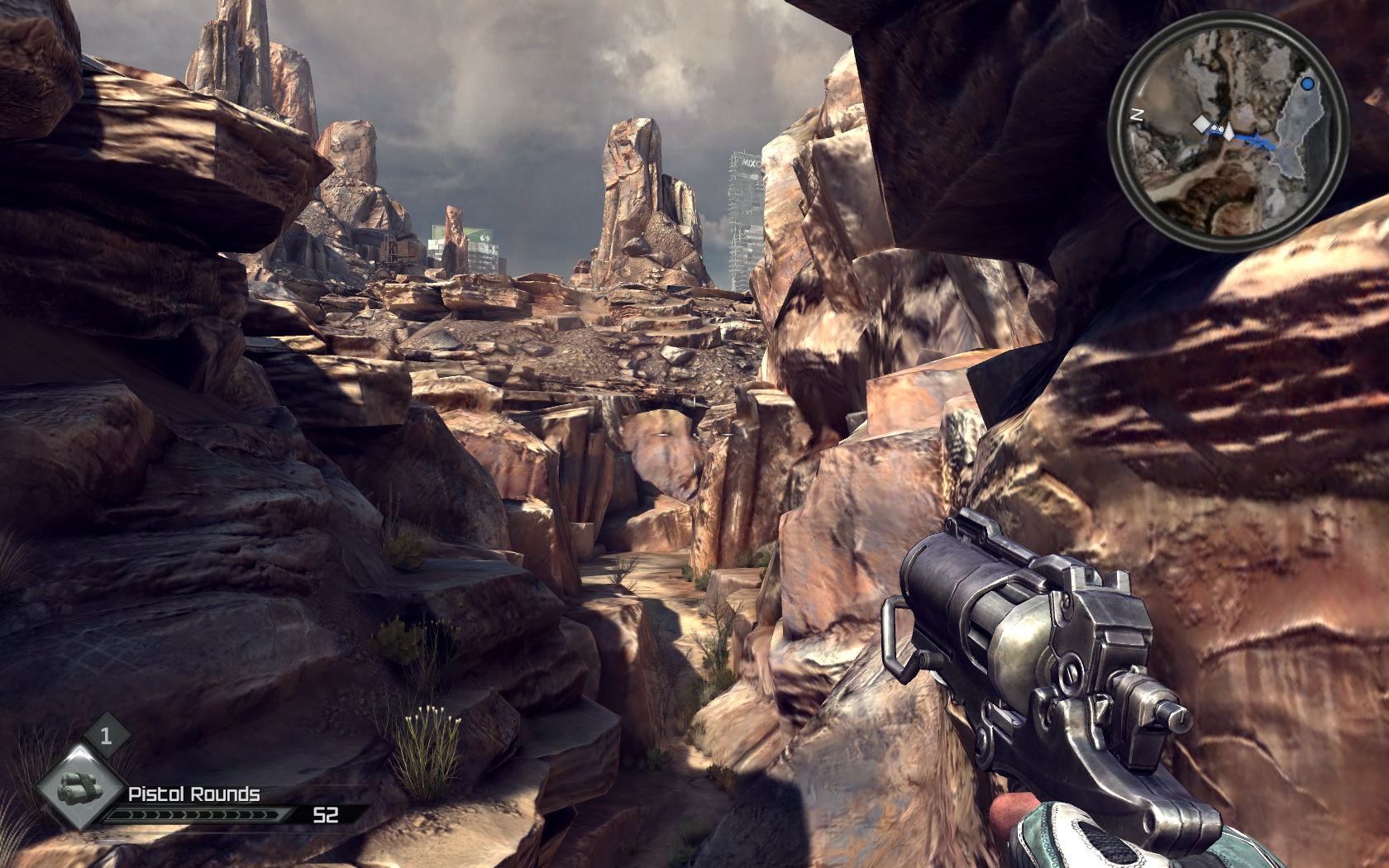

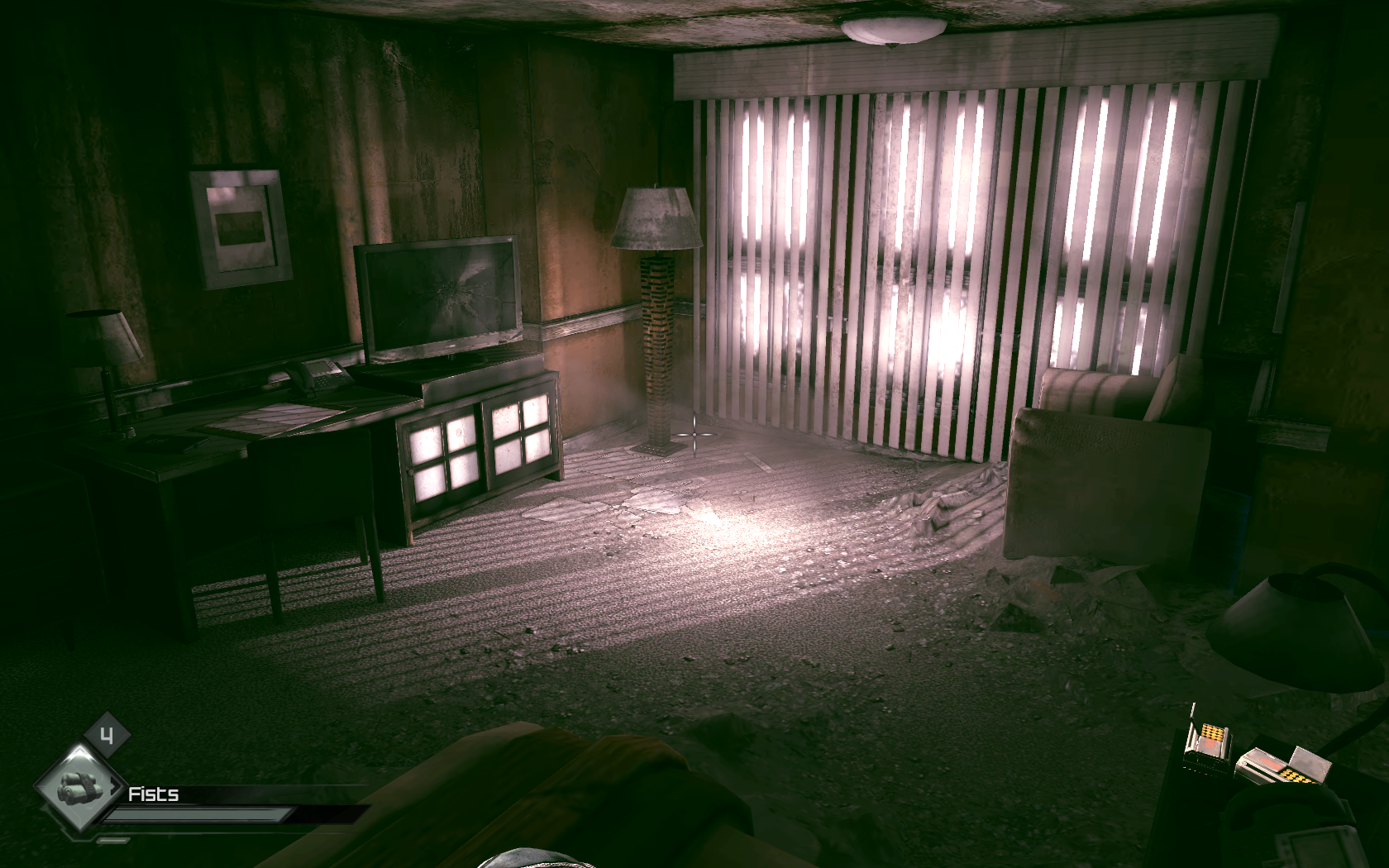

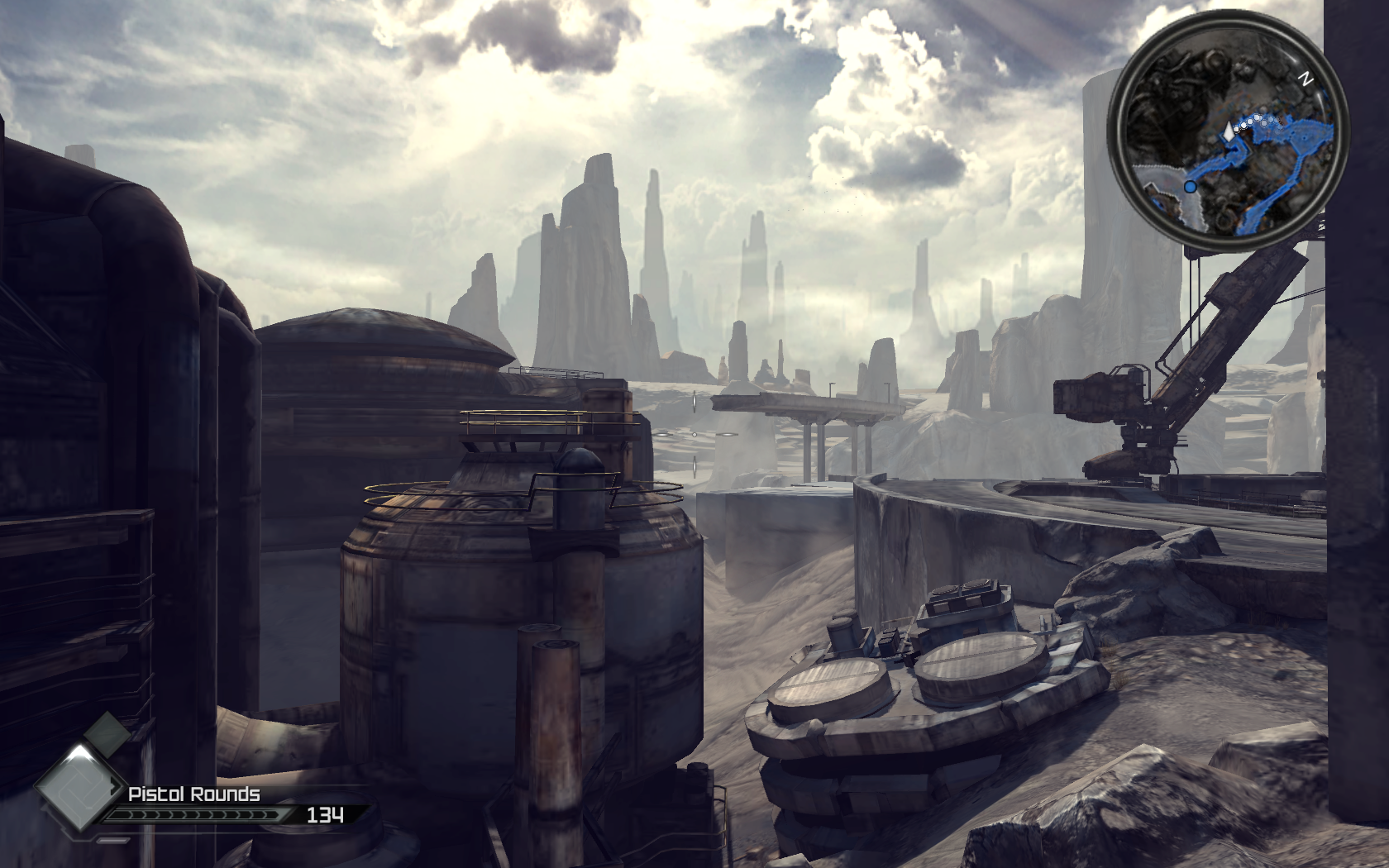

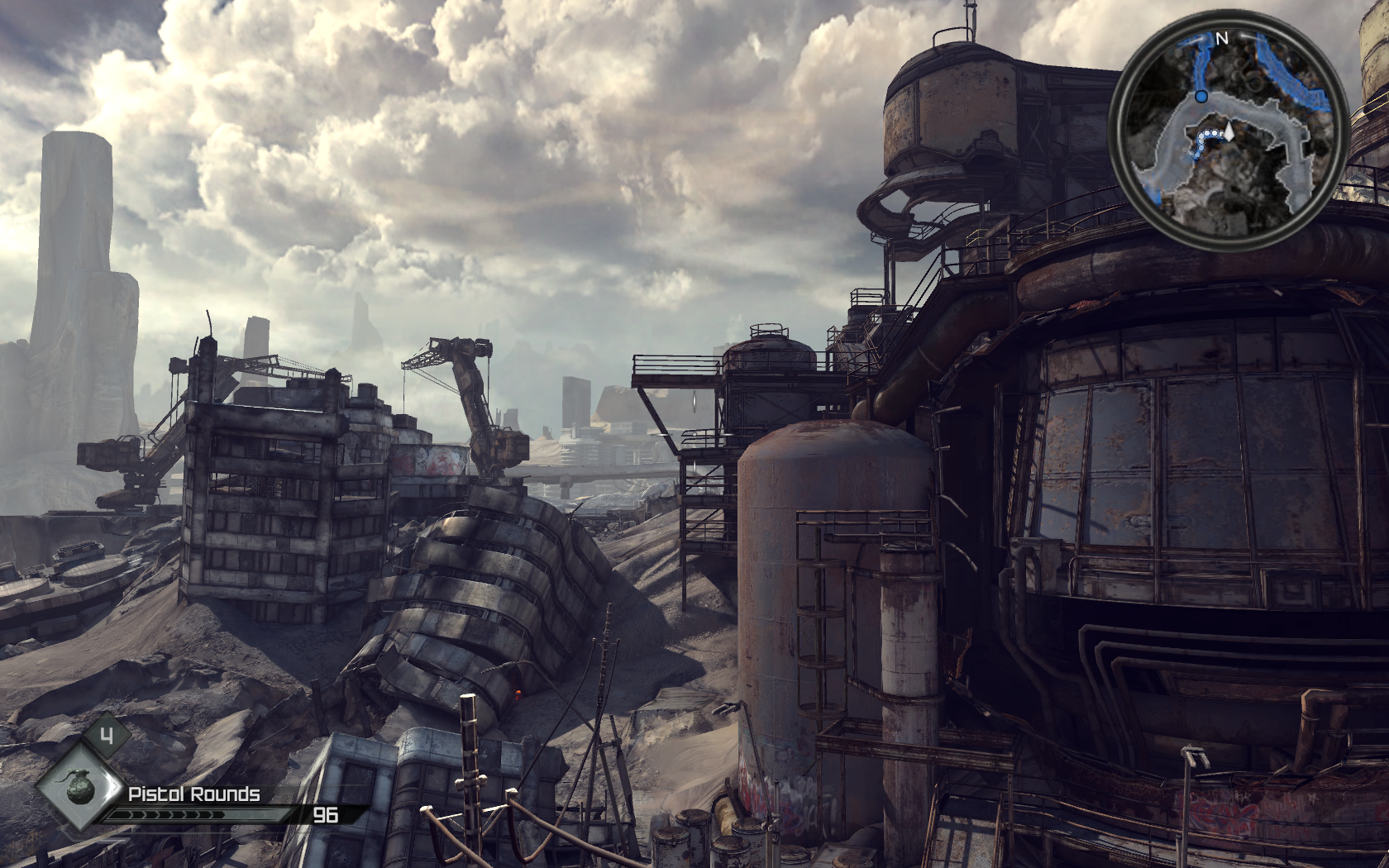

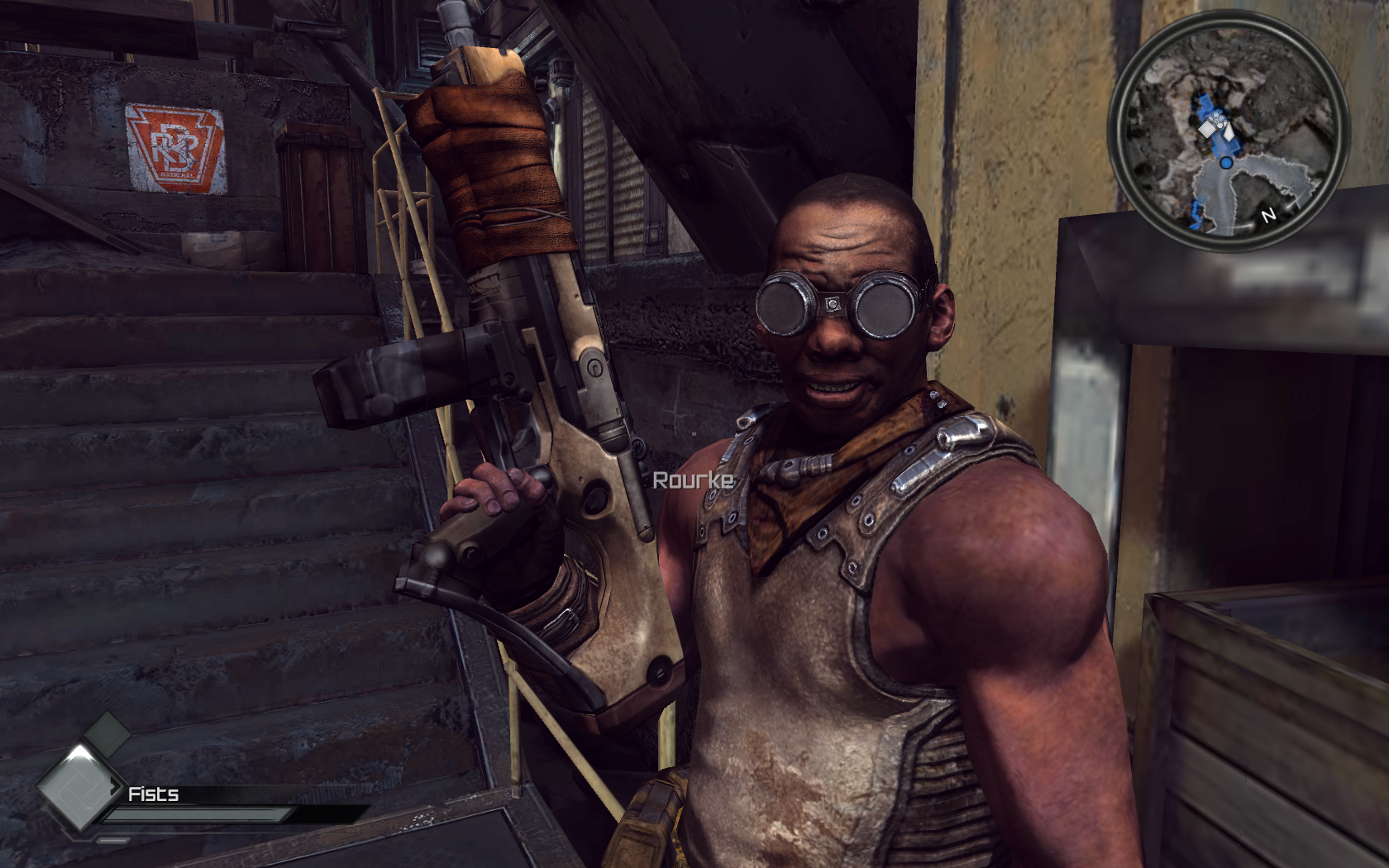

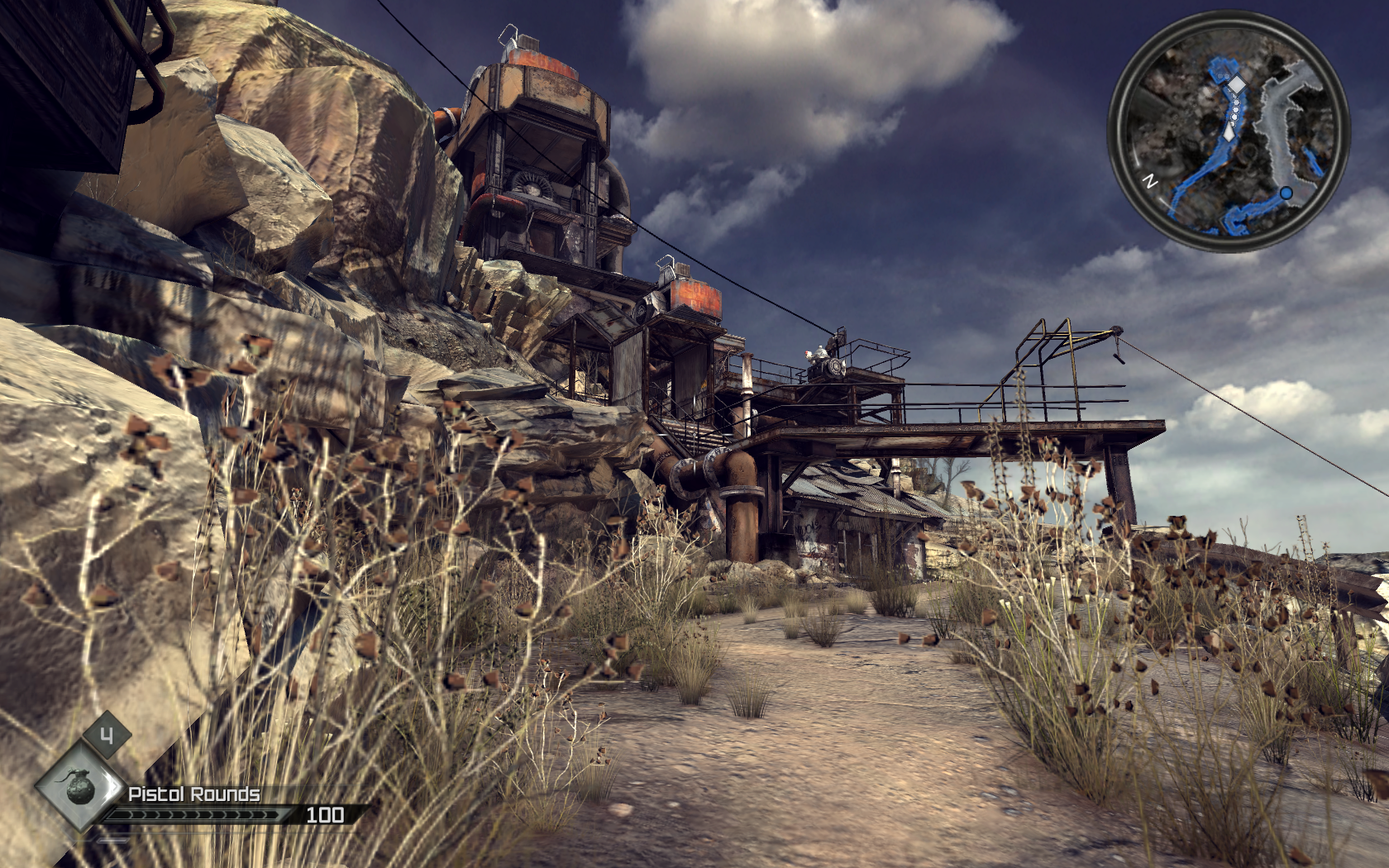

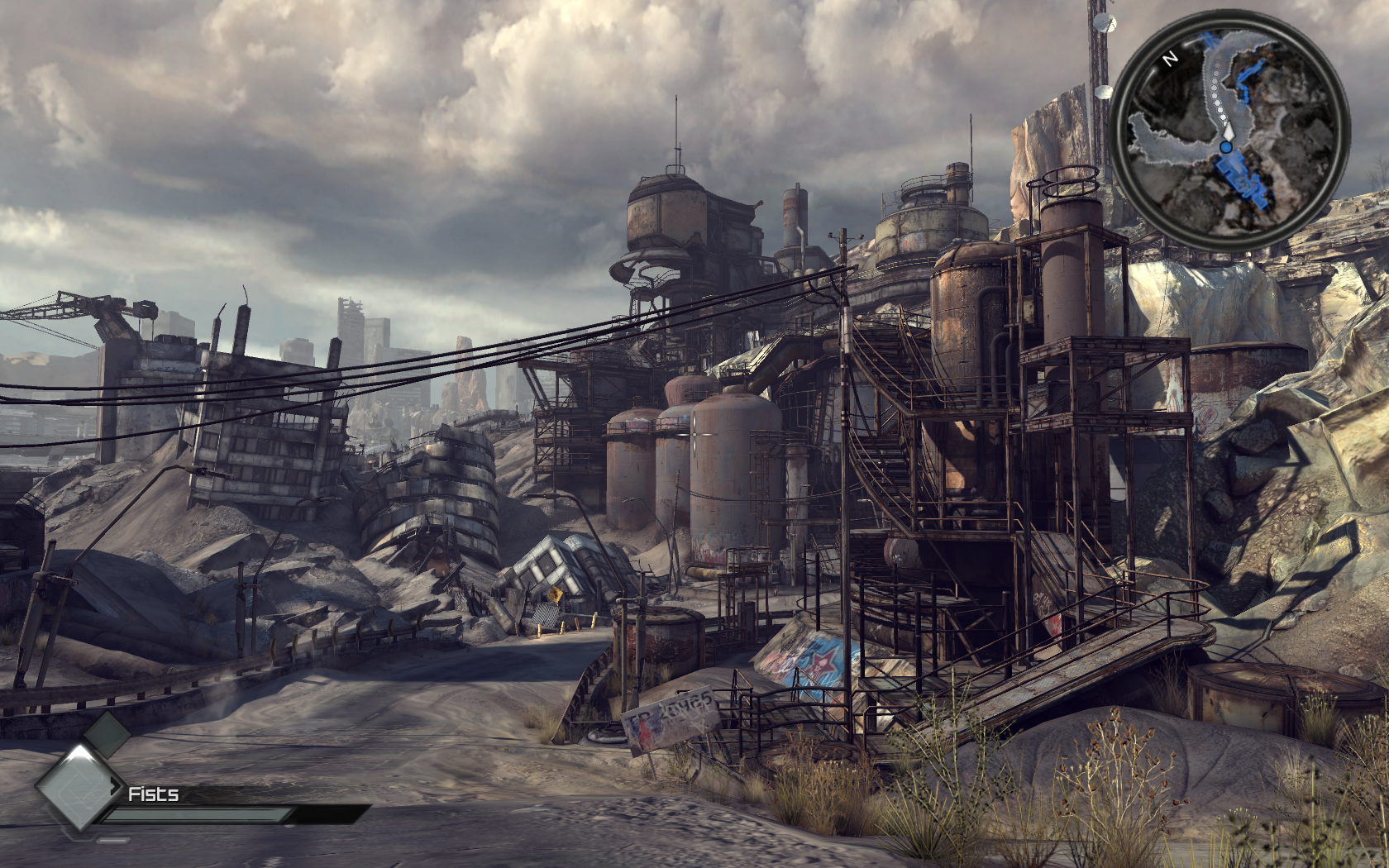

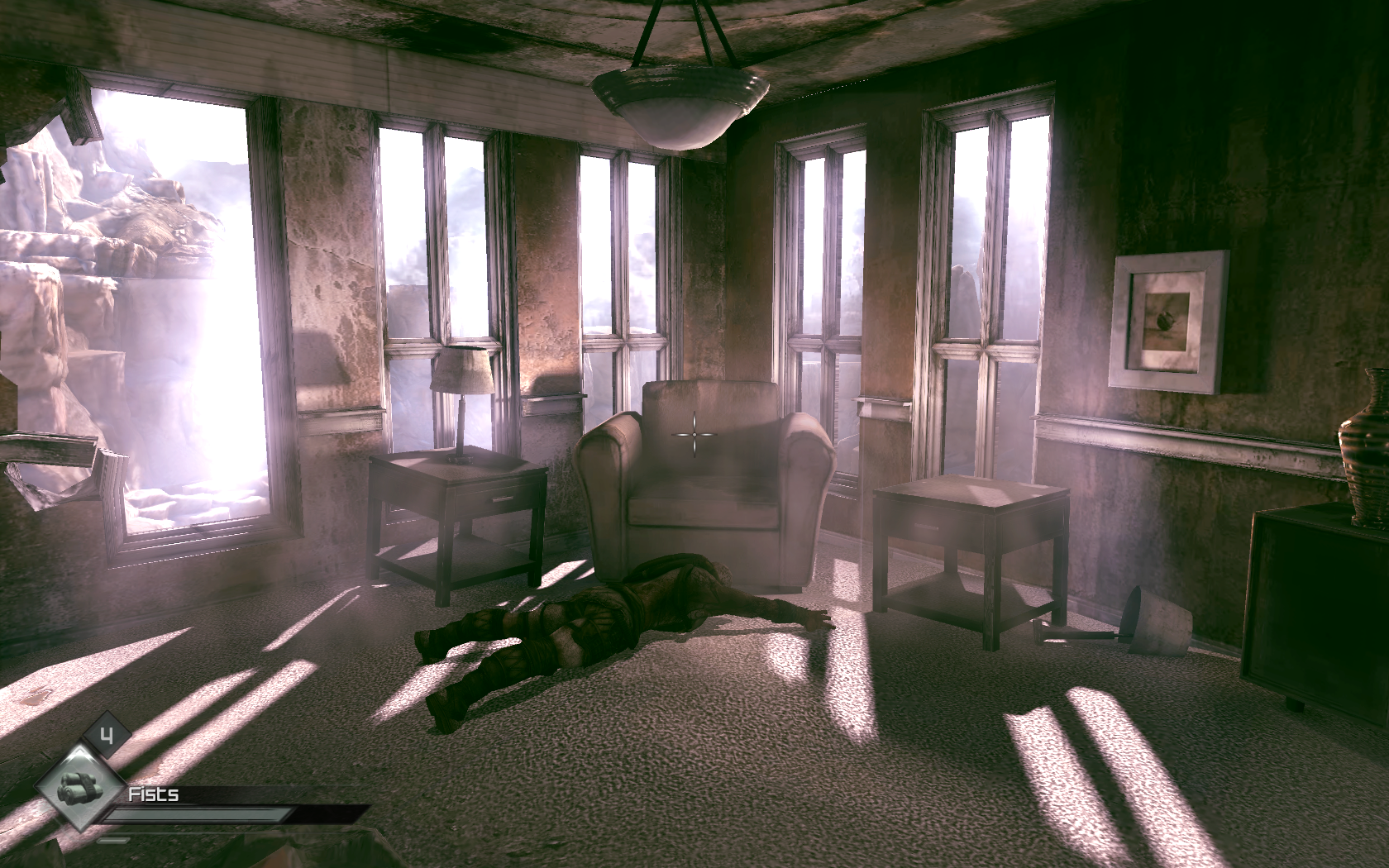

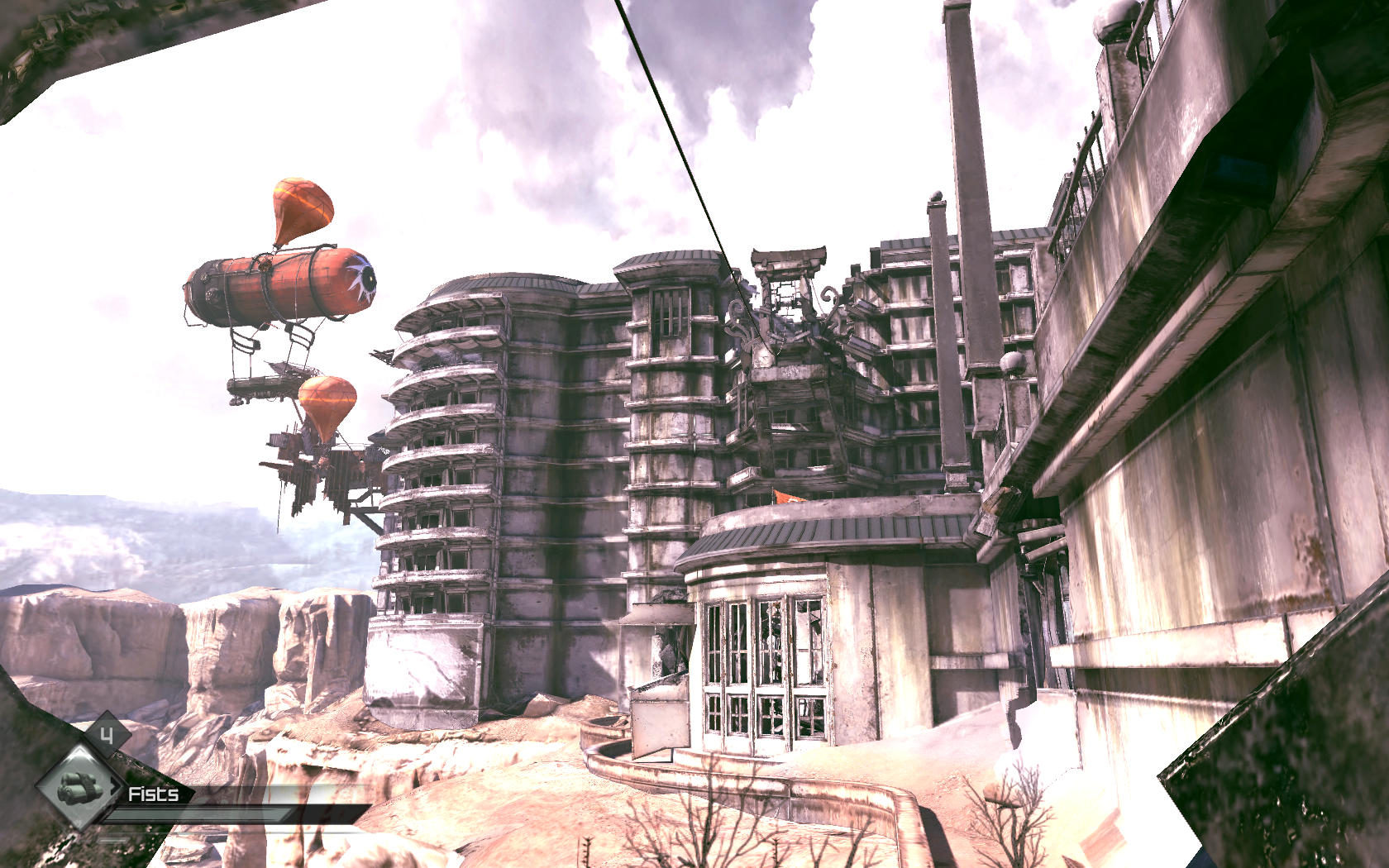

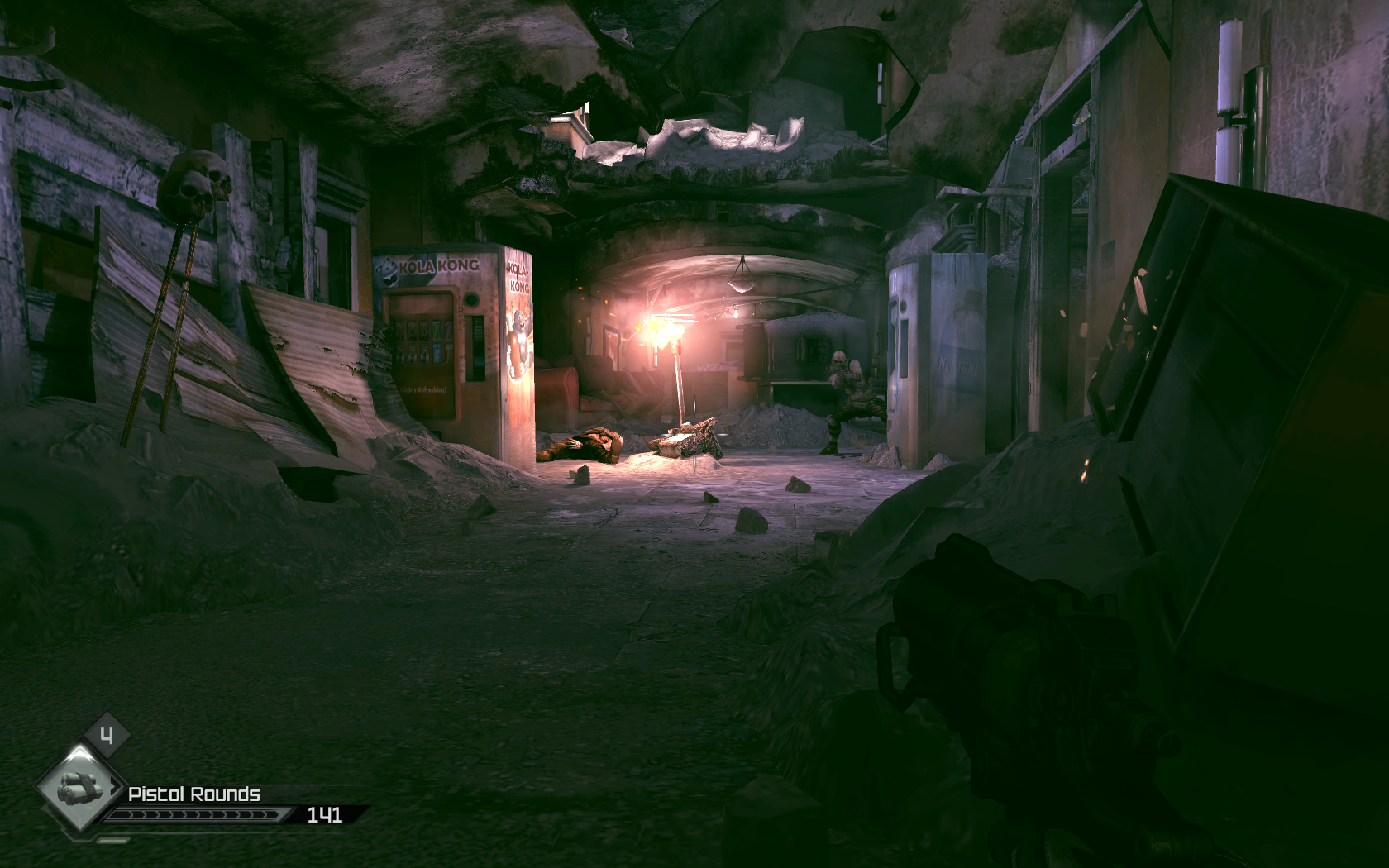

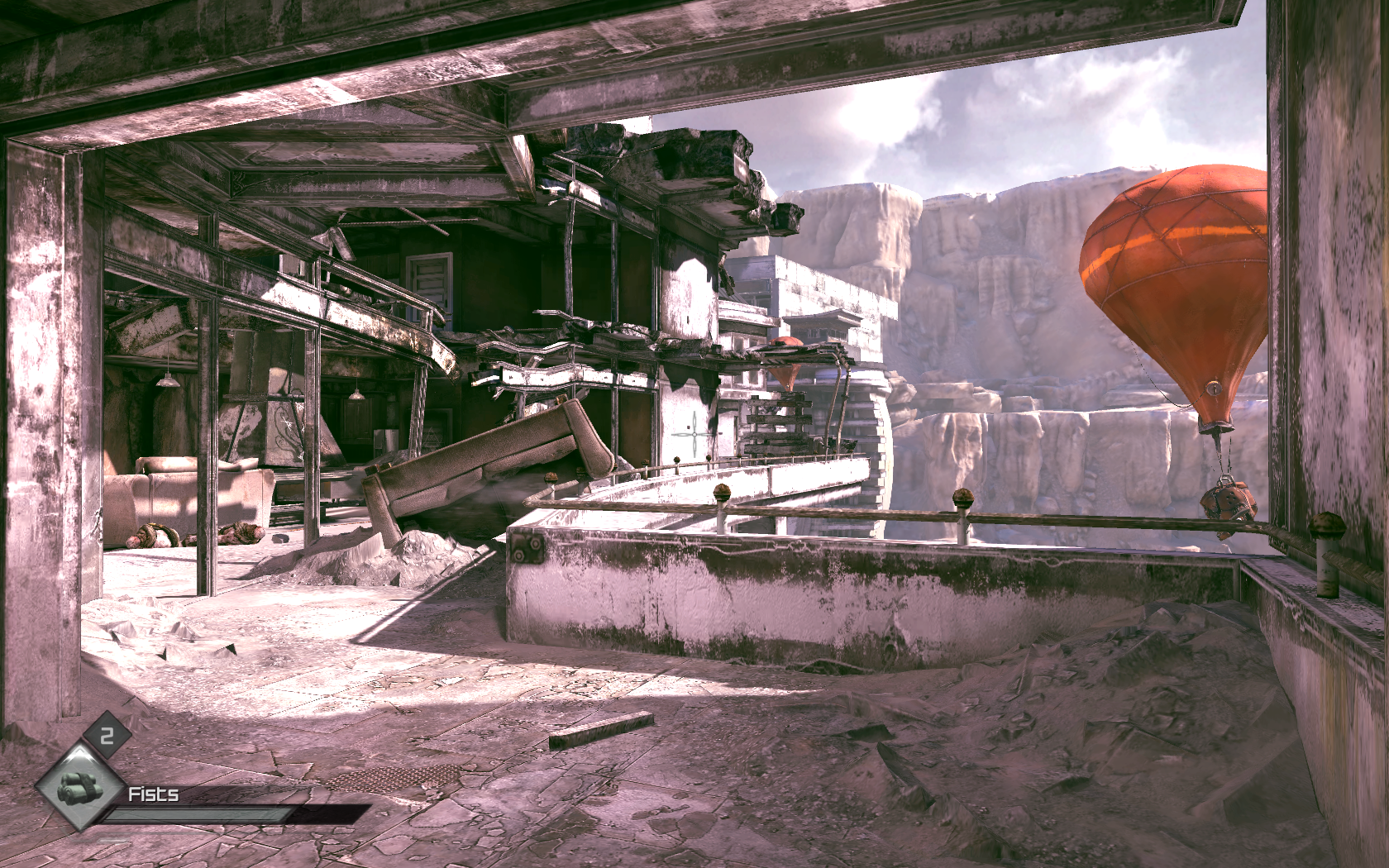

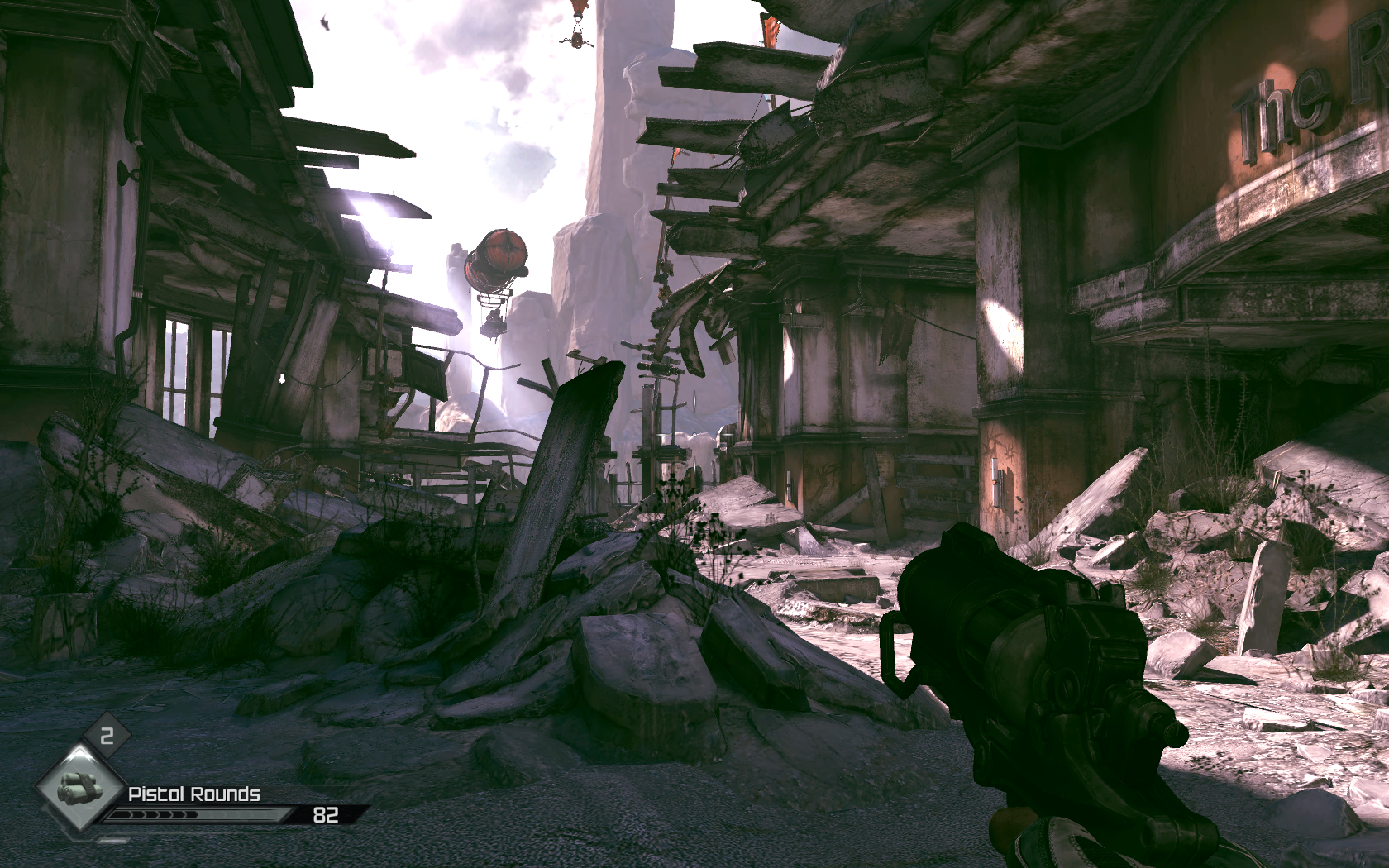

    High Res Screenshots:

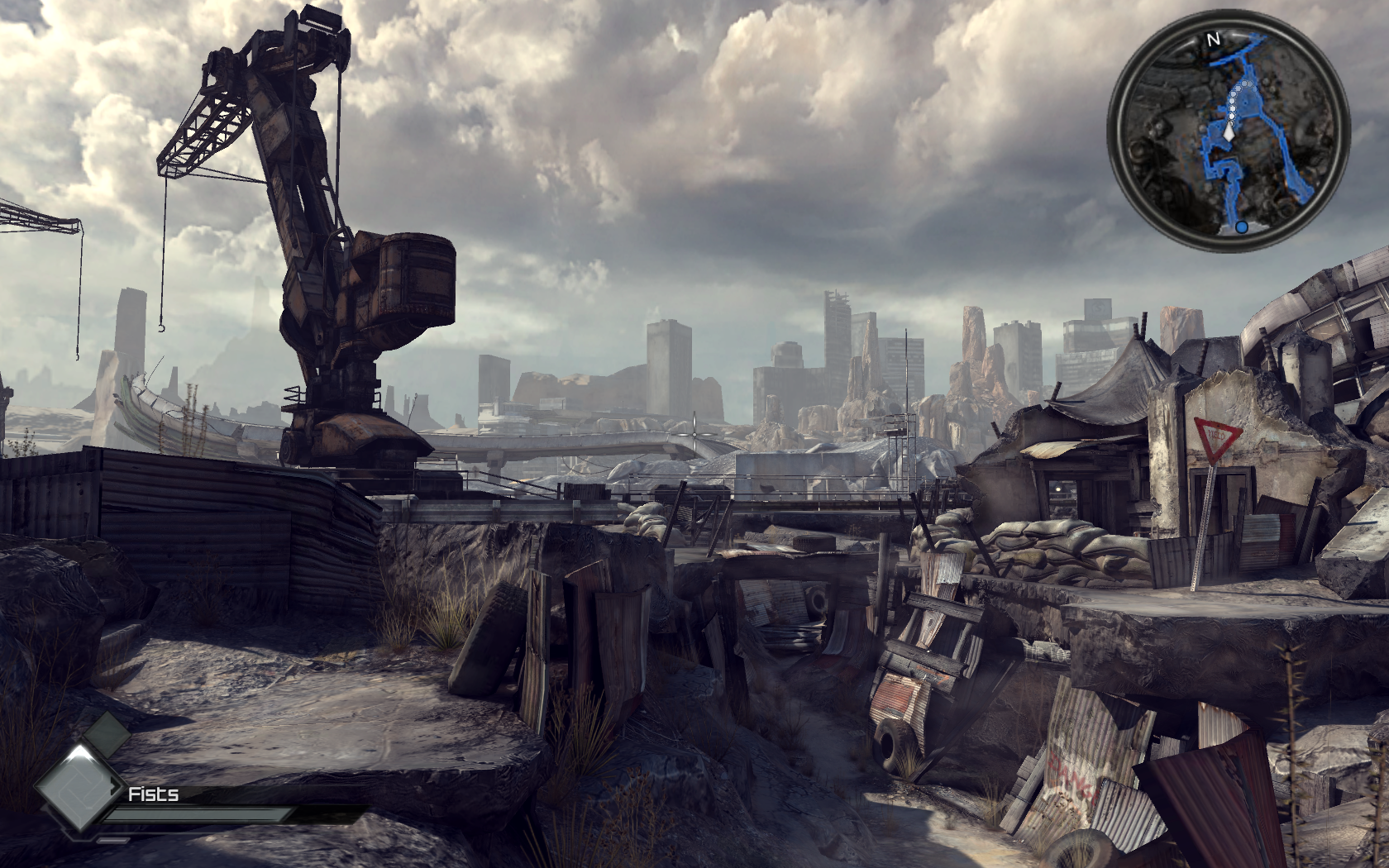

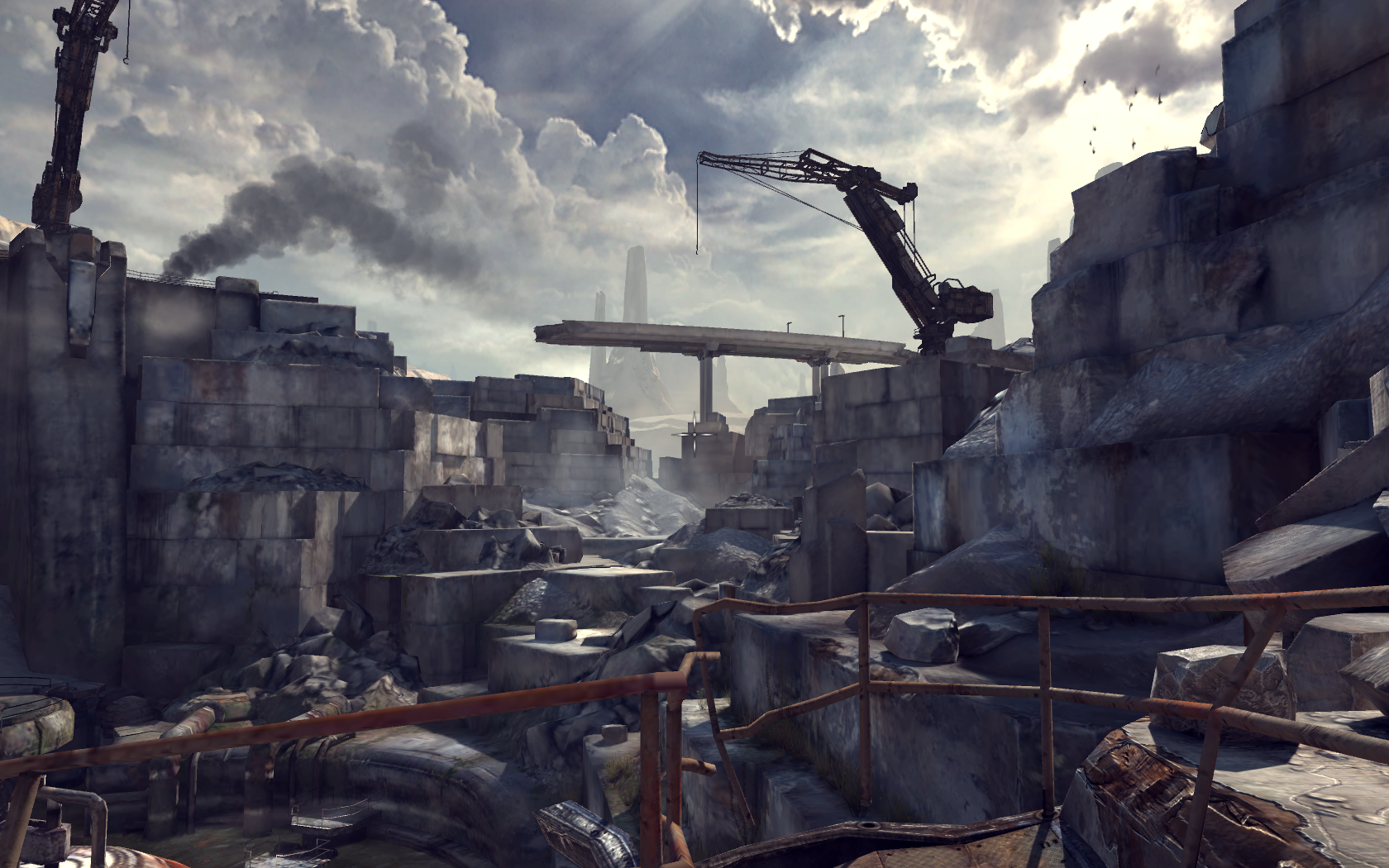

    rage80.png rage81.png
    rage82.png rage83.png
    rage84.png rage85.png

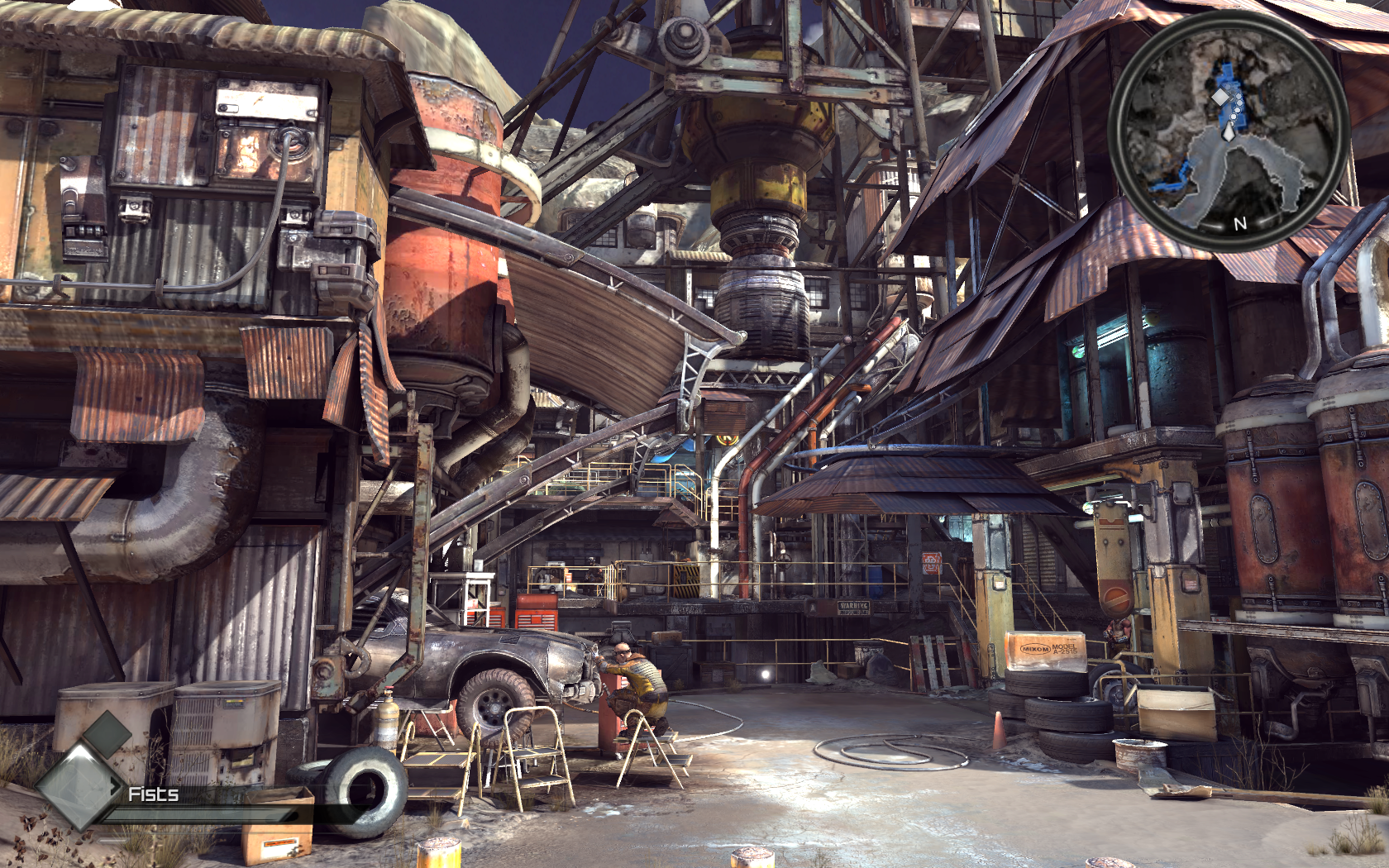

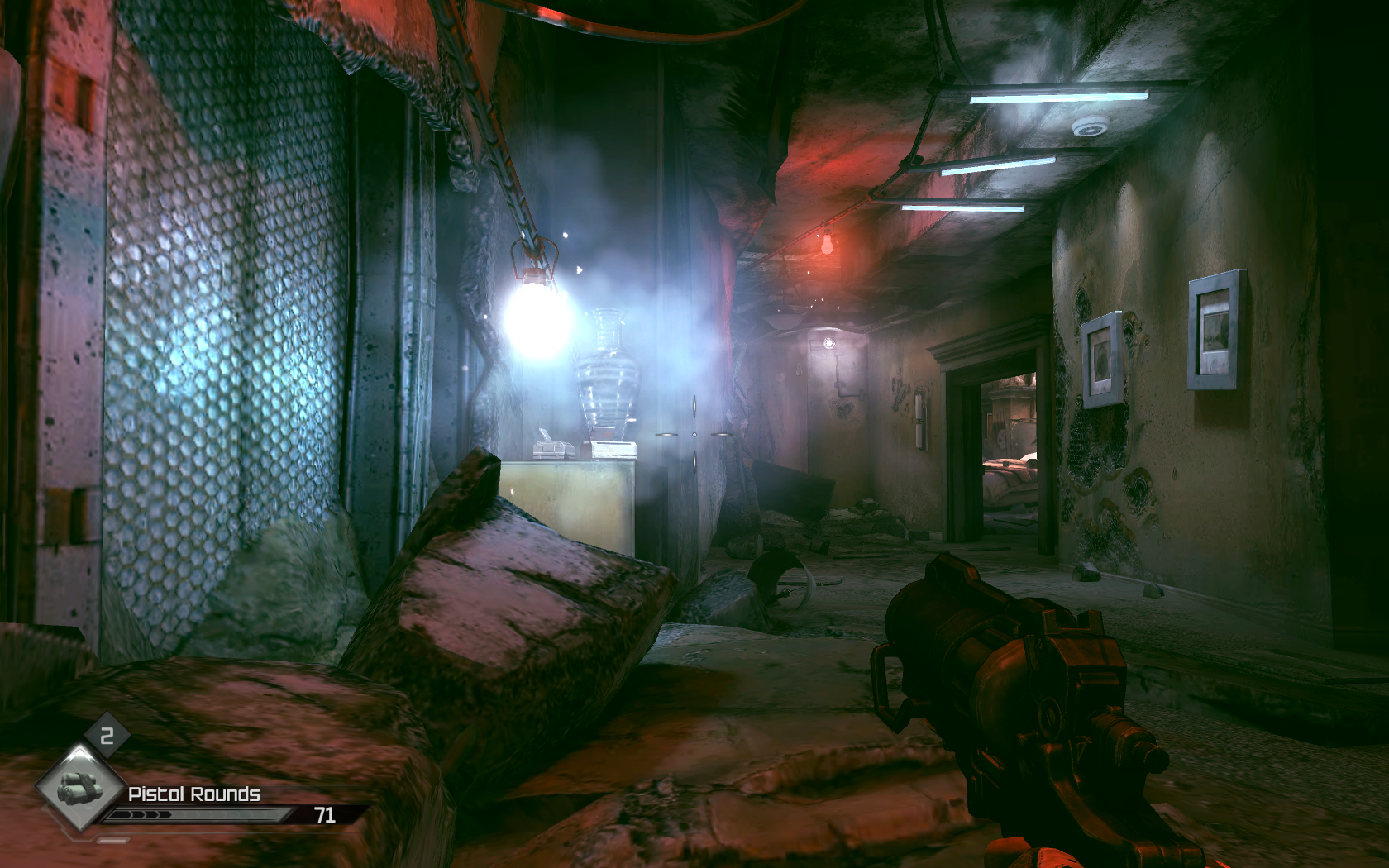

    rage86.png rage87.png rage88.png rage89.png rage90.png rage91.png rage92.png rage93.png rage94.png rage95.png rage96.png rage97.png rage98.png rage99.png rage100.png rage101.png
