    Star Wars Battlefront 2 is a team-based FPS much like the Battlefield series. Conquer maps by taking bases in many new locations like Mygeeto, Utapau, Naboo, Hoth, Mustafar, Yavin, the Jedi Temple and the Death Star. Play as 5 different classes and even earn a chance to play as a Jedi hero or a Sith Lord.


    Follow my step-by-step guide on installing, configuring and optimizing Battlefront 2 in Linux with PlayOnLinux.

    Note: This guide applies to the Retail (CD ROM) version of Battlefront 2. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 17 64-bit
    PlayOnLinux: 4.2.8
    Wine: 1.7.46

    Wine Installation

    Click Tools

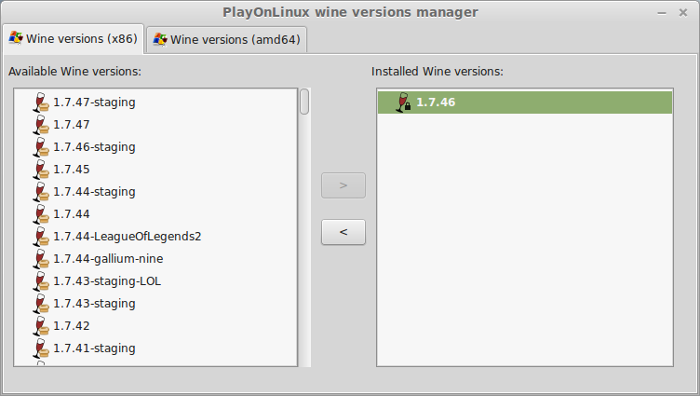

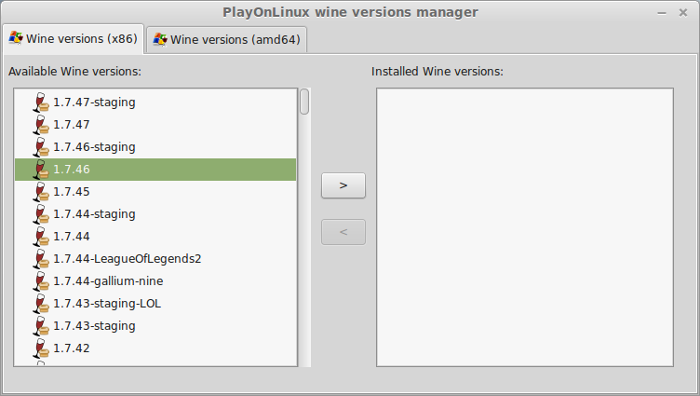

    Select "Manage Wine Versions"

    Look for the Wine Version: 1.7.46
    Note: Try using stable Wine 1.8 and 1.8-staging

    Select it
    Click the arrow pointing to the right

    Click Next

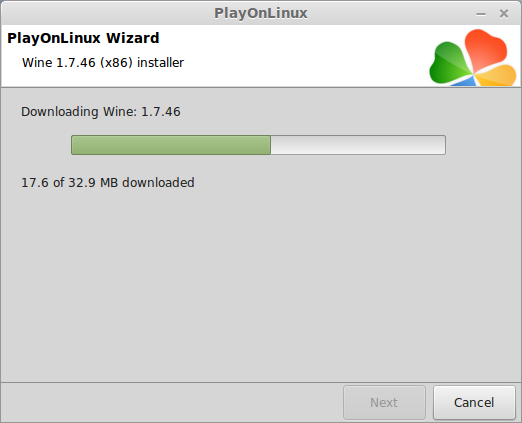

    Downloading Wine

    Extracting

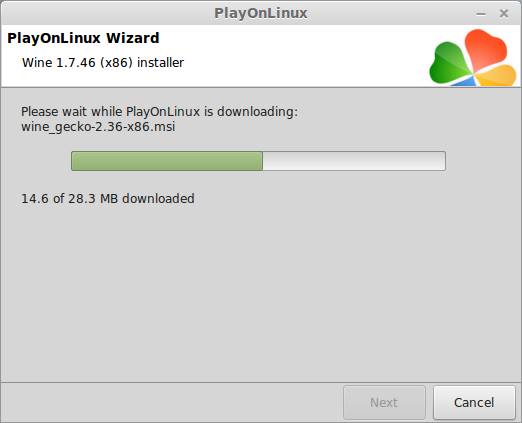

    Downloading Gecko

    Installed

    Wine 1.7.46 is installed and you can close this window

    Copy CD ROM Data

    Create a Battlefront2 folder on the desktop
    Enter CD1

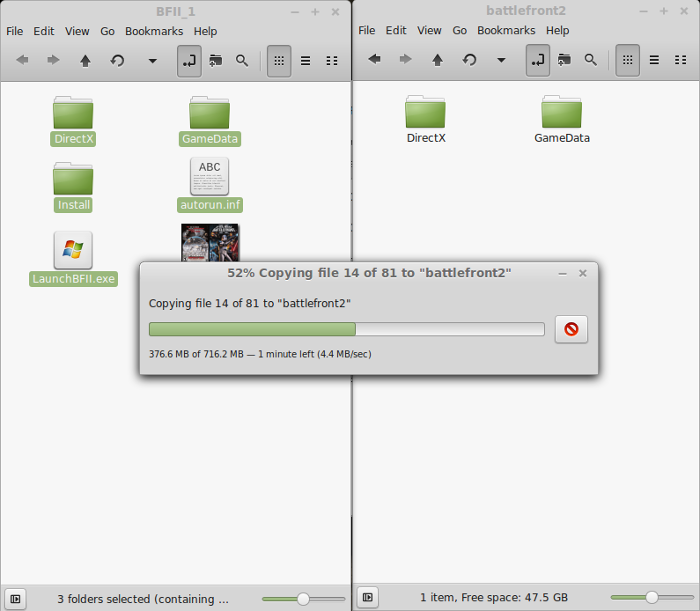

    Copy all data from CD1 to the Battlefront2 folder

    Enter CD2 and copy the GameData folder to the Battlefront2 folder

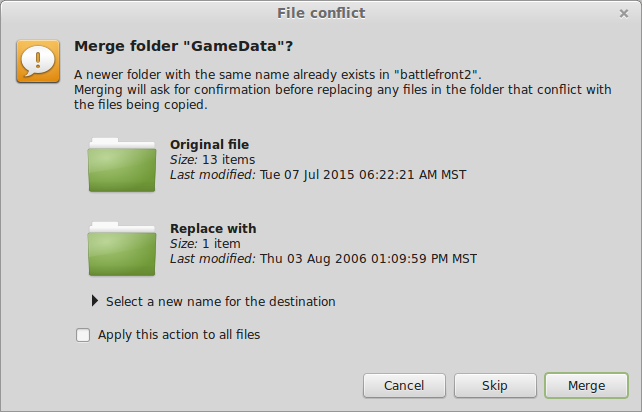

    Check "Apply this action to all files"
    Click Merge

    Enter CD3 through CD5 with the same "Merge" steps

    PlayOnLinux Setup

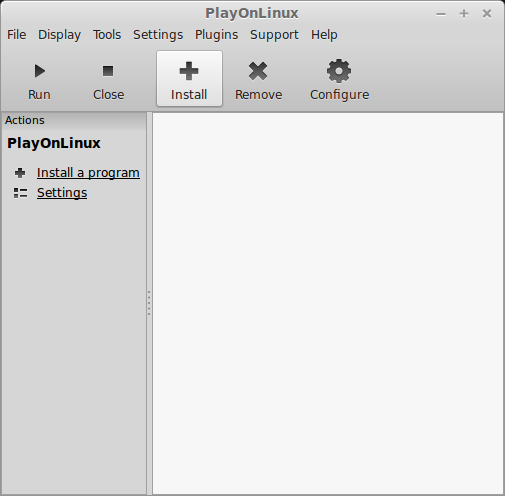

    Launch PlayOnLinux
    Click Install

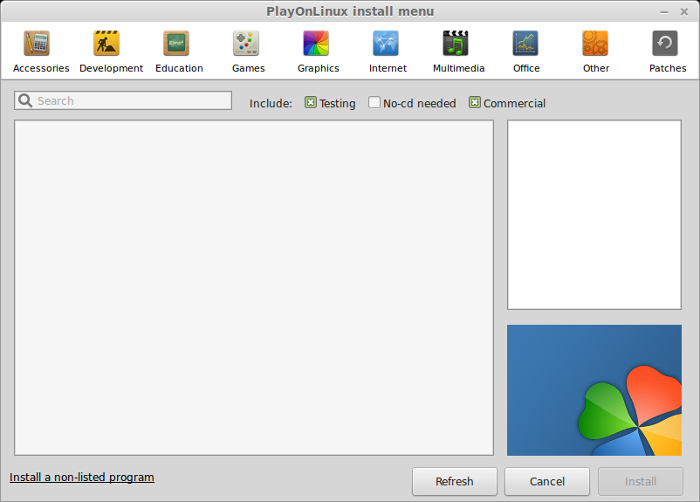

    Click "Install a non-listed program"

    Click Next

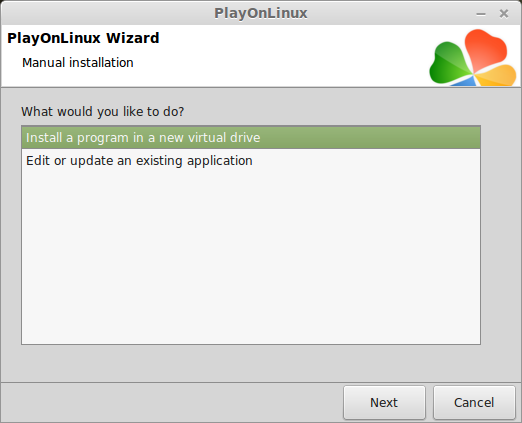

    Click "Install a program in a new virtual drive"
    Click Next

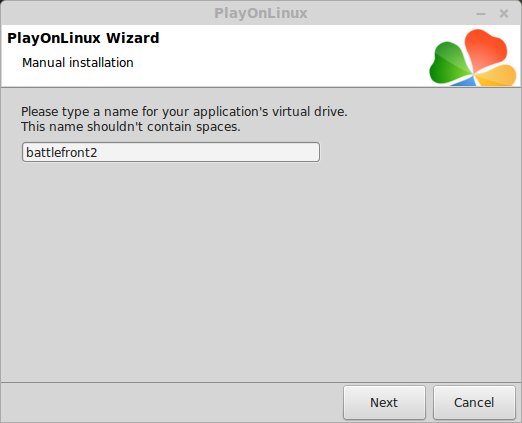

    Name your virtual drive: battlefront2
    Click Next

    Check all three options
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

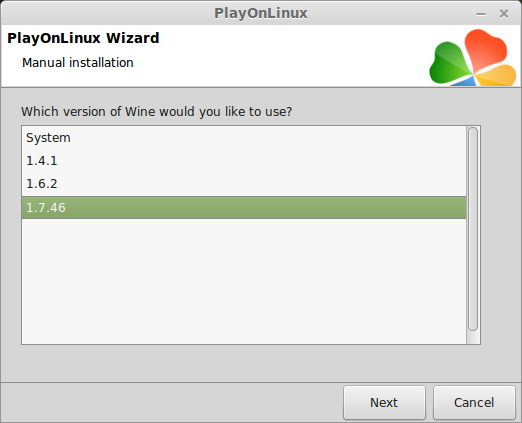

    Select Wine 1.7.46
    Click Next

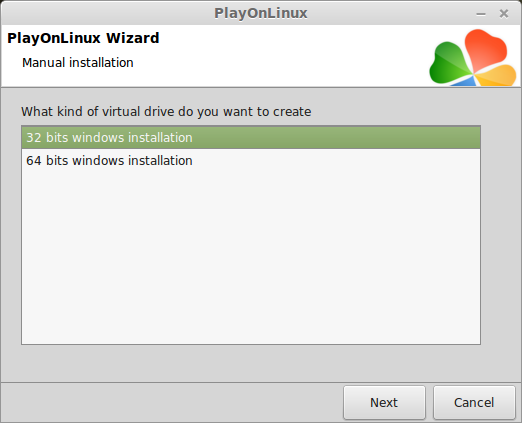

    Select "32 bits windows installation"
    Click Next

    Wine Configuration

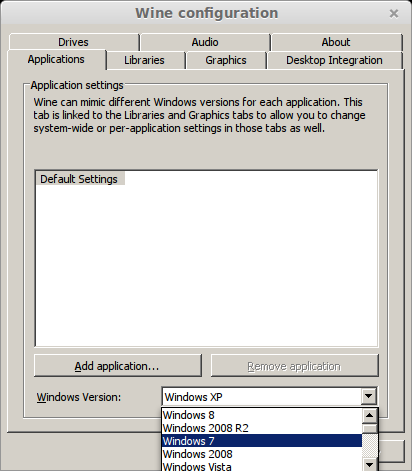

    Applications Tab
    Windows version: Windows 7
    Click Apply

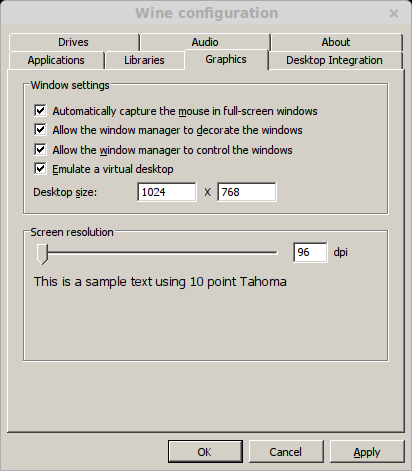

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Check "Emulate a virtual deskop"
    Desktop size: 1024x768
    Click OK

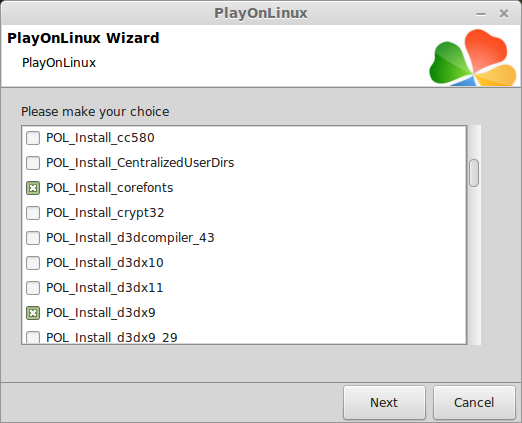

    PlayOnLinux Packages (Components, Libraries, DLL's)

    Check the following Packages:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_tahoma
    Click Next

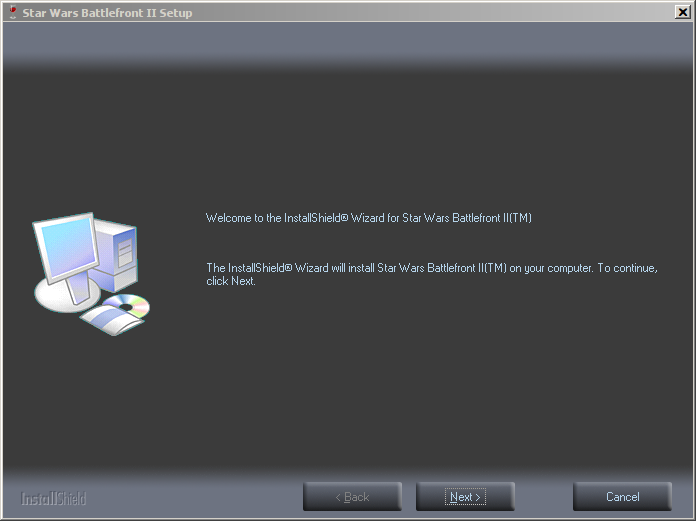

    Installing Battlefront 2

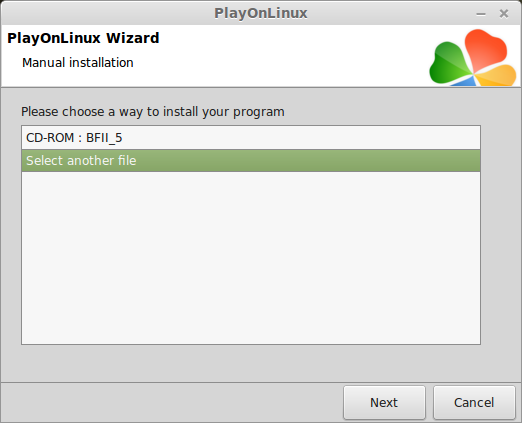

    Click "Select another file"
    Click Next

    Click Browse

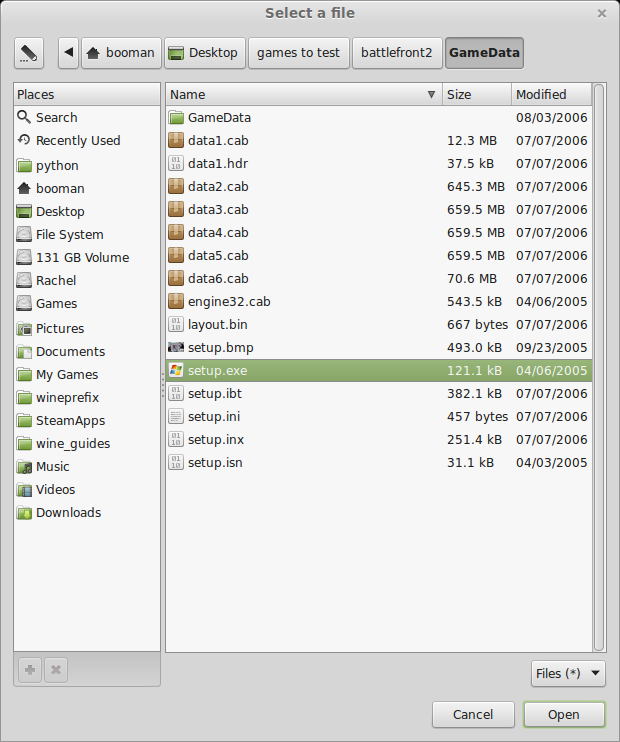

    Navigate to the Battlefront2 folder on your desktop
    Open GameData folder
    Select "setup.exe"
    Click Open

    Click Next

    Click Next

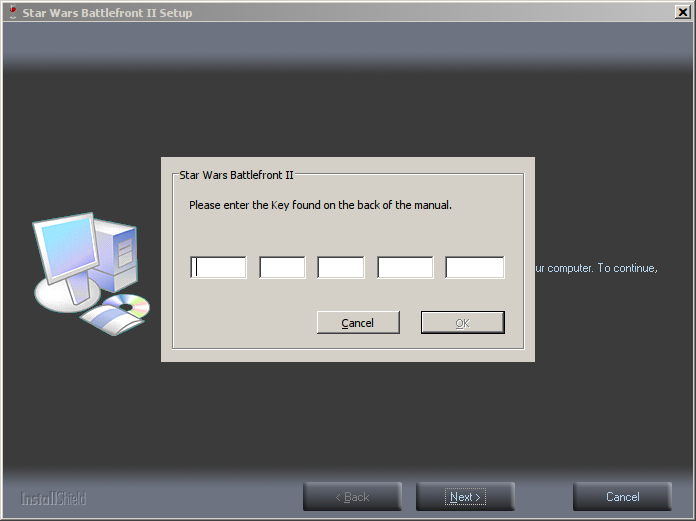

    Enter Key
    Click OK

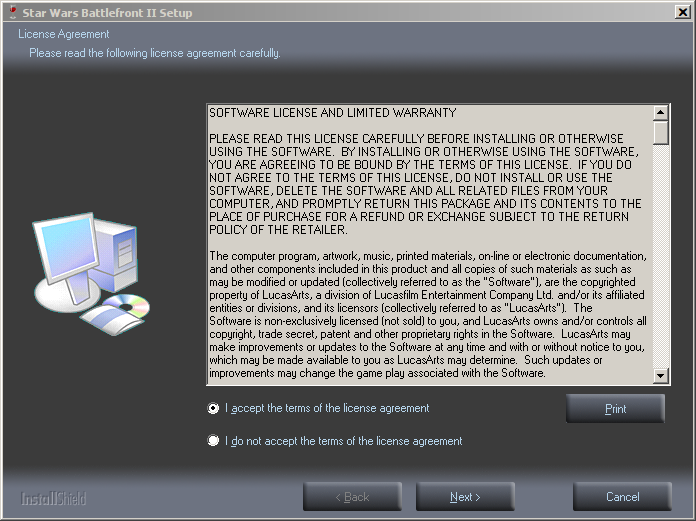

    Check "I accept the terms..."
    Click Next

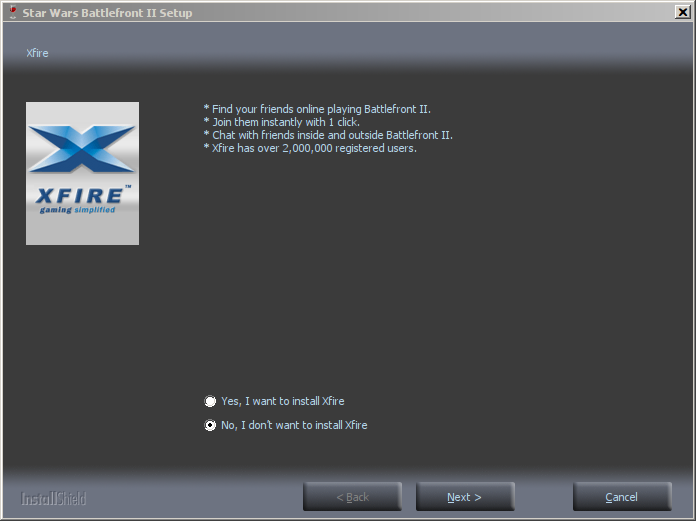

    Check "No, I don't want to install xfire"
    Click Next

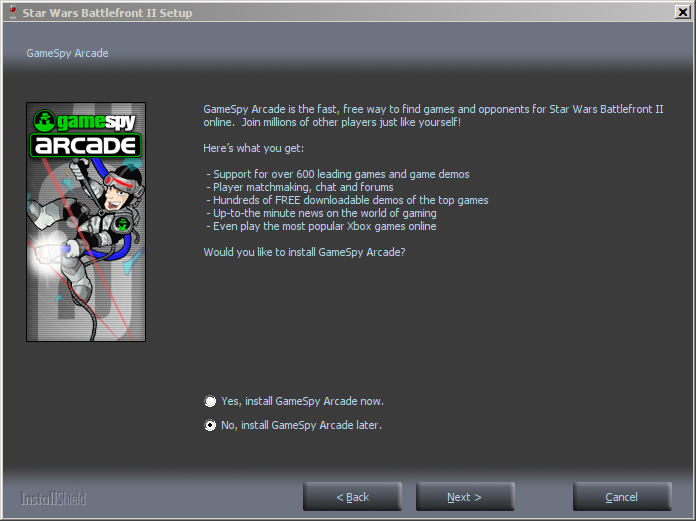

    Check "No, install GameSpy Arcade later"
    Click Next

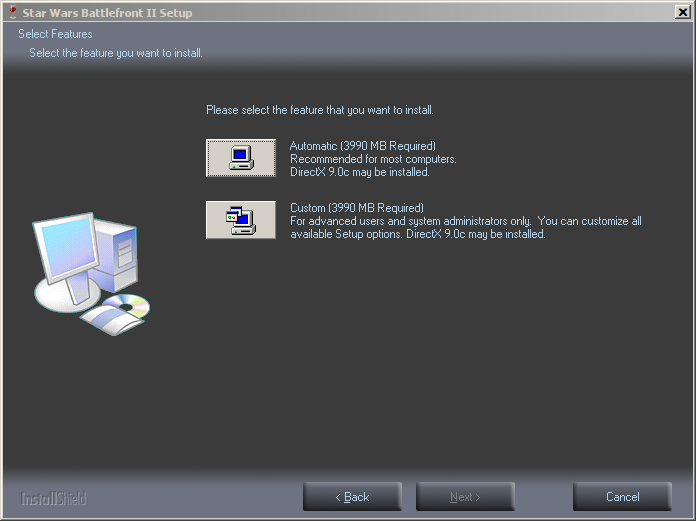

    Click "Automatic"
    Click Next

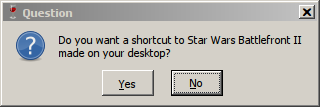

    Desktop Shortcut
    Click No

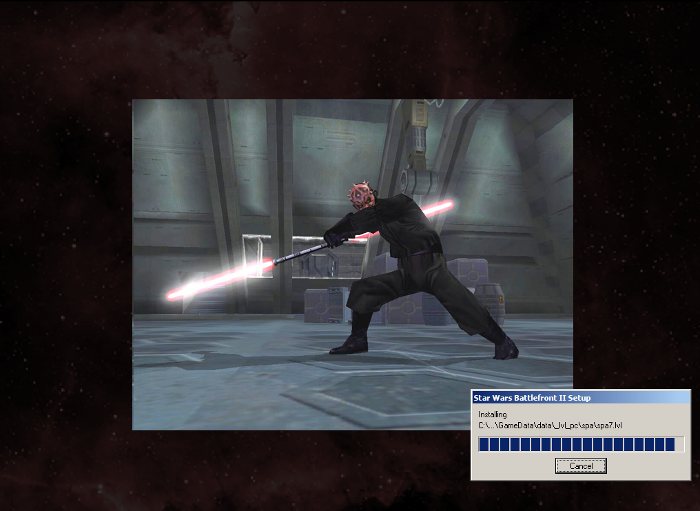

    Installing

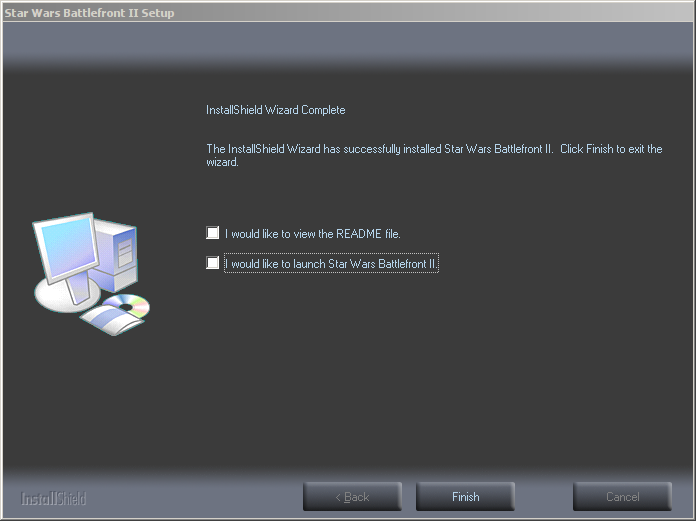

    Uncheck "I would like to view the README file"
    Uncheck "I would like to launch Star Wars Battlefront II"
    Click Finish

    PlayOnLinux Shortcut

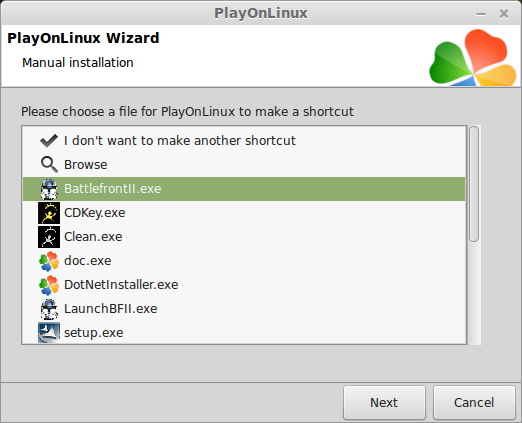

    Select "BattlefrontII.exe"
    Click Next

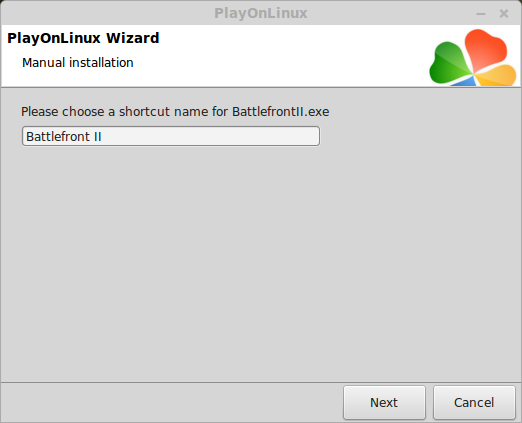

    Name your shortcut: Battlefront II
    Click Next

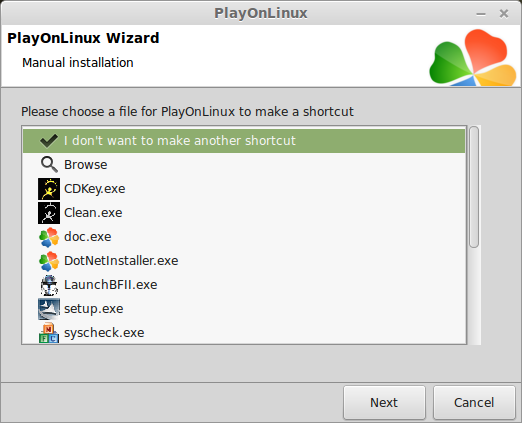

    Select "I don't want to make another shortcut"
    Click Next

    PlayOnLinux Configure

    Back to PlayOnLinux
    Select Battlefront II

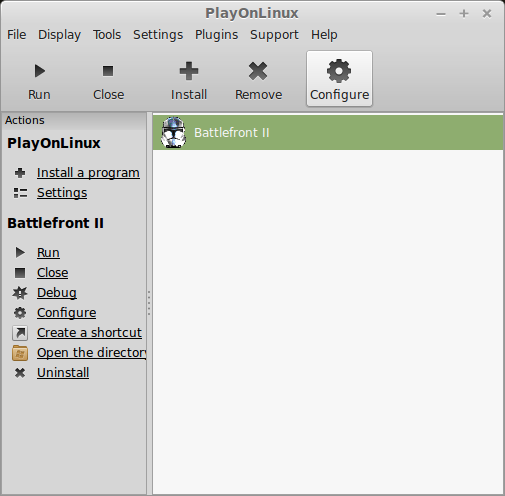

    Click Configure

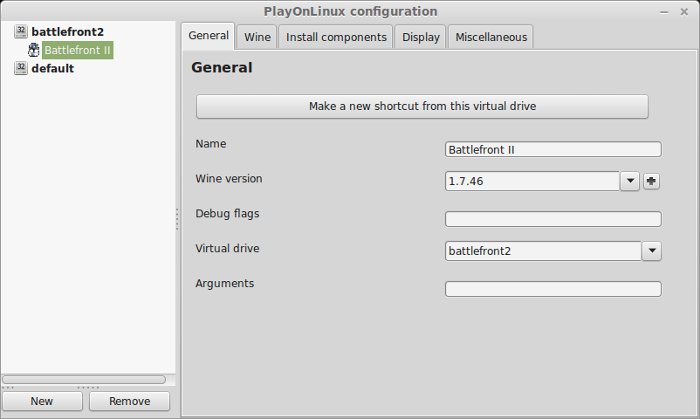

    General Tab
    Wine version: 1.7.46

    Note: Click the + to download other versions of Wine, click the down-arrow to select other versions of Wine

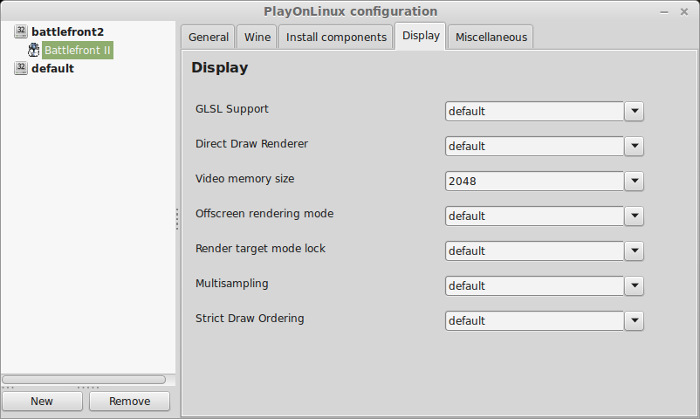

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses

    Close Configure

    Launching Battlefront II

    Select Battlefront II

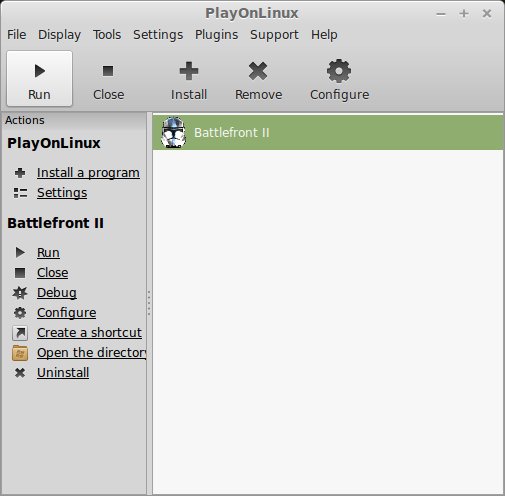

    Click Run

    Note: Click Debug to see output of errors and bugs while playing

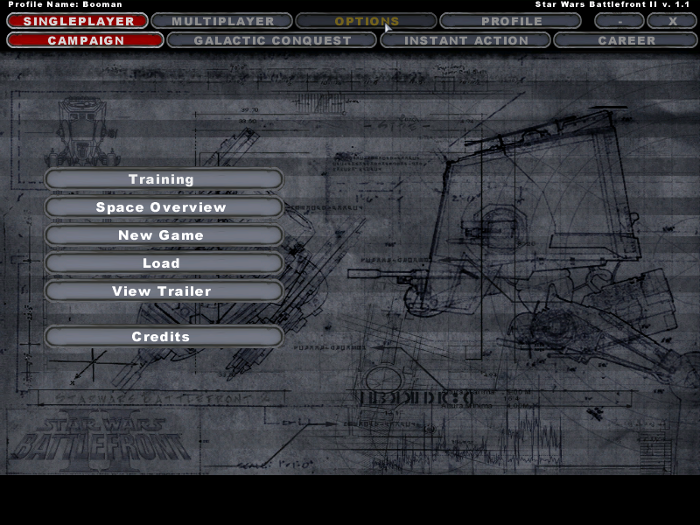

    Optimization

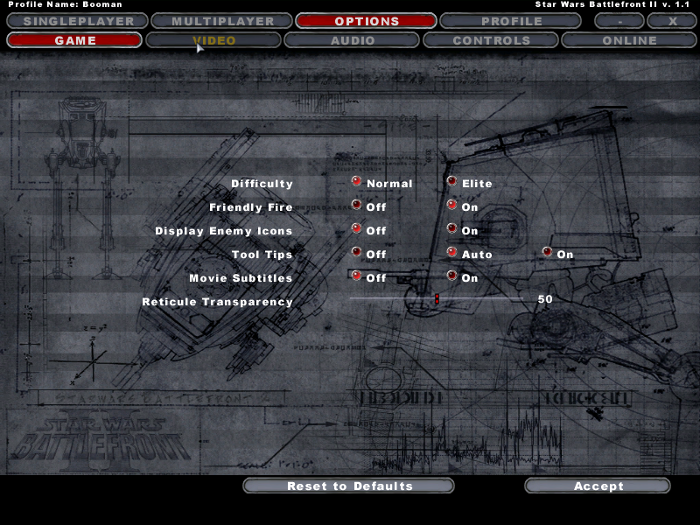

    Click Options

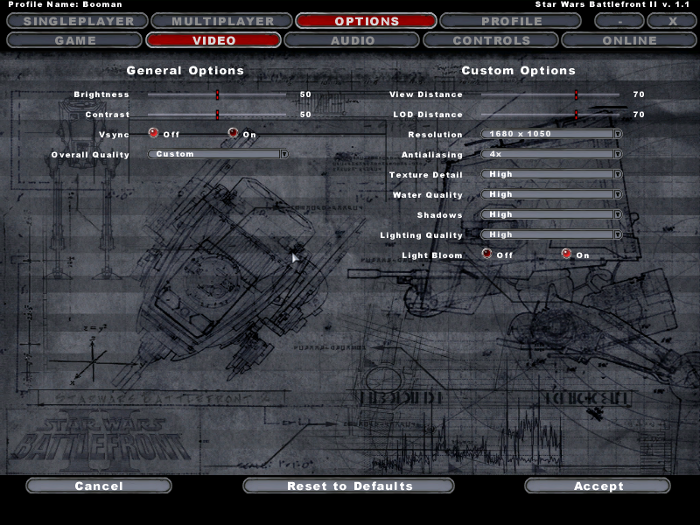

    Click Video

    Adjust:
    • Brightness
    • Contrast
    • VSync
    • Overall Quality (Presets)
    • View Distance
    • LOD Distance
    • Resolution
    • Antialiasing
    • Texture Quality
    • Water Quality
    • Shadows
    • Lighting Quality
    • Light Bloom
    Click Accept

    Rule of thumb:
    High settings = More detail, lower frame rates
    Low settings = Less detail, higher frame rates

    Conclusion:
    Battlefront 2 installed and played perfectly. Any level I loaded played and performed just as well as Windows on my GeForce 550 ti. I had everything set to high except view distance and LOD distance.

    Ironically in Windows 7, Battlefront 2 would crash over and over. It turns out there is some audio bug with Realtek chips and it causes a crash when a level is loaded.
    I was able to host the game in Linux and connect from the Windows client, but not the other way around.

    Gameplay Video:

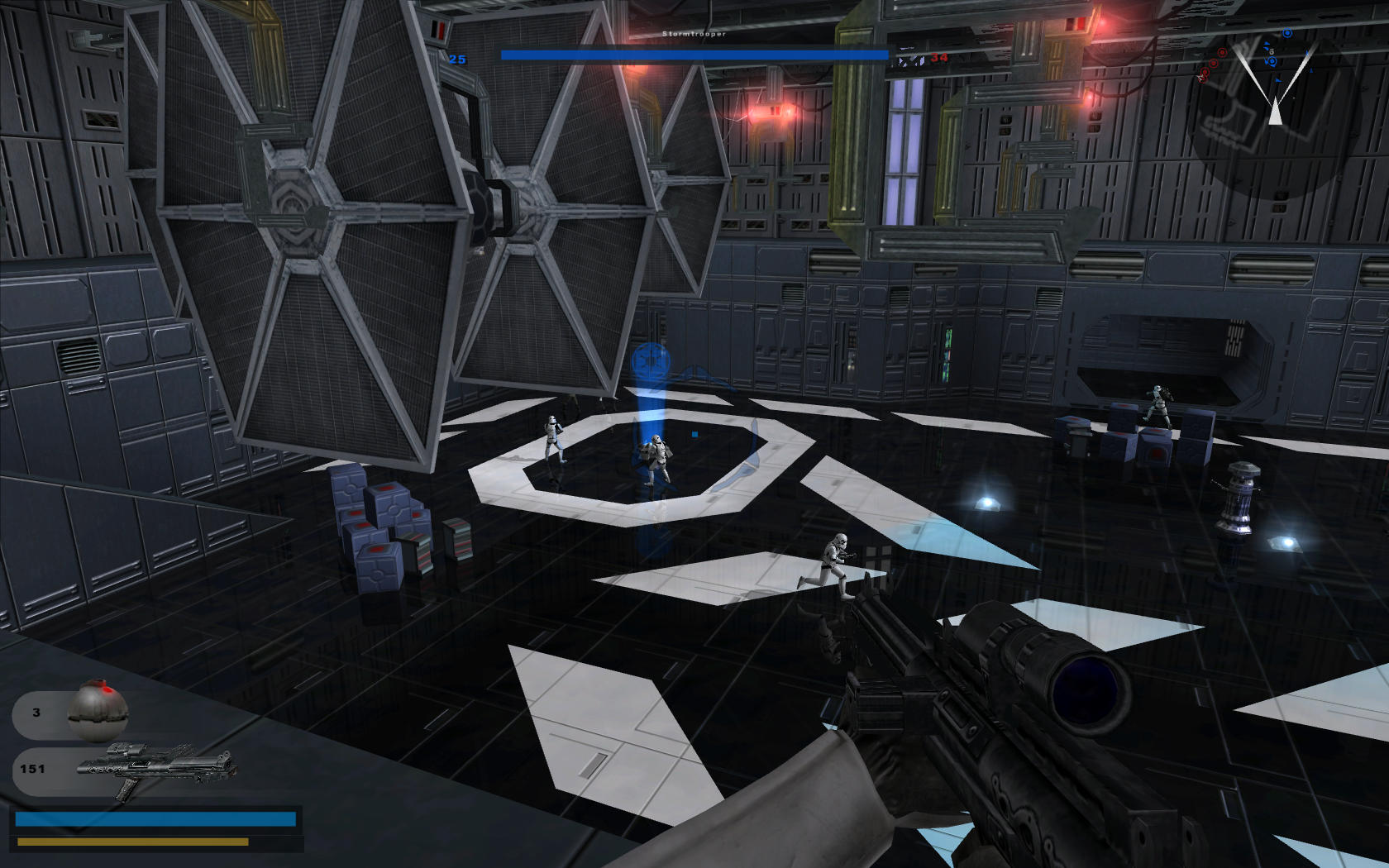

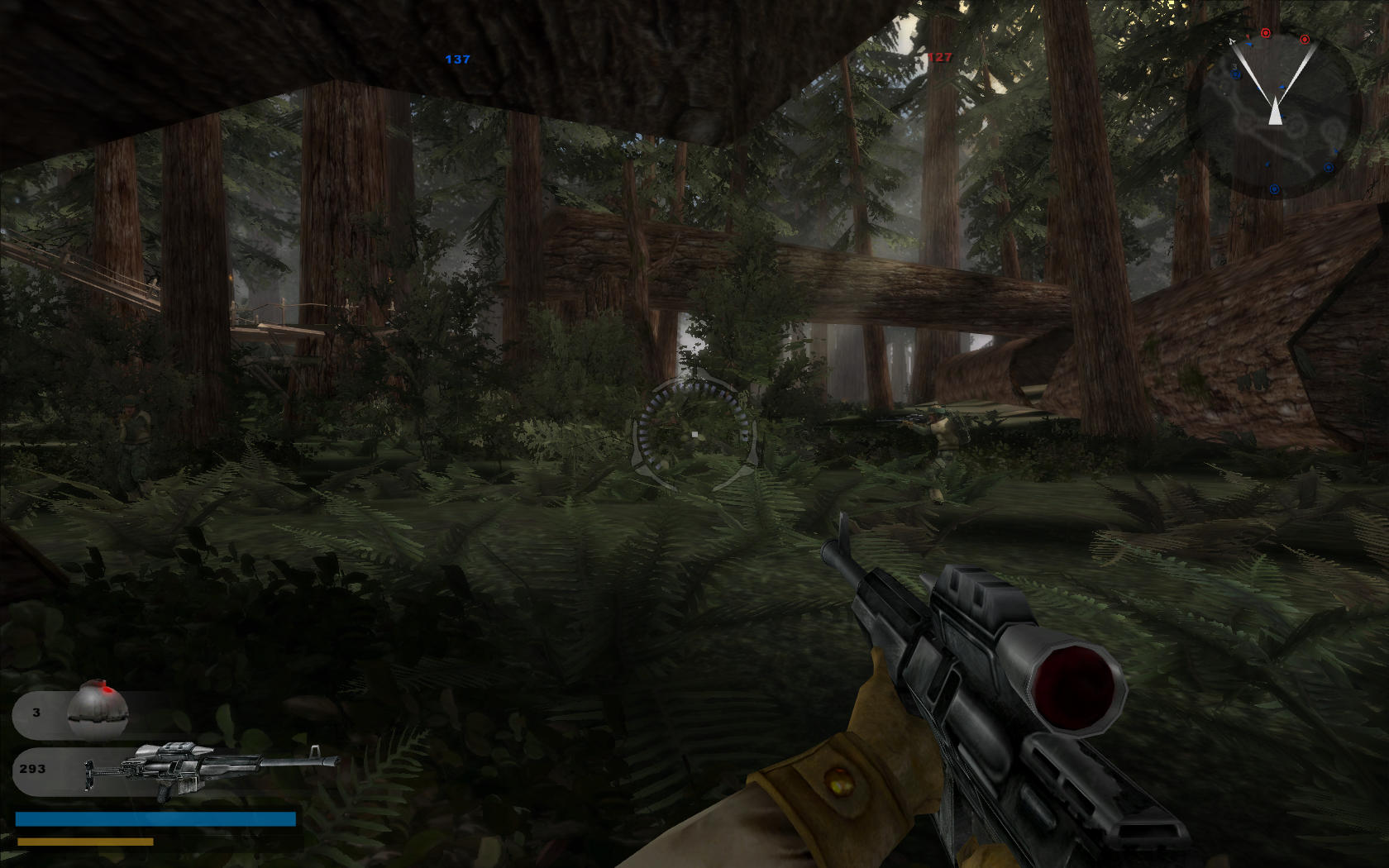

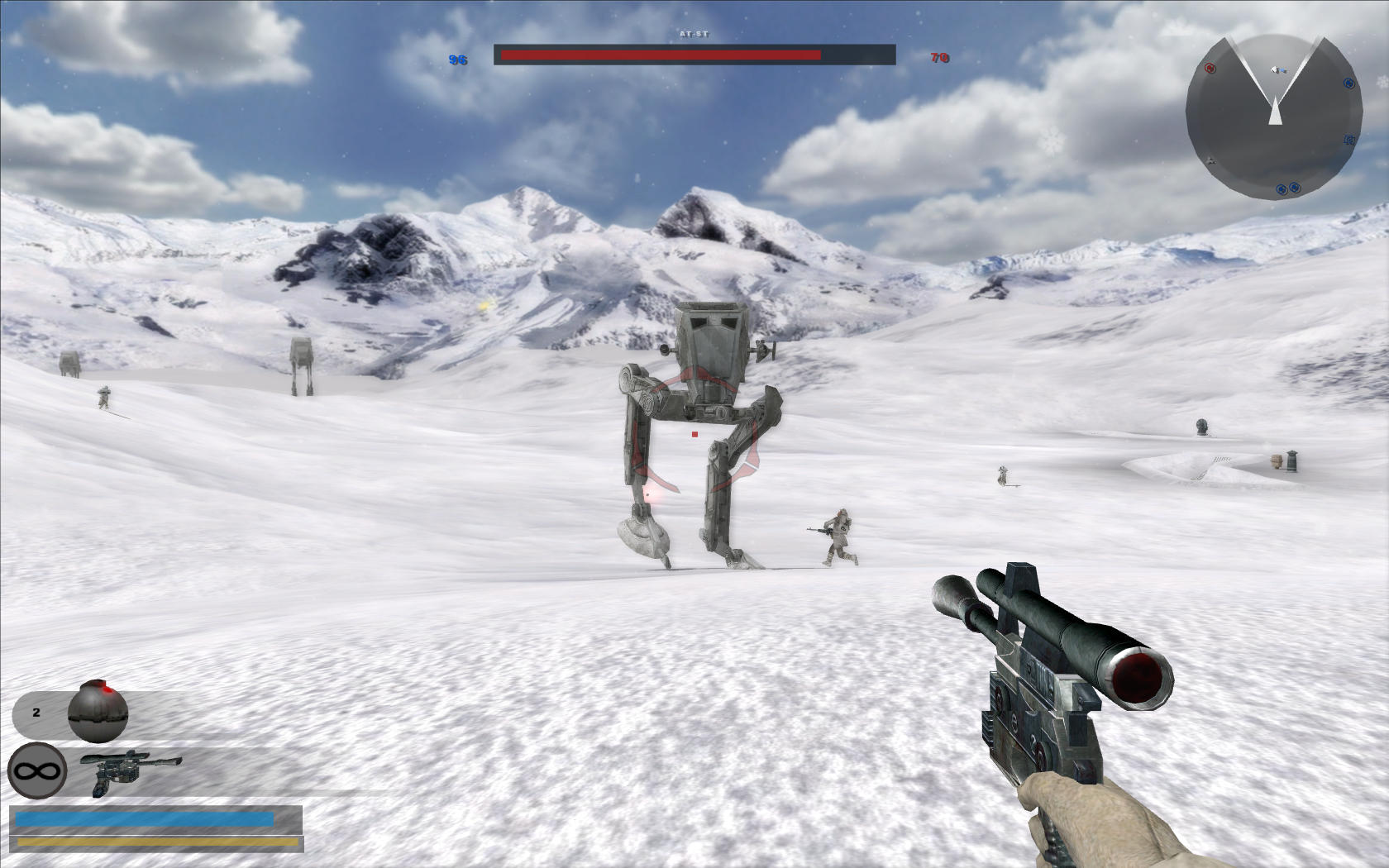

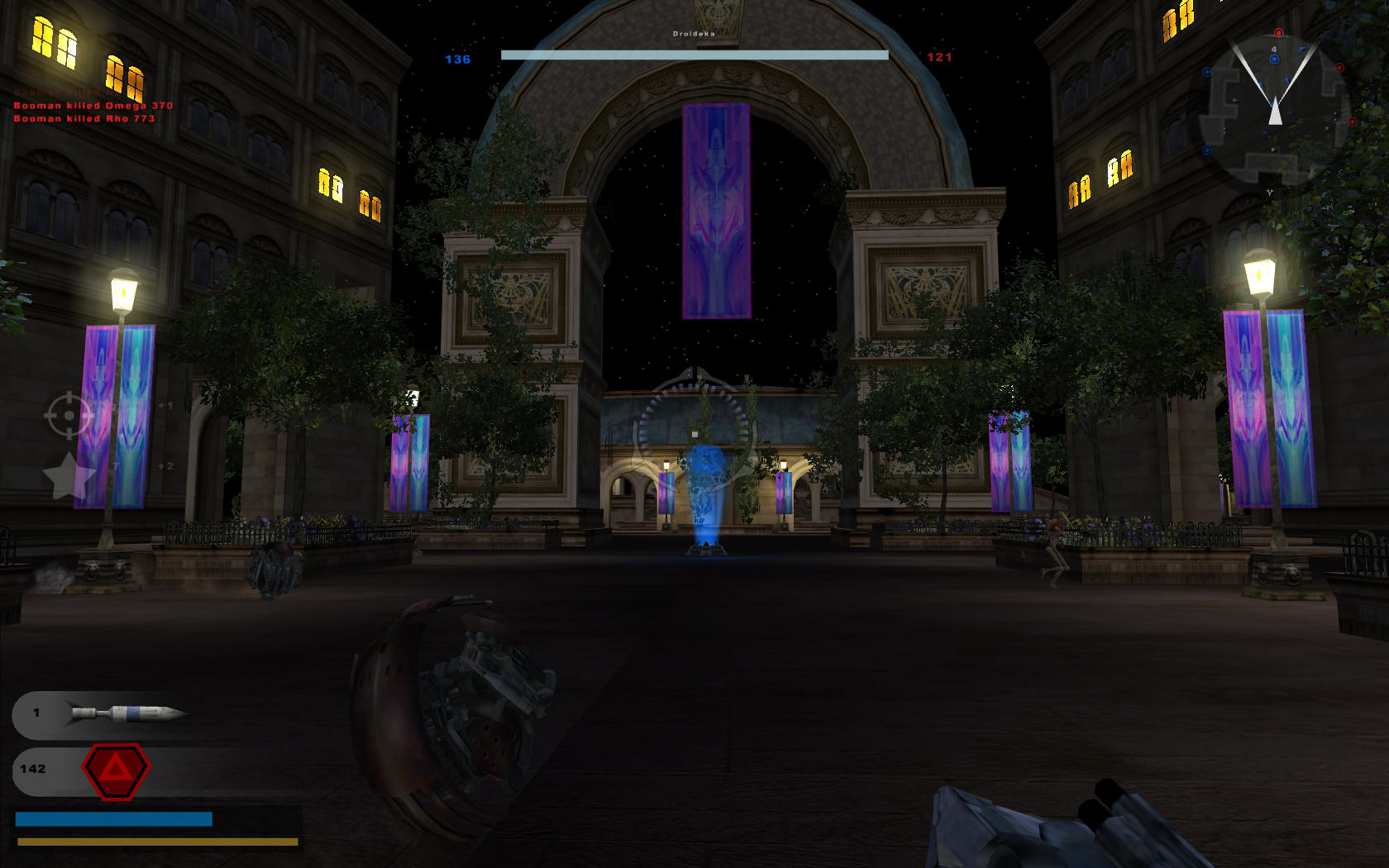

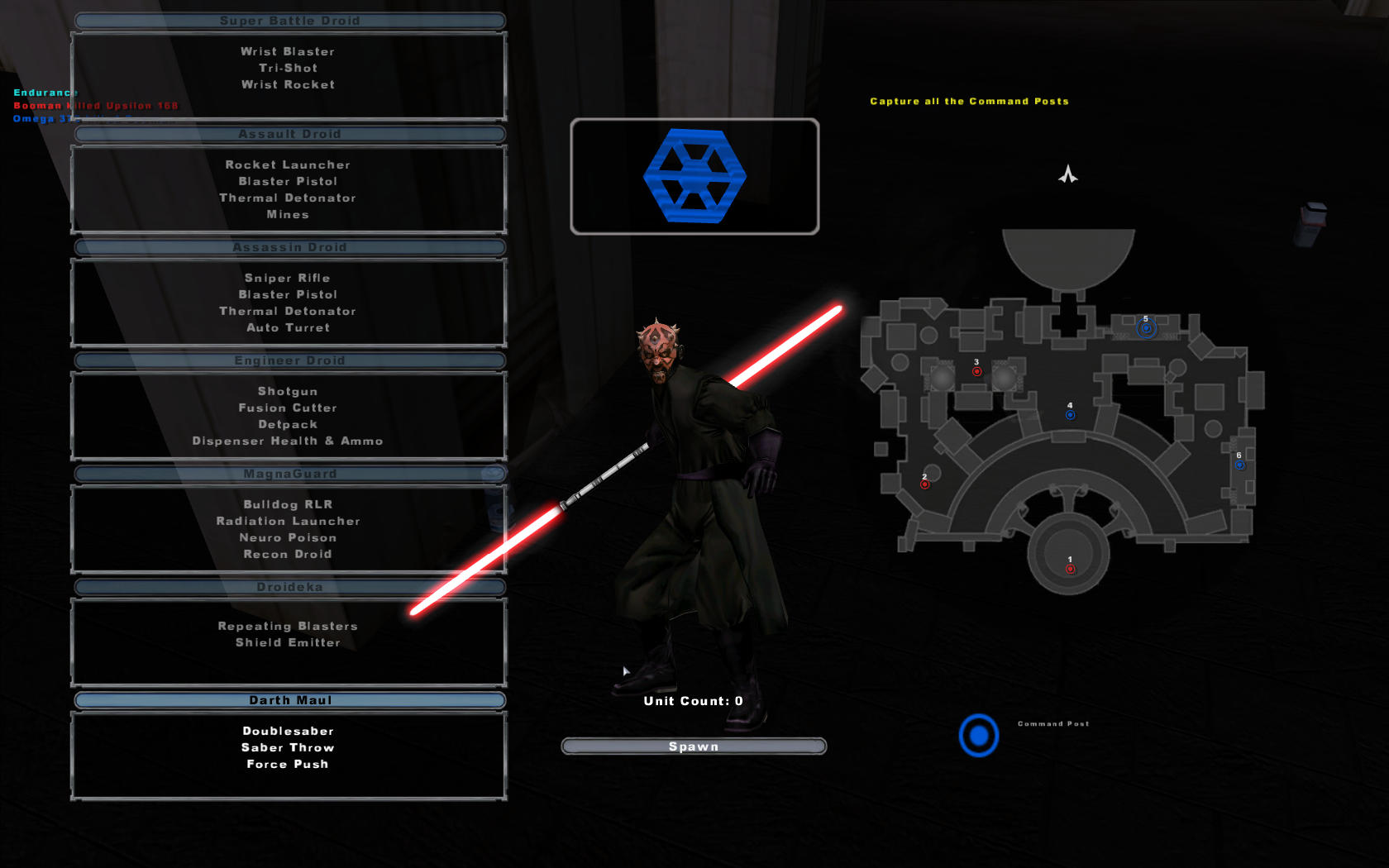

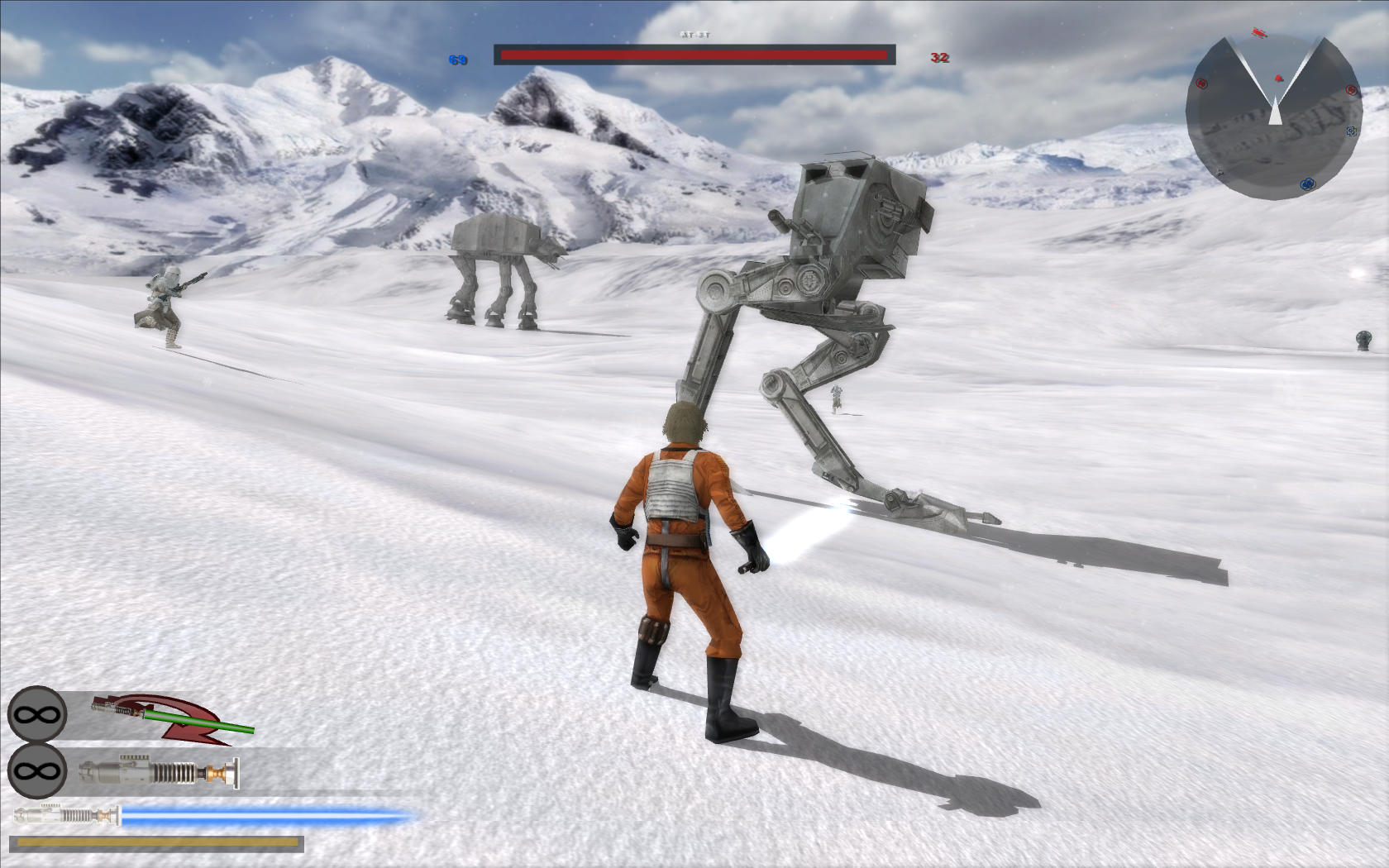

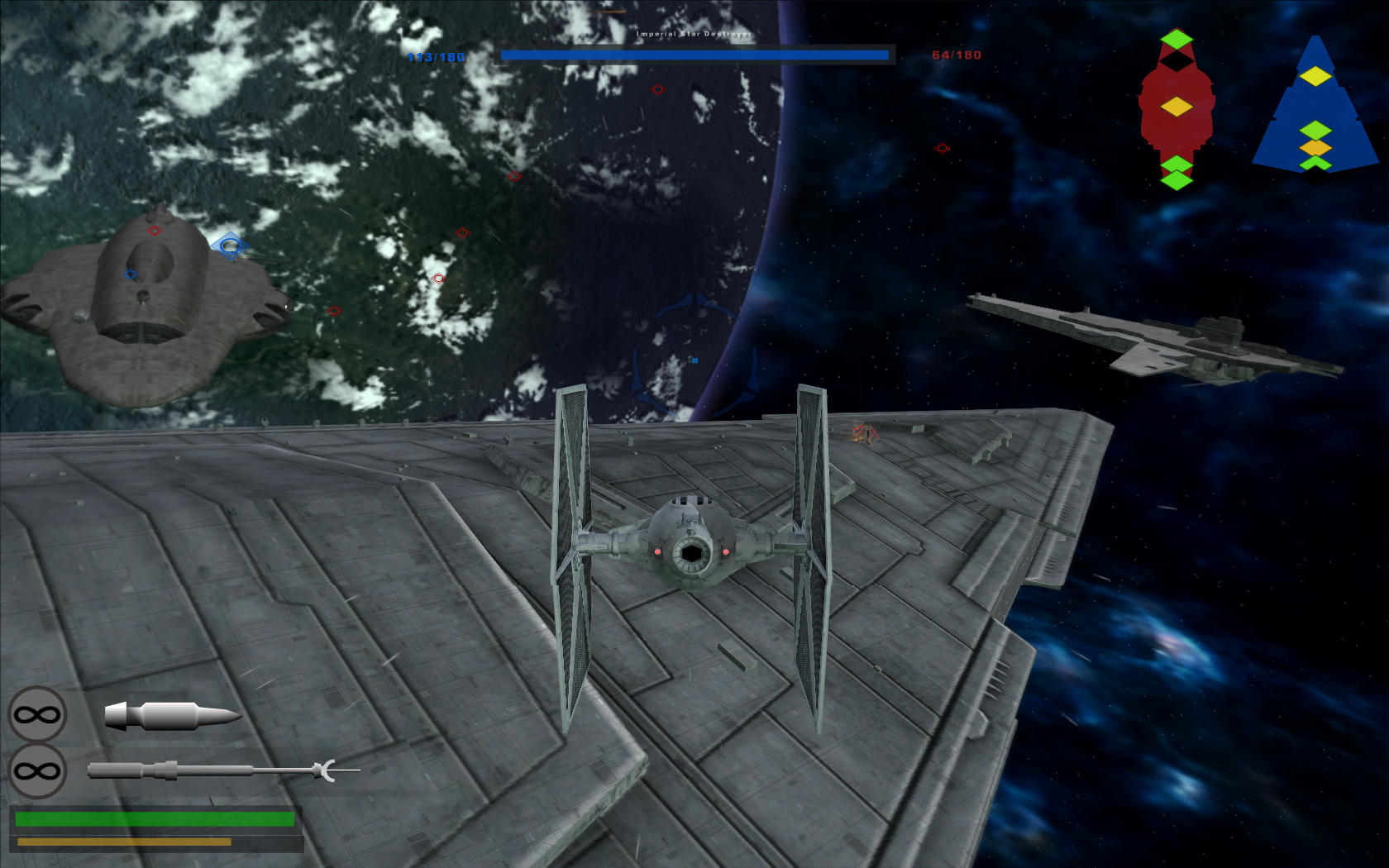

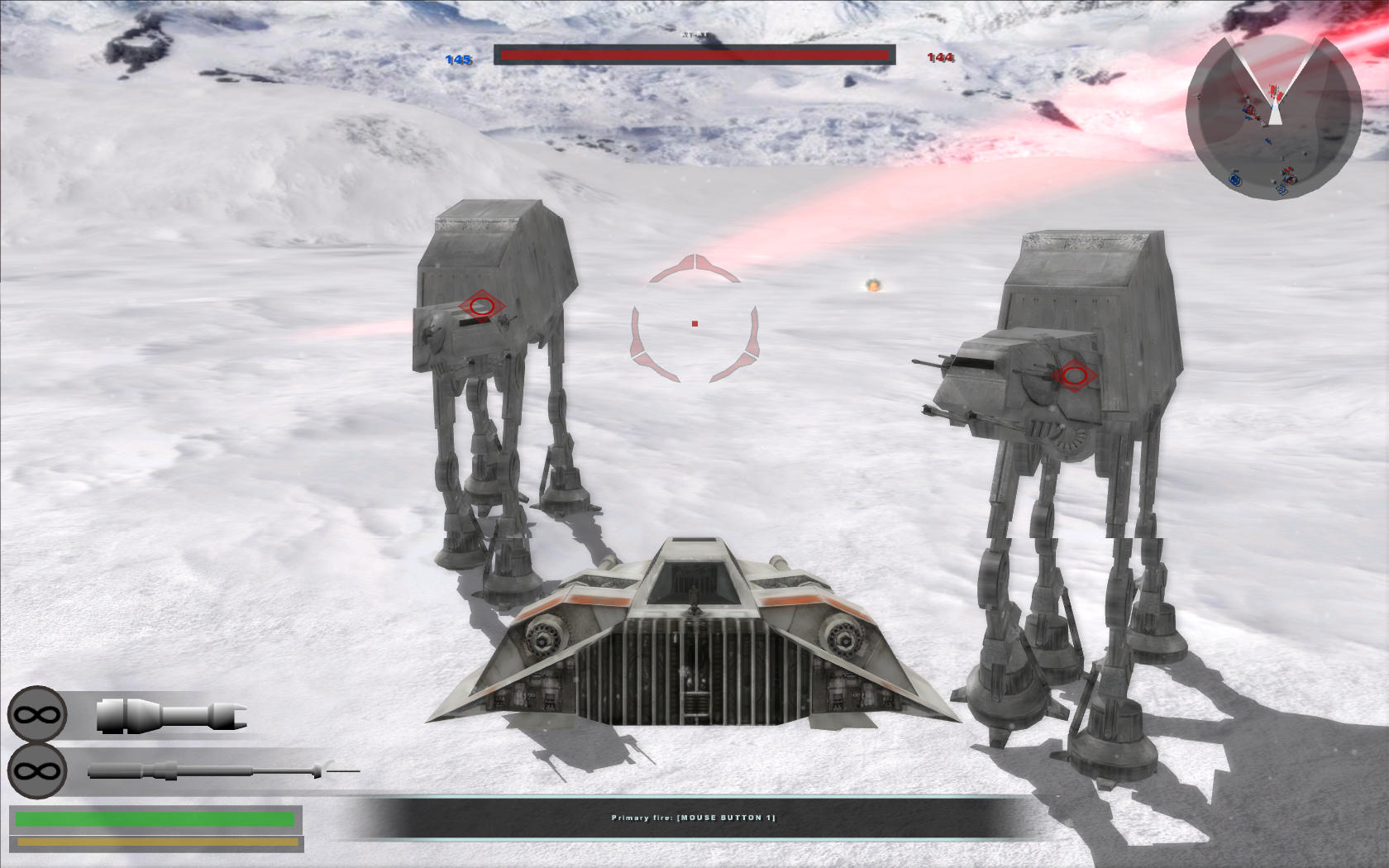

    Screenshots:







    Last edited: Jan 13, 2016
    mrdeathjr28 likes this.

Comments

Discussion in 'Guides' started by booman, Jul 24, 2015.

  1. mrdeathjr28
    Excellent classic game and very good guide as always

    In my case have steam version and works good too

    :)
  2. booman
    Thank you! I had a lot of run re-visiting the series! I'm surprised how well it ran, even without the CD ROM in the drive.

    Unfortunately I was unable to join a Linux (Wine) Hosted game on my LAN
    Only the Windows computer was able to join the Linux (Wine) Hosted game.

    I have all the firewalls off, but the connection would time out each time.
