    Torchlight II not only surpasses all expectations from the original Torchlight, it even rivals Diablo 3 and includes a multi-player cooperative campaign. The world is bigger, there are more bossess, minions, weapons, armors, classes, pet, locations, secrets... on and on and on...


    There is actually more of everything! You will not be disappointed. In fact, it runs beautifully in PlayOnLinux too

    Follow my step-by-step guide on installing, configuring and optimizing Torchlight II in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Torchlight II. Other versions may require additional steps.

    Tips & Specs:

    Try SteamPlay before using this guide as Valve now uses a fork of Wine called Proton and should run most Windows games.


    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 14 32-bit
    PlayOnLinux: 4.2.1
    Wine: 1.7.8

    Installing Wine

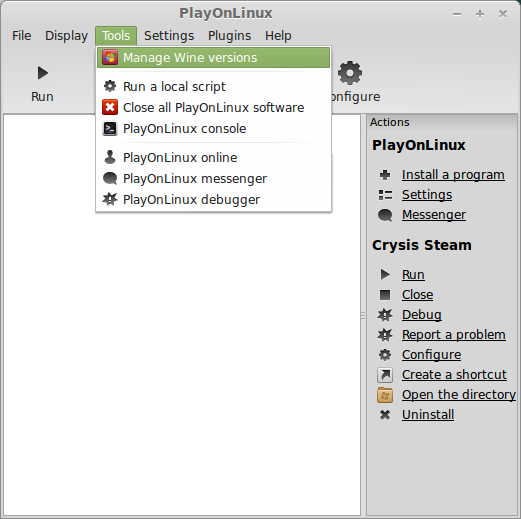

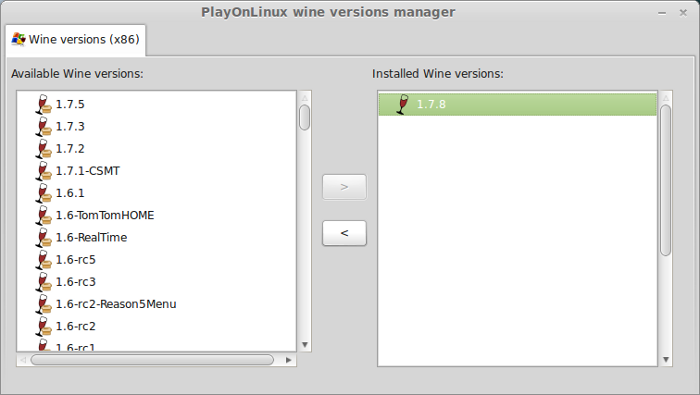

    Click Tools
    Select "Manage Wine Versions"

    Look for the Wine Version: 1.7.8
    Note: Try using stable Wine 1.8 and 1.8-staging

    Select it
    Click the arrow pointing to the right

    Click Next

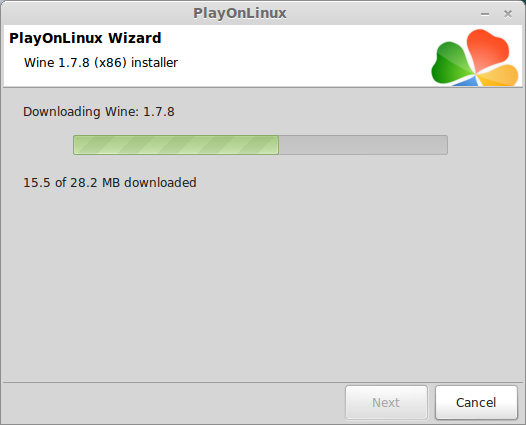

    PlayOnLinux will automatically download it and save it in this directory:
    /home/username/.PlayOnLinux/wine/linux-x86

    Note: username is where you put your login name

    Its a good idea to backup this directory to another computer because you won't have to keep downloading wine versions when you need them.

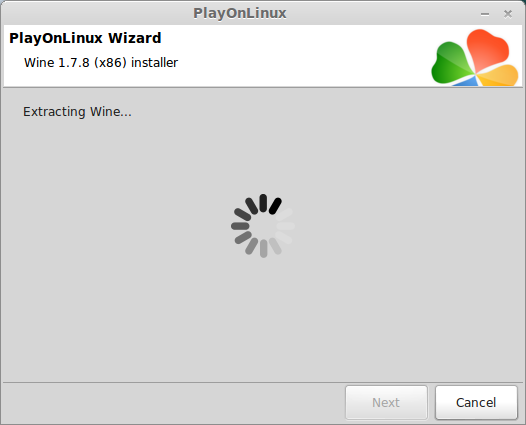

    Extracting

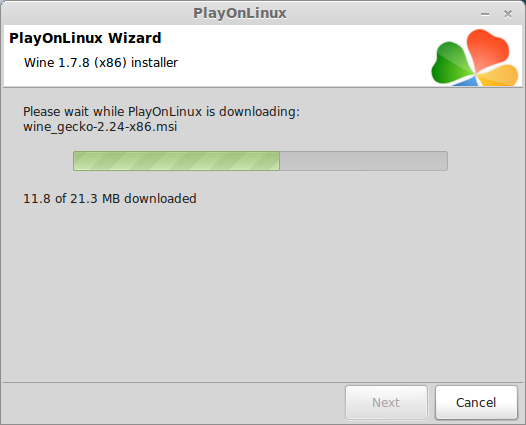

    Downloading Gecko

    Installed

    Wine 1.7.8 is installed and you can close this window

    Downloading Steam

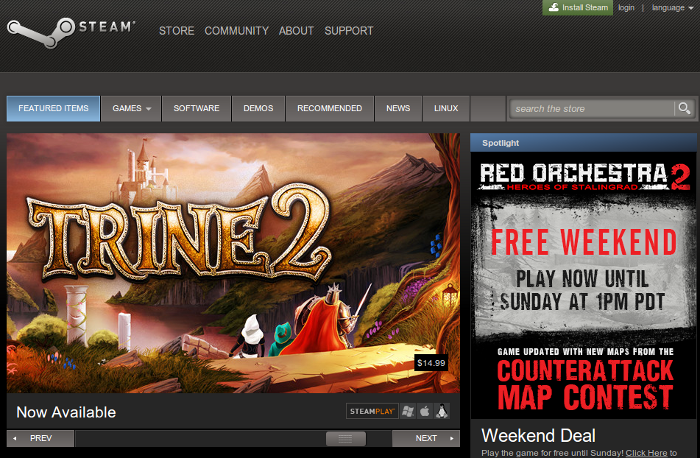

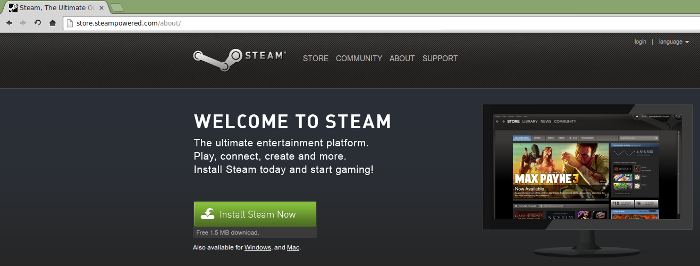

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam. Since Torchlight II isn't made for Linux, we will download the Windows Steam instead.
    click "Windows" under the green button

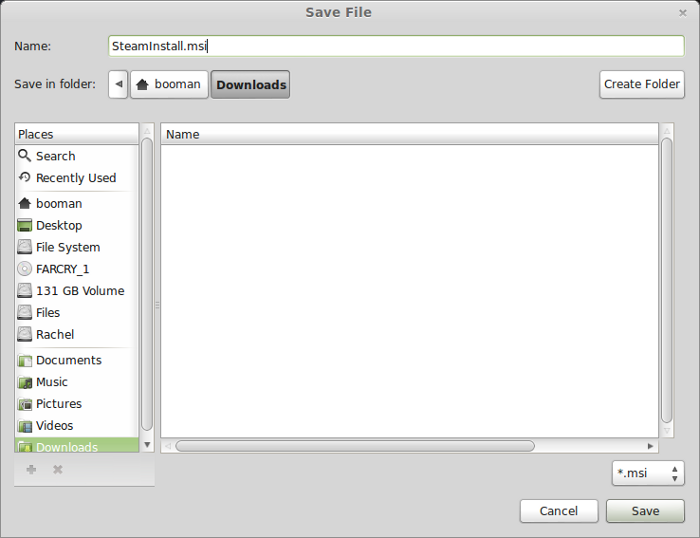

    Navigate to your desktop
    Click Save

    Setup PlayOnLinux

    Launch PlayOnLinux

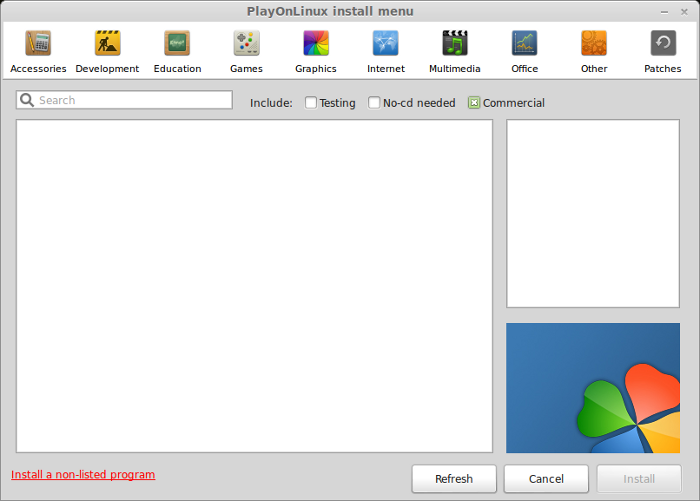

    Click Install

    Click "install a non-listed program"

    Click Next

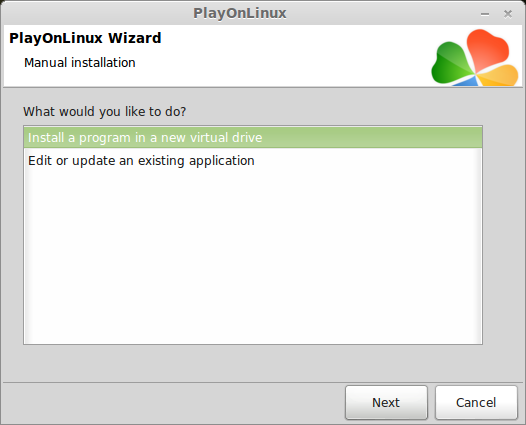

    Select "Install a program in a new virtual drive"
    Click Next

    Name you virtual drive: torchlight2
    No spaces
    Click Next

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries

    Click Next

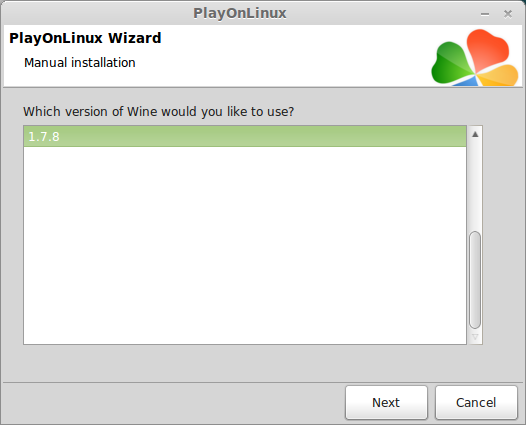

    Select Wine 1.7.8
    Click Next

    Note: If you are running a 64-bit system, PlayOnLinux will prompt if you want to use a 64-bit or 32-bit virtual drive.
    Always select 32-bit virtual drive.

    Configure Wine

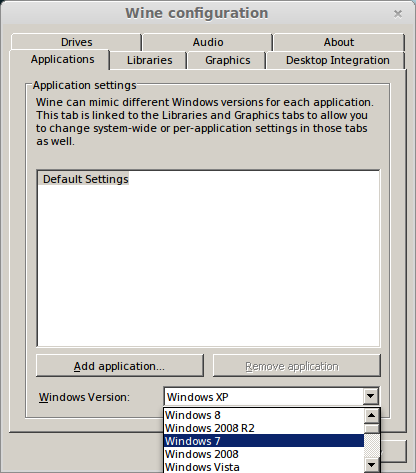

    Applications Tab
    Windows Version: Windows 7
    Click Apply

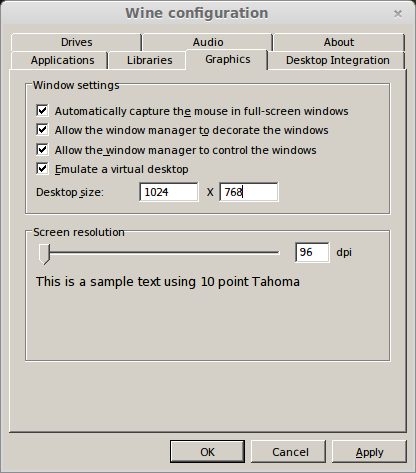

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Check: Emulate a virtual desktop
    Desktop size: 1024x768
    Click Ok

    Install Libraries

    Check the following libraries:
    POL_Install_corefonts
    POL_Install_dxfullsetup
    POL_Install_tahoma
    POL_Install_vcrun2010

    Click Next

    Installing Steam

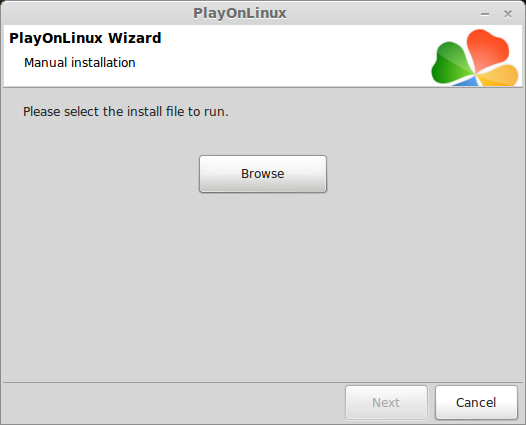

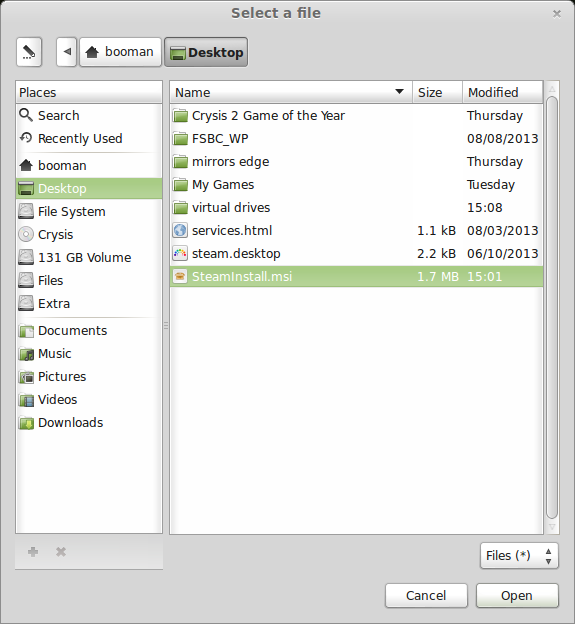

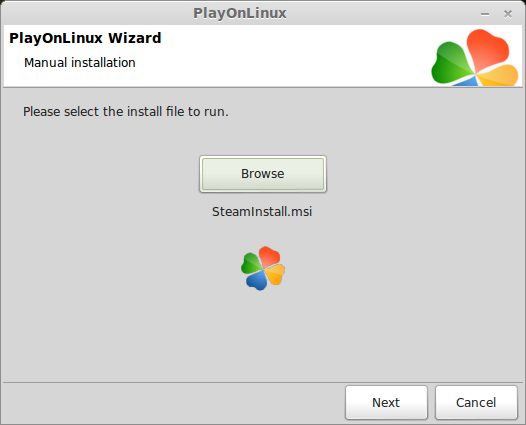

    Click Browse

    Navigate to your desktop
    Select: SteamInstall.msi
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

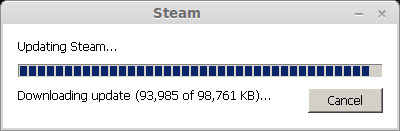

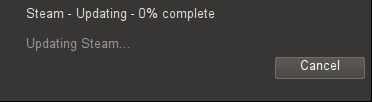

    Updating Steam

    More updating, extracting and installing

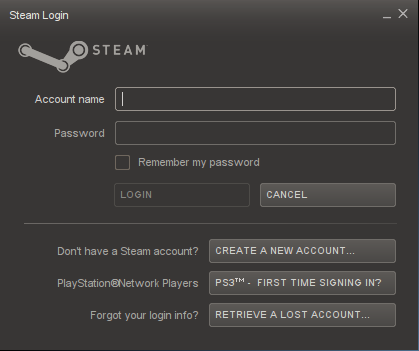

    When Steam is done installing the login screen will pop up. You probably won't see any text because there is a font bug.
    Click the "X" to close Steam login

    PlayOnLinux Shortcut

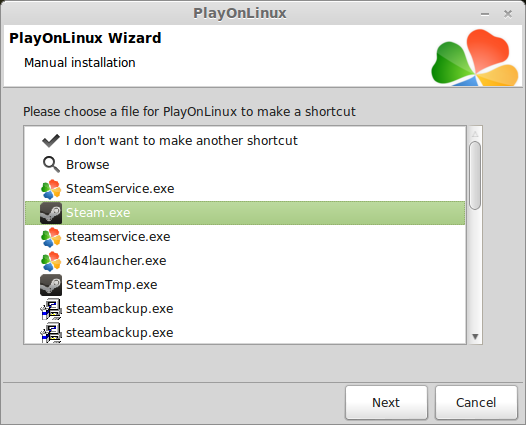

    Select Steam.exe
    Click Next

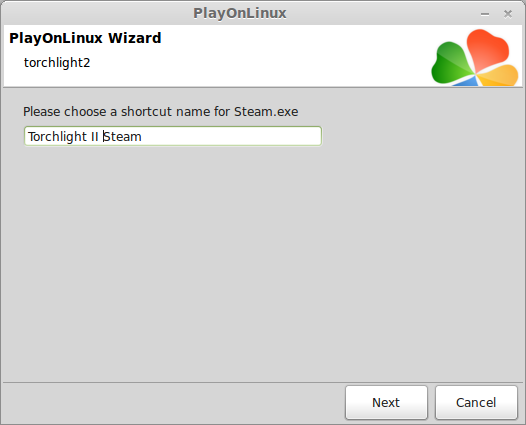

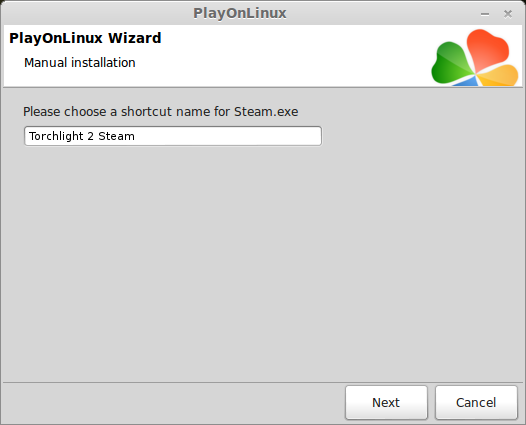

    Name your shortcut: Torchlight II Steam
    Click Next

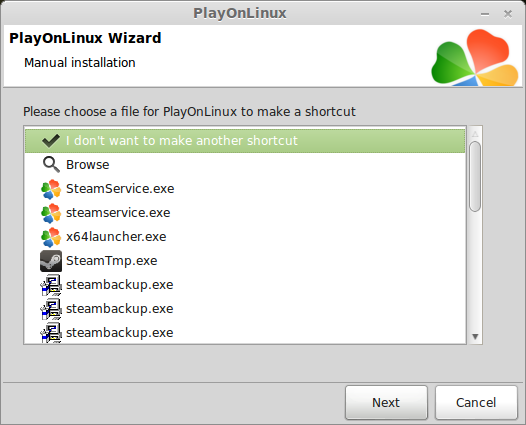

    Select "I don't want to make another shortcut"
    Click Next

    More PlayOnLinux Configuration

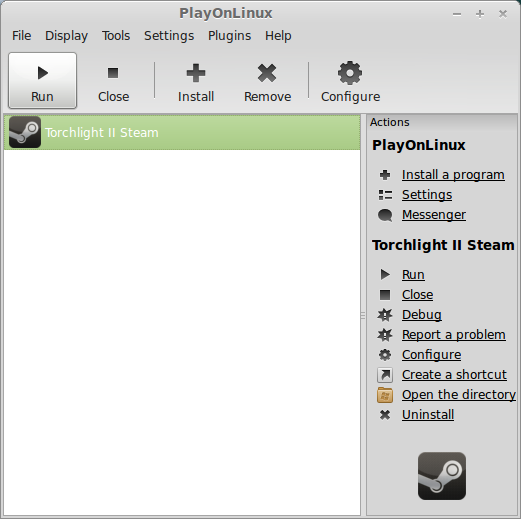

    Back to PlayOnLinux
    Click Configure
    Select Steam virtual drive

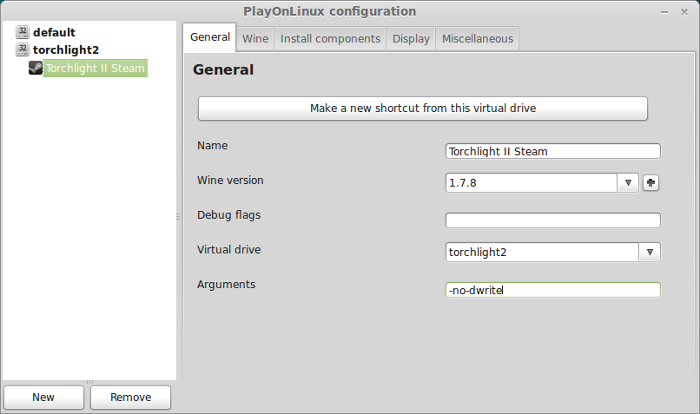

    General Tab
    Arguments: -no-dwrite
    This fixes the font problem

    Note: -no-dwrite only works if you launch Steam from PlayOnLinux. Steam is automatically set to launch when Windows starts, which means if you do a "Windows Reboot" from the Wine tab -no-dwrite won't execute. Just close Steam and try again.

    Display Tab
    Direct Draw Renderer: opengl
    Video Memory Size: size of memory on your video card
    Offscreen rendering mode: fbo

    Wine Tab
    Click "Windows reboot"
    Close Steam because it will automatically launch when Windows reboots and won't execute -no-dwrite.

    Close Configure

    Launch Steam

    Select Torchlight II Steam
    Click Run

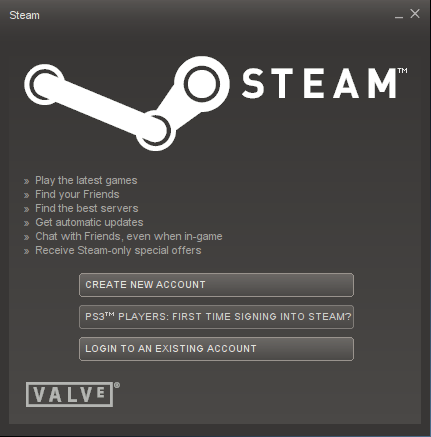

    Click Login to an existing account

    Login

    Warning: Steam In-Game Community Overlay might need to be disabled to prevent crashing!

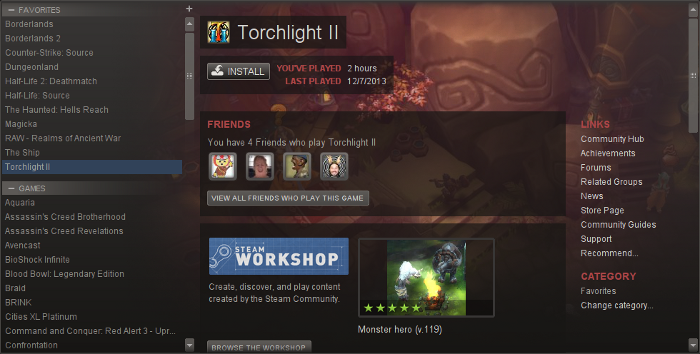

    Installing Torchlight II

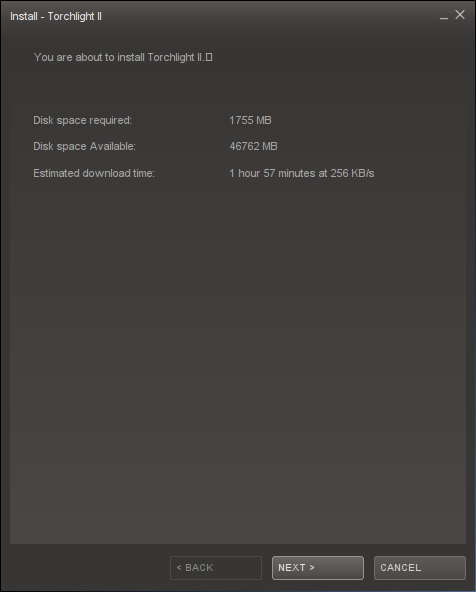

    Select Torchlight II
    Click Install

    Click Next

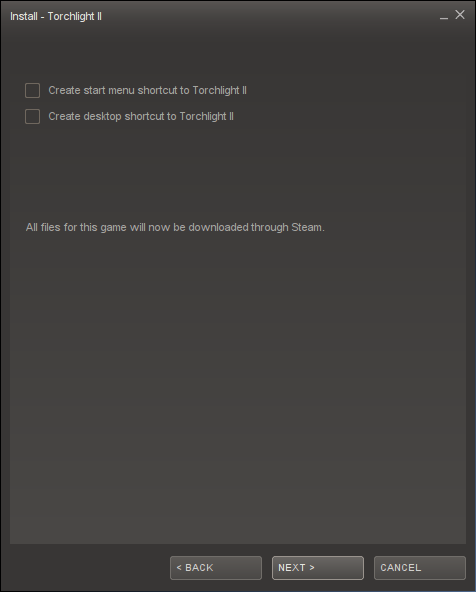

    Uncheck shortcut options
    Click Next

    Click Finish

    Torchlight II is only a few Gigabytes
    After its done downloading click Play

    Note: Direct X and Visual C might start installing directly after the first installation. We have already installed these libraries, so just let it continue.

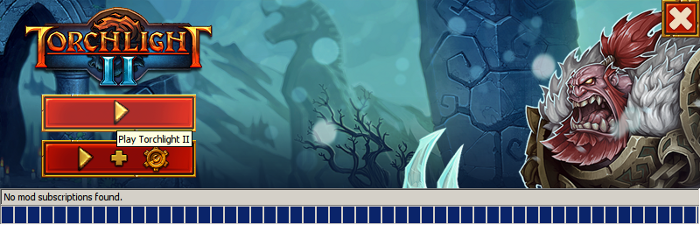

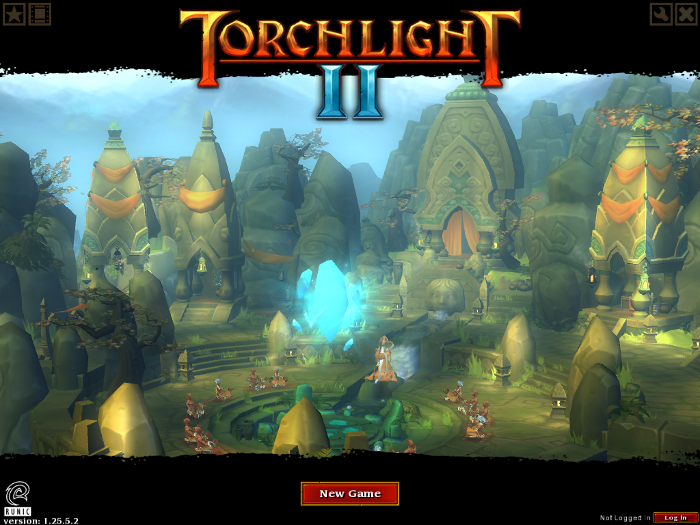

    Launcher
    Click the Play arrow

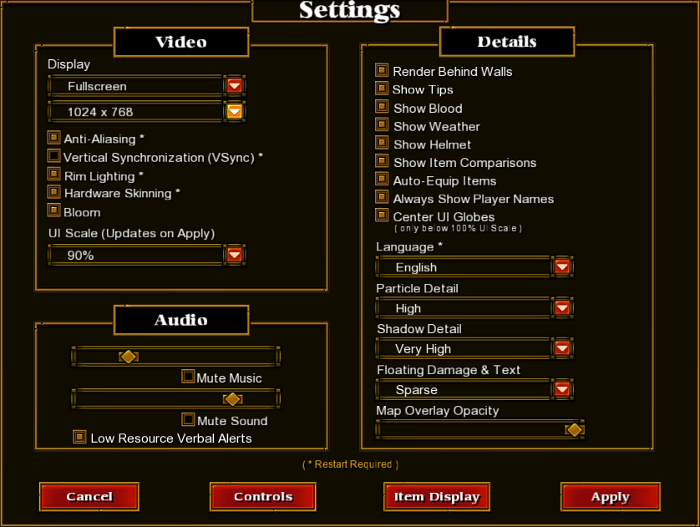

    Optimization & Video Options

    Click the wrench at the top right

    There are a lot of video options and detail option to improve performance and an older computer or laptop.
    I suggest setting the resolution to match your Linux desktop.
    This way it appears to be fullscreen.

    To improve performance you can:
    • Lower Particle Detail
    • Lower Shadow Detail
    • Disable Weather
    • Disable Anti-Aliasing
    • Disable VSync
    • Disable Rim Lighting
    • Disable Hardware Skinning
    • Disable Bloom
    Try one at a time and launching the game to see if it made any difference.

    Click Apply

    Rule of thumb:
    Higher Settings = More detail, lower frame rates
    Lower Settings = Less detail, higher frame rates

    Conclusion:
    Torchlight II is running perfectly with Wine 1.7.8 and all of the graphical effects look beautiful.
    I was able to restore my Windows save games and continue playing without any hitches.

    Video options worked perfectly and I was able to warp to different areas in the game. Audio, mouse/keyboard and all menu's worked GREAT.

    Screenshots:





    Last edited: Dec 12, 2019

Comments

Discussion in 'Guides' started by booman, Jul 3, 2013.

  1. booman

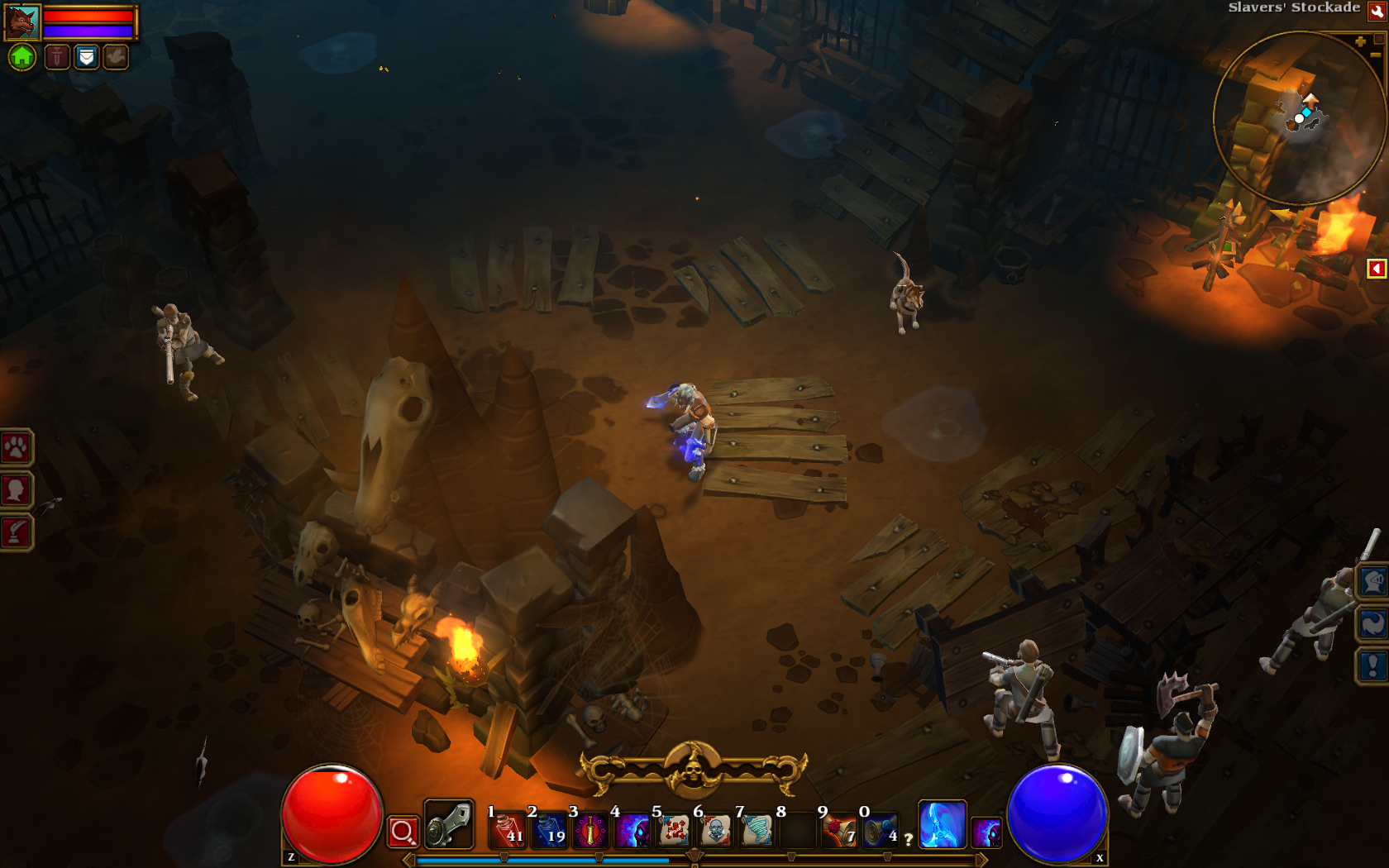

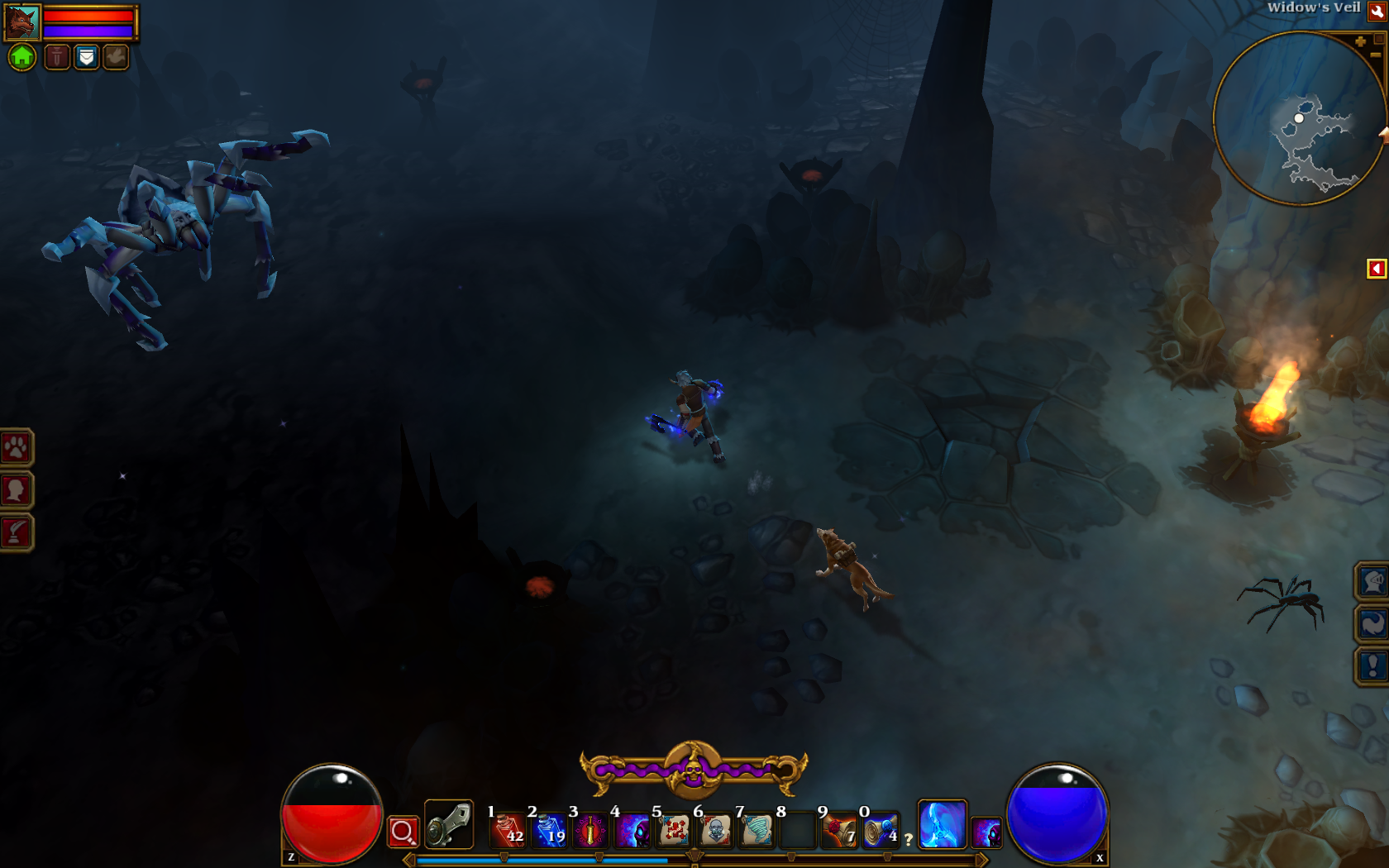

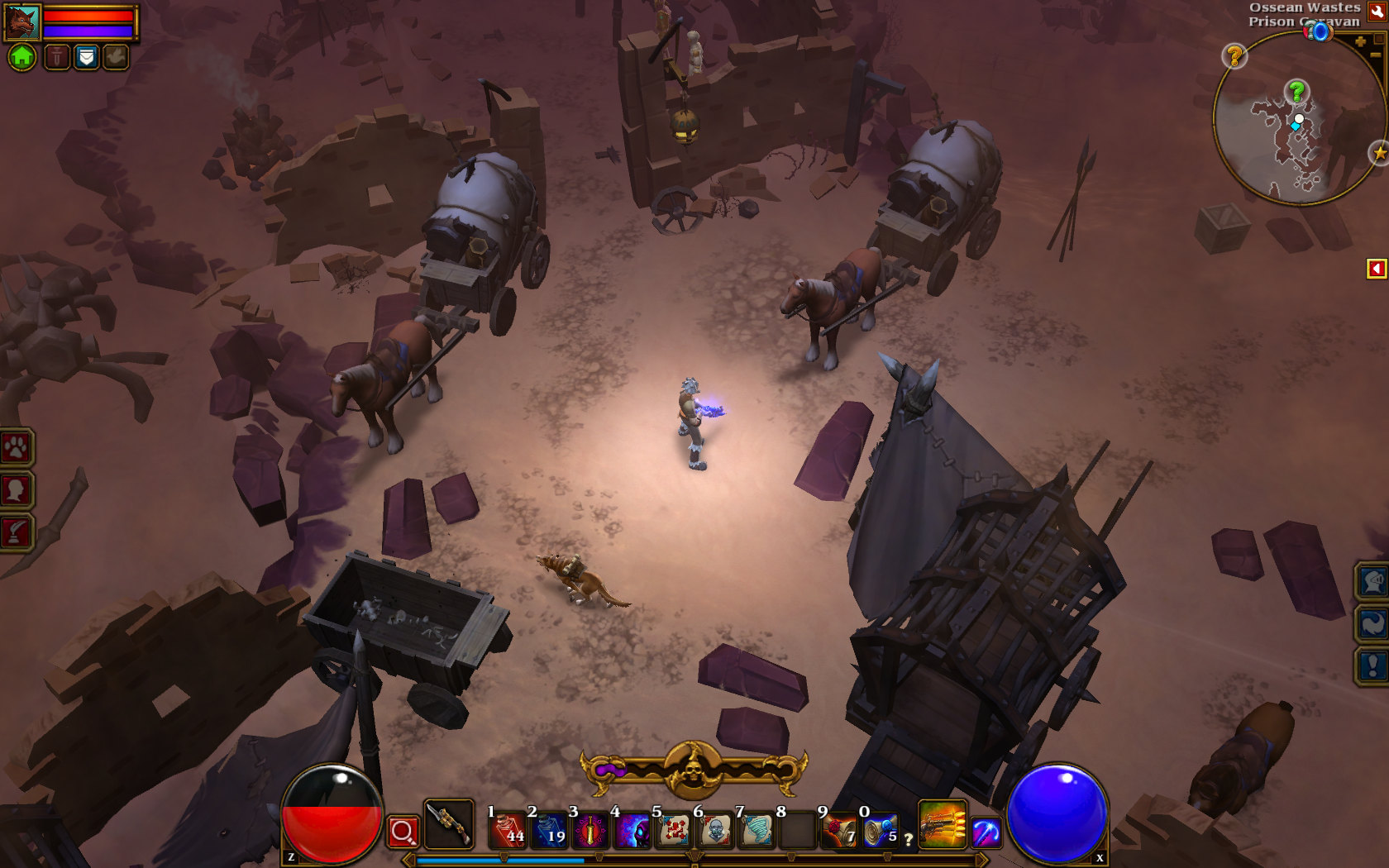

    High Res Screenshots
    torch80.png torch81.png

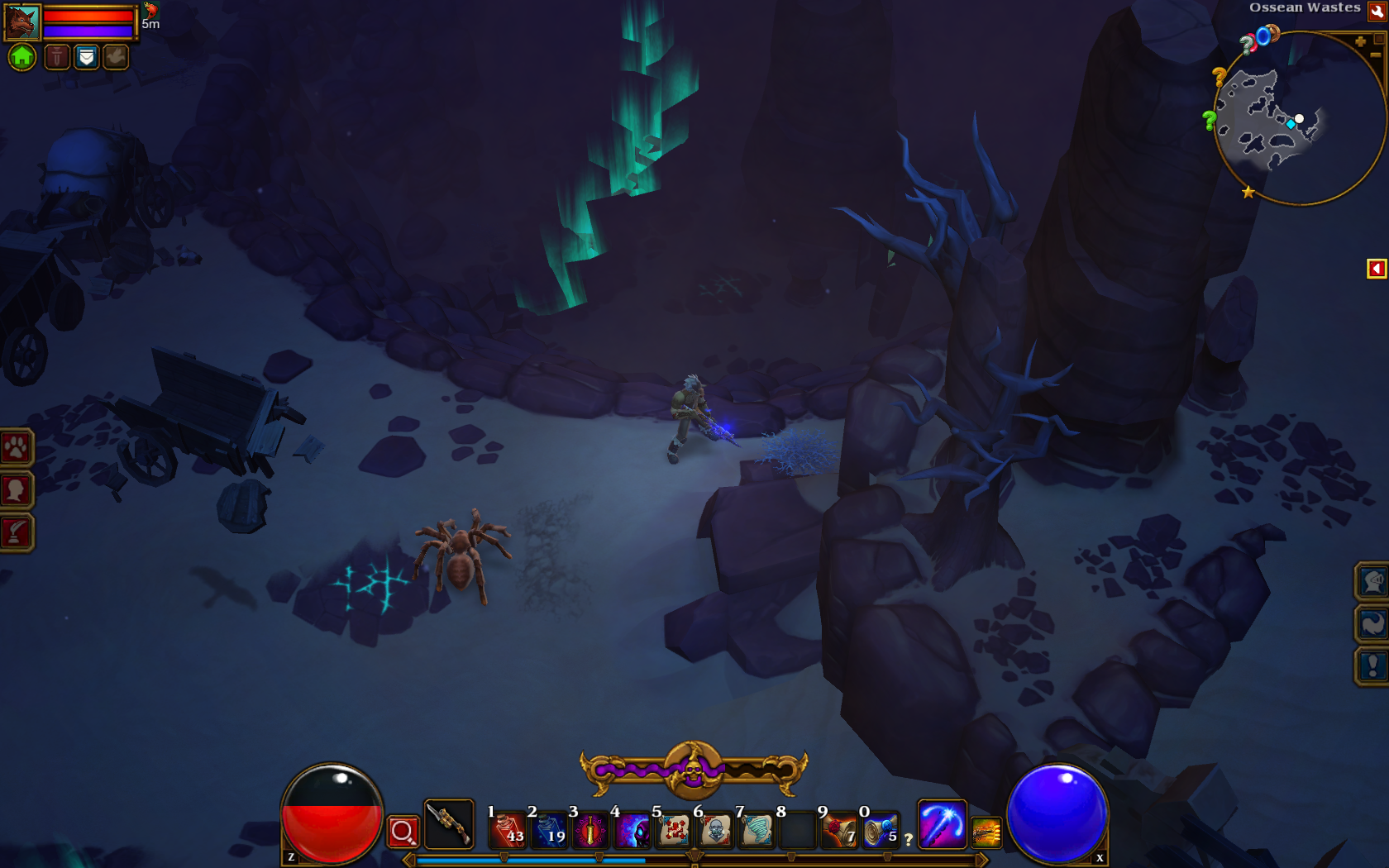

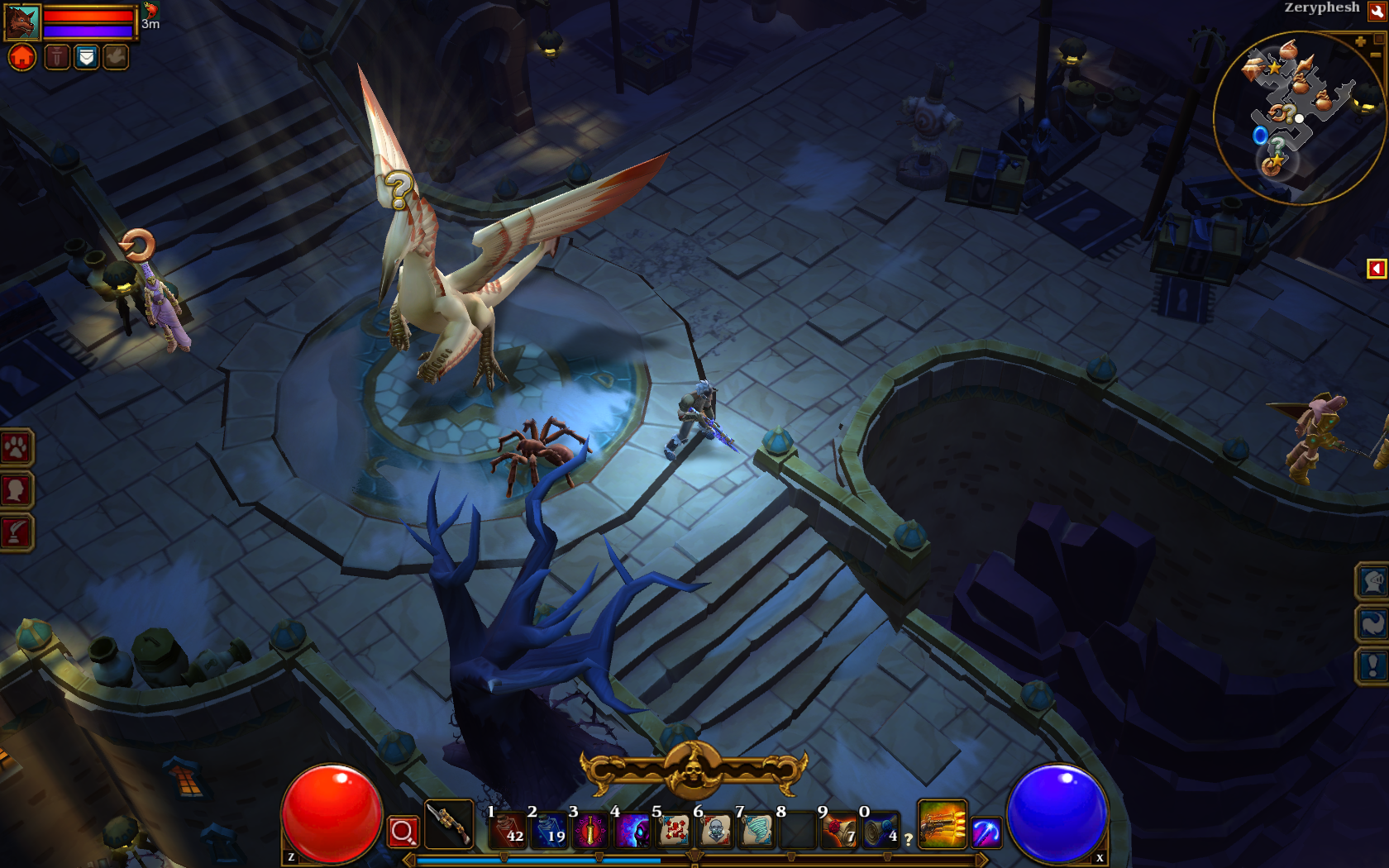

    torch82.png torch83.png

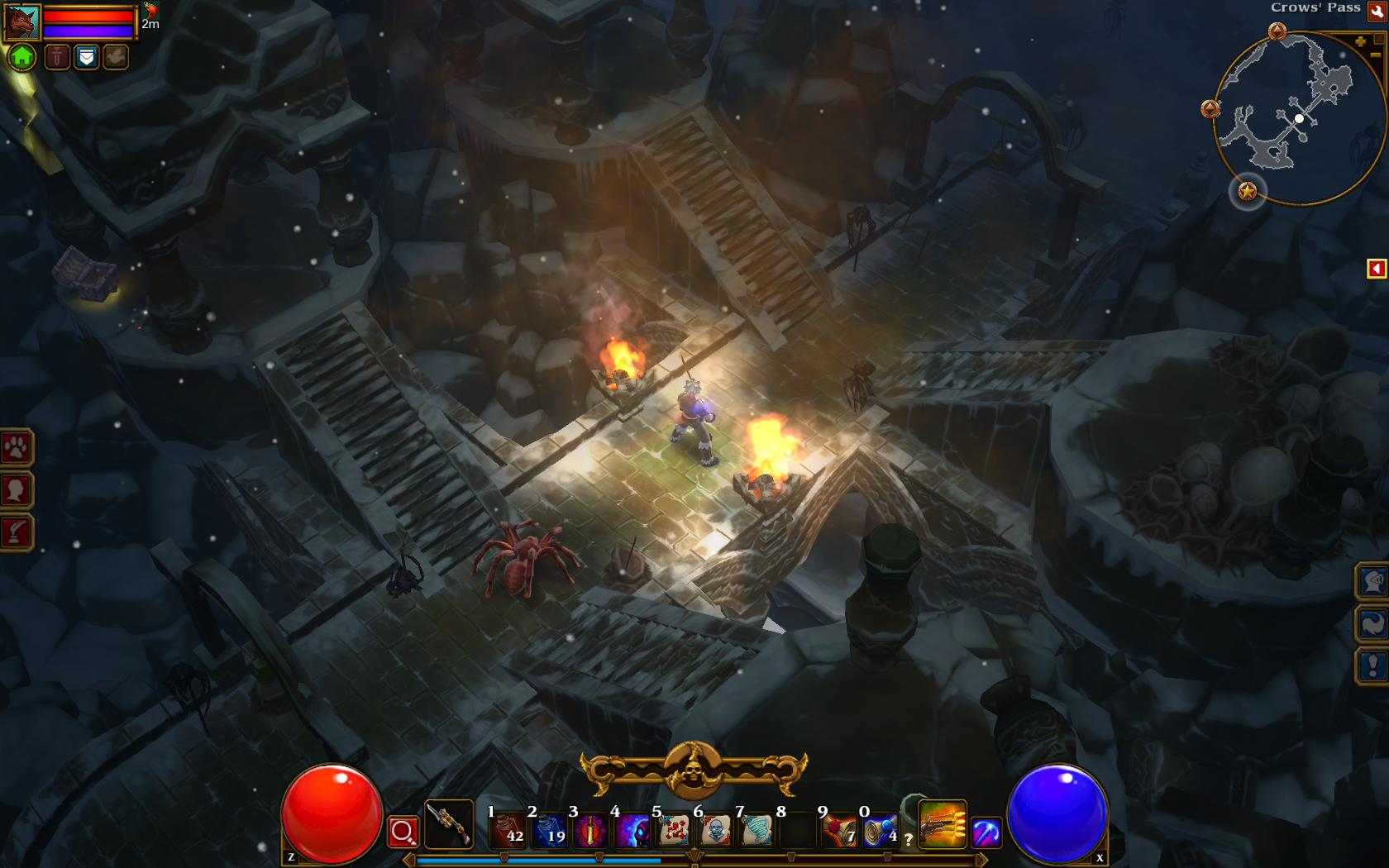

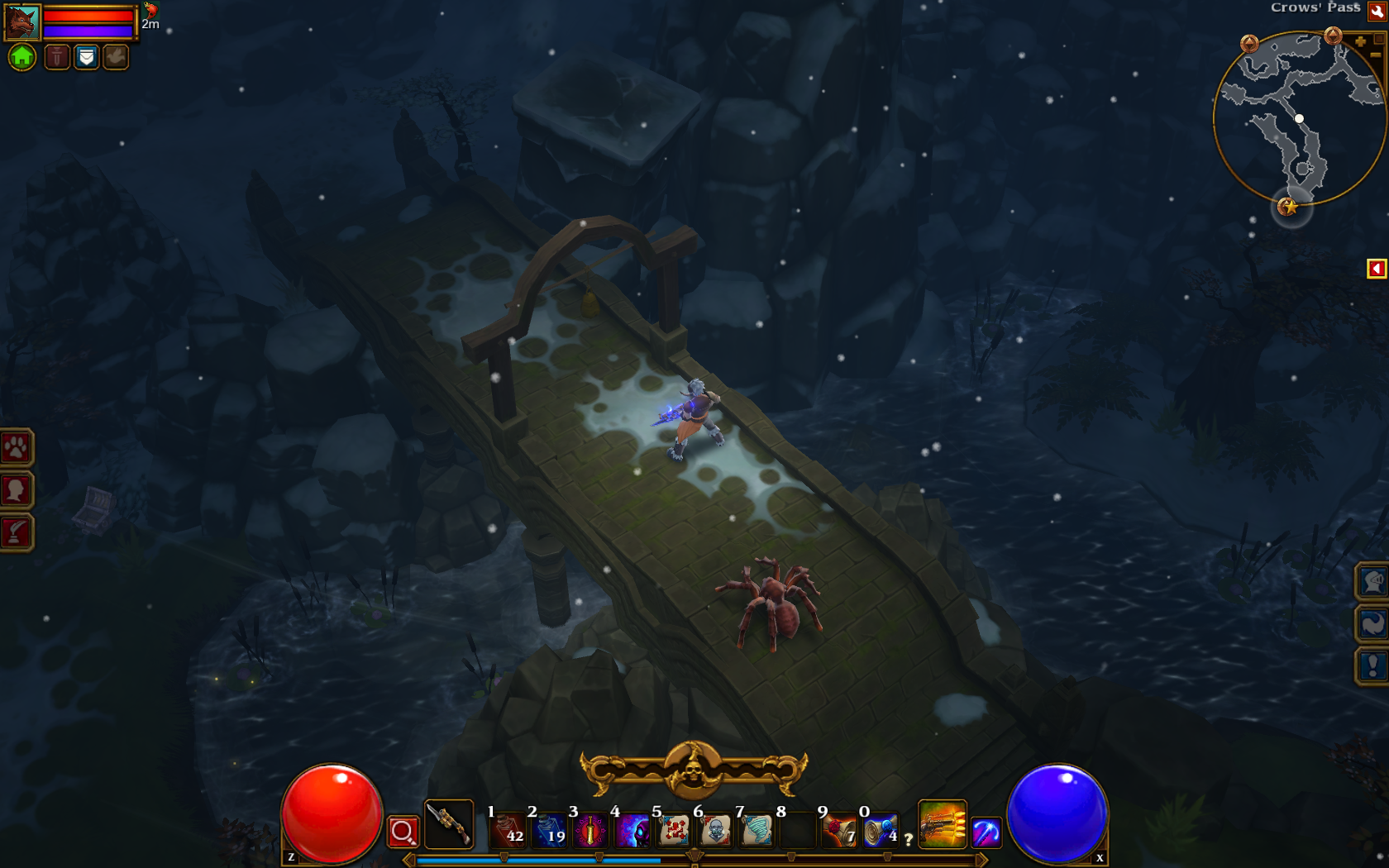

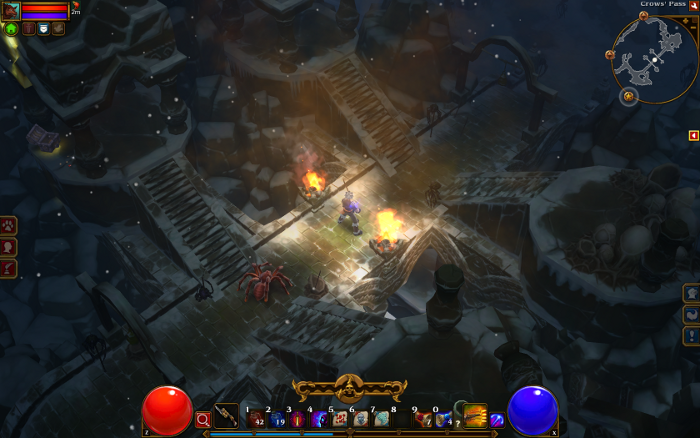

    torch84.png torch85.png

    torch86.png torch87.png

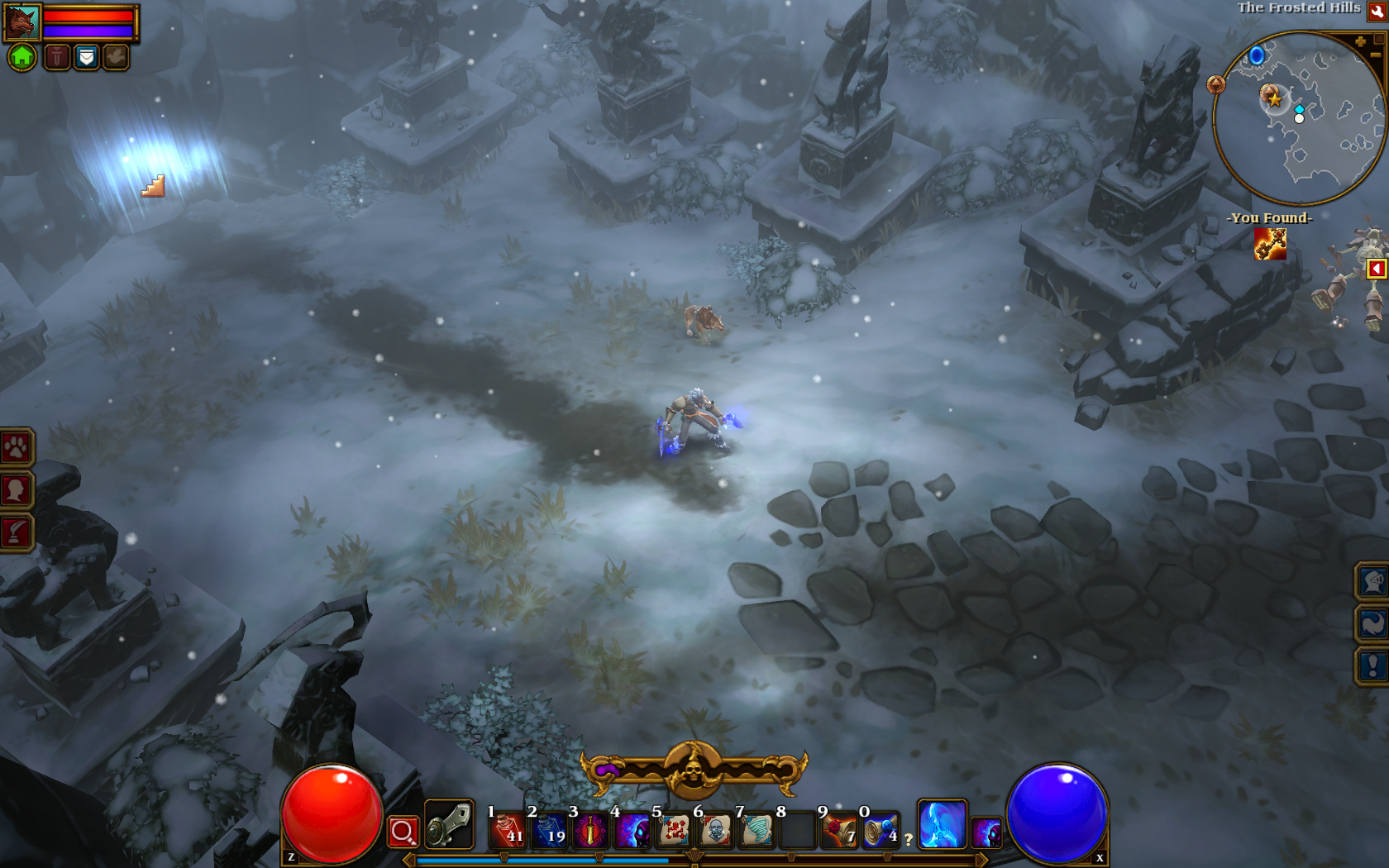

    torch88.png torch89.png

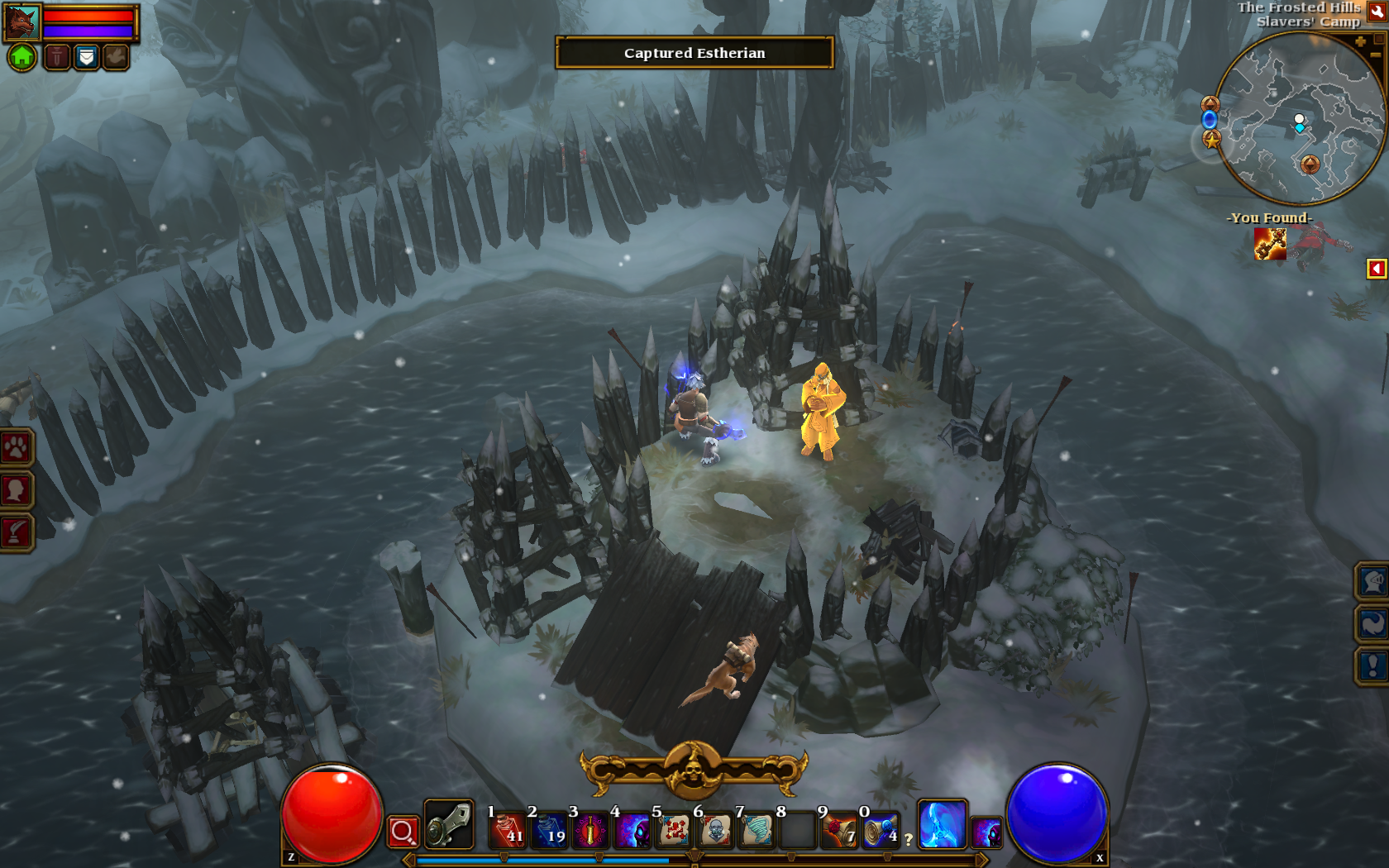

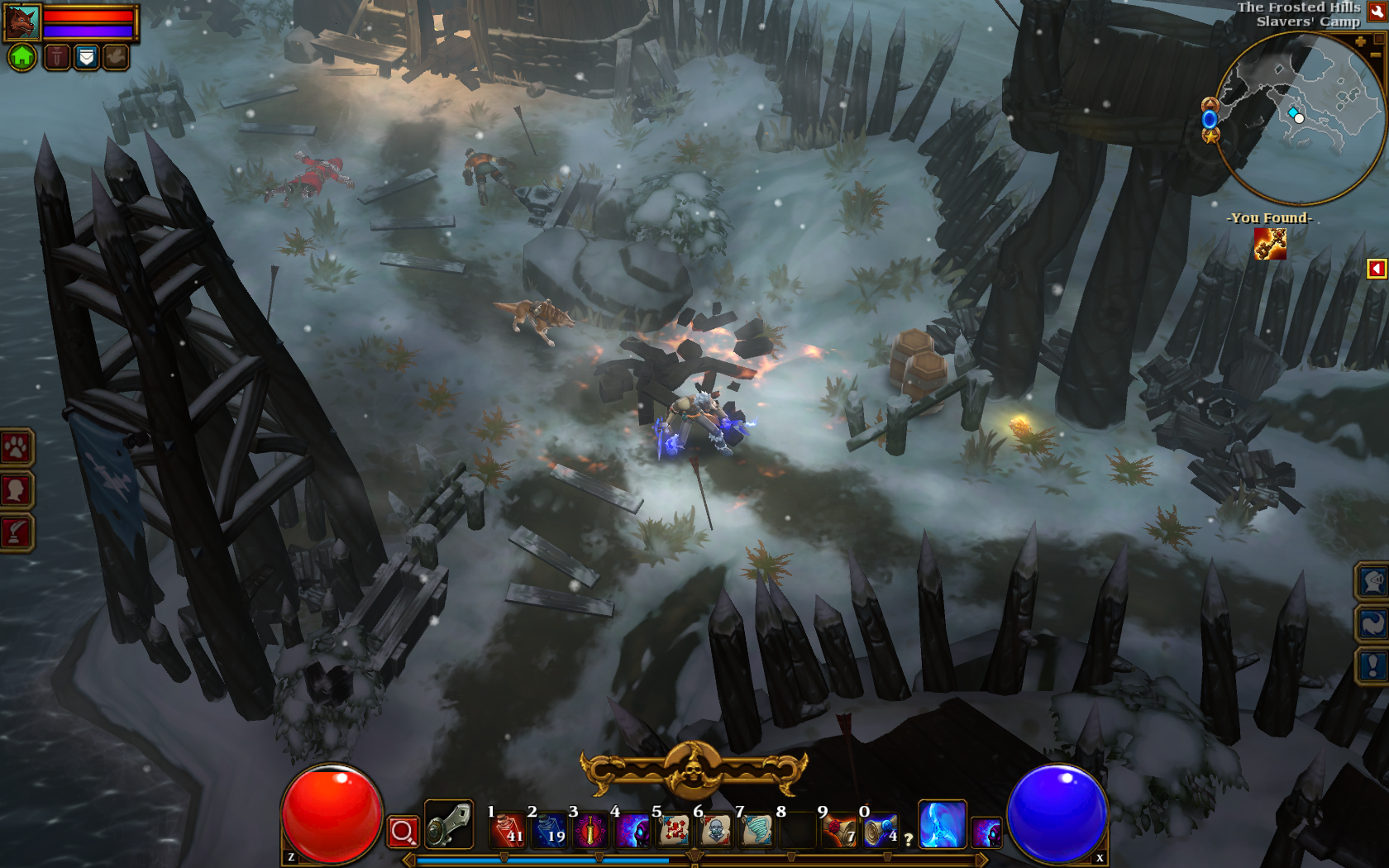

    torch90.png torch91.png

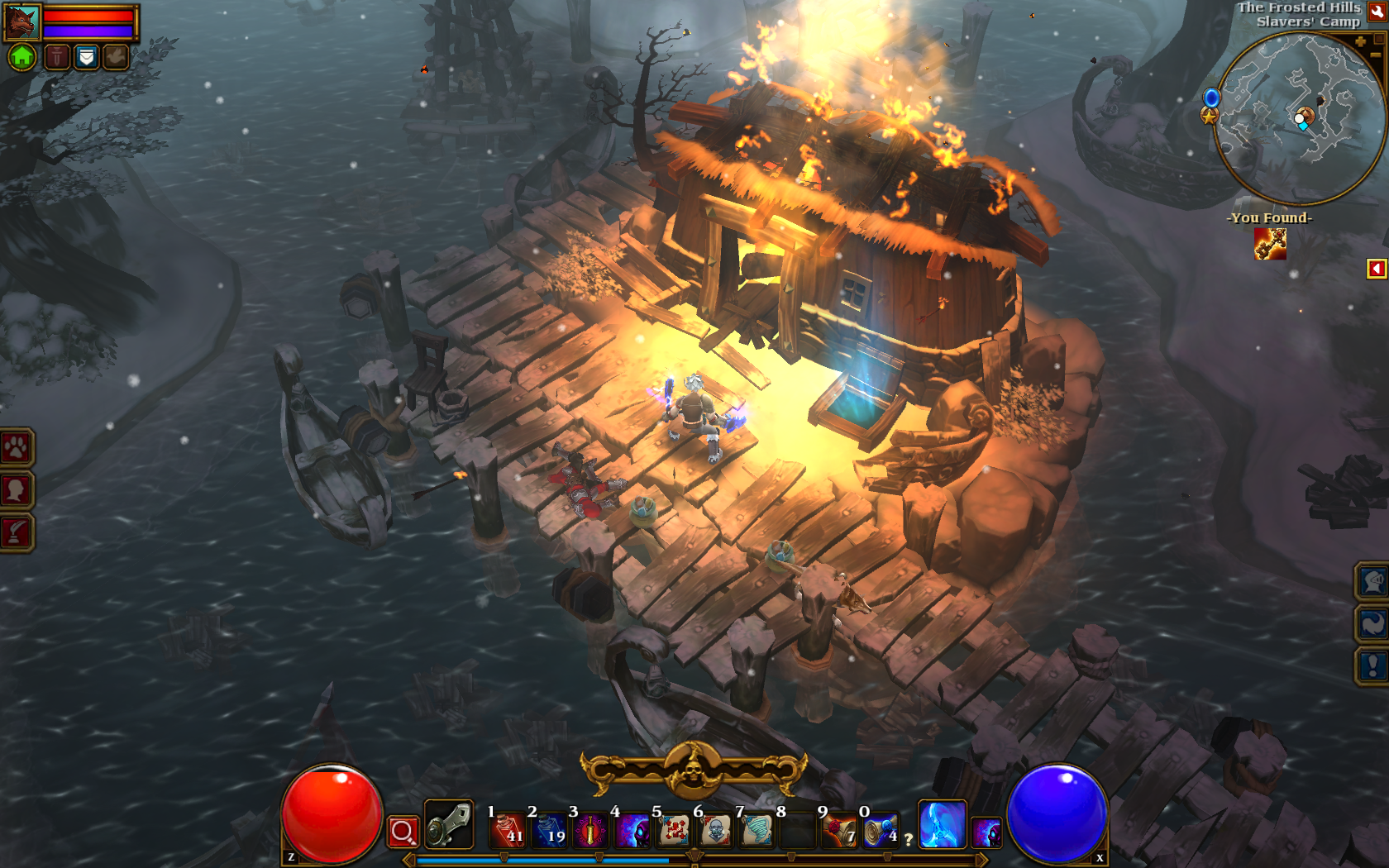

    torch92.png torch93.png

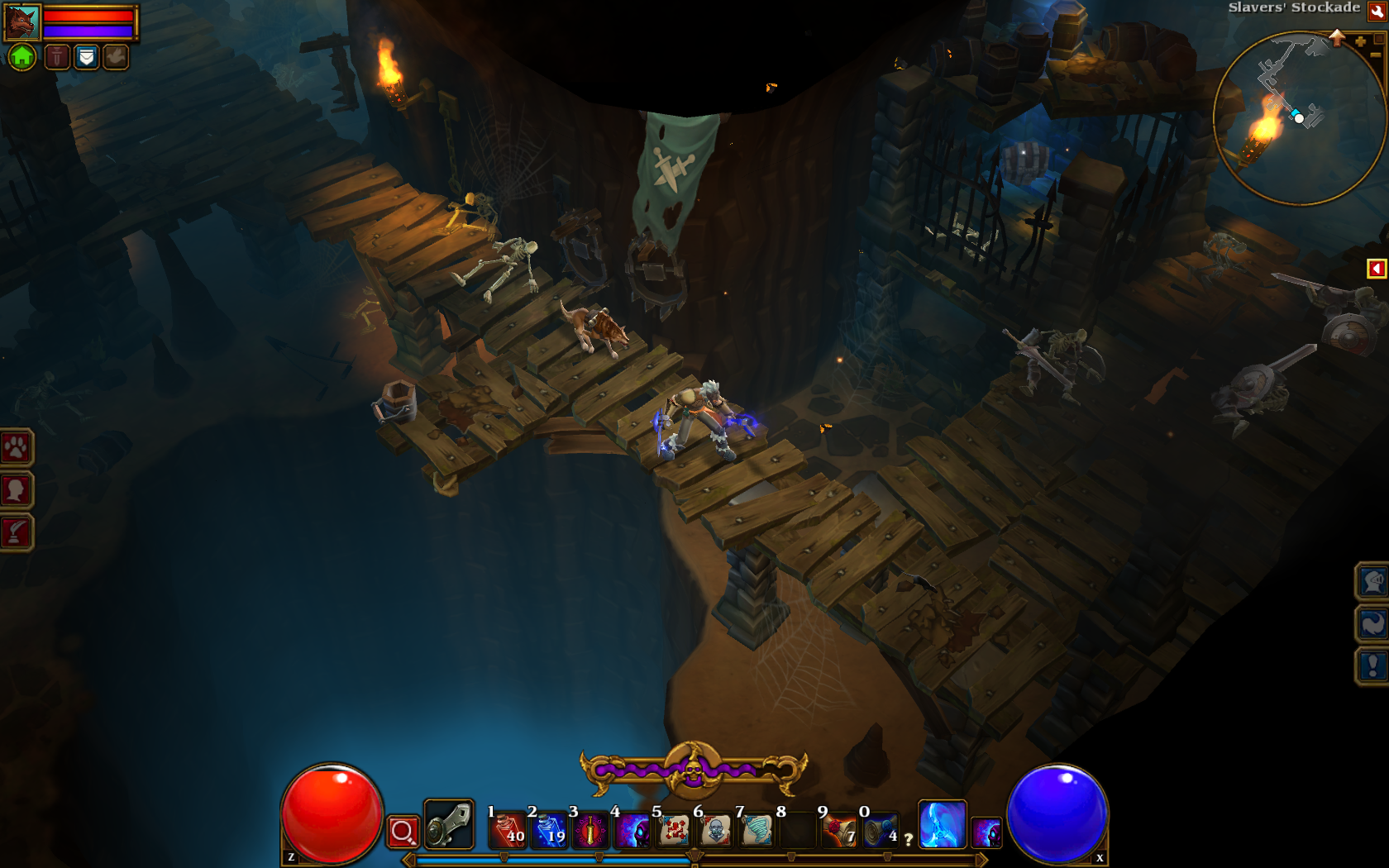

    torch94.png torch95.png
