    Lara Croft is searching for her Mom and the secrets that surround her dissapearance. Explore underwater caves, ancient tombs and the mysterious power of Thor... but, you are not alone! This episode of Tomb Raider is filled with clever puzzles, creative jumps, hardcore splunking and lots of action.


    Follow my step-by-step guide on installing, configuring and optimizing Tomb Raider Underworld in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Tomb Raider Underworld. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 17.3 64-bit
    PlayOnLinux: 4.2.10
    Wine: 2.0-staging

    Wine Installation

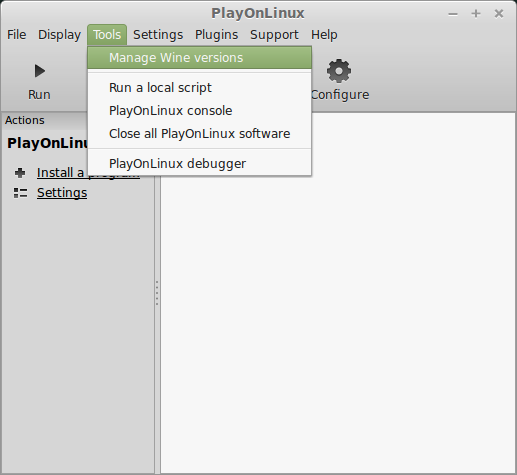

    Click Tools

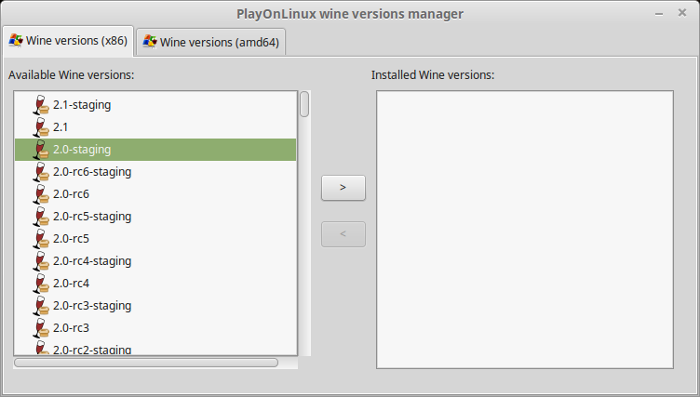

    Select "Manage Wine Versions"

    Look for the Wine Version: 2.0-staging
    Select it
    Click the arrow pointing to the right

    Click Next

    Downloading Wine

    Extracting

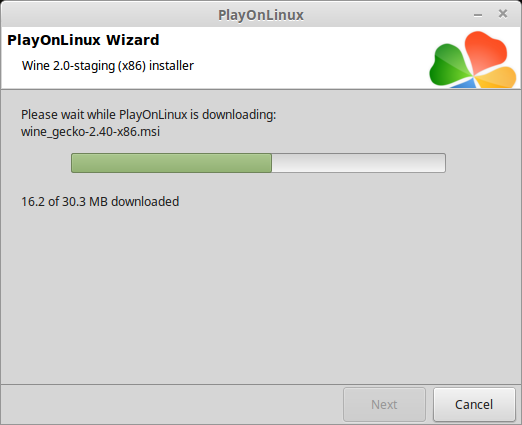

    Downloading Gecko

    Installed

    Wine 2.0-staging is installed and you can close this window

    Downloading Steam

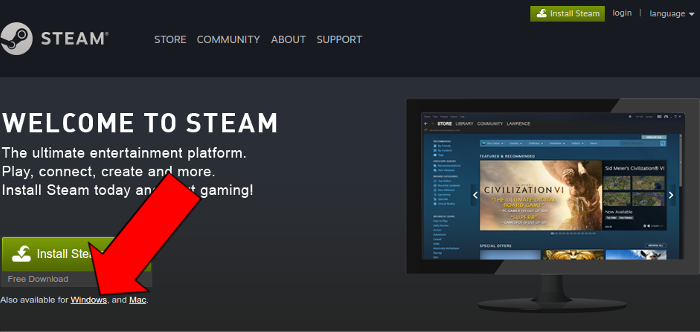

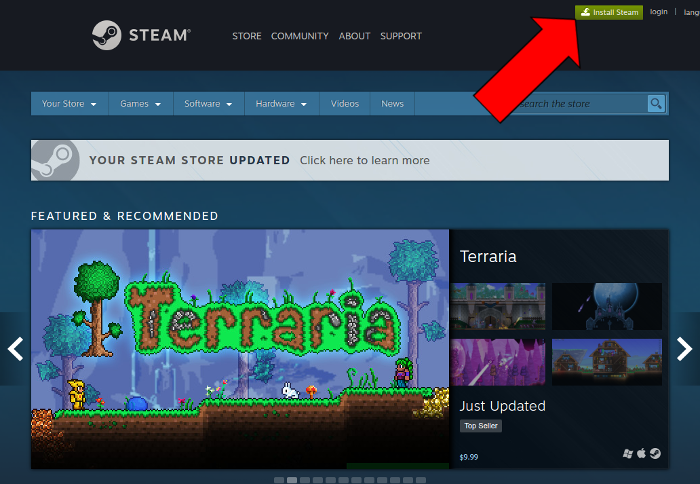

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam
    Select Windows Steam instead
    click "Windows" under the green button

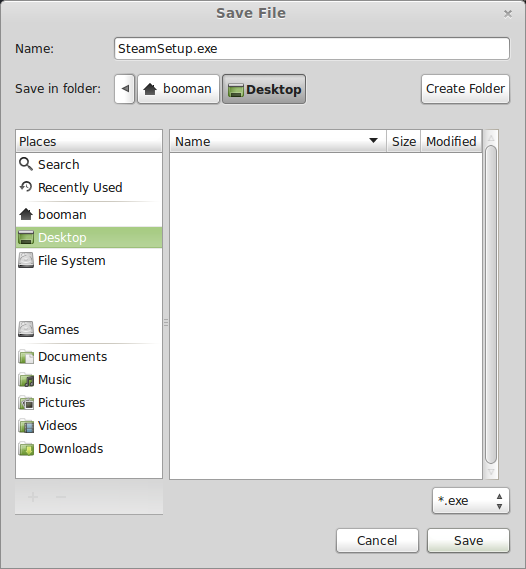

    Navigate to your desktop
    Click Save

    PlayOnLinux Setup

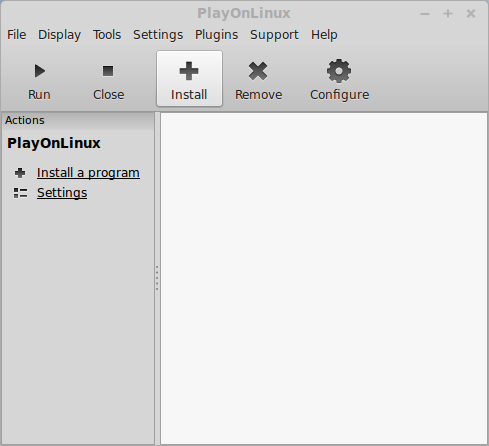

    Launch PlayOnLinux
    Click Install

    Click "install a non-listed program"

    Click Next

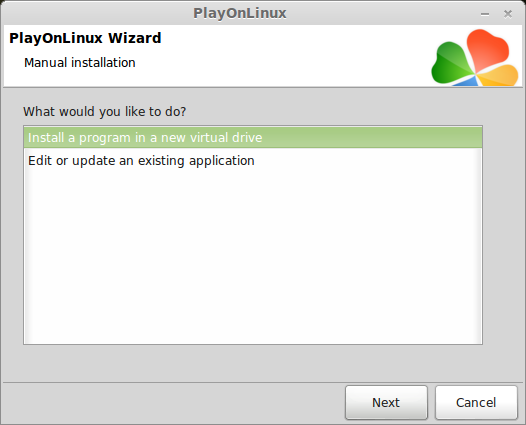

    Select "Install a program in a new virtual drive"
    Click Next

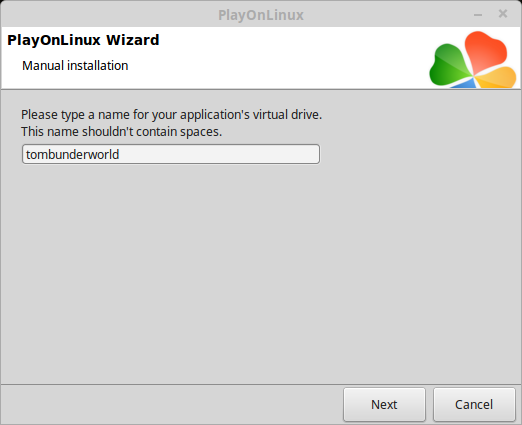

    Name your virtual drive: tombunderworld
    No spaces
    Click Next

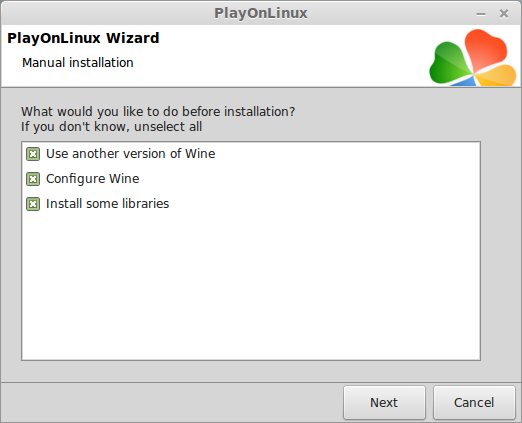

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

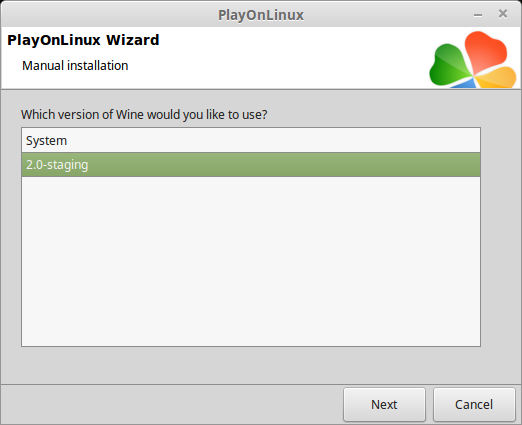

    Select Wine: 2.0-staging
    Click Next

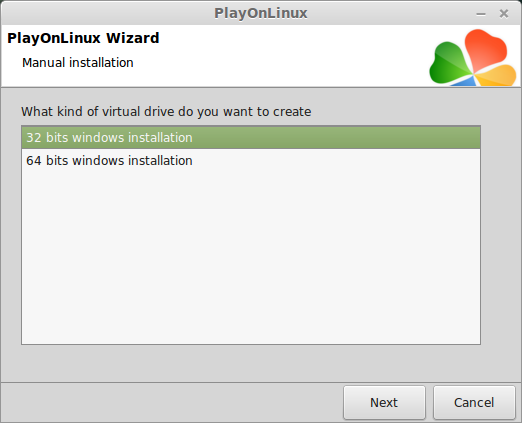

    Select "32 bits windows installation"
    Click Next

    Configure Wine

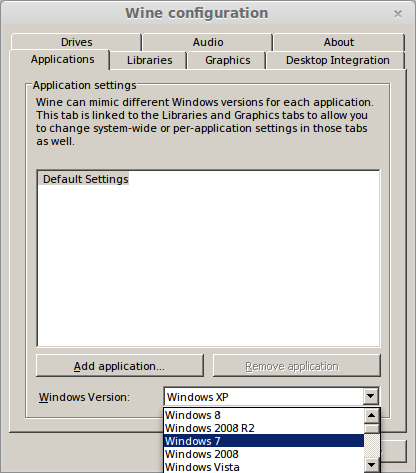

    Applications Tab
    Windows Version: Windows 7
    Click Apply

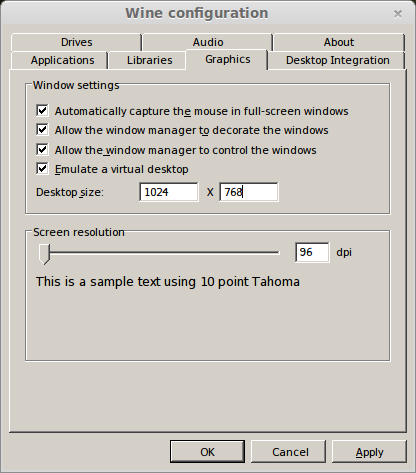

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Check: Emulate a virtual desktop
    Desktop size: 1024x768
    Click Ok

    PlayOnLinux Packages (Libraries, Components, DLL's)

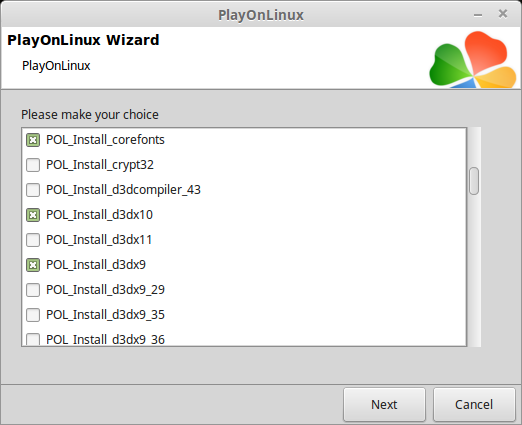

    Check the following libraries:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_d3dx10
    • POL_Install_tahoma

    Click Next

    Note: All packages will automatically download and install

    Installing Steam

    Click Browse

    Navigate to your desktop
    Select: SteamSetup.exe
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

    Updating Steam

    Click the "X" to close Steam login

    Note: Sometimes there is a problem with fonts, we'll fix that later

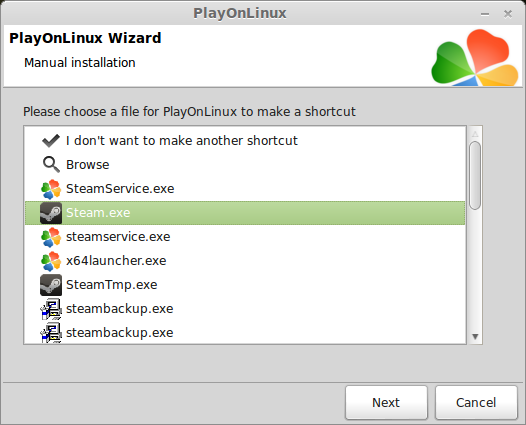

    PlayOnLinux Shortcut

    Select Steam.exe
    Click Next

    Name your shortcut: Tomb Raider Underworld
    Click Next

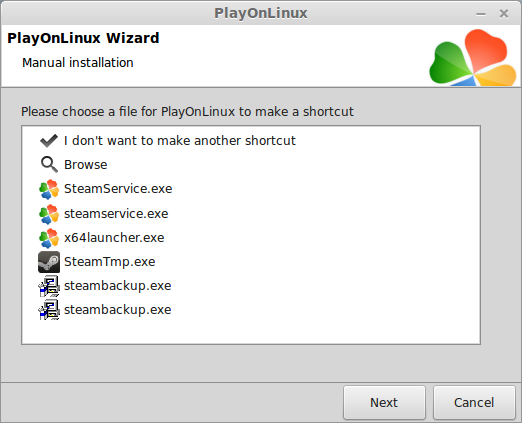

    Select "I don't want to make another shortcut"
    Click Next

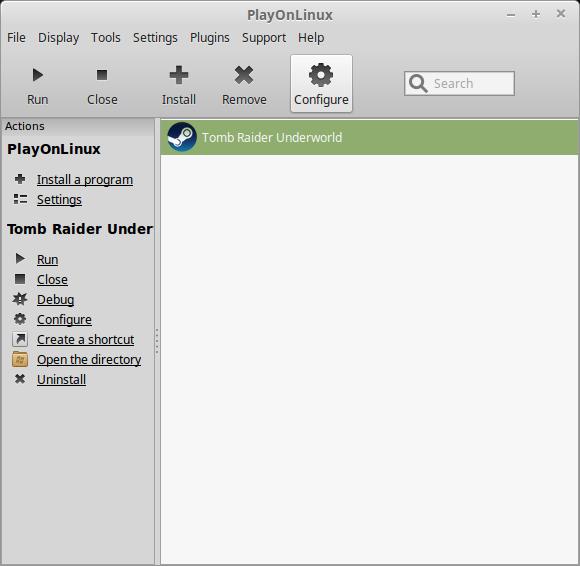

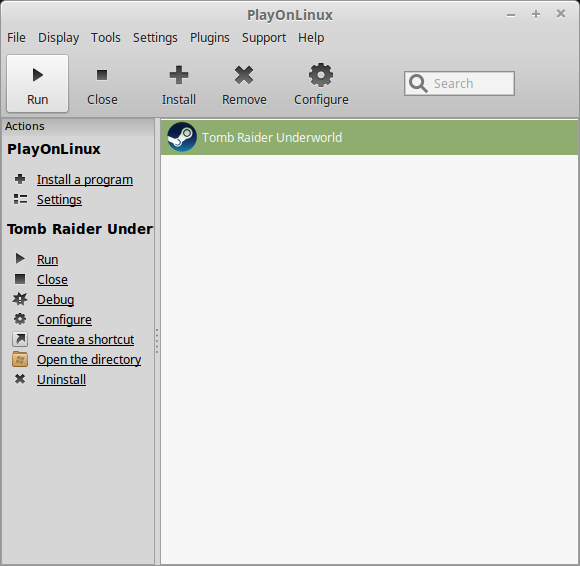

    PlayOnLinux Configure

    Back to PlayOnLinux

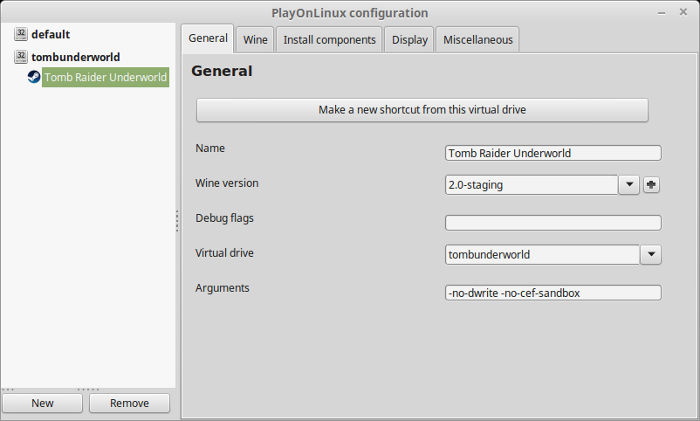

    Click Configure

    General Tab
    Arguments: -no-dwrite -no-cef-sandbox
    This fixes the missing font problem and the store problem

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of wine

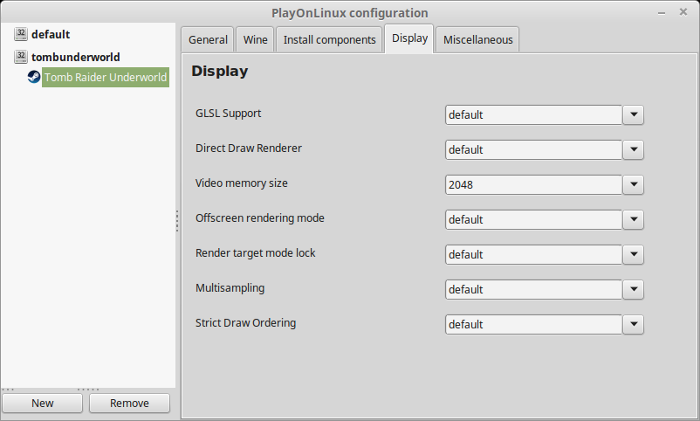

    Display Tab
    Video Memory Size: Select the size of Memory your video card/chip uses

    Close Configure

    Launching Steam

    Select Tomb Raider Underworld
    Click Run

    Note: Click debug to see errors and bugs

    Click "Login to existing account"

    Login

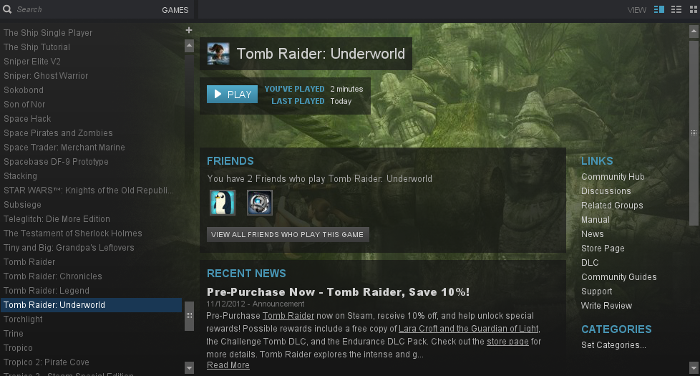

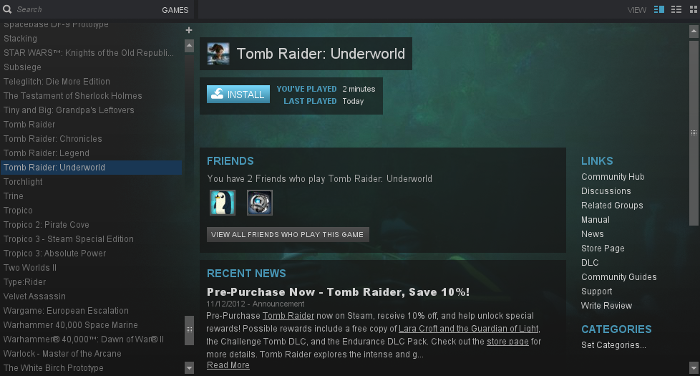

    Go to Steam Library
    Find Tomb Raider Underworld

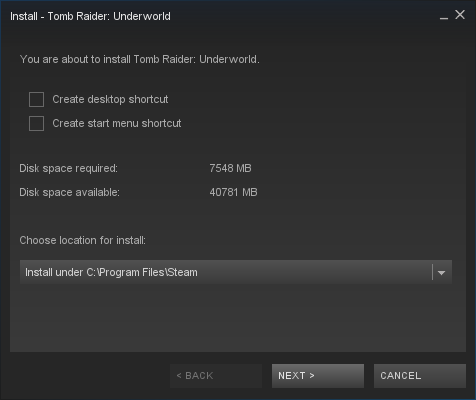

    Click Install

    Uncheck "Created desktop shortcut"
    Uncheck "Create start menu shortcut"
    Click Next

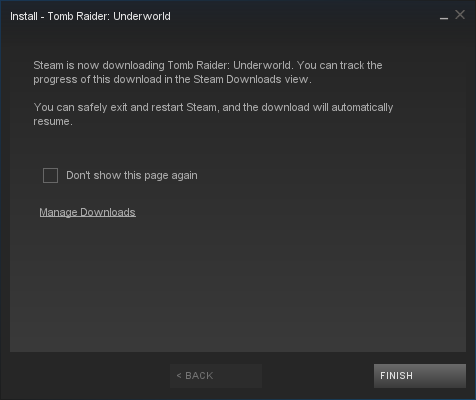

    Click Finish

    Click Play

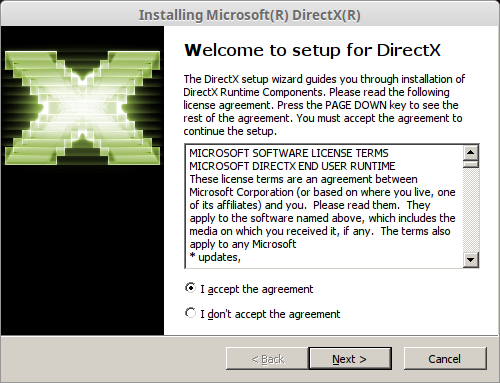

    Follow Direct X installation

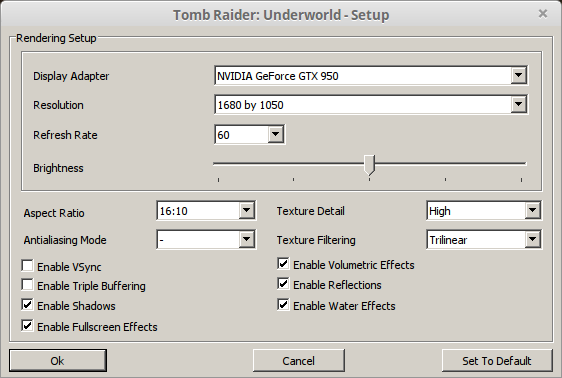

    Display Setup

    Adjust your graphics settings before the initial launch
    Click OK

    Optimization (In-Game)

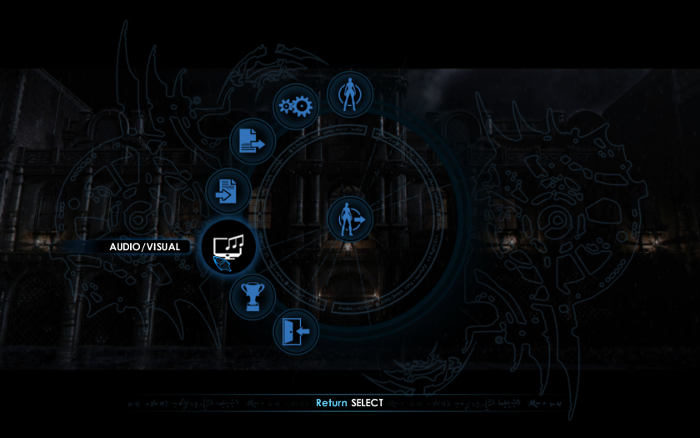

    Click Audio/Visual

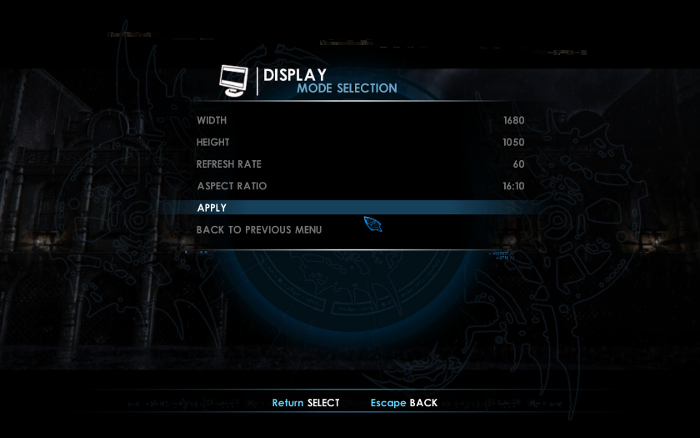

    Click Display Mode Selection

    Adjust Width, Height, Refresh Rate and Aspect Ration
    Click Apply

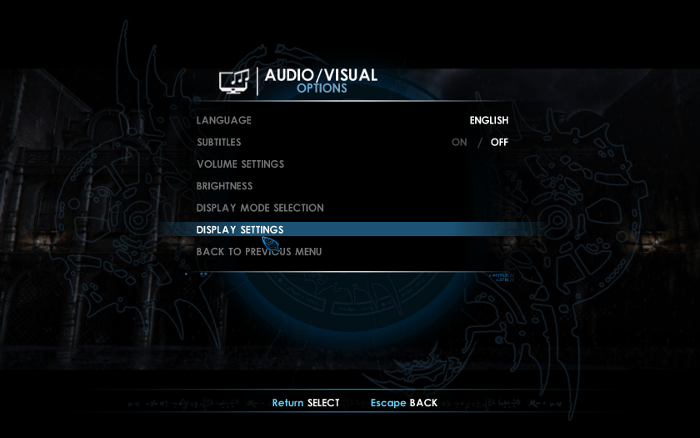

    Back to Audio/Visual Menu

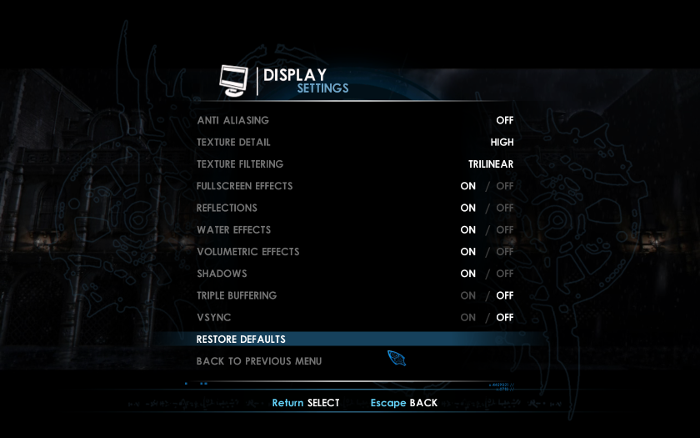

    Click Display Settings

    Adjust:
    • Anti Aliasing
    • Texture Detail
    • Texture Filtering
    • Fullscreen Effects
    • Reflections
    • Water Effects
    • Volumetric Effects
    • Shadows
    • Triple Buffering
    • VSync

    Conclusion:
    Tomb Raider Underworld would only run if I used Wine 2.0-staging version. Wine 2.0 alone would not allow it to pass the initial title screen. Once I was able to run the game, everything ran perfectly on my GeForce GTX 950. I was able to crank the graphics up to high and had great frame rates. Underworld has a lot of great features, puzzles and visuals. It's a "must buy" in my book.

    Gameplay Video:

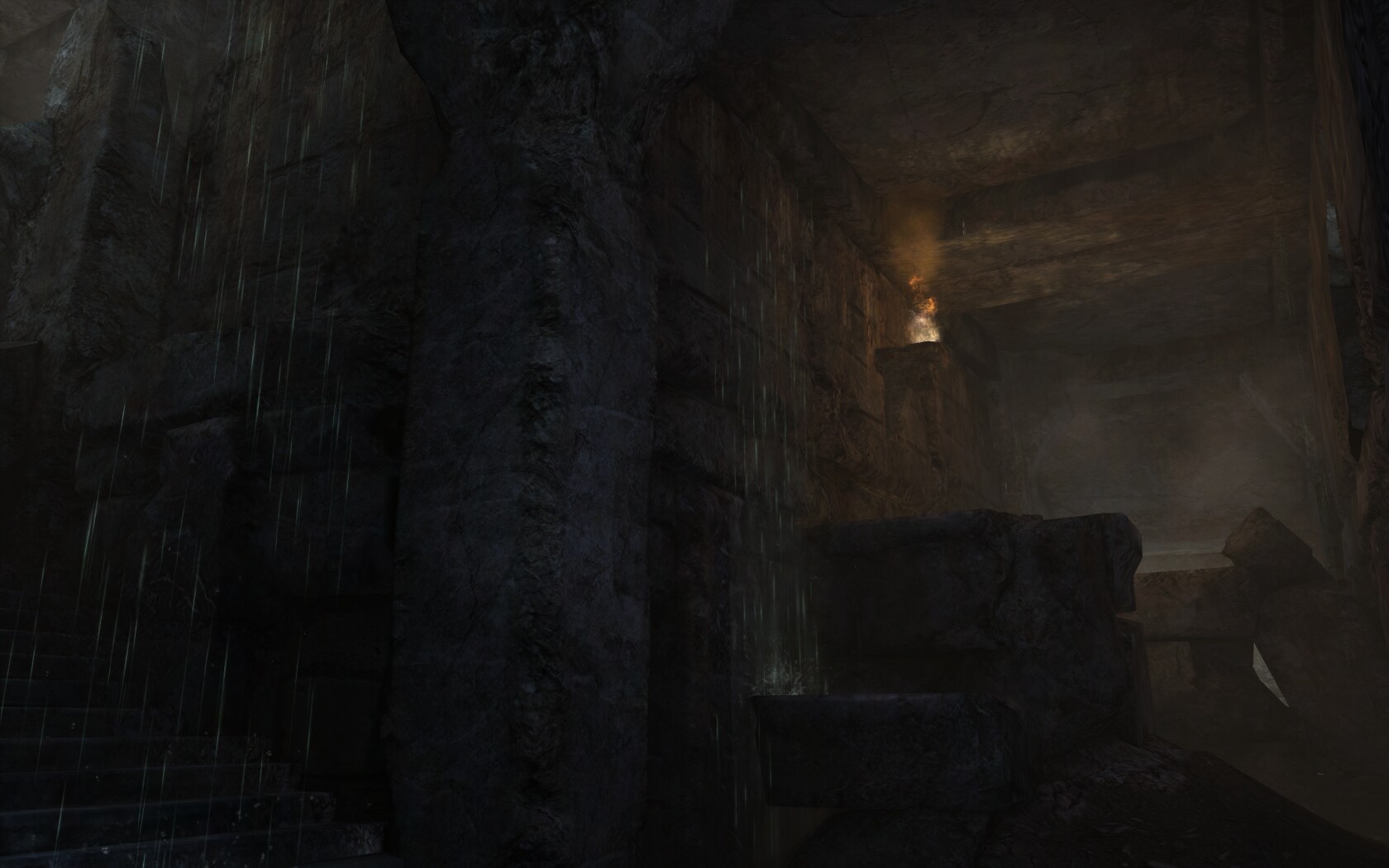

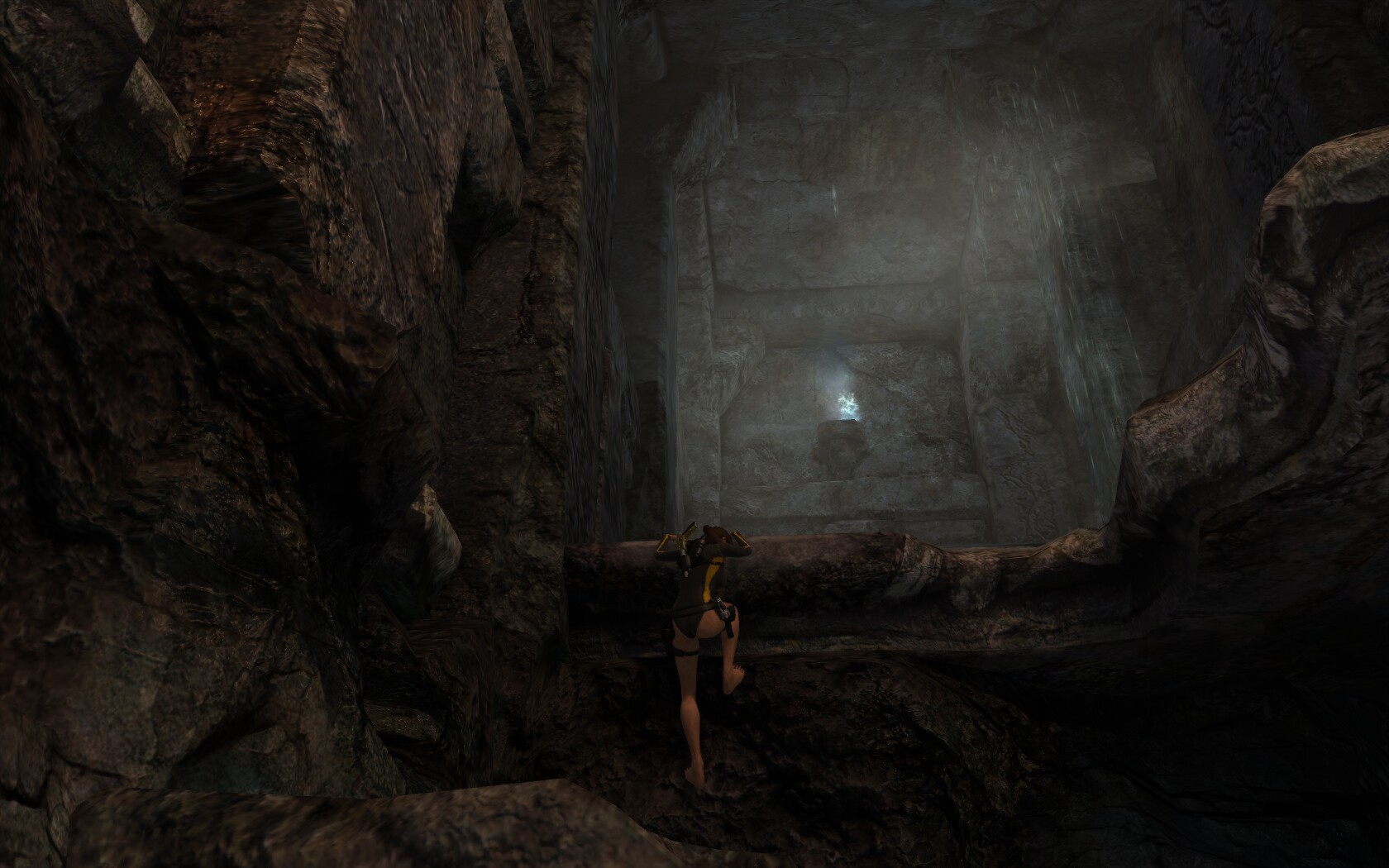

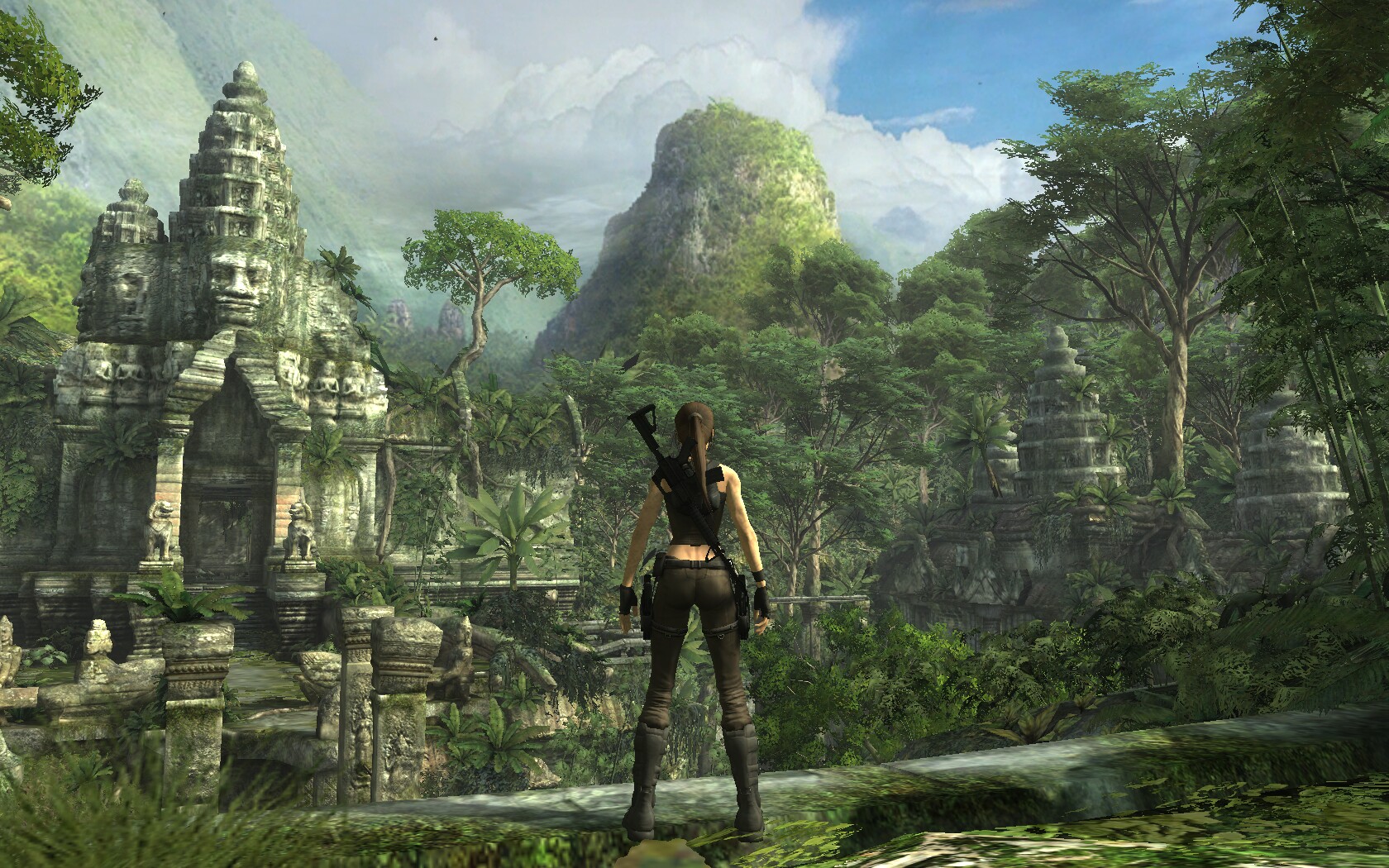

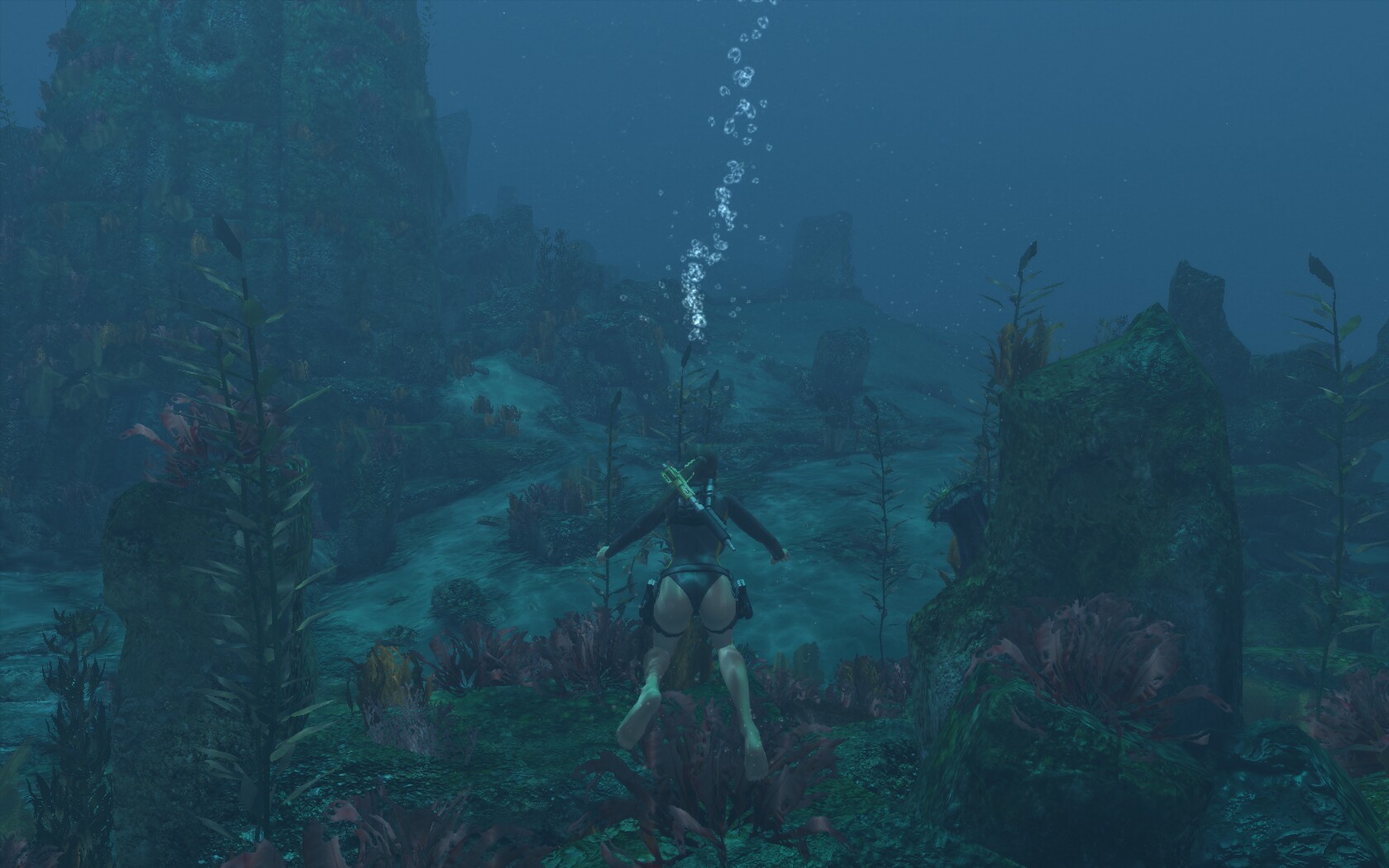

    Screenshots:








    Last edited: Feb 24, 2017
