    Doom 64 is an old remake of the original Doom, but for Nintendo 64. New levels, new weapons, new monstors and new graphics engine. I never had a Nintendo 64, so this is my chance to play the entire game in Linux.


    Follow my step-by-step guide on installing, configuring and optimizing Doom 64 in Linux with PlayOnLinux.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 18.1 64-bit
    PlayOnLinux: 4.2.10
    Wine: 2.0

    Wine Installation

    Click Tools

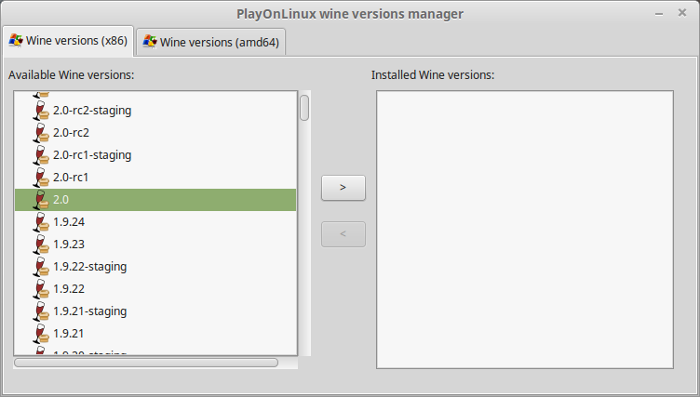

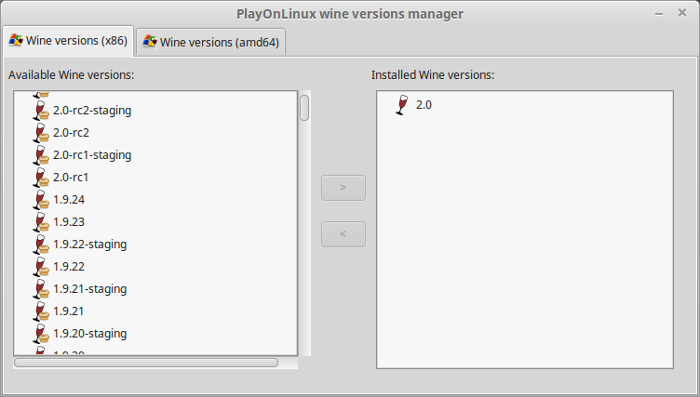

    Select "Manage Wine Versions"

    Look for the Wine Version: 2.0
    Select it
    Click the arrow pointing to the right

    Click Next

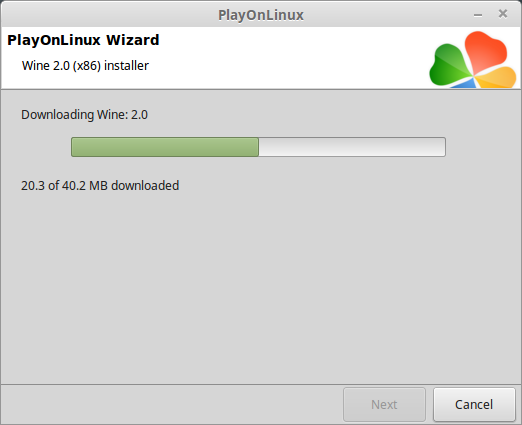

    Downloading Wine

    Extracting

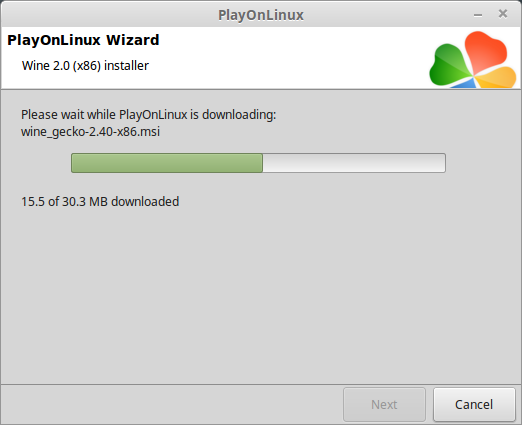

    Downloading Gecko

    Installed

    Wine 2.0 is installed and you can close this window

    Download Doom 64

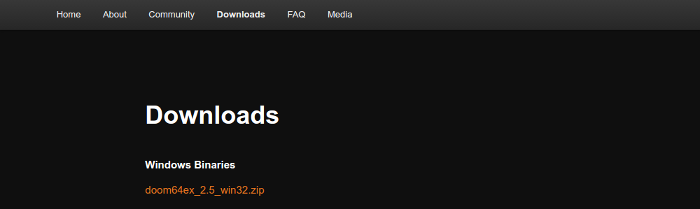

    Go to: https://doom64ex.wordpress.com/downloads/
    Click doom64ex_2.5_win32.zip

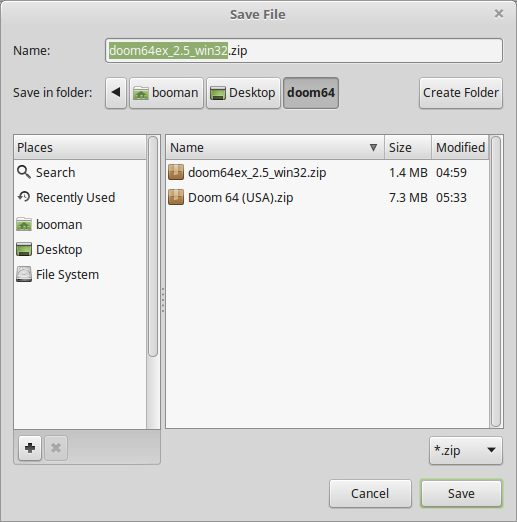

    Navigate to your Desktop
    Click Save

    PlayOnLinux Setup

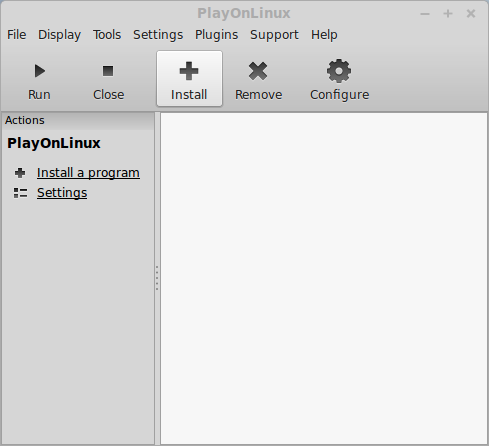

    Launch PlayOnLinux

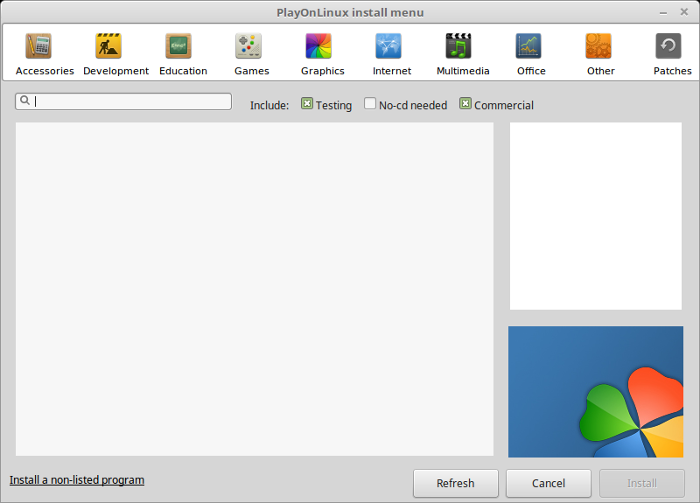

    Click Install

    Click "Install a non-listed program"

    Click Next

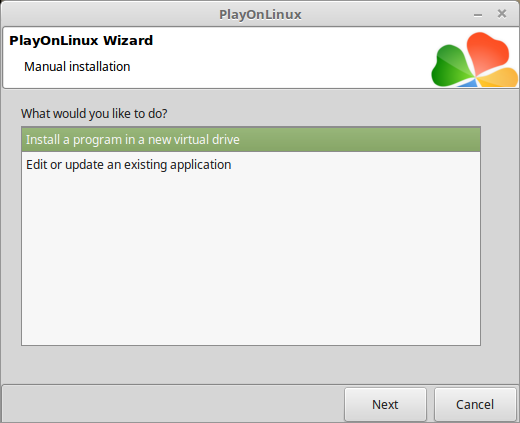

    Select "Install a program in a new virtual drive"
    Click Next

    Name the virtual drive: doom64
    Click Next

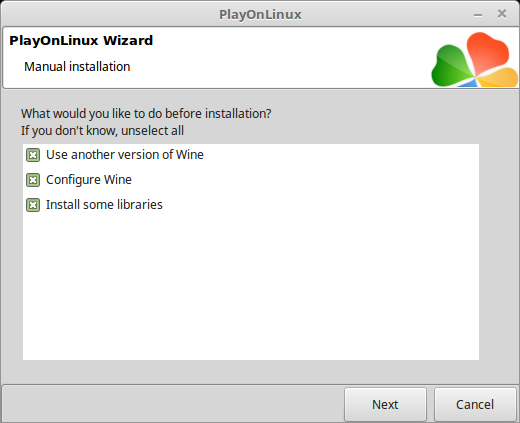

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

    Select Wine 2.0
    Click Next

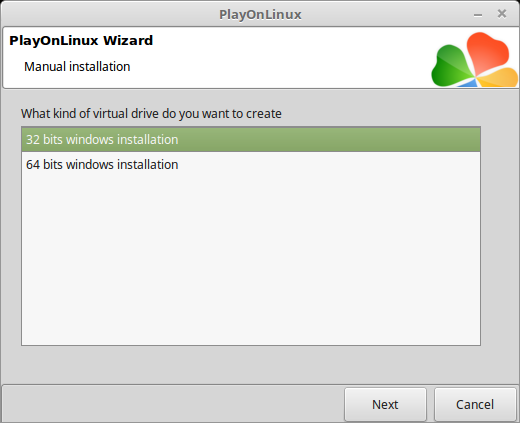

    Select "32 bits windows installation"
    Click Next

    Wine Configuration

    Applications Tab
    Windows version: Windows 7
    Click Apply

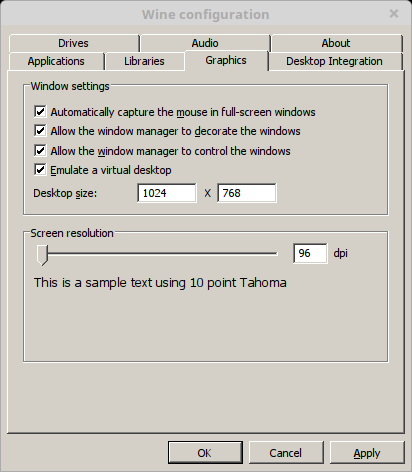

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Check "Emulate a virtual desktop"
    Desktop size: 1024x768
    Click OK

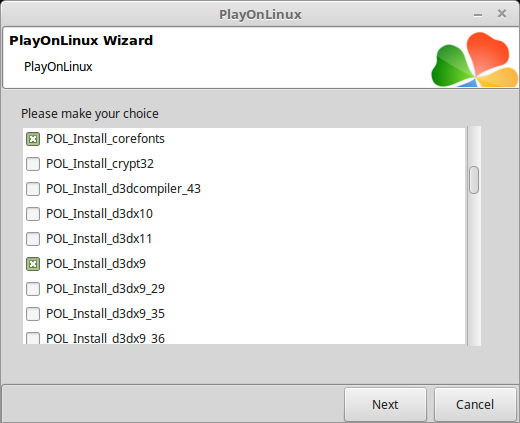

    Installing Packages (DLLs, Libraries, Components)

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    Click Next

    Note: All packages will automatically download and install

    Extract Doom 64 to virtual drive

    Click Exit on the PlayOnLinux installer
    Go to your Desktop

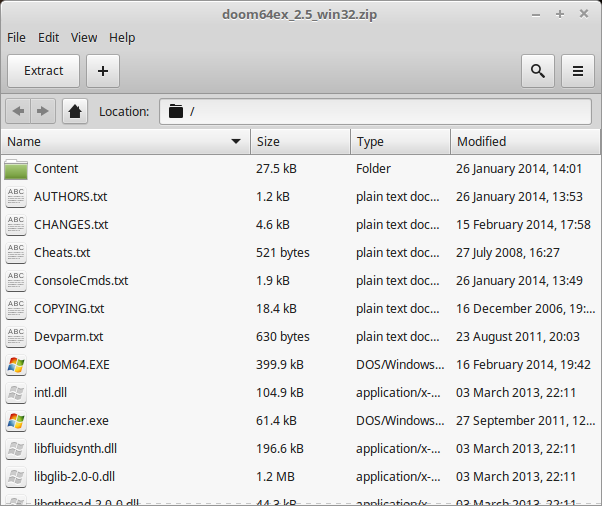

    Open the doom64ex_2.5_win32.zip with Archive Manager
    Click Extract

    Navigate to the doom64 virtual drive
    path: /home/username/.PlayOnLinux/wineprefix/doom64/drive_c/Program Files/

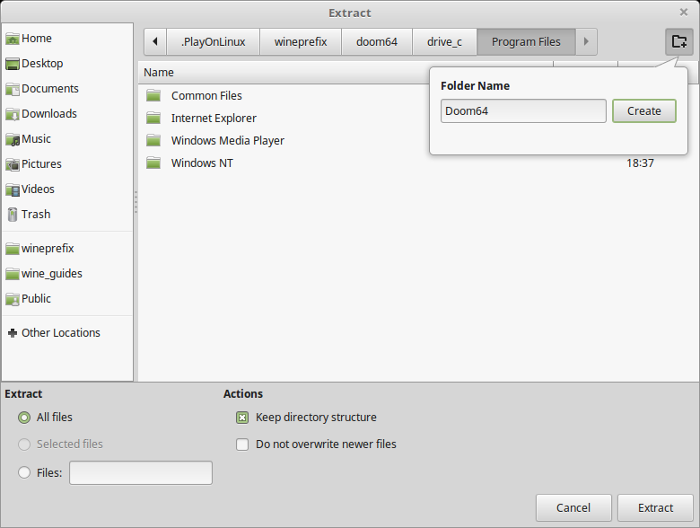

    Click the New Folder icon
    Name it: Doom64
    Click Create
    Click Extract

    Now the Doom 64 files are in the virtual drive
    Close Archive Manager

    PlayOnLinux Shortcut and Configure

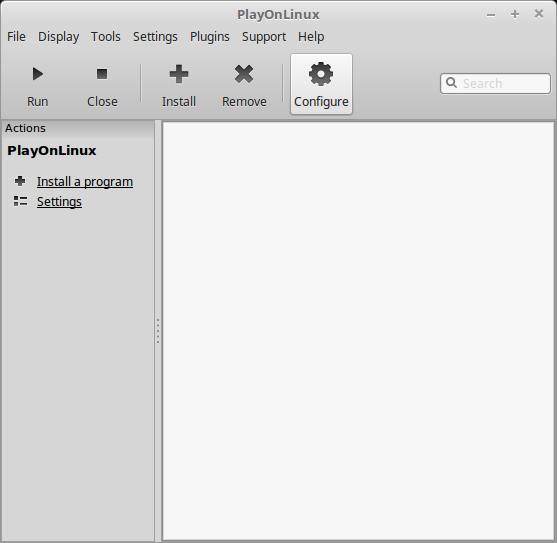

    Back to PlayOnLinux

    Click Configure

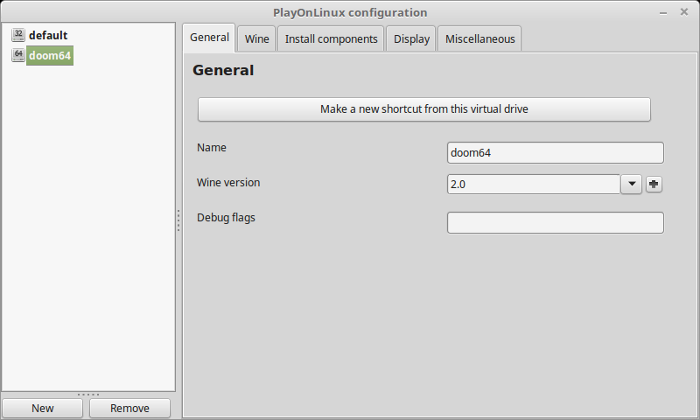

    General Tab

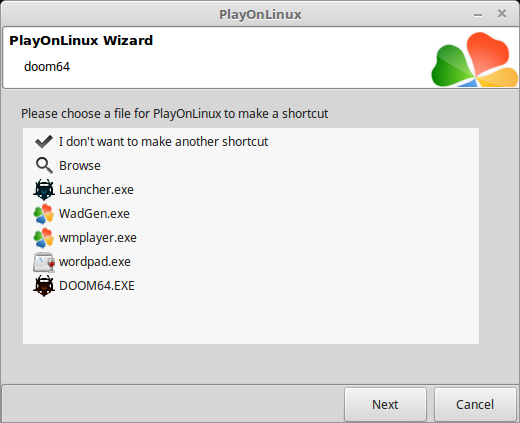

    Click "Make a new shortcut from this virtual drive"

    Select "Launcher.exe"
    Click Next

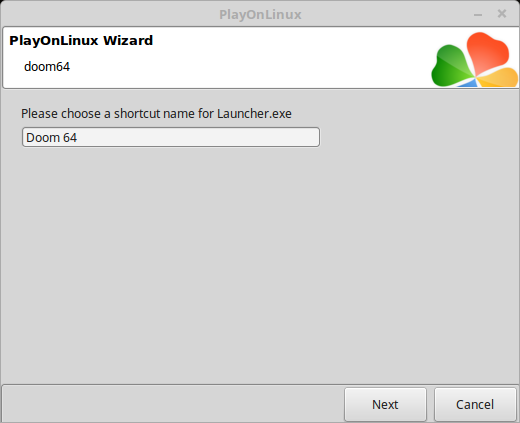

    Name the shortcut: Doom 64
    Click Next

    Select "I don't want to make another shortcut"
    Click Next

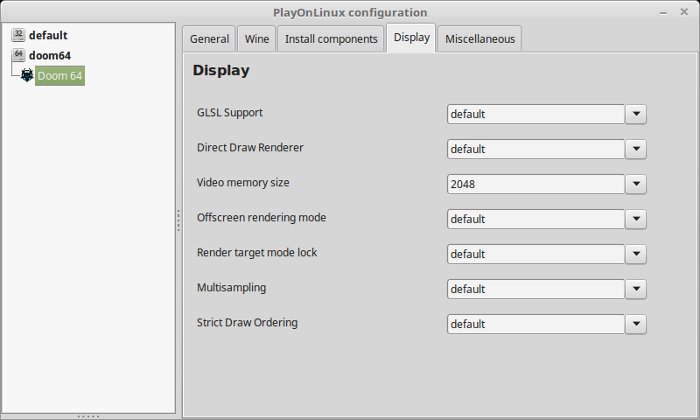

    Display Tab
    Select the new Doom 64 shortcut (left side)
    Video memory size: Enter the amount of memory your video card/chip uses

    Extracting WAD files

    Note: First search Google for Doom 64 ROM and download "Doom 64 (USA).n64" it should be in a zip file that you need to extract to your Desktop or virtual drive.

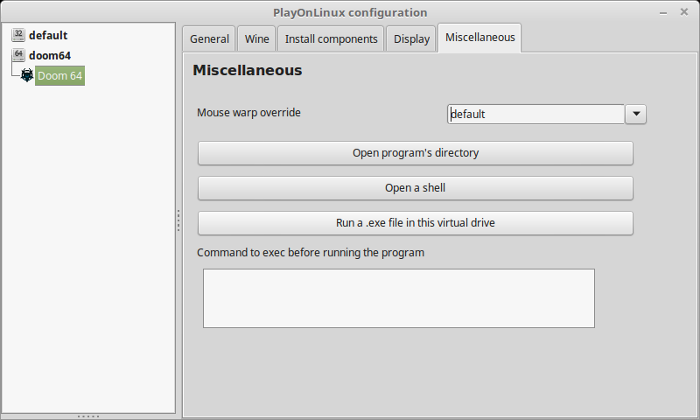

    Miscellaneous Tab
    Click "Run a .exe file in this virtual drive"

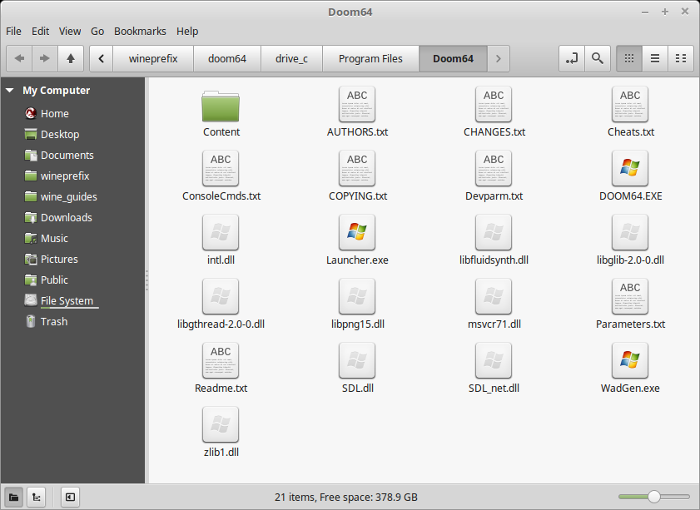

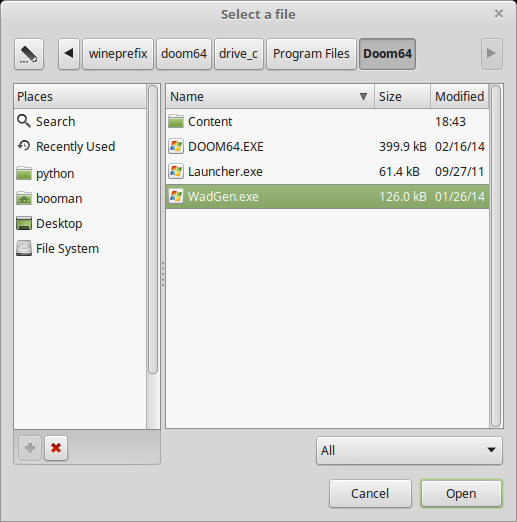

    Go to the Doom 64 folder
    path: /home/username/.PlayOnLinux/wineprefix/doom64/drive_c/Program Files/Doom64
    Select "WadGen.exe"
    Click Open

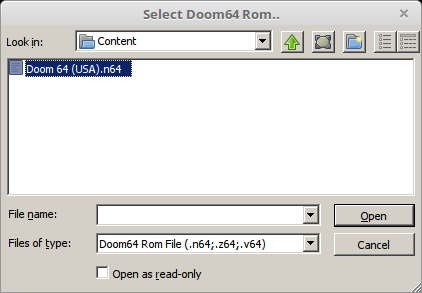

    Select the .n64 file you downloaded and extracted
    Click Open

    Success
    Click Ok

    Success
    Click OK

    Close Configure

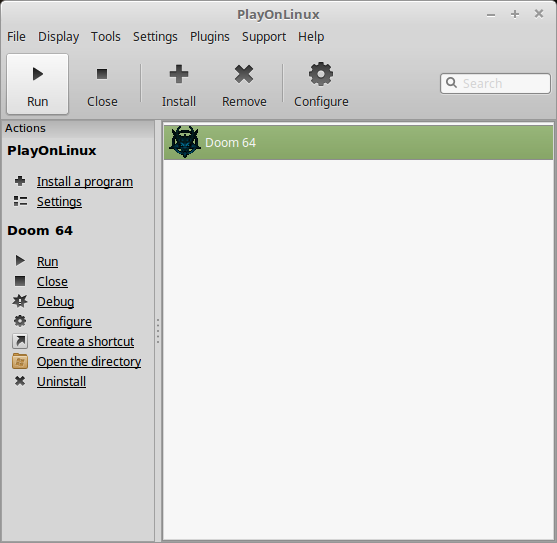

    Launching Doom 64

    Select Doom 64
    Click Run

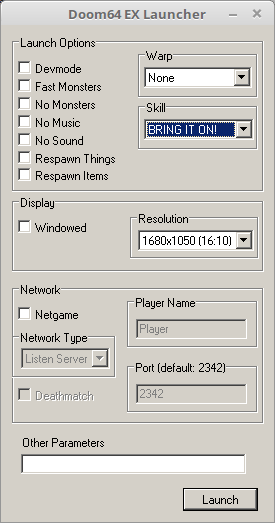

    Doom64 Launcher
    Select your launch options
    Select screen Resolution
    Click Launch

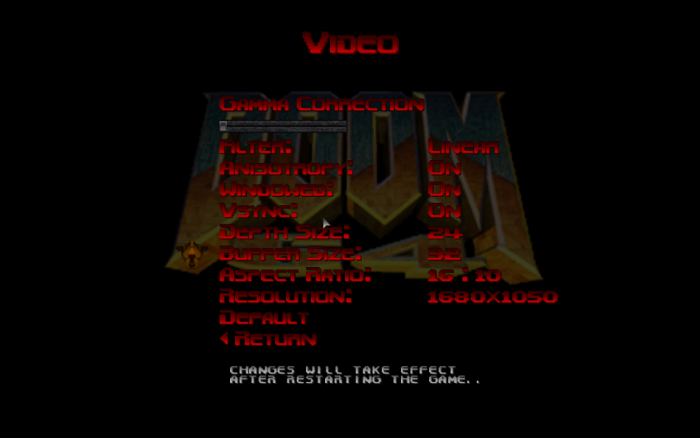

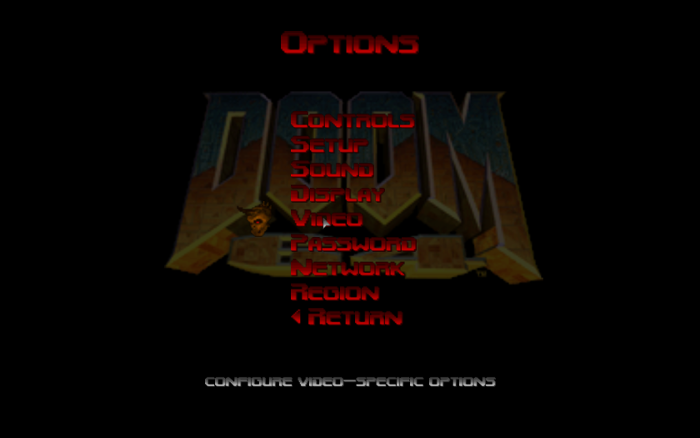

    In Game Options
    Click Options

    Click Video

    Adjust:
    • Filter
    • Anisotropic
    • Windowed
    • Vsync
    • Depth size
    • Buffer size
    • Aspect Ratio
    • Resolution
    Click Return

    Conclusion:
    Doom 64 ran perfectly and I was surprised to see all the extra options. I initially searched for a Native port, but couldn't find one. Until then, it runs great in PlayOnLinux. With the new launcher, you can set the resolution and in-game you can save or load your game to progress.
    I also tested a network co-op game, but it would play for about 30 seconds and lock up every time. I was getting a network related error, but not exactly sure why. I play LAN games all the time in PlayOnLinux.

    Enjoy some classic 90's Doom in Linux

    Gameplay Video:

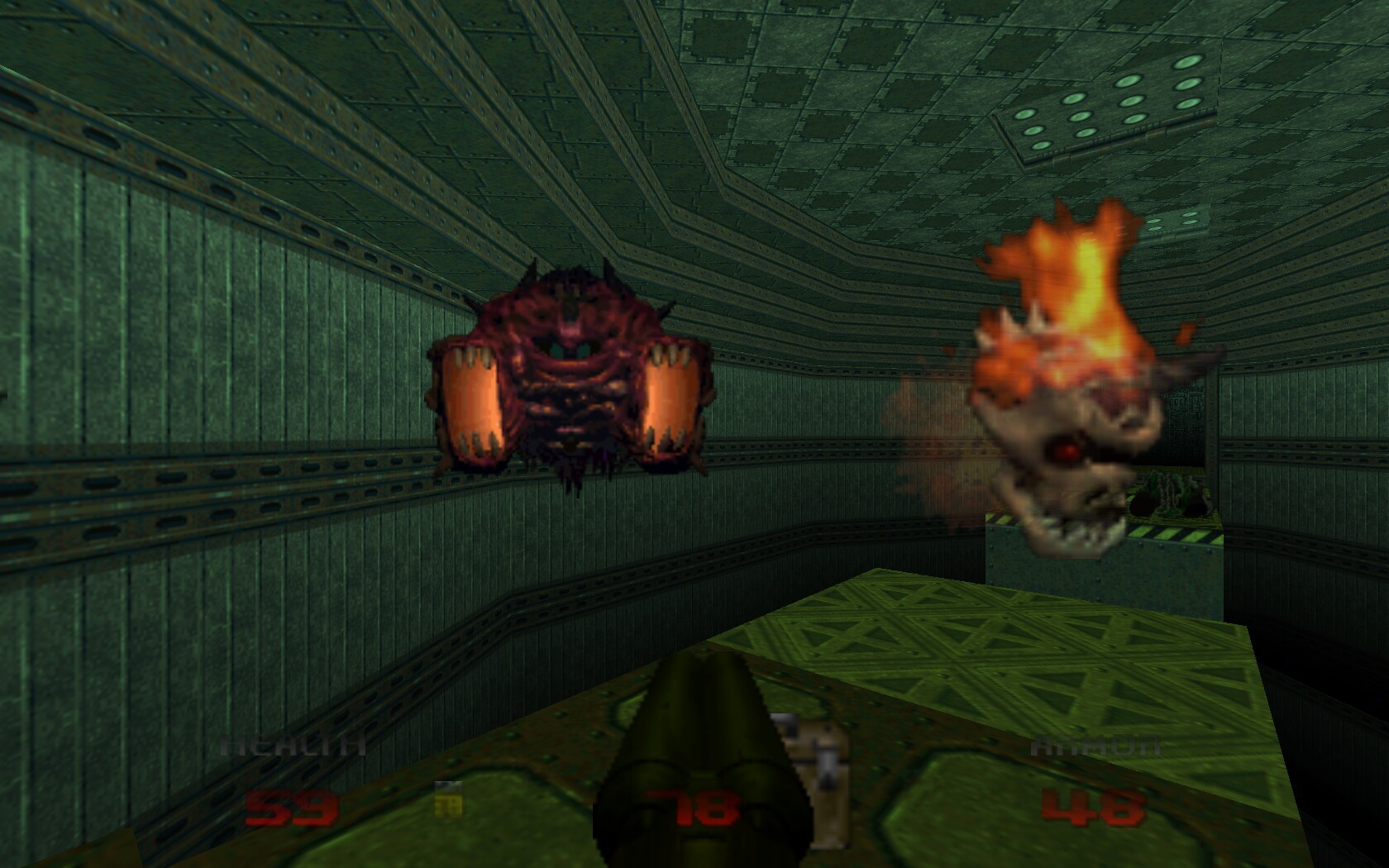

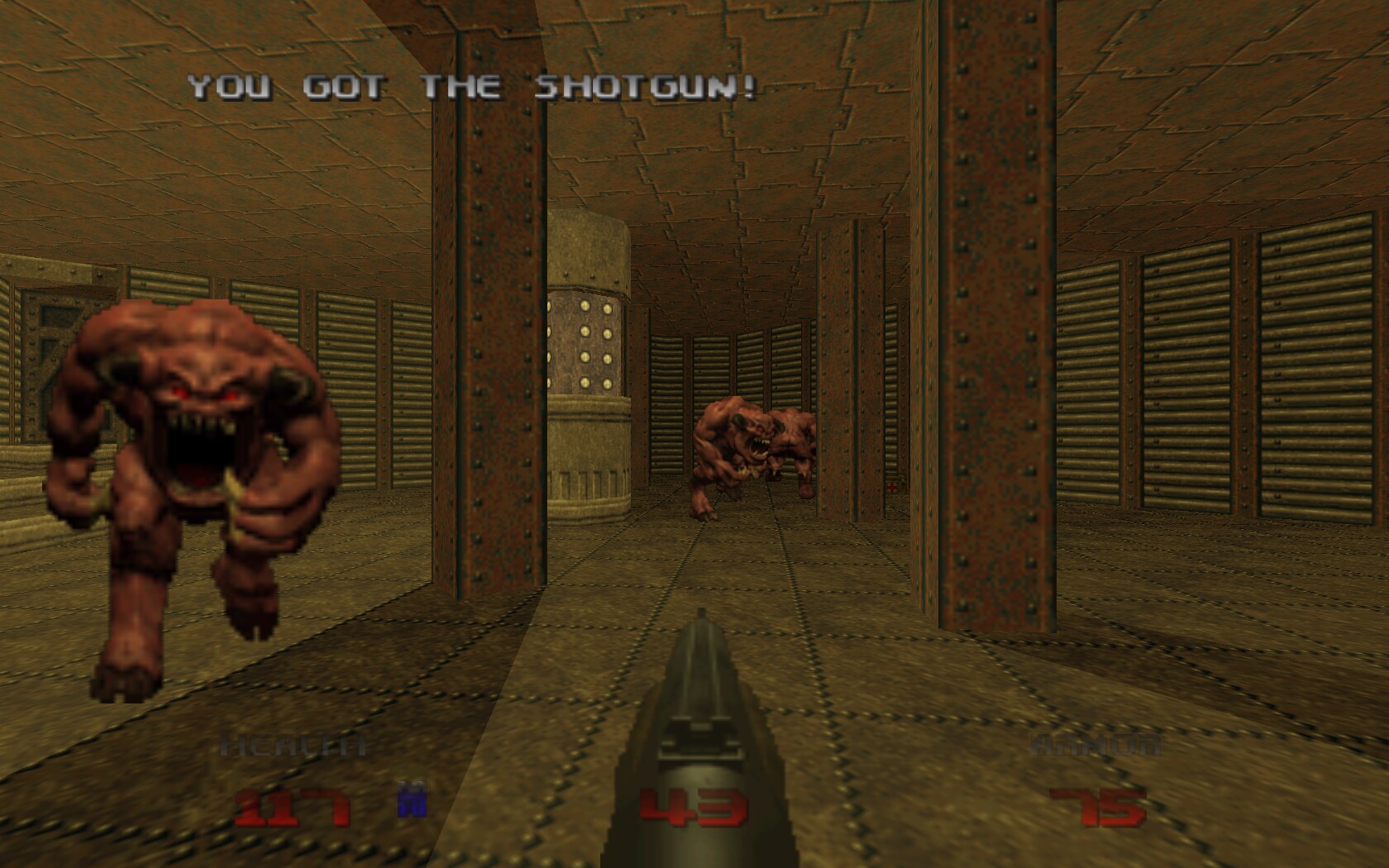

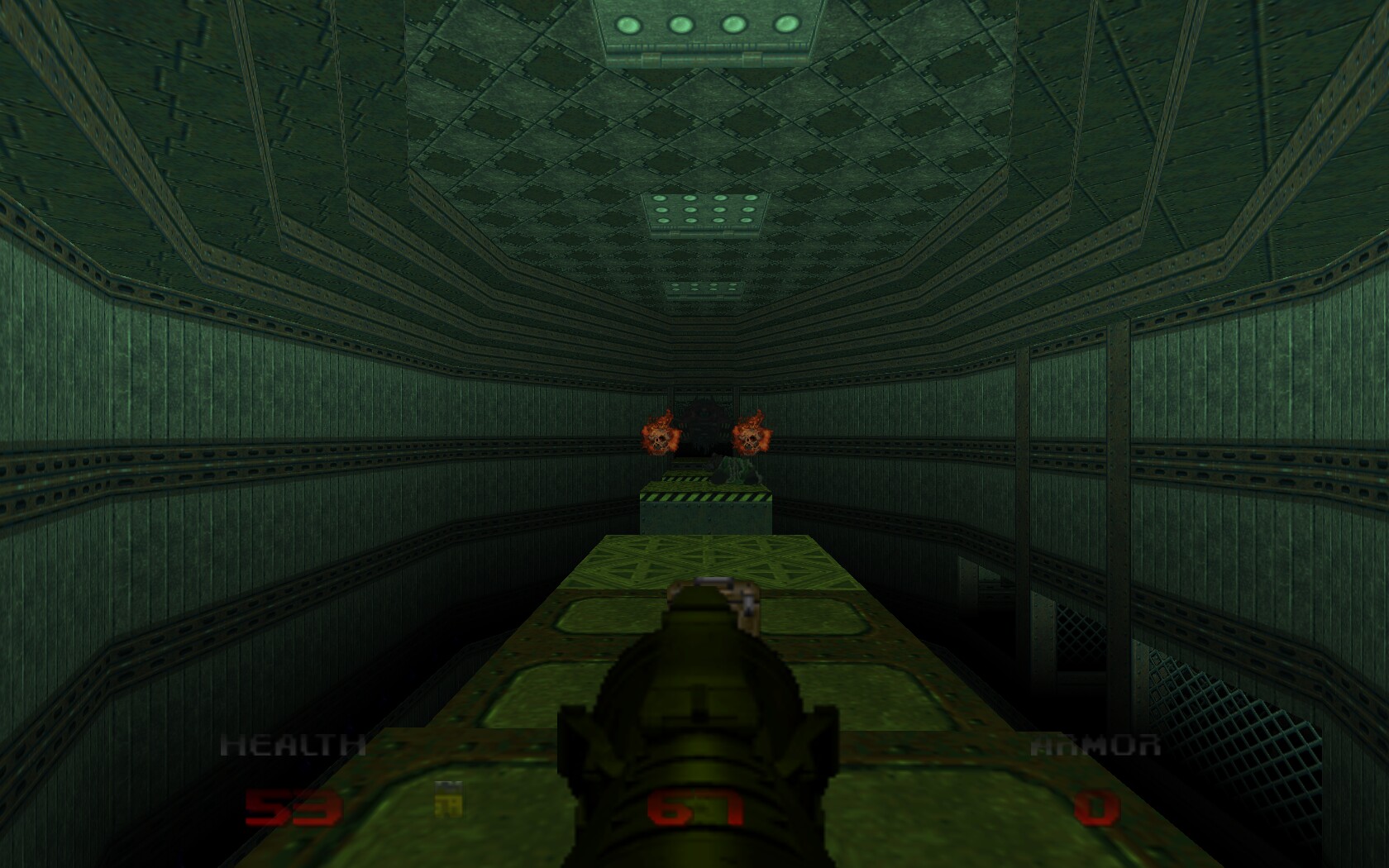

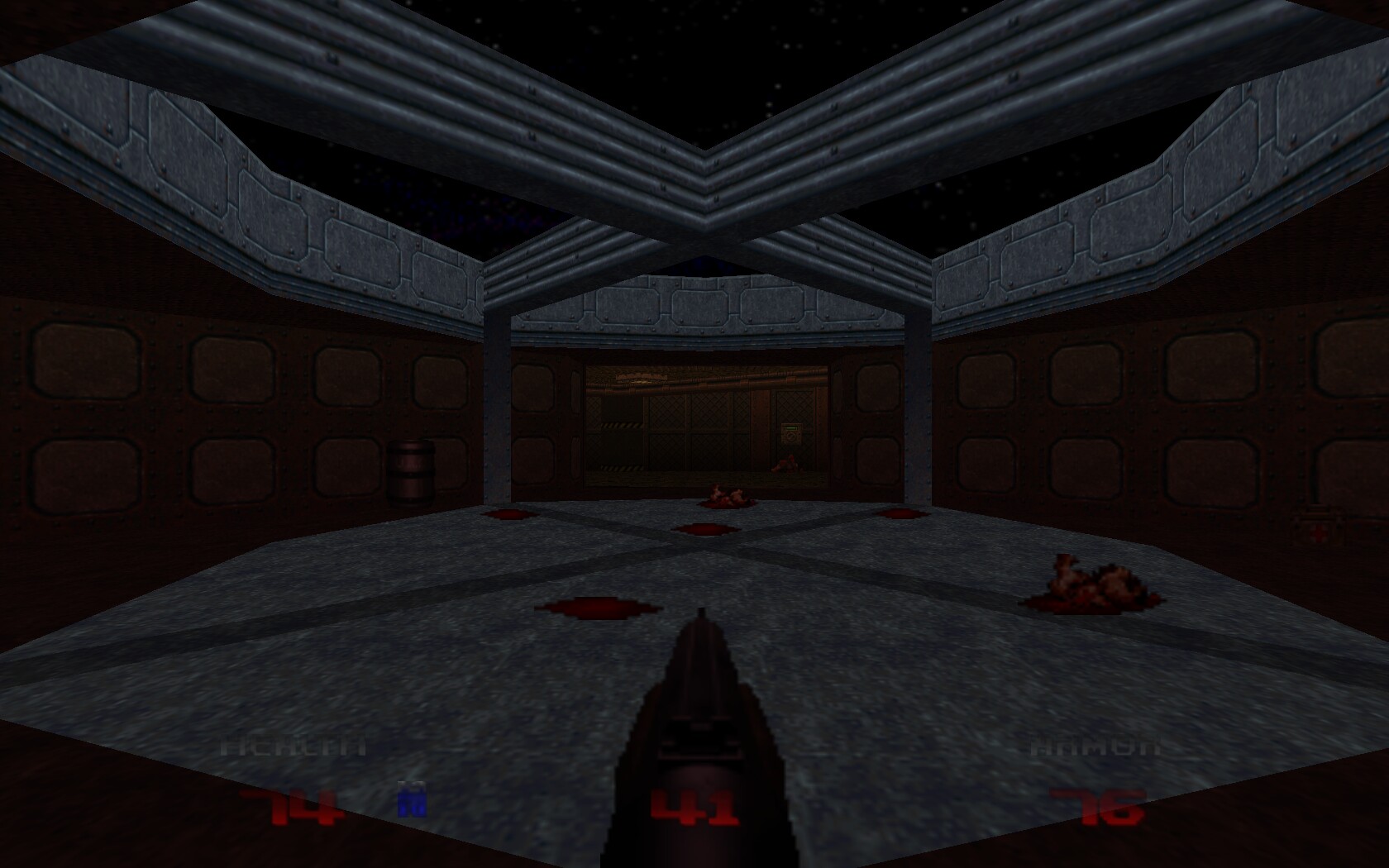

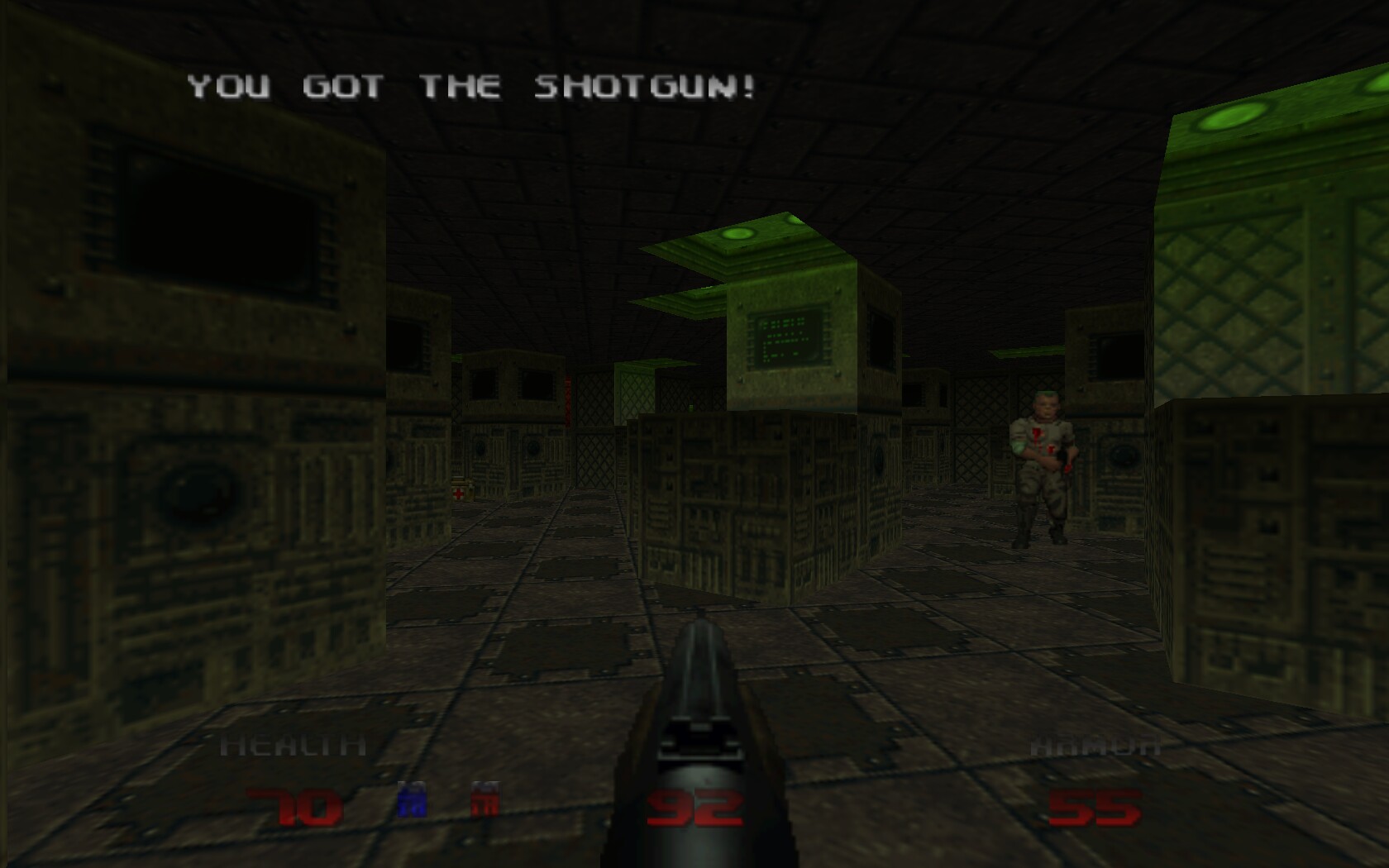

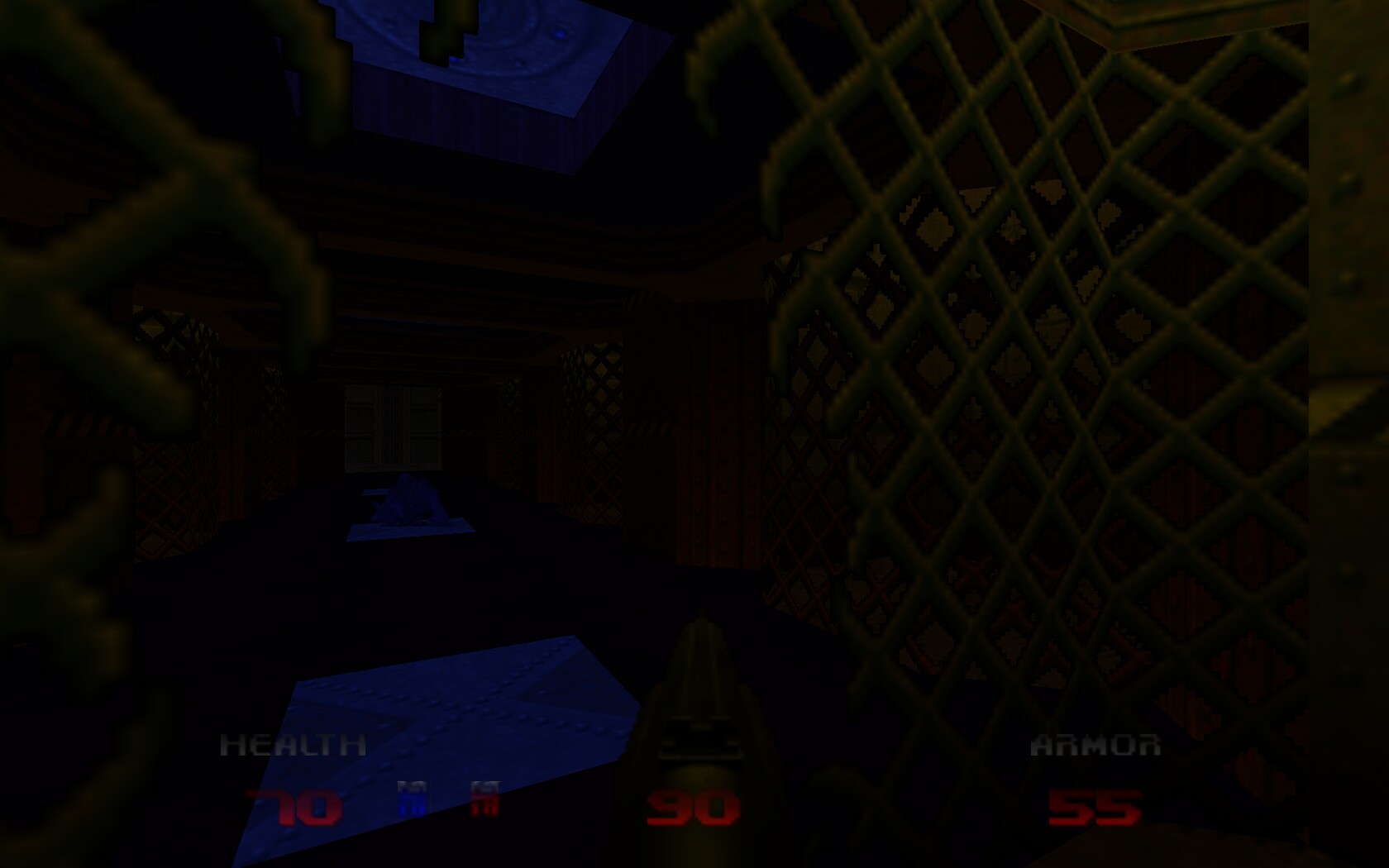

    Screenshots:






Comments

Discussion in 'Guides' started by booman, Apr 28, 2017.

  1. mrdeathjr28
    Good test and non common doom game

    :)
  2. booman
    Thank you! I was unable to successfully play co-op or multiplayer in Wine. I kept getting a crash on both PCs.
    Otherwise, singleplayer runs GREAT.
